4X2 JAC 3-5 Tons Refueling Truck With Fuel Dispenser

1-Tank volume:5.1m³(can be made into 1 or 2 compartments)

2-Tank material：aluminum alloy; stainless steel；carbon steel

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.
5-You can choose to install different brands of fuel dispensers.
6-Tank color: customized.

Product Name： 4X2 JAC 3-5 Tons Refueling Truck With Fuel Dispenser
Chassis brand： JAC

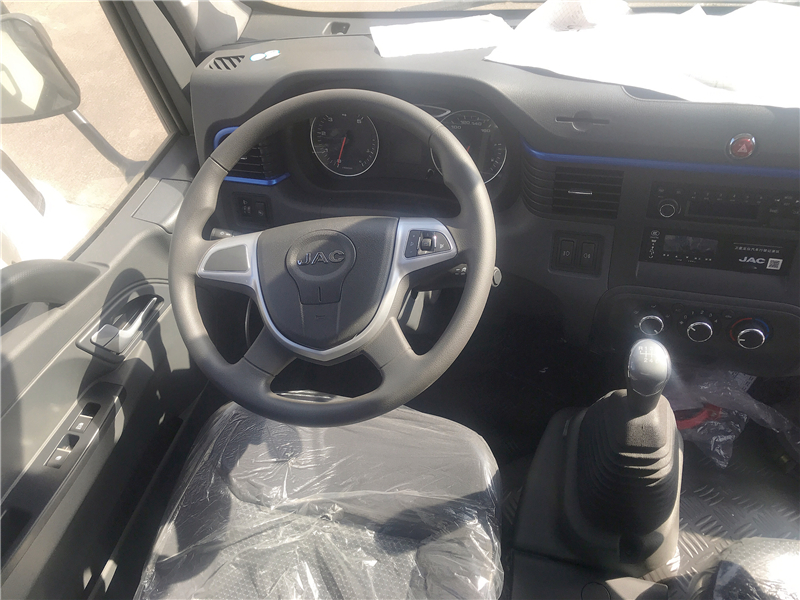

Driver： white flat top single row cab
Drive wheel： 4X2

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Main Parameter

Product Name	4X2 JAC 3-5 Tons Refueling Truck With Fuel Dispenser
Chassis brand	JAC
Driver	white flat top single row cab
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Weichai
Engine Model	WP2.3NQ130E61
Horse Power (HP)	130
Engine displacement	2.29L
Emission standard	Euro 6 (option:Euro3/4/5)
Wheel base	3365(mm)
Gearbox	6 forward gears and 1 reverse gear
Front wheel track	1600(mm)
Rear wheel track	1560(mm)
Front/rear suspension	1075/1460(mm)
Approach angle/departure angle	17/15(°)
F/R axle load	2640/4720
Axle numbers	2
Tire Specification and Quantity	7.00R16LT 14PR, 6 with a spare
Vehicle dimensions (mm)	5900×2050×2500(mm)
Tank dimension(mm)	3800×1600×1050(mm)
Gross vehicle weight(Kg)	7355(Kg)
Curb weight(Kg)	3755(Kg)
Rated weight(Kg)	3405(Kg)
Tank volume	5.1 cubic meter
Tank material	aluminum alloy/stainless steel/carbon steel
Standard configuration	Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
