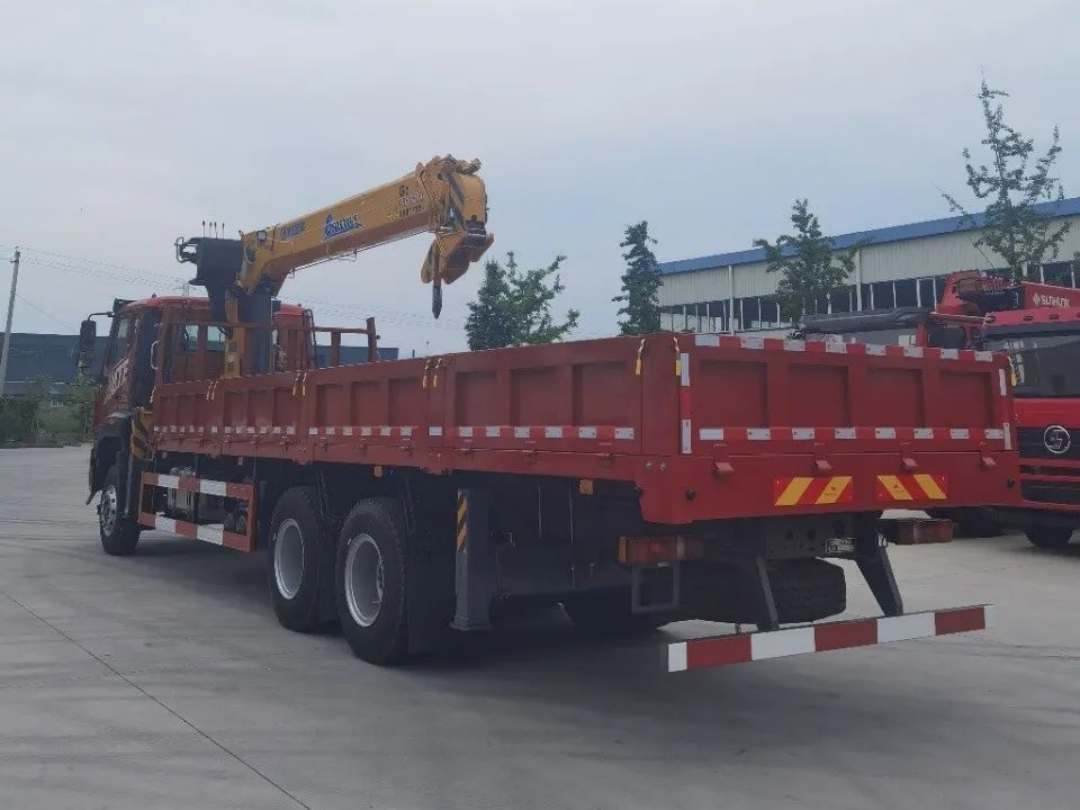

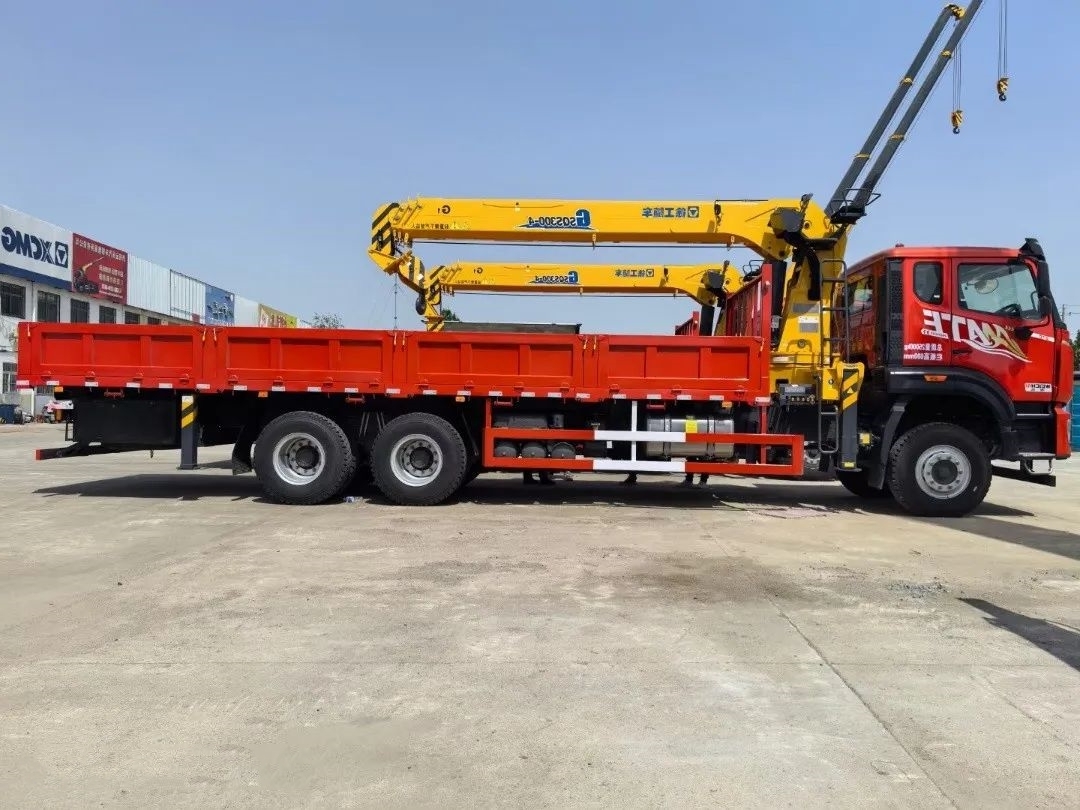

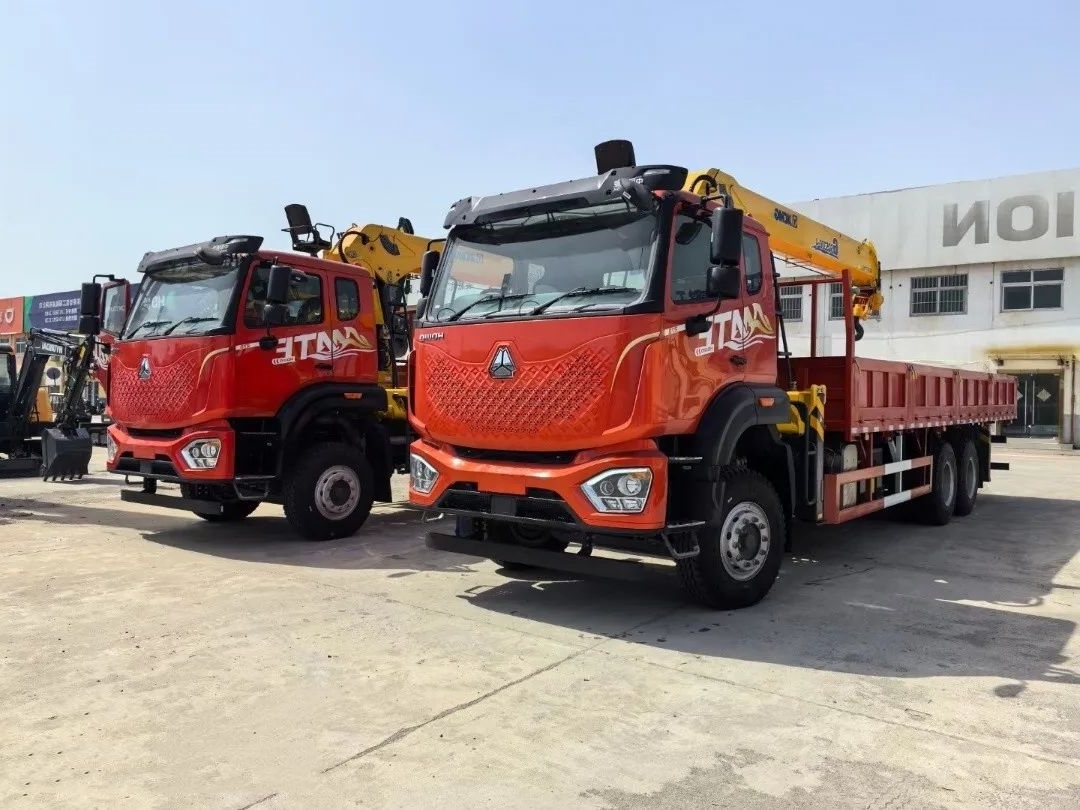

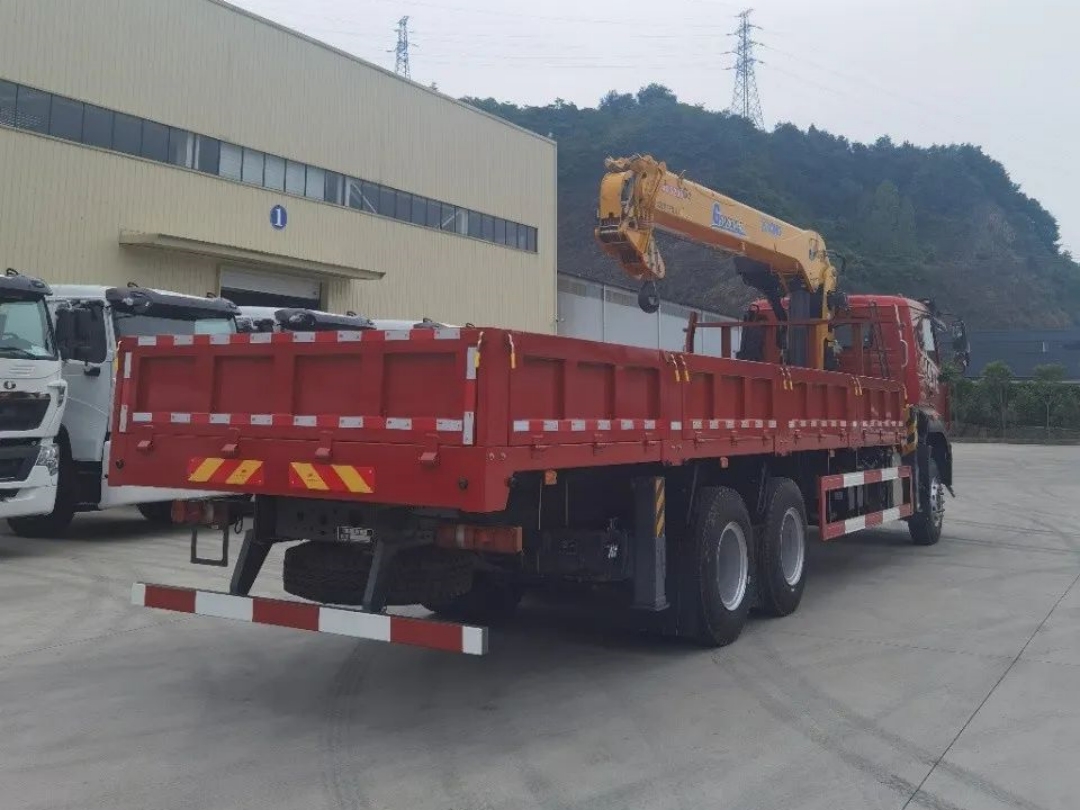

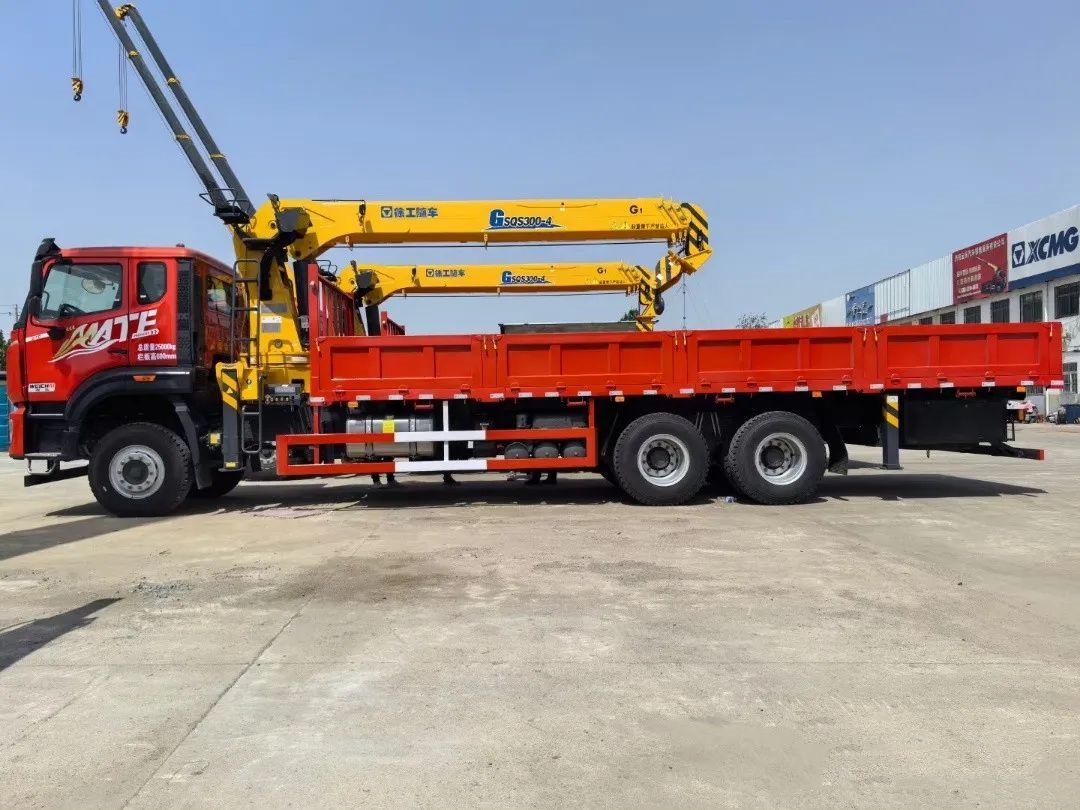

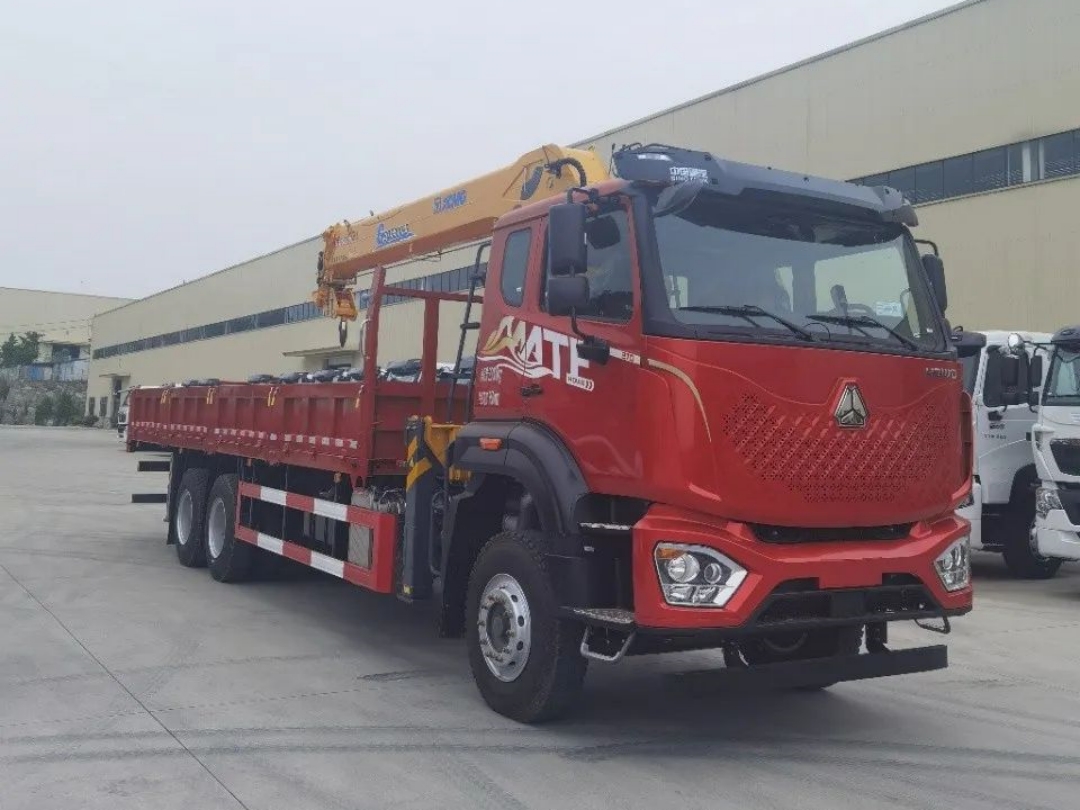

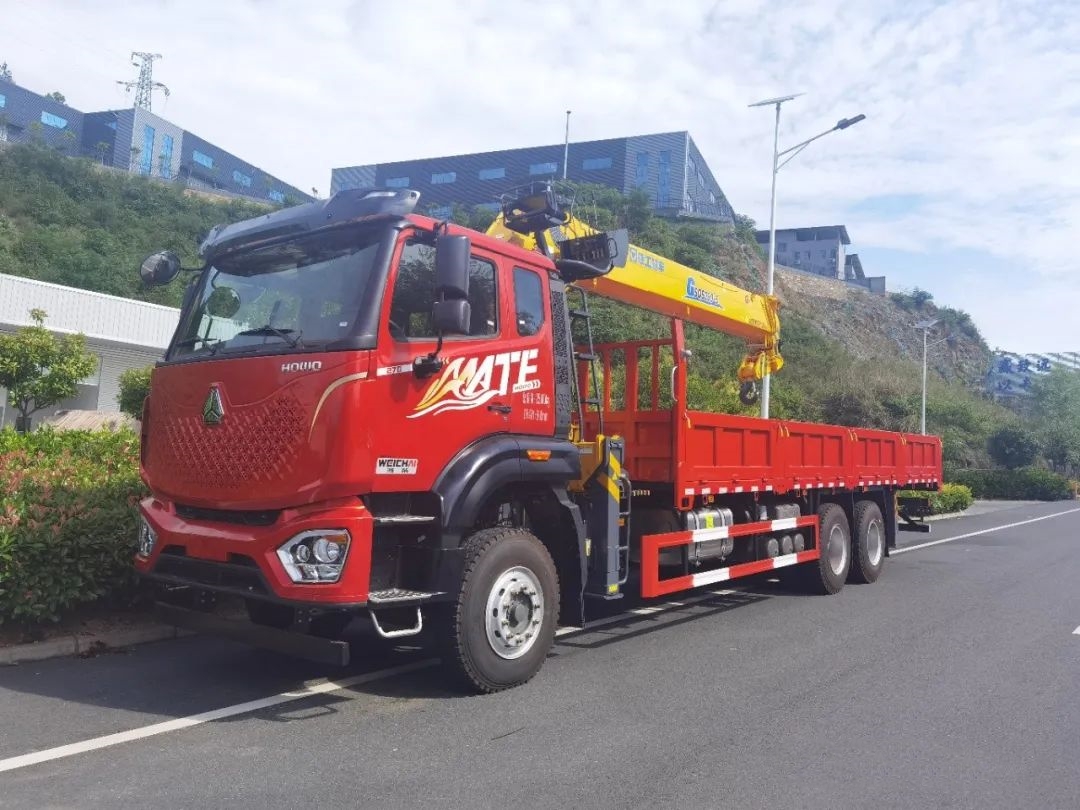

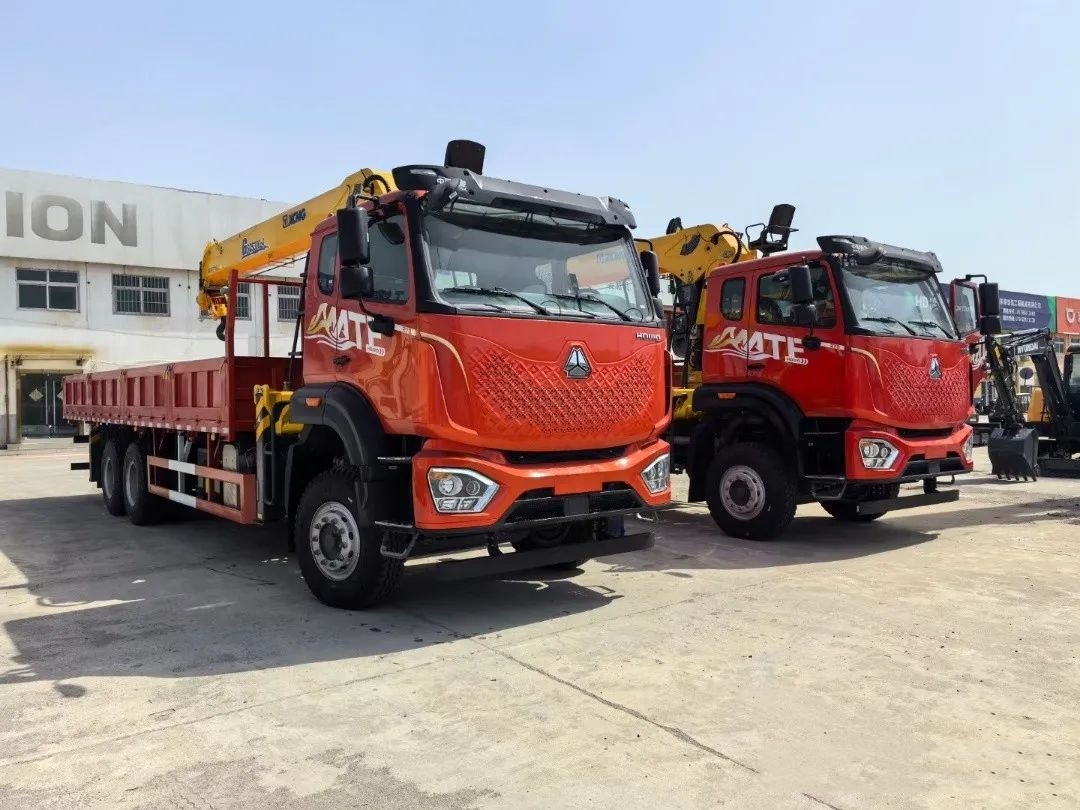

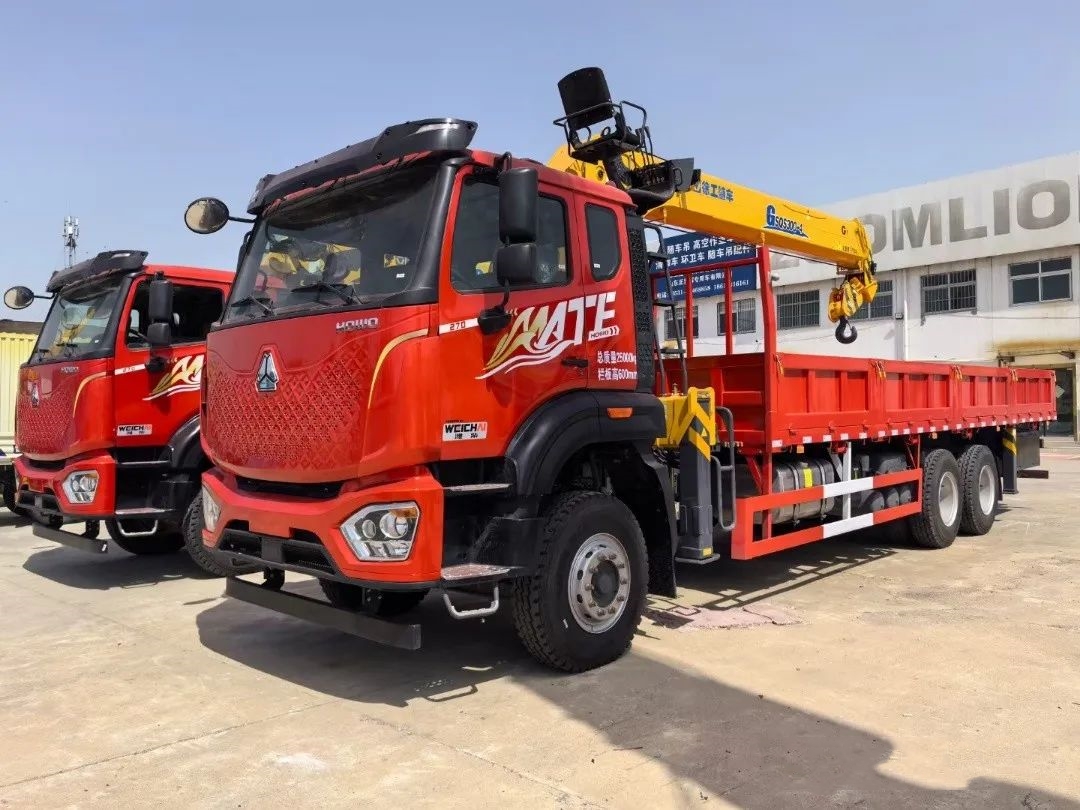

Sinotruk Howo 6X4 truck with XCMG 14 ton 5-section crane

Chassis configuration:

1. Engine: WP7H270E62, Weichai 270hp

2.Transmission type: 9-speed gearbox

3.Tyre: 11.00 steel wire tire,10 +1 spare

4.Wheelbase:5825+1350(mm)

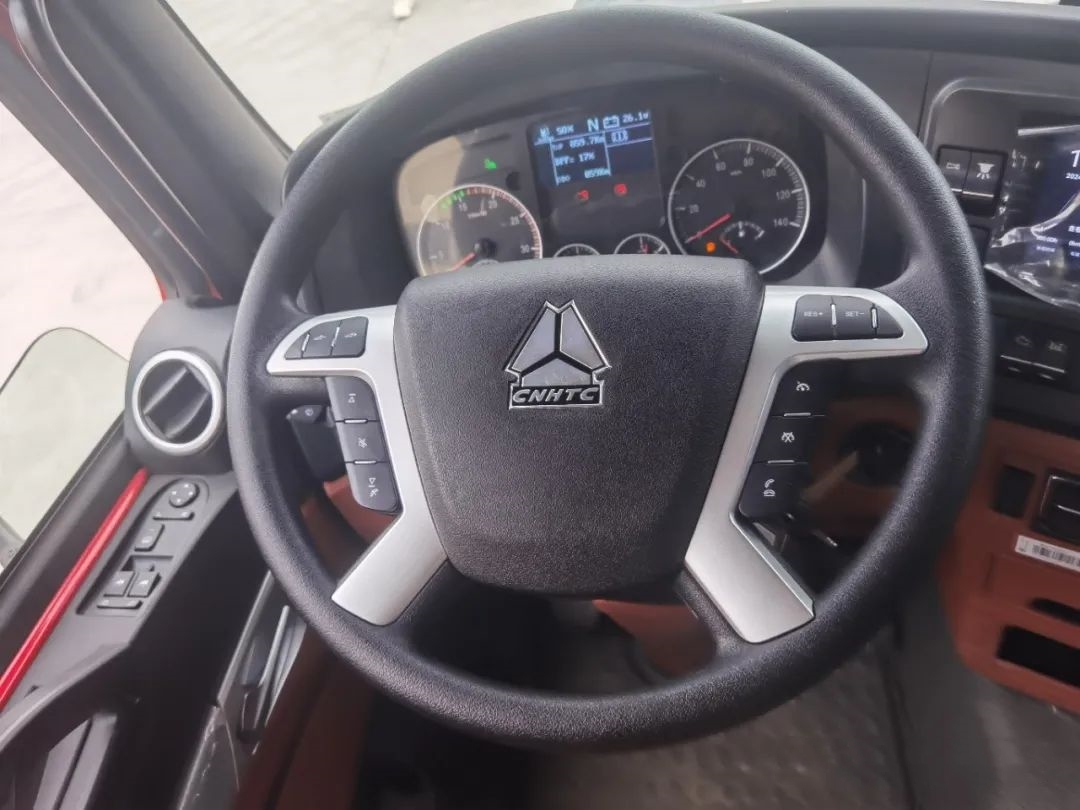

5.Other: NX series, original Mercedes Benz driver's cabin body immersive driving experience, front and rear spring shock absorber luxury interior with airbag seats, central locking, original air conditioning, electrically heated rearview mirror, integrated flashlight lifting, high bumper. Streamlined design, with a 900mm ultra wide sleeper space for greater comfort.
Installation configuration:

Crane: XCMG 14 tons, 5 sections, upward operation, lifting height of 21.96 meters, fully extended arm length of 19.6 meters, double rotation, XCMG original factory double chamber hydraulic rear support legs, XCMG original factory heat exchanger, one key start.

Product Name： Sinotruk Howo 6X4 truck with XCMG 14 ton 5-section crane
Driving Type： 6X4
Gross vehicle weight(Kg)： 25000(Kg)
Curb weight(kg)： 17000,18000(Kg)

Product Features

Sinotruk Howo 6X4 truck with XCMG 14 ton 5-section crane

A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.

Product parameters

Product Name	Sinotruk Howo 6X4 truck with XCMG 14 ton 5-section crane
Driving Type	6X4
Gross vehicle weight(Kg)	25000(Kg)
Curb weight(kg)	17000,18000(Kg)
Rated weight(kg)	6805,6870,7805,7870(Kg)
Wheel base(mm)	5825+1350(mm)
Overall dimension(mm)	12000×2500,2550×3850,3950,3980(mm)
Cargo box dimension(mm)	7800,8000,8200,8300,8400×2400,2450×550,600,800(mm)
Engine brand & model	WP7H270E62, Weichai 270hp
Displacement(L)/Power(kw)	6.8L/199KW
Axle Quantity	3
Transmission Type	9-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	air brake
Tire Spec. & size	11.00 steel wire tire,10 +1 spare
Cab	NX series, original Mercedes Benz cab
Crane configuration	XCMG 14 tons, 5 sections, upward operation, lifting height of 21.96 meters, fully extended arm length of 19.6 meters, double rotation, XCMG original factory double chamber hydraulic rear support leg, XCMG original factory heat exchanger, one key start. (Other brands and other tonnage cranes can be matched)
Cargo box material	Channel steel, square tube, corrugated board
Optional	1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
