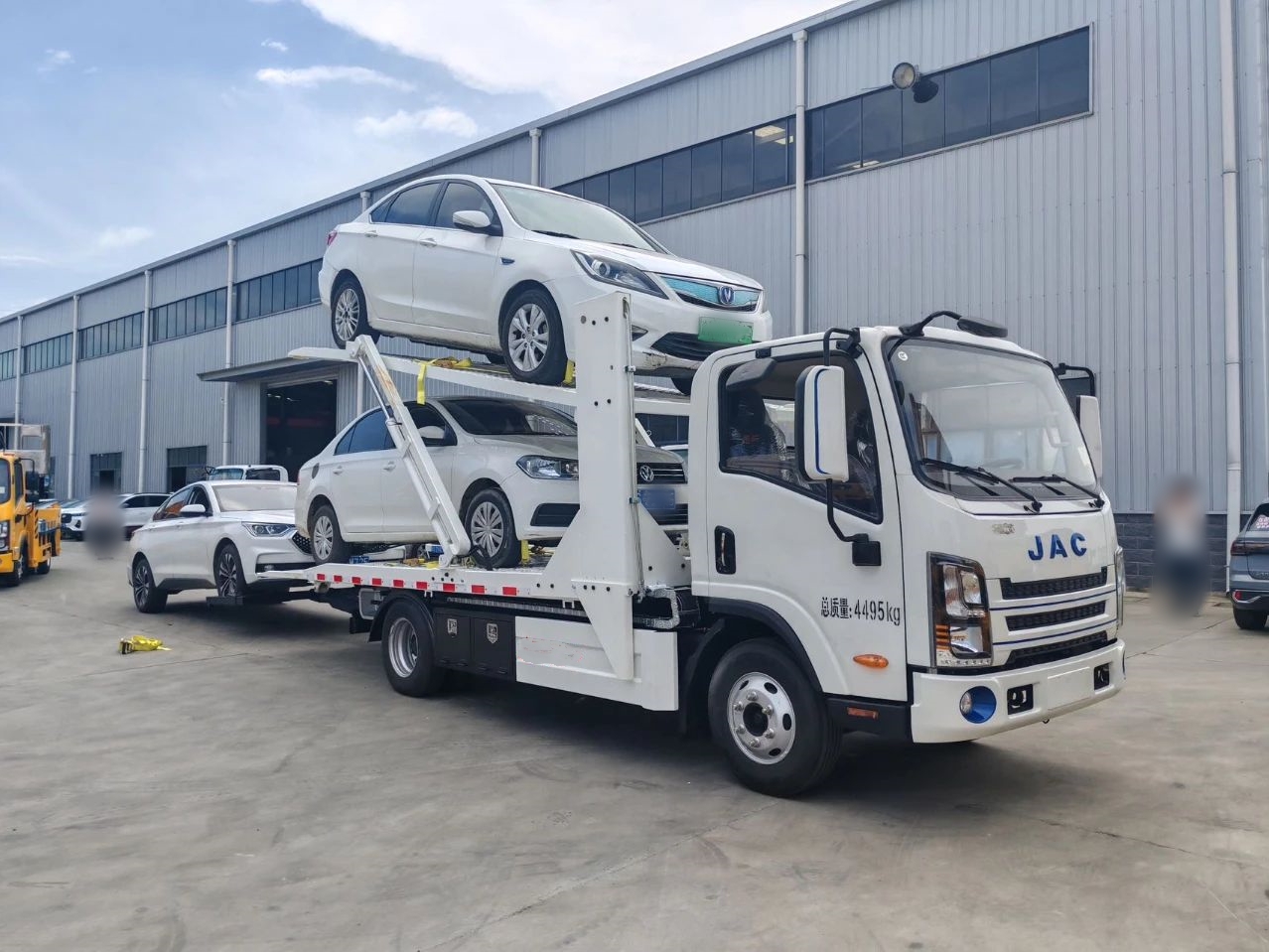

JAC Full Landing Two Position Board Electric Clearing Vehicle

Chassis configuration:

JAC EV new energy mid body cab, automatic transmission, wheelbase of 3600, with a range of 360 kilometers, advanced motor set, Ningde Times battery of 100 kWh, (accessories from top domestic brands), air brake, 7.00R16 steel wire tires, 5-ton rear axle, multifunctional steering wheel, LCD display screen.

Product Name： JAC Full Landing Two Position Board Electric Clearing Vehicle
Driving Type： 4X2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 2865,2800(Kg)

Product Features

JAC Full Landing Two Position BoardElectric Clearing Vehicle

Electric clearing vehicleis a type of clearing vehicle driven by electricity, mainly used for road rescue and towing operations of malfunctioning vehicles. Electric obstacle clearing vehicles have the advantages of environmental protection, low noise, and low maintenance costs, making them suitable for use in places with high environmental requirements such as cities and scenic spots.

Installation configuration:
Full floor telescopic board installation, 120 stretching oil cylinder, one board length of 5.6 meters (main board 4.2 meters, tail extension 1.4 meters), two board length of 4 meters stamping board, board width 2.38 meters, 70 two board lifting oil cylinder, 3-ton rear arm hanging main beam, two toolboxes, 8 straps, one pair of seven character arms, one pair of tire tubes, with trailing arm, can be used as single-layer inclined board and full floor.

Product parameters

Product Name	JAC Full Landing Two Position Board Electric Clearing Vehicle
Driving Type	4X2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	2865,2800(Kg)
Rated weight(kg)	1500(Kg)
Cab	JAC EV new energy mid body cab
Engine brand & model	TZ220XS-SJ01, 190HP, electric-driven
Wheelbase(mm)	3600(mm)
Axle Quantity	2
Transmission Type	automatic transmission
Steering Type	LHD or RHD with power steering
Tire Spec. & size	7.00R16, 6+1 spare
Overall Dimension(mm)	5998×2550,2380,2300,2400,2500×2330(mm)
Crane specification	no crane (Crane can be installed)
Standard configuration	Full floor telescopic board installation, 120 stretching oil cylinders, one board length of 5.6 meters (main board 4.2 meters, tail extension 1.4 meters), two board length of 4 meters stamping board, board width 2.38 meters, 70 two board lifting oil cylinders, 3-ton rear arm hanging main beam, two toolboxes, 8 straps, one pair of seven character arms, one pair of tire tubes
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
