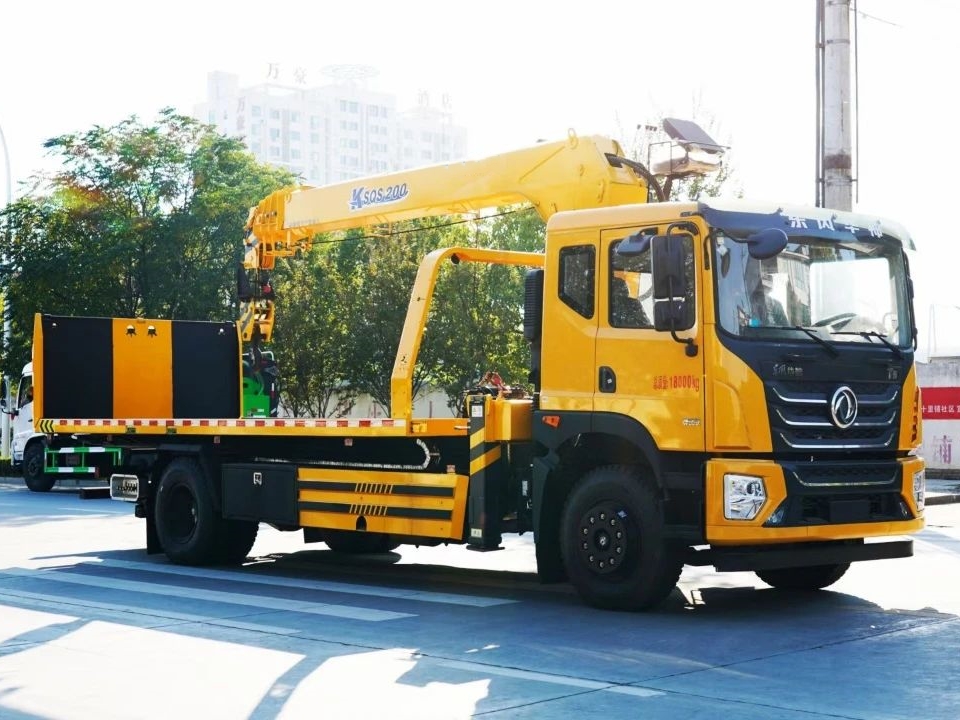

Dongfeng T5 obstacle clearing vehicle with crane

Chassis configuration:

T702B luxury cab, Yuchai YCS06220-605600mm, SC-8JS85E-C， Equipped with a plug-in power take-off, 5.5T/10T, 300 straight through three-layer, 10.00R20 18PR, 9/11+8, airbag seat, remote control center console, multi lock in one, driving recorder, air conditioning, multifunctional steering wheel, new front face, and new bumper.

Product Name： Dongfeng T5 obstacle clearing vehicle with crane
Driving Type： 4X2
Gross vehicle weight(Kg)： 18000(Kg)
Curb weight(Kg)： 16000,15200,14800(Kg)

Product Features

Dongfeng T5 obstacle clearing vehicle with crane

An obstable clearing vehicle with a crane is a specialized vehicle that combines the functions of a clearing vehicle and an on-board crane. It is mainly used for tasks such as road malfunction vehicles, urban illegal vehicles, and emergency rescue. This type of vehicle has added a lifting function on the basis of ordinary clearing vehicles, which can cope with more complex situations during rescue, such as the accident vehicle leaving the roadbed, and complete rescue tasks through the lifting function. The main equipment consists of a lifting platform, winch, crane, and hydraulic device.

Installation configuration:
10 ton, made of 7mm high-strength patterned plate (with strong anti slip ability, high load-bearing capacity, and beautiful appearance). The total length of the flat plate of the vehicle is 7.4 meters (including the tail plate length of 1.1 meters), the width is 2.55 meters, and the load-bearing mass of the flat plate is 8 tons. Using Jiashan power take-off, Changyuan pump, Italian Hyde valve with two balance valves, hydraulic oil pipe adopts pressure resistant double-layer steel wire oil pipe, with a pressure resistance of 18 megapascals, 1 toolbox, equipped with two small cars (auxiliary wheels), 4 binding straps, a pair of L-shaped tire racks, a pair of fork supports, a pair of fork seats, 2 rear work lights, 1 10 ton hydraulic winch (25 meter steel wire rope), 10 ton three section arm rear towing.

Product parameters

Product Name	Dongfeng T5 obstacle clearing vehicle with crane
Driving Type	4X2
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	16000,15200,14800(Kg)
Rated weight(kg)	/(Kg)
Cab	Dongfeng T5 cab
Engine brand & model	YCS06220-60, Yuchai 220hp
Wheelbase(mm)	5600(mm)
Axle Quantity	2
Transmission Type	8-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	10.00R20 18PR, 6+1 spare
Overall Dimension(mm)	10350,10510,9950,10110,10150,10310,9650,9810,9685,9700×2550,2500×3850,3750,3650(mm)
Crane specification	8-ton 5-section arm crane
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
