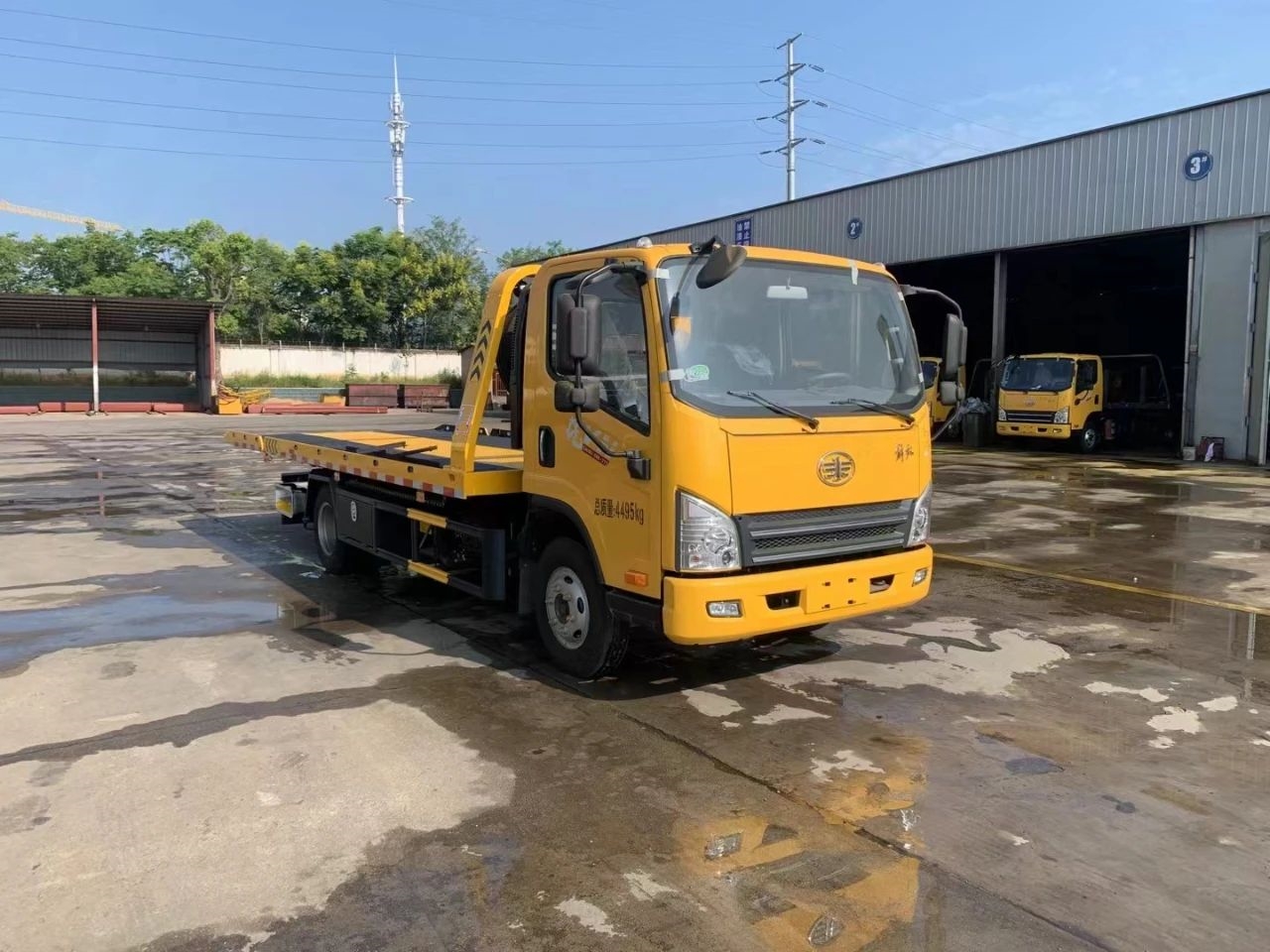

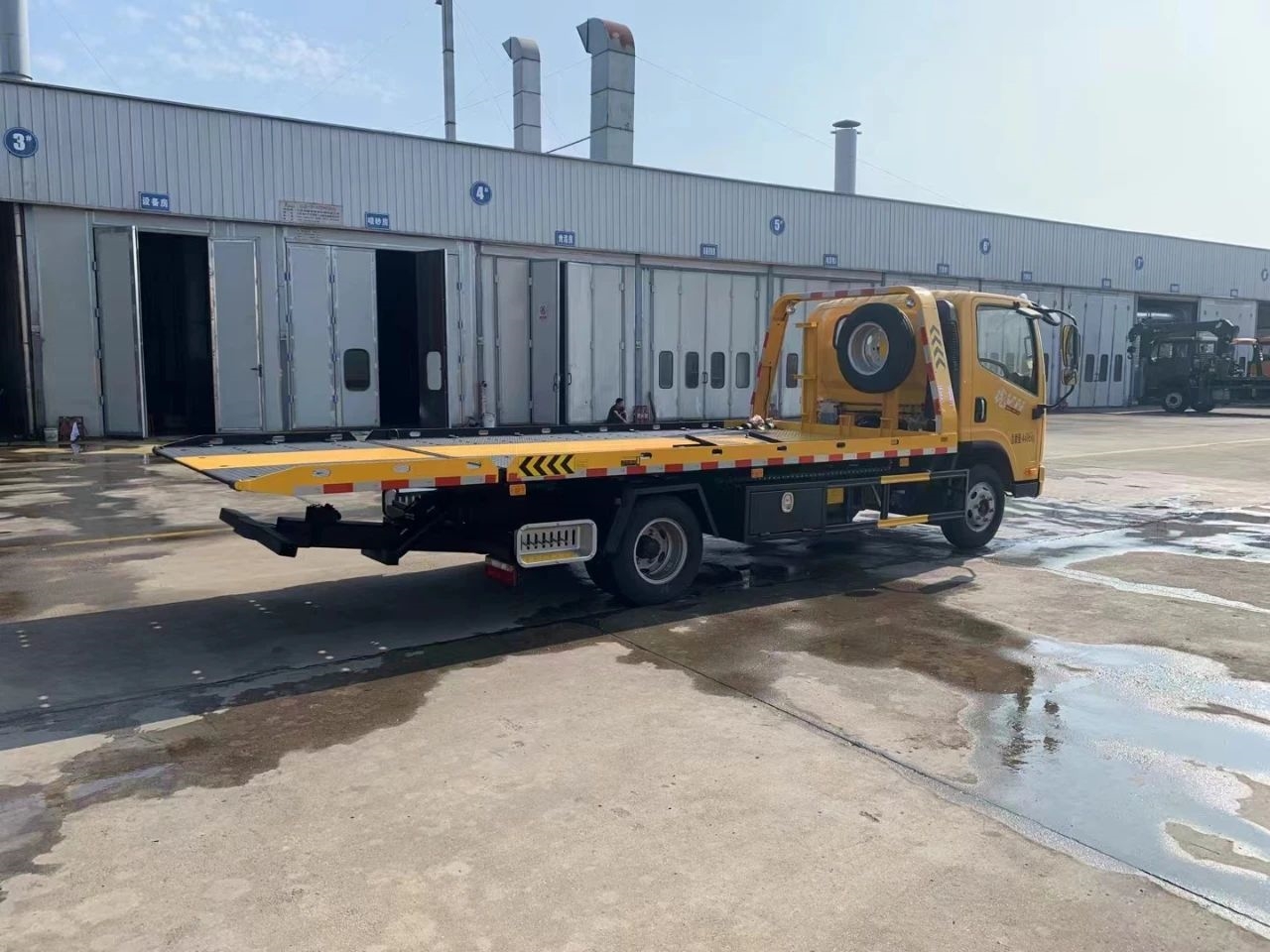

Jiefang single row 7-ton obstacle clearing vehicle

Chassis configuration:

Jiefang Xichai 140 horsepower, Wanliyang 6-speed, 270 rear axle, airbag seats, 7.00 steel tires, multifunctional steering wheel with air brake, cruise control, adjustable headlights, ABS,air conditioning, central control door lock, electric doors and windows, original double-layer beam.

Product Name： Jiefang single row 7-ton obstacle clearing vehicle
Driving Type： 4X2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 2865,2800(Kg)

Product Features

Jiefang single row 7-ton obstacle clearing vehicle

Obstacle clearing vehicles,also known as road clearing vehicles, trailers, road rescue vehicles, and towing vehicles, have multiple functions such as lifting, pulling, and lifting. Obstacle clearing vehicles are mainly used for road malfunctioning vehicles, urban illegal vehicles, and emergency rescue.

Installation configuration:
The board is 5.6 meters long (4.2 meters for the main board and 1.4 meters for the hydraulic flip board), 2.3 meters wide, with a flat main oil cylinder and a rear trailing arm lifting oil cylinder with an outer diameter of 110, and double auxiliary beams. Easily drag 7 tons.

Product parameters

Product Name	Jiefang single row 7-ton obstacle clearing vehicle
Driving Type	4X2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	2865,2800(Kg)
Rated weight(kg)	1500(Kg)
Cab	jiefang VN (1900mm), three seater cab
Engine brand & model	Xichai 140 horsepower
Wheelbase(mm)	3600(mm)
Axle Quantity	2
Transmission Type	Wanliyang 6-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	7.00R16, 6+1 spare
Overall Dimension(mm)	5995×2300,2400,2550×2280,2320,2350(mm)
Crane specification	no crane (Crane can be installed)
Standard configuration	12P12 patterned flat plate (8mm), the rear of the motherboard can be hydraulically flipped
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
