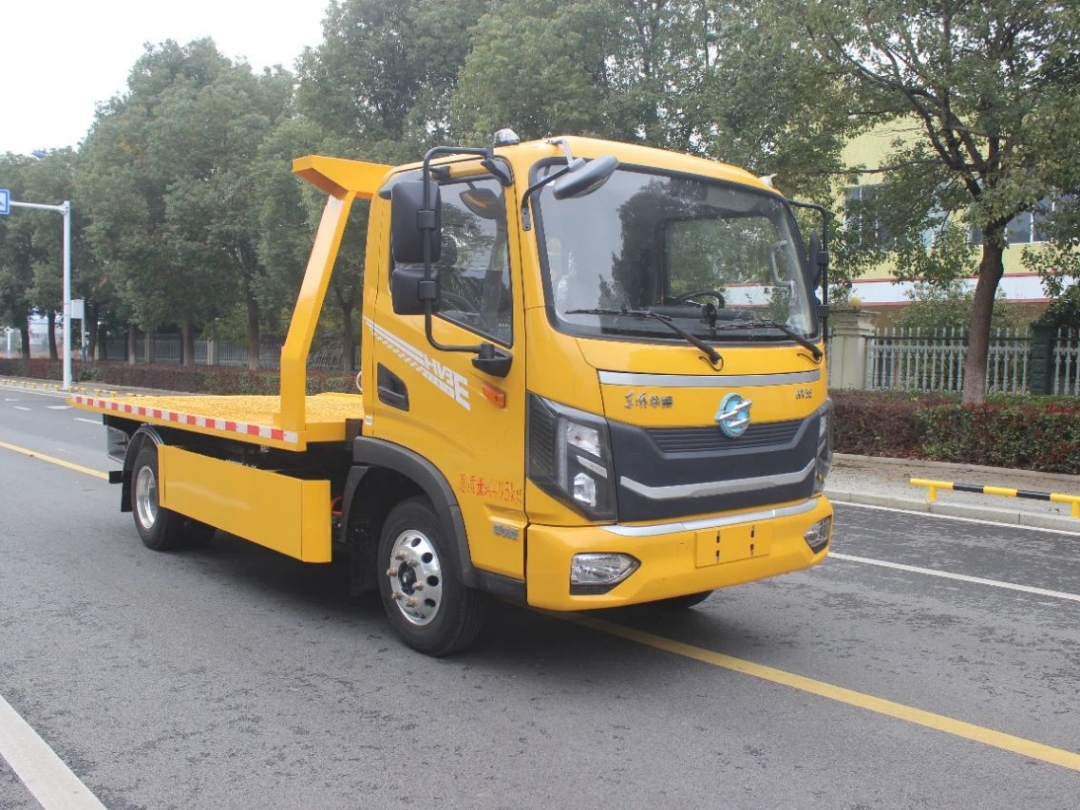

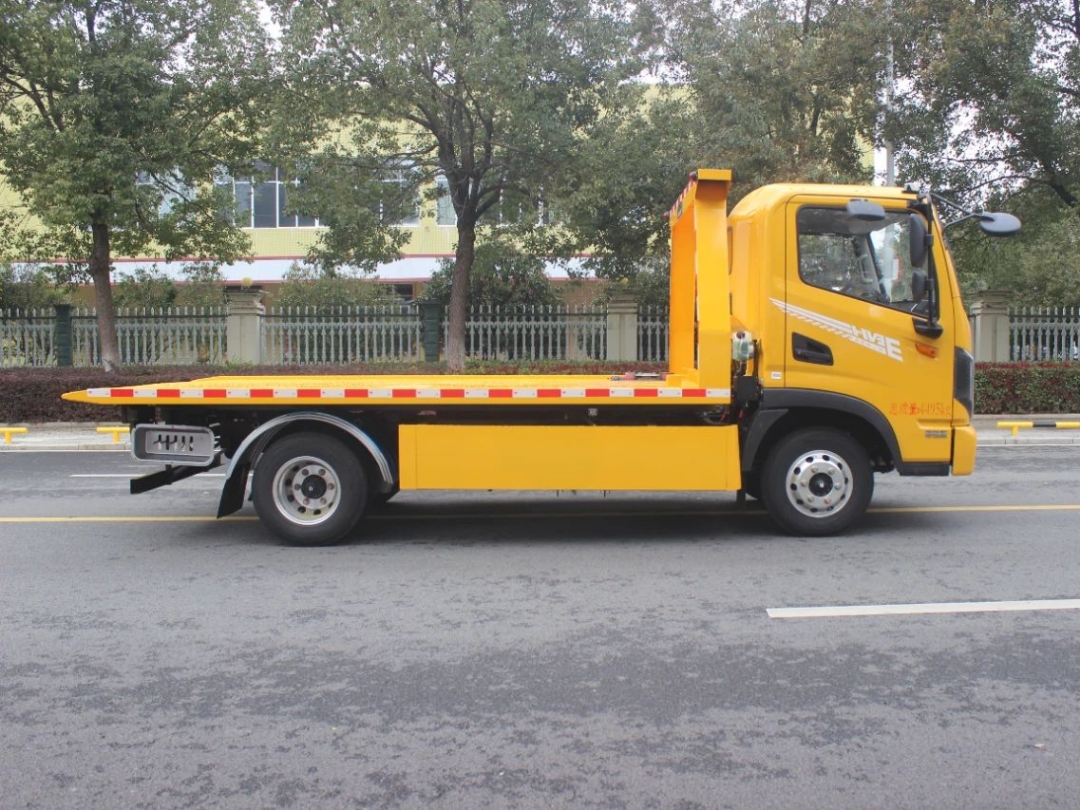

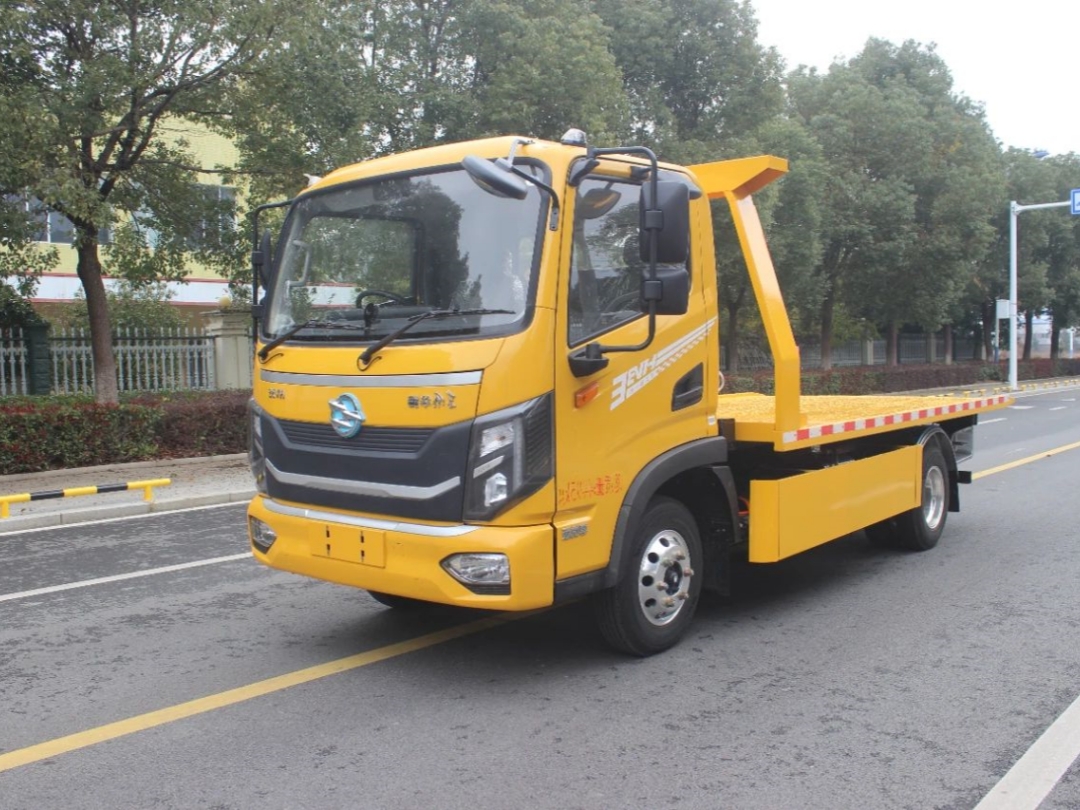

Dongfeng Huashen 4X2 electric obstacle clearing vehicle

Chassis configuration: Dongfeng Huashen electric chassis, multi in one motor control, Ningde Times 77 degree electricity, electronic paddle shifters, straight through beam, front axle 2.2 tons/rear axle 3.5 tons, 650 vacuum steel wire tires, aluminum alloy steel rings, LCD instrument panel, with central control door lock, electric doors and windows, original air conditioning, etc

Wheelbase: 3300 wheelbase, 153 horsepower
Speed: 90KM/hour Range: 200 kilometers. Real situation of heavy vehicles. Uniform speed of around 80 yards per hour in the city
Upper configuration: The flat panel adopts a 5MM thick patterned integrated board, a one to two type, a 3-ton rear support arm, double-sided linkage operation device, 2 rear work lights, 1 40KN hydraulic winch (21 meter steel wire rope), toolbox, equipped with 2 small cars, 1 pair of L-shaped tire racks, 4 binding straps, and the rest are made according to the company's normal standards. Color: Depending on the chassis color
Top configuration: Lightweight top, 2-ton top, 4-ton winch, 21 meter steel wire rope, board length of 5.3 meters and width of 2.3 meters, double-sided linkage operation, four binding straps, chassis certificate, vehicle certificate, warranty manual. (Note: The upper door needs to be removed, the tailboard needs to be installed, and the protective measures need to be taken after installation.) Technical parameters: subject to the actual weight of the vehicle. The total weight is 4495kg.

Product Name： Dongfeng Huashen 4X2 electric obstacle clearing vehicle
Driving Type： 4X2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 2865,2800(Kg)

Product Features

Dongfeng Huashen 4X2 electric obstacle clearing vehicle

An obstacle clearing vehicle (also called a wrecker, a breakdown truck, recovery vehicle or a breakdown lorry) is a vehicle used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.

This vehicle is mainly used for road block removal , and its main specialized devices are flat plates, supporting arms, winches, steel wire ropes, and oil cylinders.

Product parameters

Product Name	Dongfeng Huashen 4X2 electric obstacle clearing vehicle
Driving Type	4X2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	2865,2800(Kg)
Rated weight(kg)	1500(Kg)
Cab	Dongfeng Huashen cab,LCD instrument panel with central control door lock, electric doors and windows, original air conditioning, etc
Engine brand & model	TZ228XS-HSM1151
Displacement(L)/Power(kw)	115kw
Wheelbase(mm)	3300mm
Axle Quantity	2
Transmission Type	Electronic paddle shifters
Steering Type	LHD or RHD with power steering
Brake system	/
Tire Spec. & size	650 vacuum steel wire tire, 6+1 spare
Overall Dimension(mm)	5998×2300×2380(mm)
Platform	The tablet adopts a 5MM thick patterned integrated board
Crane specification	without crane
Standard configuration	/
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
