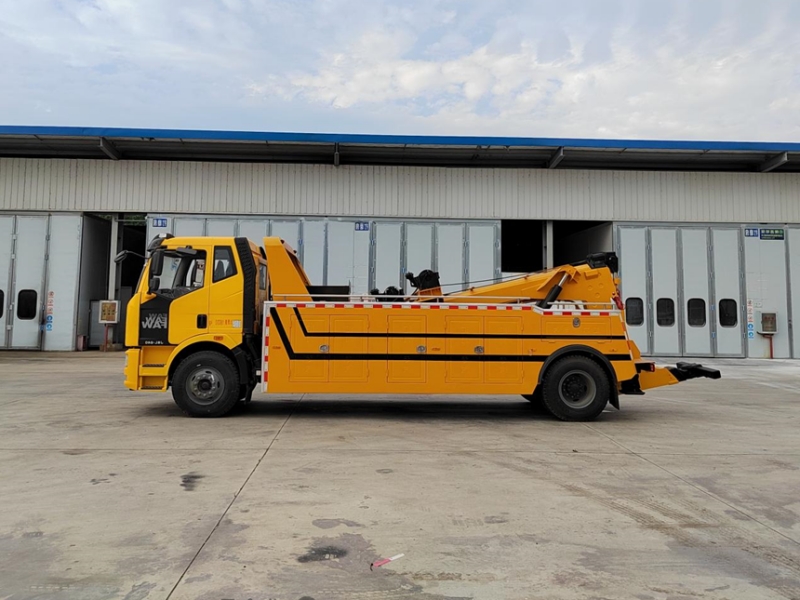

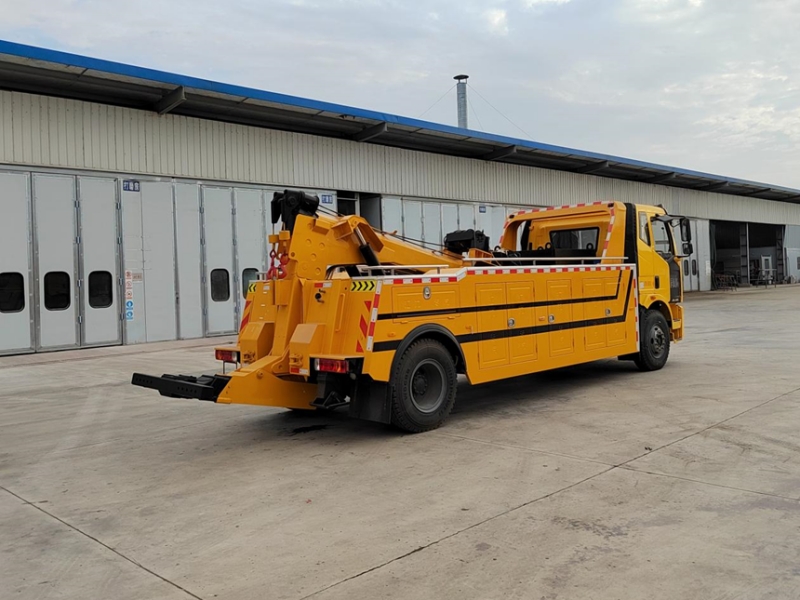

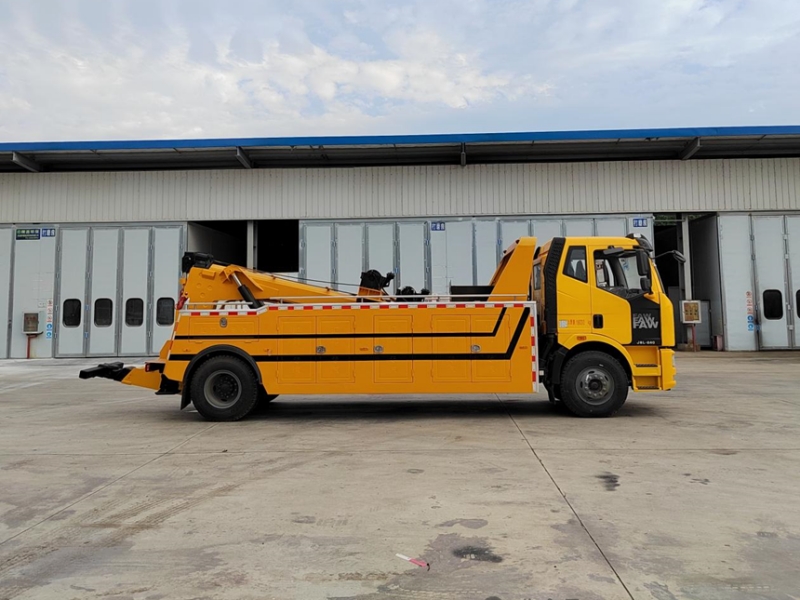

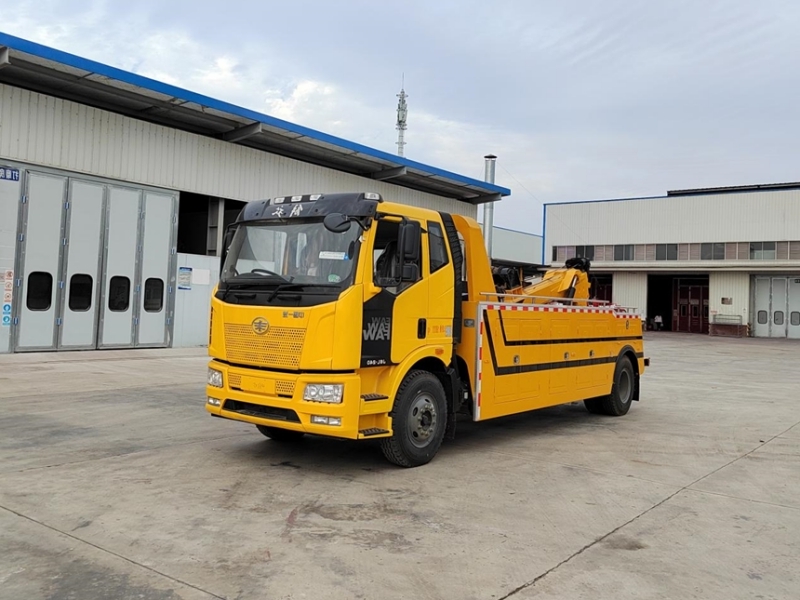

Jiefang J6L towing and lifting obstacle clearing vehicle

Chassis configuration: National VI emission standard, Jiefang J6L semi floating flat roof small displacement semi cab, 5800mm wheelbase, engine with 240 horsepower, electric glass lift, electric rearview mirror, air shock absorber seat, cruise switch, 8-speed gearbox, axle with Ø 435 welded bridge, ABS, speed ratio 4.875255 × 83 × (8+7+4), 10.00R20 type 18 level tires, automatic air conditioning, front lower protection device, metal bumper, electric hydraulic lifting device, suspension 10/12+8, 200L steel fuel tank, engine with a 50000 kilometer long oil change cycle, high-quality joints, right turn noise
Top configuration: 13T top, imported valve, two hexagonal suspension arms, three extendable rear support arms, split type car box, dual side linkage operation device, two 8-ton hydraulic winches, dual side toolboxes, 4 pairs of towing forks, 1 pair of towing fork seats, 1 pair of steel plate lifting ear towing forks, one set of auxiliary brake air pipe assembly, six link remote control, and the rest are made according to the company's normal standards.

Product Name： Jiefang J6L towing and lifting obstacle clearing vehicle
Driving Type： 4X2
Gross vehicle weight(Kg)： 18000(Kg)
Curb weight(Kg)： 13500(Kg)

Product Features

An obstacle clearing vehicle (also called a wrecker, a breakdown truck, recovery vehicle or a breakdown lorry) is a vehicle used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.

This vehicle is mainly used for road block removal , and its main specialized devices are flat plates, supporting arms, winches, steel wire ropes, and oil cylinders.

Product parameters

Product Name	Jiefang J6L towing and lifting obstacle clearing vehicle
Driving Type	4X2
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	13500(Kg)
Rated weight(kg)	/
Cab	J6L cab,Half floating flat top small row half cab
Engine brand & model	CA6DH1-24E6
Displacement(L)/Power(kw)	179kw
Wheelbase(mm)	5800mm
Axle Quantity	2
Transmission Type	8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	/
Tire Spec. & size	10.00R20, 6+1 spare
Overall Dimension(mm)	8960×2500×3080(mm)
Platform	The tablet adopts a 5MM thick patterned integrated board
Crane specification	without crane
Standard configuration	/
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
