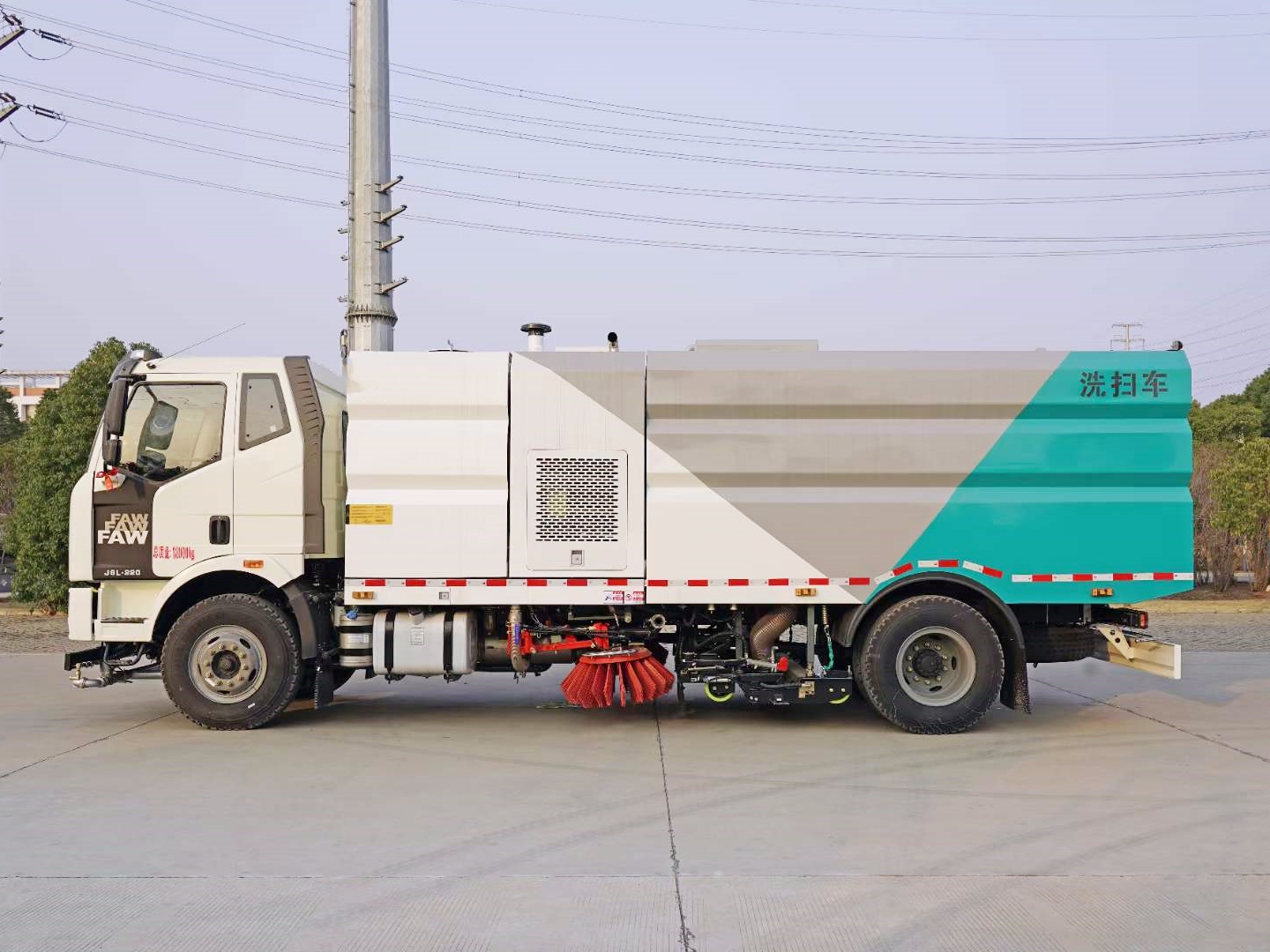

Jiefang J6L 4X2 Sweeper Truck

Chassis configuration:

2017 J6L semi floating flat top row semi cab;, Dachai 220 horsepower engine, CA4DK1-22E6， Shaanxi Gear 8JS85F transmission, wheelbase 5300mm, 10.00 steel wire tires, original air conditioning, front lower protective device, metal bumper, aluminum radiator, electric hydraulic lifting, steel oil tank 200L.

Product Name： Jiefang J6L 4X2 Sweeper Truck
Cab： Jiefang J6L Cab
Drive wheel： 4X2
Steering wheel： Left/Right hand drive

Product Features

Jiefang J6L 4X2 Sweeper Truck

Sweeper truck: mainly used for ground cleaning, roadside cleaning, roadside cleaning, and ground watering, suitable for cleaning operations in various climates and different road surfaces, and more suitable for cleaning and dust removal in squares, highways, residential areas, parking lots, docks, airports, stations, cement plants, power plants, and other places.

Installation configuration:
The auxiliary engine, fan, high-pressure water pump, clean water tank (9m³), garbage bin (7m³), left and right vertical sweeping, wide suction nozzle with water spray rod, low-pressure flushing system, sweeping disc dust reduction system, hydraulic system, special device electronic control system, and subframe are modified. The auxiliary engine adopts Cummins 170 horsepower auxiliary engine with 2 central sweeping discs and Lipton motor; GTM high-pressure water pump; High pressure roadside cleaning nozzle, Haowei low-pressure pump (front flushing); Stainless steel garbage bin; Stainless steel high-pressure pipeline; PLC one key control; Tail LED arrow light; Garbage bins and water tanks are equipped with anti overflow low water level alarm devices; Indoor monitor for reversing and cleaning status.

Main Parameter

Product Name	Jiefang J6L 4X2 Sweeper Truck
Cab	Jiefang J6L Cab
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine	CA4DK1-22E6, Dachai 220hp
Gearbox	8-speed gearbox
Wheel base	5300(mm)
Axle numbers	2
Tire sepcification and quantity	10.00 steel wire tire, 6 + 1 spare tire
Vehicle dimension	8070,8270,8570,8870,9170,9370×2500,2550×3160,3280(mm)
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	11850(Kg)
Rated weight(Kg)	6020,5955(Kg)
Water tank capacity	9m³
Garbage bin capacity	7m³
Upper configuration	Modified from left and right vertical sweeping, wide suction nozzle with spray bar, low-pressure flushing system, sweeping disc dust reduction system, hydraulic system, dedicated device electrical control system, and subframe
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
