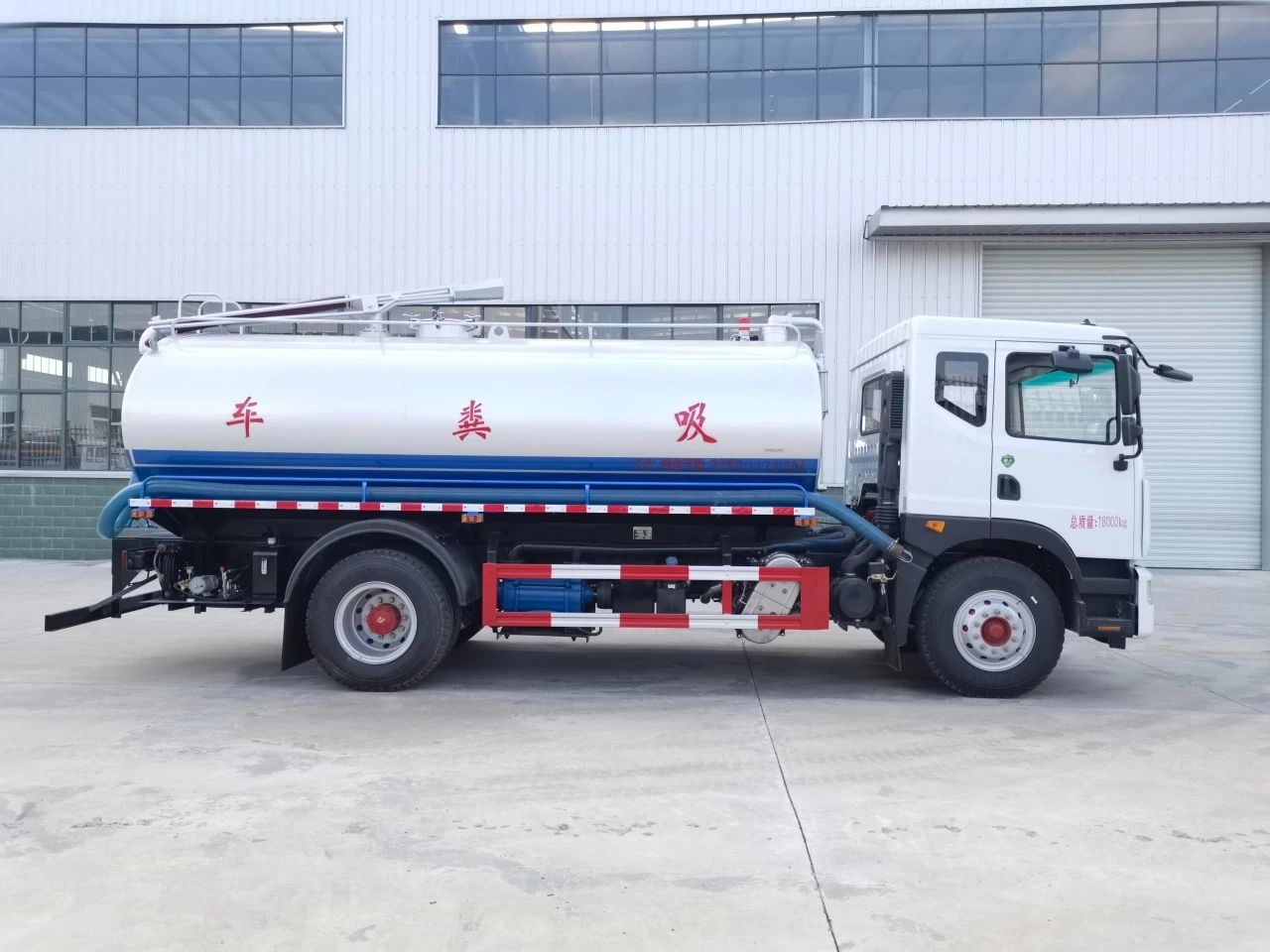

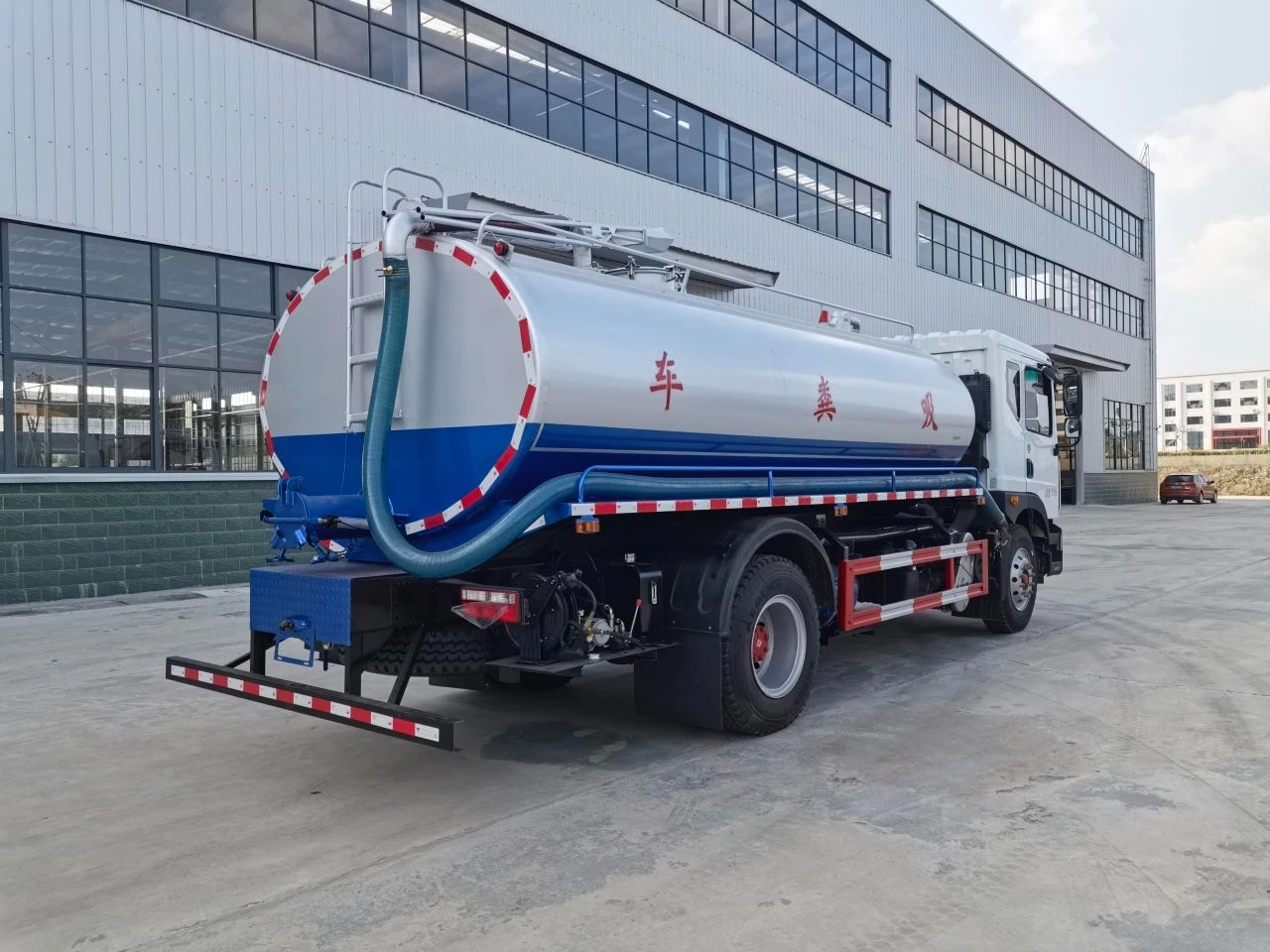

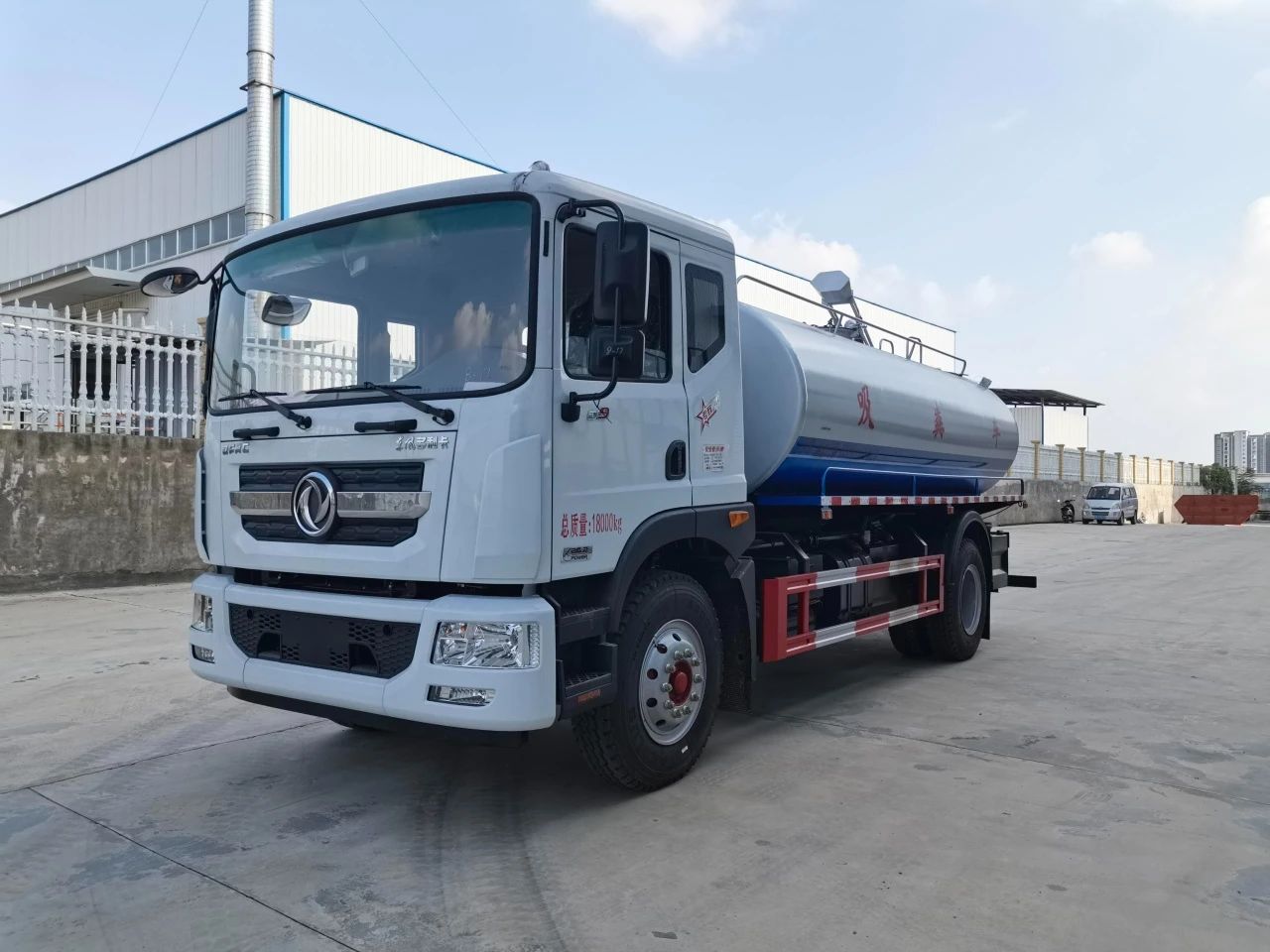

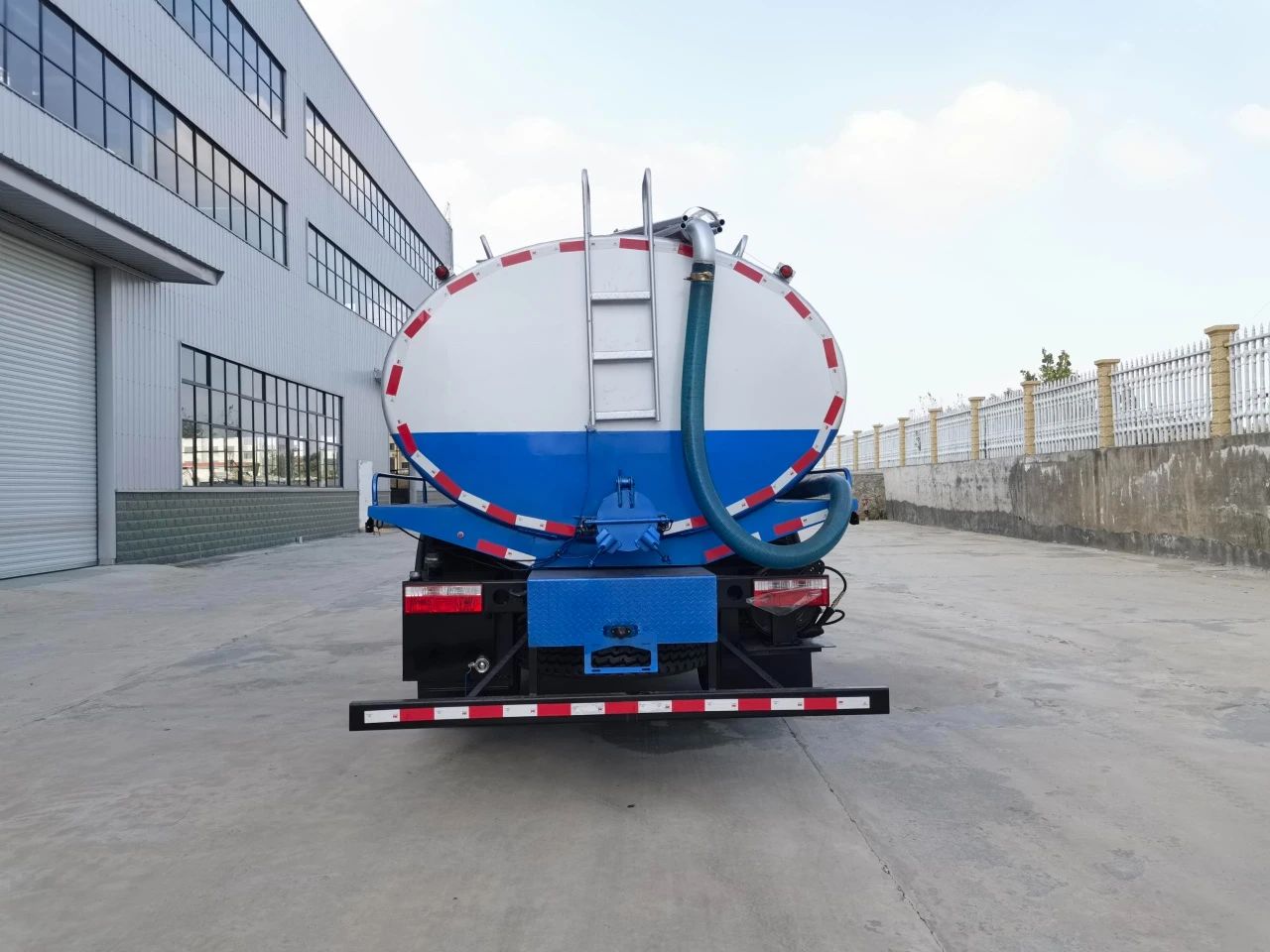

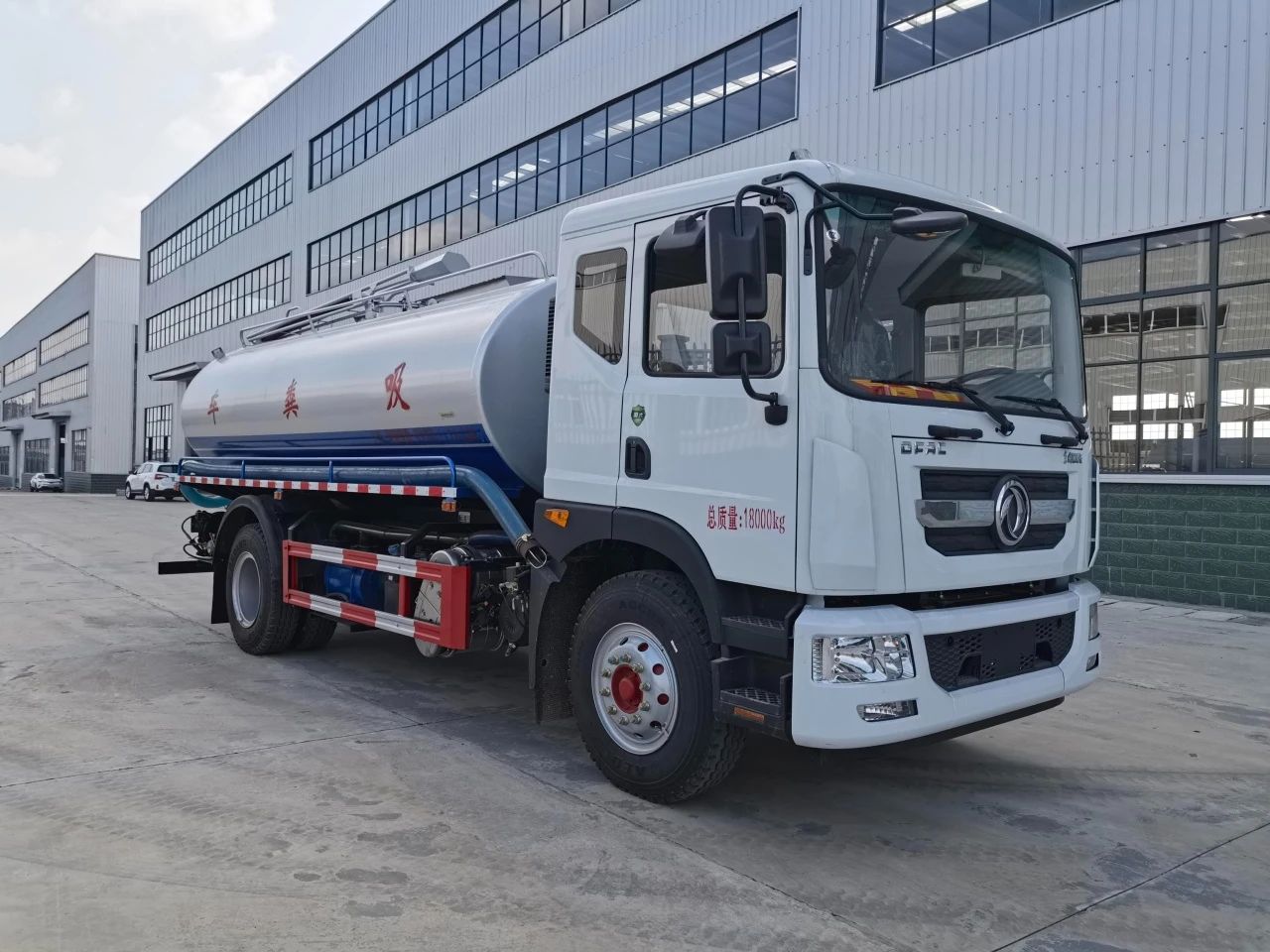

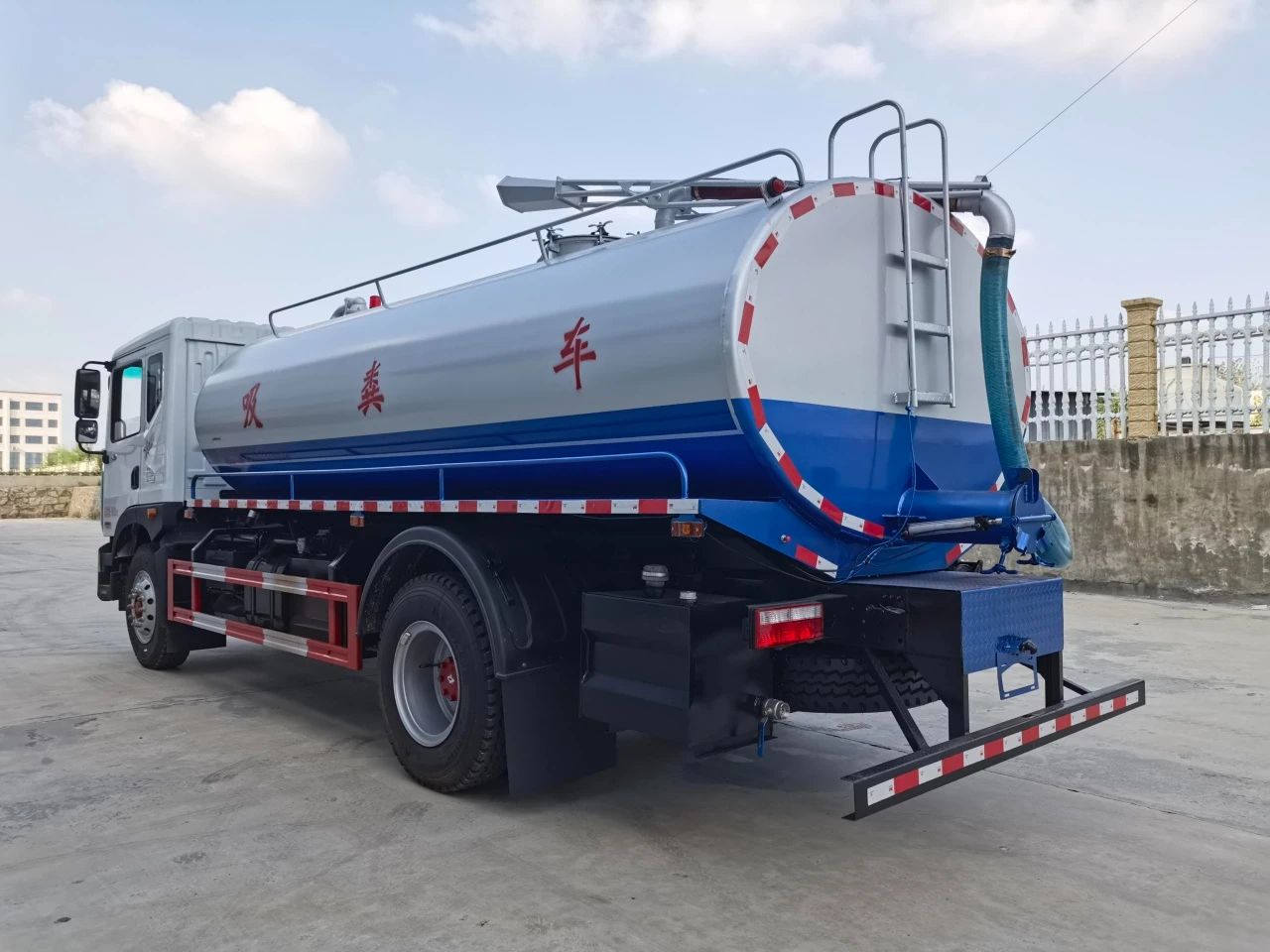

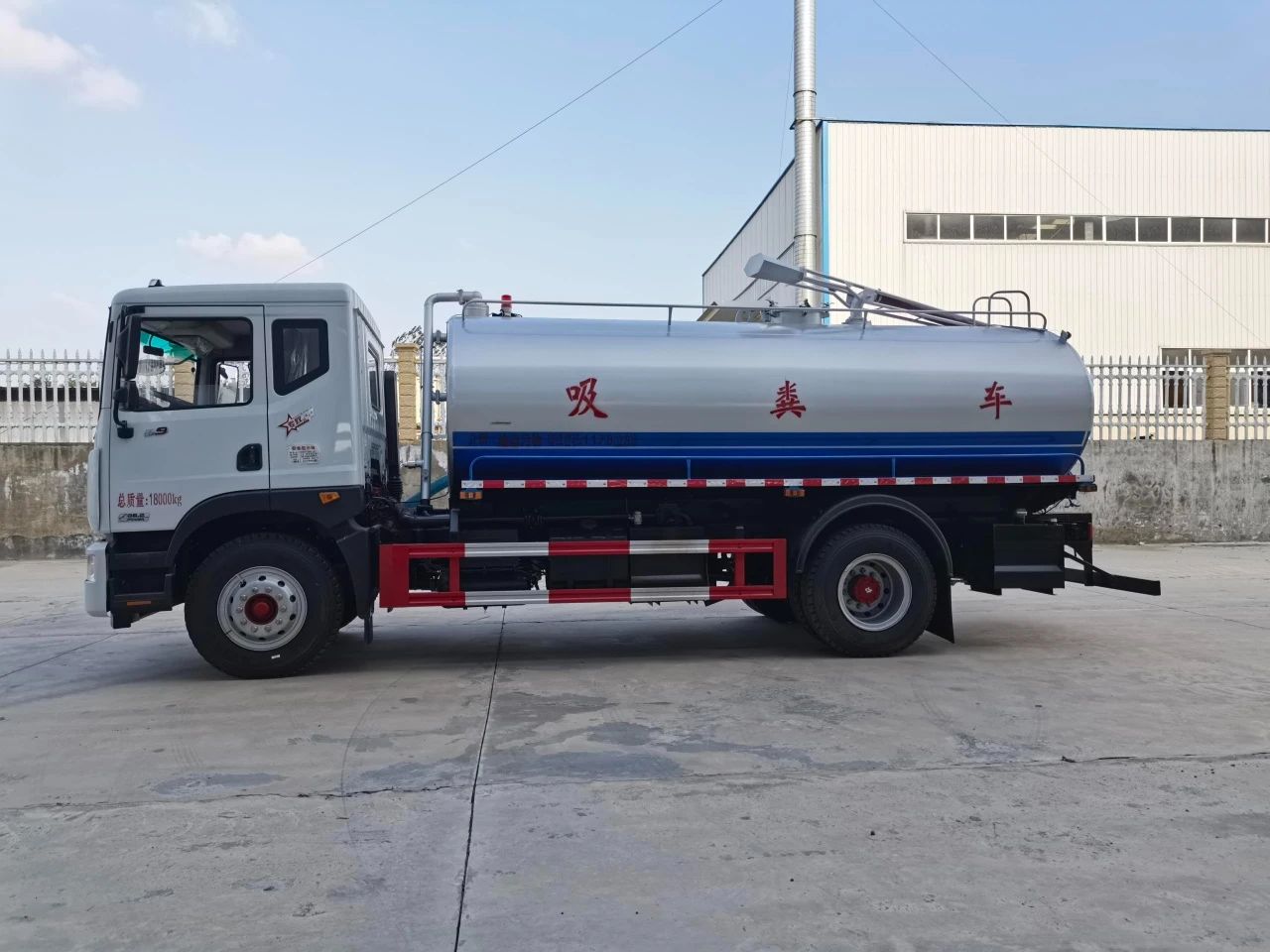

Dongfeng D9 4X2 15m³ fecal suction truck

Chassis configuration:Adopting Dongfeng Dorica chassis, 2315/one and a half driver's cab, 4500mm wheelbase, Cummins 230 horsepower (6.2NS6B230), Fast 8-speed transmission (Fast 8JS95), 10.00R20 tires, Dena axle, front axle 4.5T, rear axle 10T, 250mm double-layer frame, dynamic rotation, clutch assist, electric door and window hollow lock, air conditioning, air brake, exhaust brake, ABS。
Upper configuration:oil circulation vacuum pump/water circulation vacuum pump, with a sight window, a self flow port, hand washing device, 1 suction hose of 8 meters, with oil-water separator, vacuum pressure gauge, anti overflow valve, (suction truck with suspension rod seat, 1 6O suction pipe)

Product Name： Dongfeng D9 4X2 15m³ fecal suction truck
Driving Type： 4X2
Gross vehicle weight(Kg)： 18000(Kg)
Curb weight(Kg) ： 8500,8045(Kg)

Product Features

A fecal suction truck is a sanitation vehicle specifically designed for cleaning environments such as septic tanks, sewage ditches, and sewers. It belongs to the specialized vehicle sanitation vehicle series, mainly used for collecting, transferring, and cleaning transportation sludge, sewage, and feces to avoid secondary pollution. Suction trucks play an important role in urban hygiene and environmental protection, and are known as the "guardians of urban hygiene".

Product parameters

Product Name	Dongfeng D9 4X2 15m³ fecal suction truck
Driving Type	4X2
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	8500,8045(Kg)
Rated weight(kg)	9370,9305,9825,9760(Kg)
Wheelbase(mm)	4500(mm)
Overall Dimension(mm)	7600,8000,7450,7050,7250,7800,7650,8200×2500,2550×3200,3300(mm)
Tank volume(cbm)	15m³
Engine brand & model	6.2NS6B230, Cummins 230hp
Axle Quantity	2
Transmission Type	Fast 8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	air brake
Tire Spec. & size	10.00R20 steel wire tire, 6+1 spare
Cab	Dongfeng D9 cab
Installation configuration	Oil circulation vacuum pump/or water circulation vacuum pump, equipped with a fecal observation window, a self flow port, hand washing device, 1 suction hose of 8 meters, with oil-water separator, vacuum pressure gauge, anti overflow valve, (suction truck with suspension rod seat, 1 6O suction pipe)
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
