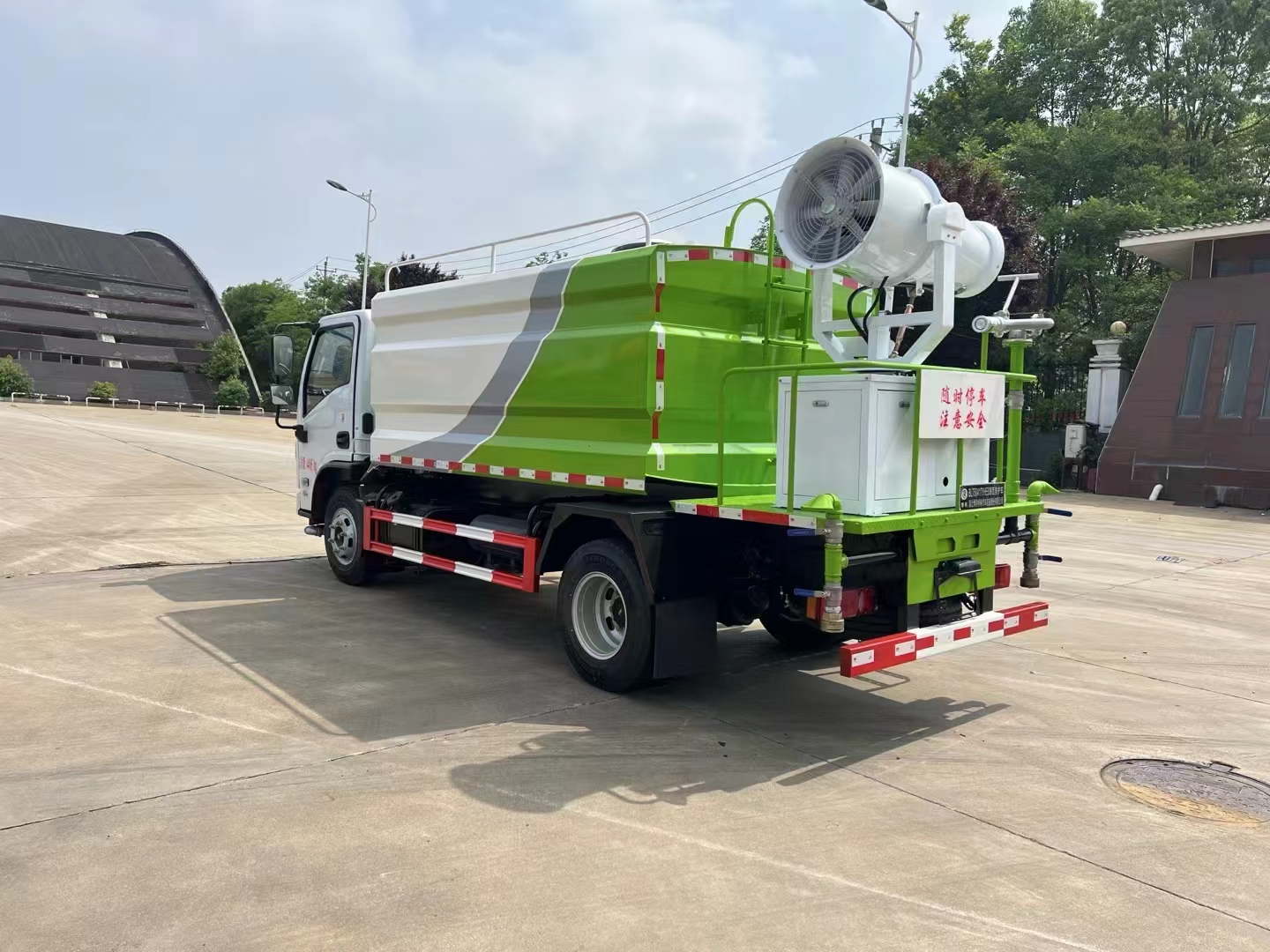

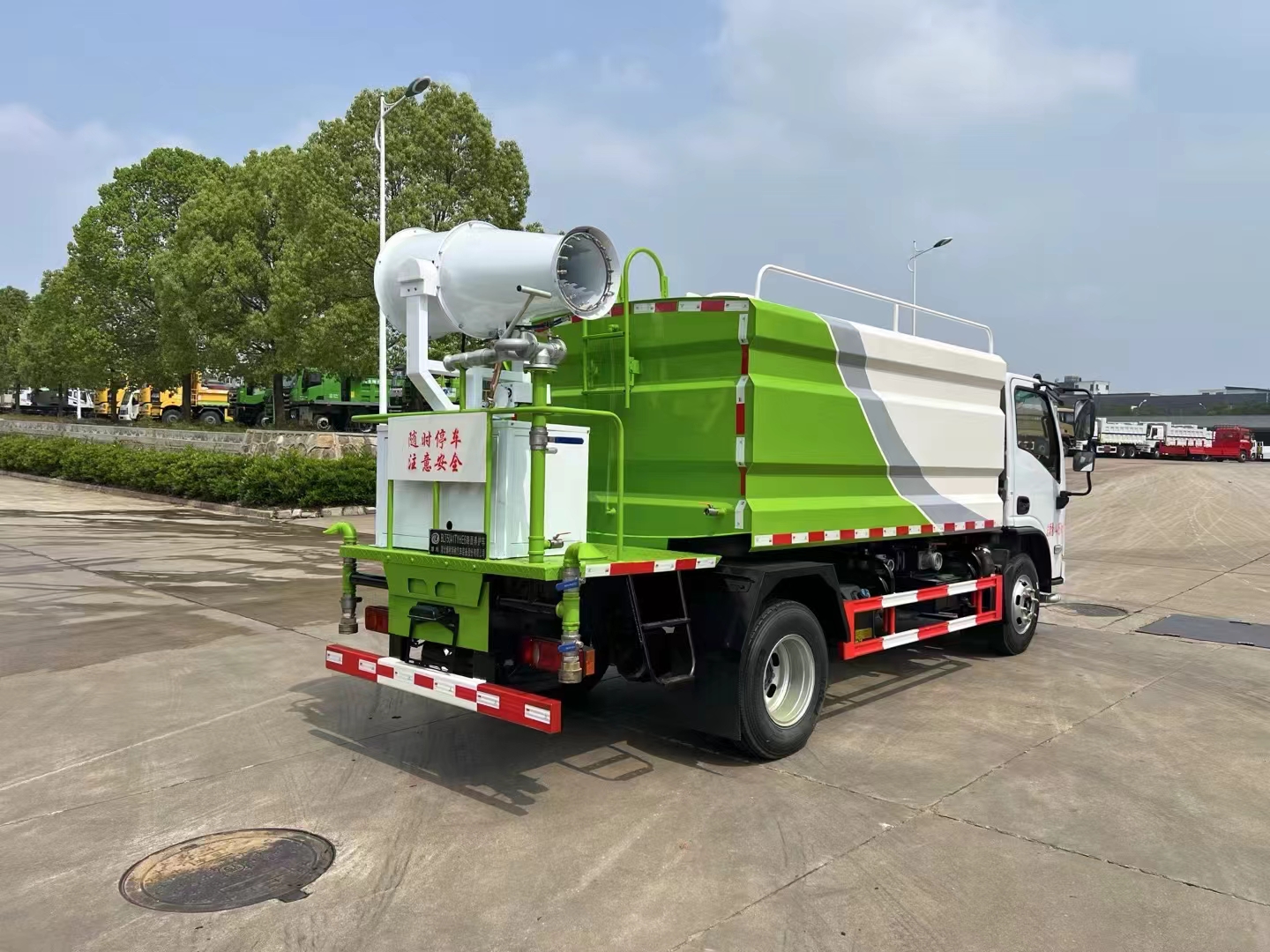

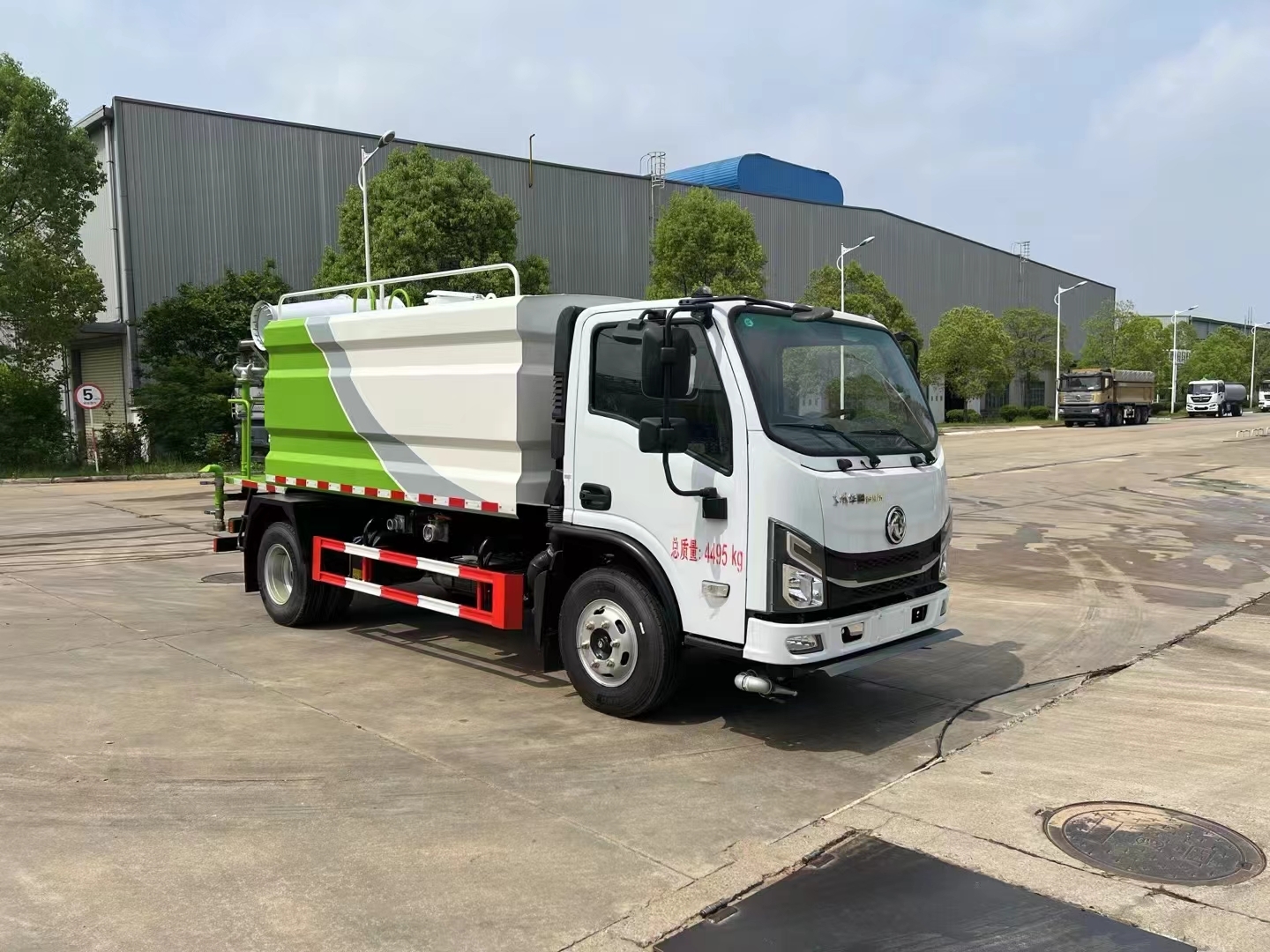

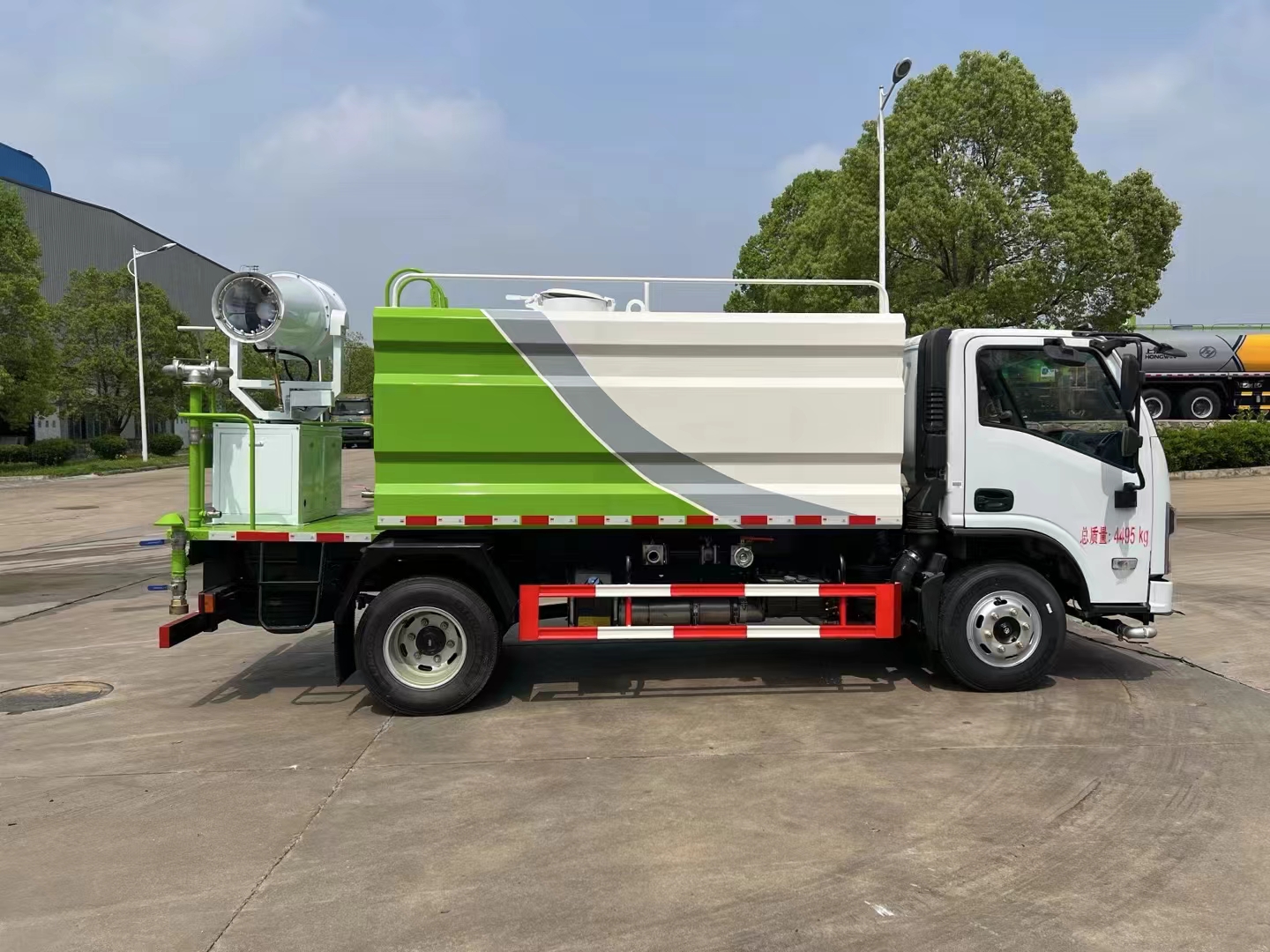

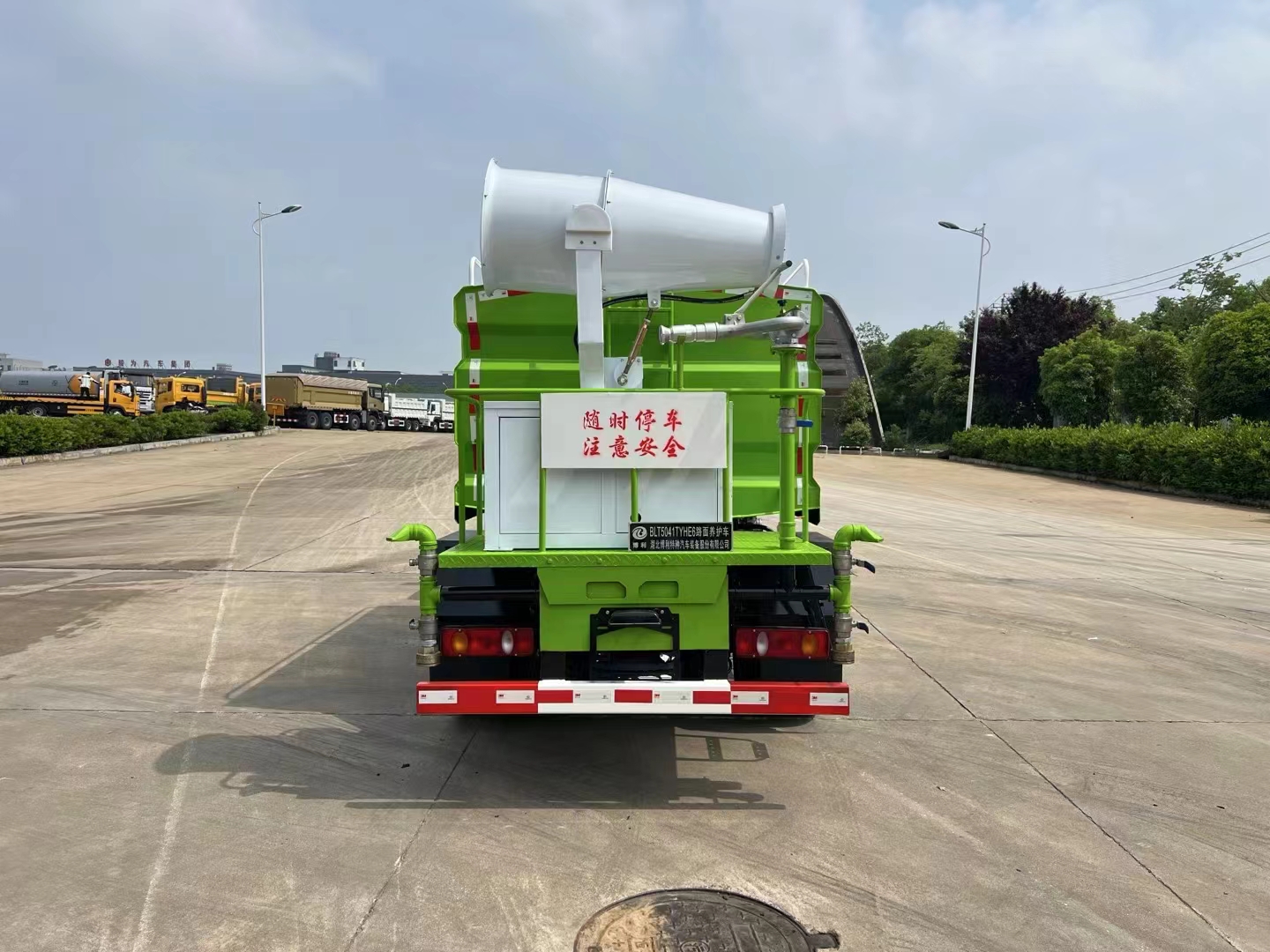

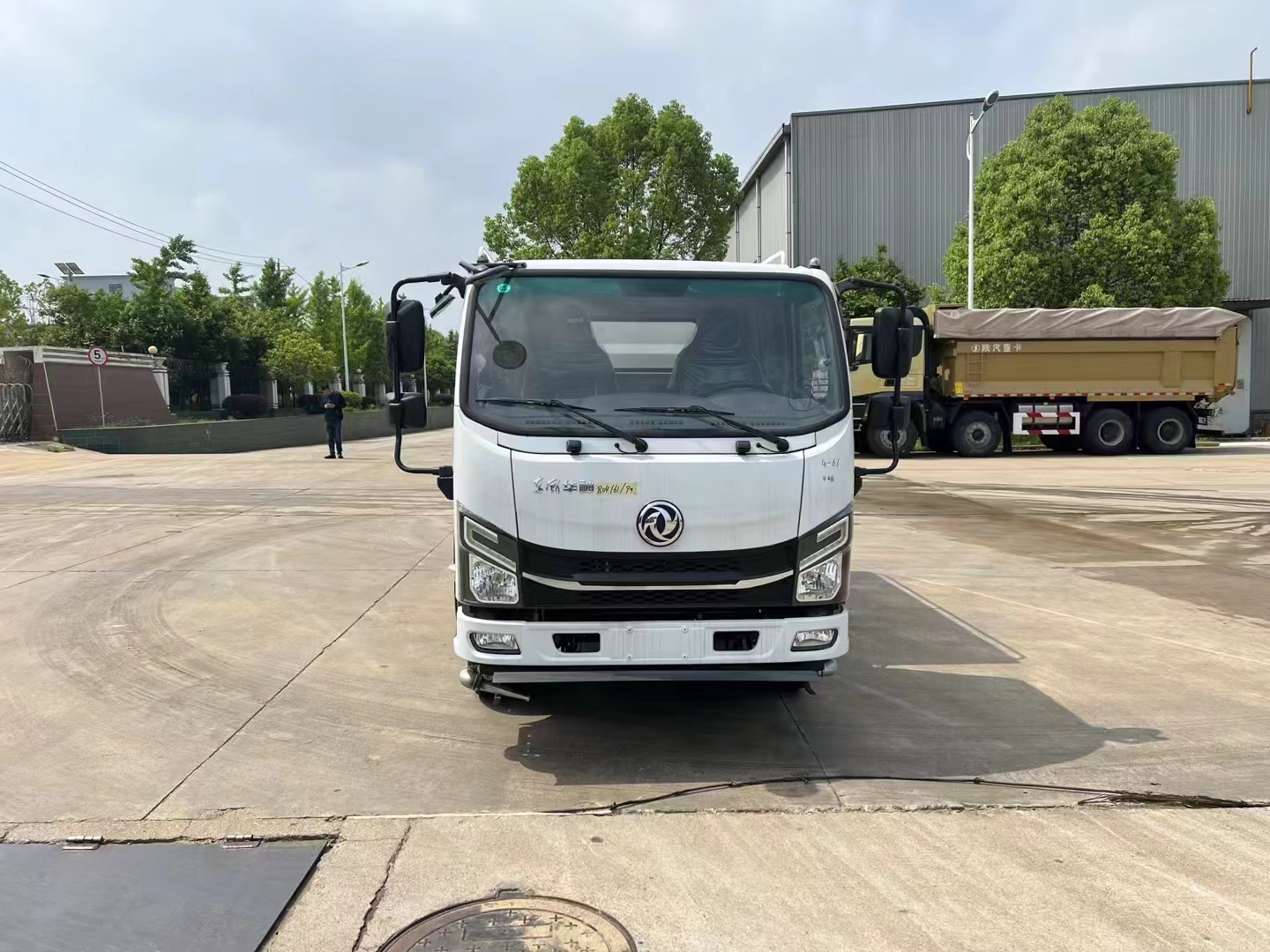

Dongfeng V3 7m³ pavement maintenance vehicle

Chassis configuration:
1. Engine: Q23A-142E60, Quanchai 142hp

2.Transmission type: 5 forward gears and 1 reverse gear

3.Tyre: 7.00R16 steel wire tire

4.Wheelbase:3300mm

5 Other: Air brake, original air conditioning, electric doors and windows, central locking system.
Installation configuration:
1.The tank body is about 7 cbm.
2.The side lights are electrified, and two red width indicator lights are standard above the tail of the tank.
3.The standard front spray is duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.

Product Name： Dongfeng V3 7m³ pavement maintenance vehicle
Engine Model： Q23A-142E60
Engine horsepower： Quanchai 142hp
Engine displacement： 2.3L

Product Features

Product Introduction

A road maintenance truck is a specialized vehicle designed to support the upkeep and repair of roadways, ensuring they remain safe and functional for public use. These trucks are equipped with a variety of tools and features tailored to address the specific needs of road maintenance tasks. They play a crucial role in municipal and state infrastructure management, handling everything from minor repairs to significant construction efforts.

Main Parameter

Product Name	Dongfeng V3 7m³ pavement maintenance vehicle
Engine Model	Q23A-142E60
Engine horsepower	Quanchai 142hp
Engine displacement	2.3L
Gearbox	5 forward gears and 1 reverse gear
Tire specification	7.00R16 steel wire tire
Wheel base (mm)	3300
Gross vehicle weight(Kg)	4495
Curb weight(Kg)	3510
Rated weight(Kg)	855
Vehicle dimensions (mm)	5998×2080×2600,2750
Tank volume(cbm)	7
Fuel type	diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Water pump model	50/50
Tank material	Q235 carbon steel
Additional configuration	Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
