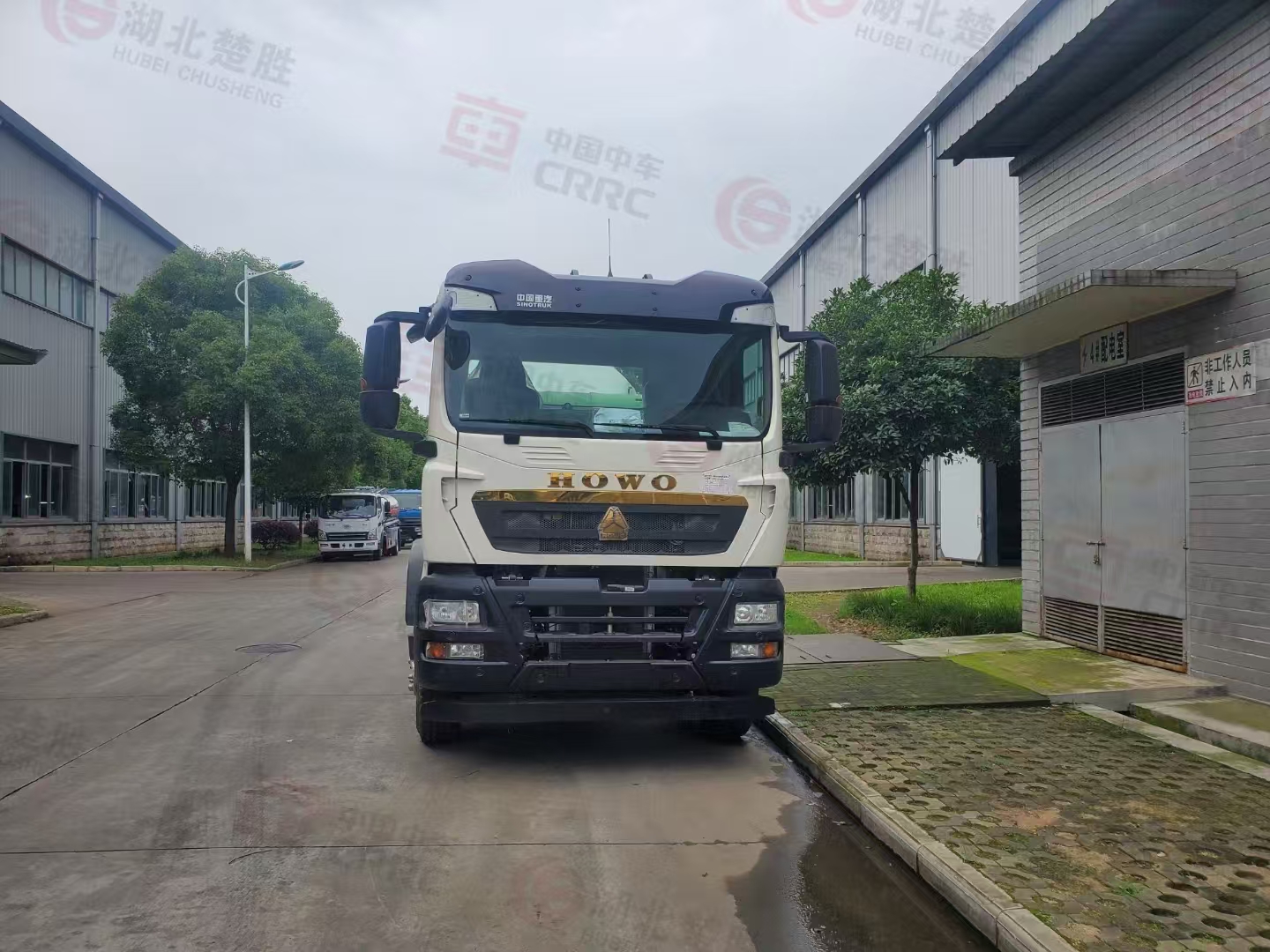

Sinotruk Howo 8X4 12CBM cement mixer truck

Chassis configuration:

Howo TX; Basic payment; Mixer; 12 cubic meters; TX-F Luxury Cab Edition; WP8.340E51 engine (with rear power take-off); HW15710L gearbox; VGD75 self-adjusting arm front axle (drum); MAT16ZG self-adjusting arm double rear axle (drum); Speed ratio 5.32; Double layered frame (8+5/300); Front and rear standard version with multiple leaf springs (11/11/10); Domestic steering gear; Highway version intake system; Standard version exhaust system; ABS(4S/4M)； High end bumper (all metal); Ordinary wheels; 11.00R20 (mixed pattern); 300L fuel tank; Lasso type PTO;

Upper configuration:

Domestic lightweight standard, SAO hydraulic pump motor; Italian reducer, domestic radiator, made of T510 alloy steel for the tank body, with a 6mm thick head, a 4mm thick cylinder body, and 4mm blades. The rest are standard equipment.

Welcome to visit and inspect our factory!

Product Name： Sinotruk Howo 8X4 12CBM cement mixer truck
Driving Type： 8X4
Total weight(kg)： 31000(Kg)
Curb weight(kg)： 13435(Kg)

Product Features

Sinotruk Howo 8X4 12CBM cement mixer truck

Acement mixer truckis a specialized truck used to transport concrete for construction purposes; Due to its appearance, it is often referred to as a snail car. These types of trucks are equipped with cylindrical mixing drums to transport the mixed concrete. During transportation, the mixing drum will always rotate to ensure that the concrete being transported does not solidify. After transporting the concrete, it is usually washed with water inside the mixing drum to prevent hardened concrete from occupying space and reducing the volume of the mixing drum.

Concrete mixer truck is also called cement mixer truck, cacapity range from 3 cbm to 16 cbm, chassis brand option: dongfeng, howo,shacman, foton, faw, isuzu, lveco, etc.

Product parameters

Product Name	Sinotruk Howo 8X4 12CBM cement mixer truck
Driving Type	8X4
Total weight(kg)	31000(Kg)
Curb weight(kg)	13435(Kg)
Rated weight(kg)	17435(Kg)
Wheel base(mm)	1800+3050+1350(mm)
Overall Dimension(mm)	10150×2500×3995(mm)
Tank maximum diameter(mm)	2150(mm)
Tank length(mm)	6015(mm)
Engine brand & model	WP8.340E51, Weichai 340hp
Displacement(L)/Power(kw)	7.8L/250KW
Axle Quantity	4
Transmission Type	10-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	11.00R20 steel wire tire, 12+1 spare
Cab	TX-F Luxury Cab
Tank material	Tank shell: 5 mm Q345, tank head: 6mm Q345
Tank agitation capacity	7.99m³
Tank capacity	12m³
Stadard configuration	Domestic lightweight standard, SAO hydraulic pump motor; Italian reducer, domestic radiator, made of T510 alloy steel for the tank body, with a 6mm thick head, a 4mm thick cylinder body, and 4mm blades. The rest are standard equipment.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
