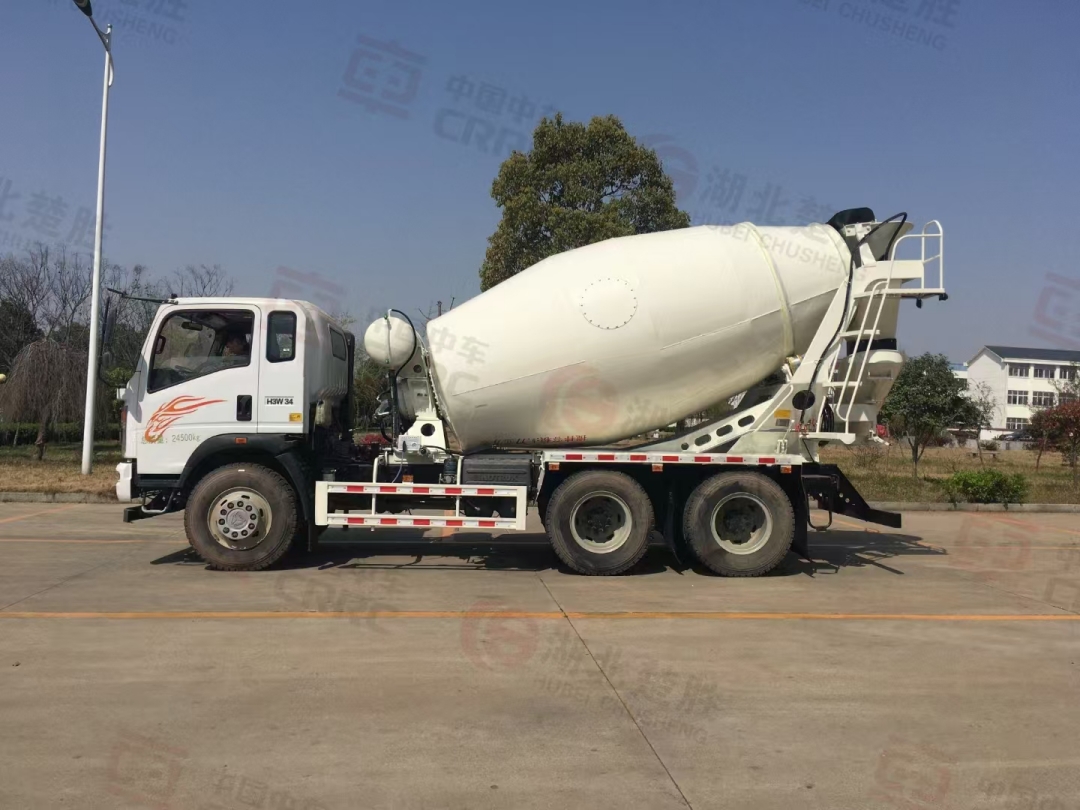

6X4 Sinotruk Haoman 8m³ concrete mixer truck

Chassis configuration:

Sinotruk Haoman 2080 white one and a half row cab, 6X4, wheelbase 3400+1350, 9-speed gearbox, Weichai 220 horsepower National VI with full power take-off, 5.5T front axle, 10T dual rear axle, 255mm double-layer beam, 10.00R20 steel wire tires.

Upper configuration:

Top configuration: imported hydraulic pumps and motors from Eaton, Sault, and Rexroth, Italian gearbox, and domestically produced 18L radiator. Standard configuration: The cylinder body is made of alloy steel QSTE500TM δ 4, the blades are made of alloy steel T510 δ 4 or the cylinder body is made of ultra-high strength plate 300TP δ 3.5, and the blades are made of alloy steel W800KC δ 3 (domestic lightweight heads use Q345 6mm).

Welcome to visit and inspect our factory!

Product Name： 6X4 Sinotruk Haoman 8m³ concrete mixer truck
Driving Type： 6X4
Total weight(kg)： 24500(Kg)
Curb weight(kg)： 10315(Kg)

Product Features

6X4 Sinotruk Haoman 8m³ concrete mixer truck

A concrete mixer truck is a specialized truck used to transport concrete for construction purposes; Due to its appearance, it is often referred to as a snail car. These types of trucks are equipped with cylindrical mixing drums to transport the mixed concrete. During transportation, the mixing drum will always rotate to ensure that the concrete being transported does not solidify. After transporting the concrete, it is usually washed with water inside the mixing drum to prevent hardened concrete from occupying space and reducing the volume of the mixing drum.

Concrete mixer truck is also called cement mixer truck, cacapity range from 3 cbm to 16 cbm, chassis brand option: dongfeng, howo,shacman, foton, faw, isuzu, lveco, etc.

Product parameters

Product Name	6X4 Sinotruk Haoman 8m³ concrete mixer truck
Driving Type	6X4
Total weight(kg)	24500(Kg)
Curb weight(kg)	10315(Kg)
Rated weight(kg)	13990,14055(Kg)
Wheel base(mm)	3400+1350(mm)
Overall Dimension(mm)	8400×2420×3790(mm)
Tank maximum diameter(mm)	2200(mm)
Tank length(mm)	4600(mm)
Engine brand & model	WP4.6NQ220E61A, Weichai 220hp
Displacement(L)/Power(kw)	4.58L/162KW
Axle Quantity	3
Transmission Type	9-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	10.00R20 steel wire tire, 10+1 spare
Cab	Sinotruk Haoman 2080 white row and a half cab
Tank material	Tank shell: 5 mm Q345, tank head: 6mm Q345
Tank agitation capacity	5.98m³
Tank capacity	8m³
Stadard configuration	The cylinder body is made of alloy steel QSTE500TM δ 4, the blades are made of alloy steel T510 δ 4 or the cylinder body is made of ultra-high strength plate 300TP δ 3.5, and the blades are made of alloy steel W800KC δ 3 (domestic lightweight heads use Q345 6mm).
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
