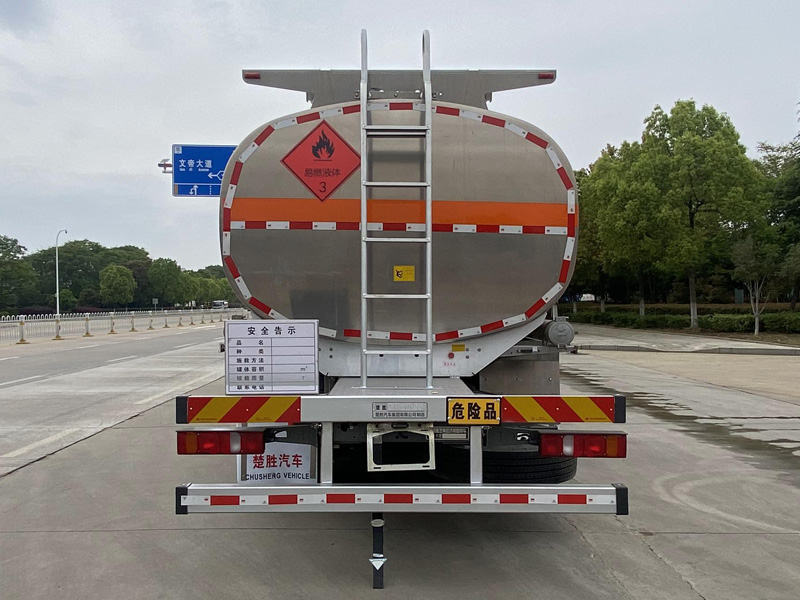

Sinotruck Sitrak 6X4 19.1 cbm Oil Transport Vehicle

Upper configuration

1-Tank volume: 19.1m³ (can be made into many compartments)

2-Tank material: aluminum alloy; stainless steel；carbon steel

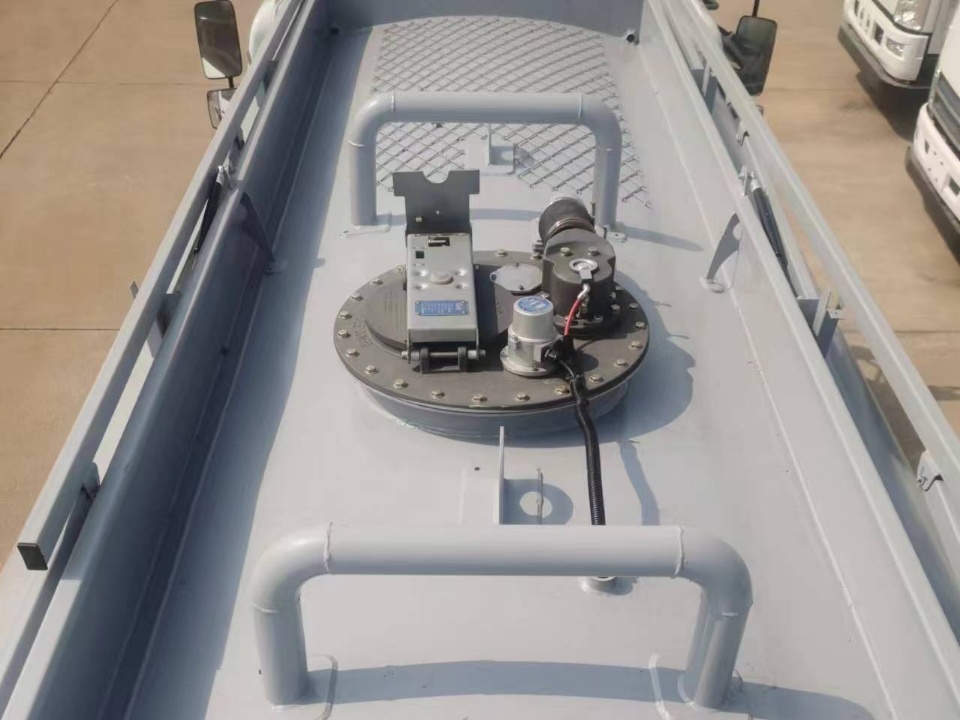

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.
5-You can choose to install different brands of flow meter.
6-Tank color: customized.

Product Name： Sinotruck Sitrak 6X4 19.1 cbm Oil Transport Vehicle
Chassis brand： Sinotruck Sitrak
Cab： Flat roof cab with sleeping berth
Drive wheel： 6X4

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Main Parameter

Product Name	Sinotruck Sitrak 6X4 19.1 cbm Oil Transport Vehicle
Chassis brand	Sinotruck Sitrak
Cab	Flat roof cab with sleeping berth
Drive wheel	6X4
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Sinotruck
Engine Model	MC07.31-60
Horse Power (HP)	310
Engine displacement	6.87L
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	9 forward gears and 1 reverse gear
Wheel base	4575+1400mm,4975+1400mm
Front wheel track	1998,2035,2065(mm)
Rear wheel track	1850/1850,1880/1880(mm)
Approach angle/departure angle	16/10,16/11(°)
Front/rear suspension	1450/2830,1450/2430(mm)
F/R axle load	7000/19000
Axle numbers	3
Tire Specification and Quantity	295/80R22.5, 10 with 1 spare tire
Vehicle dimensions	10255×2525×3360mm
Tank dimension	7200×2200×1500mm
Gross vehicle weight	26000(Kg)
Curb weight	9755(Kg)
Rated weight	16115(Kg)
Tank volume	19.1 cubic meter
Tank material	Aluminum alloy/stainless steel/carbon steel
Standard configuration	Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
