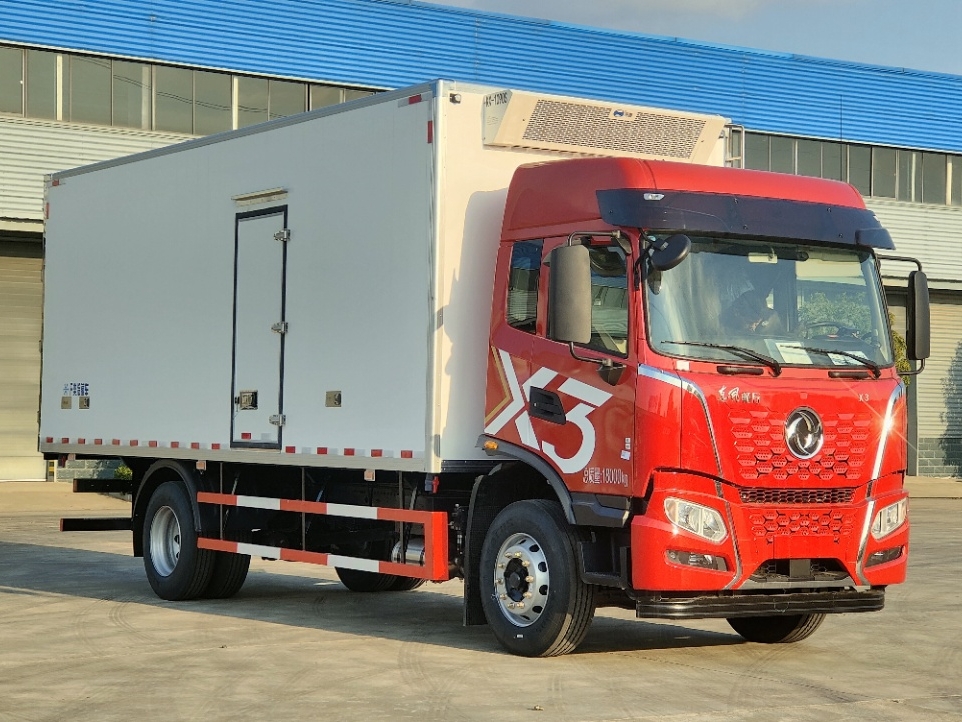

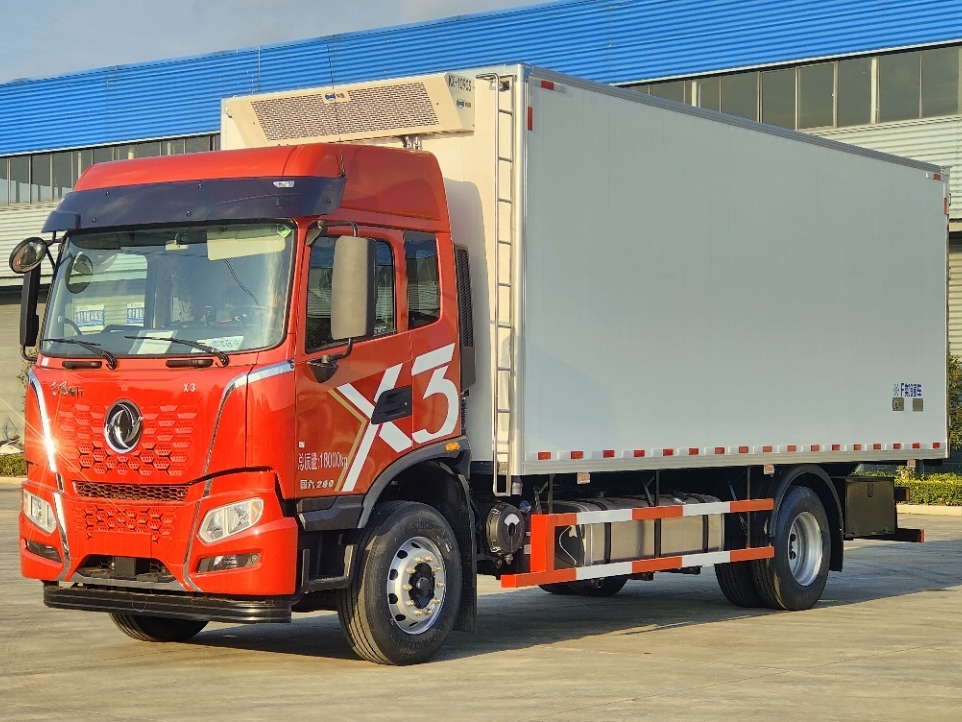

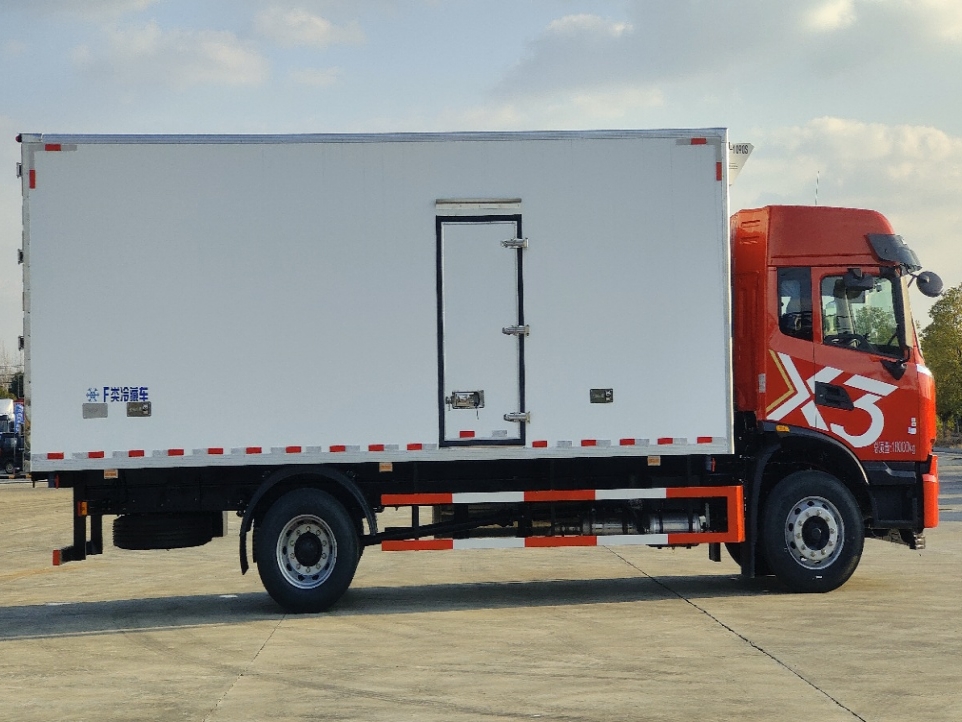

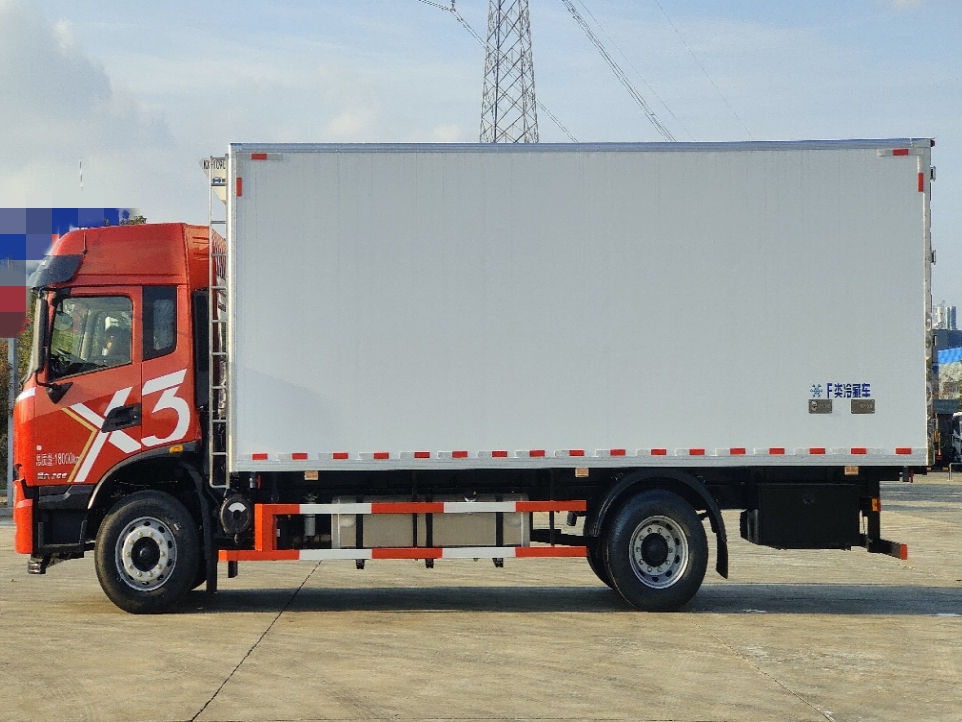

Dongfeng Changxing X3 new refrigerated truck

Chassis configuration:

Dongfeng brand new X3 driver's cab with high roof, double sleeper berth, fully floating driver's cab, Dongfeng Cummins 240/260 horsepower engine (B6.2NS6B260), Fast 8-speed transmission, 4500/5100mm wheelbase, 232mm beam, 4.5-ton front axle, 9-ton rear axle, 8/10+8 leaf springs, 275 tires, 600L aluminum alloy fuel tank, lightweight steel ring, 140A battery, airbag seat, manual integrated reversing mirror, 9-inch large screen with reversing image, multifunctional steering wheel, phone holder, USB socket, cruise control, automatic air conditioning, external sunshade, remote door lock, electric window regulator.

Product Name： Dongfeng Changxing X3 new refrigerated truck
Driving Type： 4X2
Total weight(kg)： 18000(Kg)
Curb weight(kg)： 7880,8510(Kg)

Product Features

Dongfeng Changxing X3 new refrigerated truck

Refrigerated truck is a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.

Refrigerated truck consists of the walking part of a specialized vehicle chassis, as well as insulation and thermal insulation compartment (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), refrigeration unit, temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, optional accessories such as meat hooks, cargo blocking troughs, aluminum alloy guide rails, ventilation troughs, etc. can be added.

Refrigerated truck installation configuration:
(1)The refrigerated truck adopts a galvanized pipe skeleton, with fiberglass inside and outside, and 8CM polyurethane extruded sheet filled in the middle; High strength adhesive, hot press molding using a fully automatic gluing and pressing machine. The gluing and pressing process is completed in one go, with uniform gluing and minimal bulging, resulting in rapid and efficient board output.

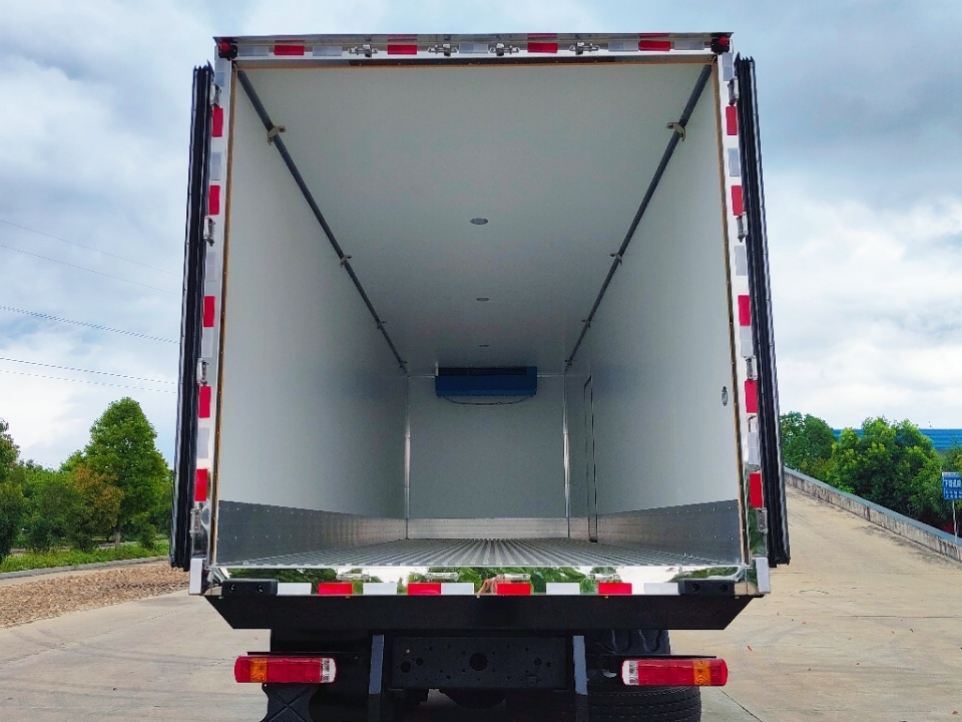

(2) The bottom of the compartment is made of plastic steel pattern plate, with apron on the inner side of the compartment, two drainage holes in the front, rainproof design and labyrinth rubber sealing strip on the door edge, aluminum alloy profile edge wrapping, stainless steel corner wrapping, stainless steel door lock, thickened stainless steel rear door hinge and lock, and LED lighting inside the compartment.

Product parameters

Product Name	Dongfeng Changxing X3 new refrigerated truck
Driving Type	4X2
Total weight(kg)	18000(Kg)
Curb weight(kg)	7880,8510(Kg)
Rated weight(kg)	9925,9990,9295,9360(Kg)
Wheel base(mm)	4500/5100(mm)
Overall Dimension(mm)	9000,9200,9600,10150,12000,9400,10400,10600,10050,10250×2550,2600×3850,3900,3990(mm)
Cargo box size(mm)	6680,6800,7200,7700,7800,9400,9500,9600,8000×2350,2400,2420,2440,2380×2300,2400,2500,2600,2450,2680,2780(mm)
Engine brand & model	Dongfeng Cummins 240/260 horsepower engine (B6.2NS6B260)
Axle Quantity	2
Transmission Type	Fast 8-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	275/80R22.5 18PR, 6+1 spare

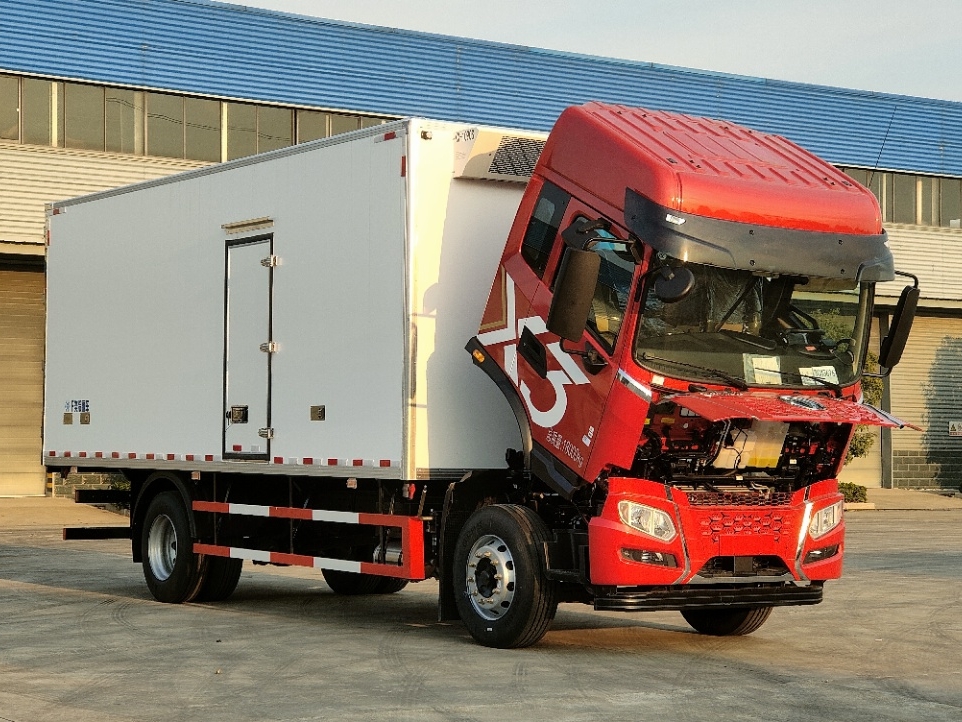

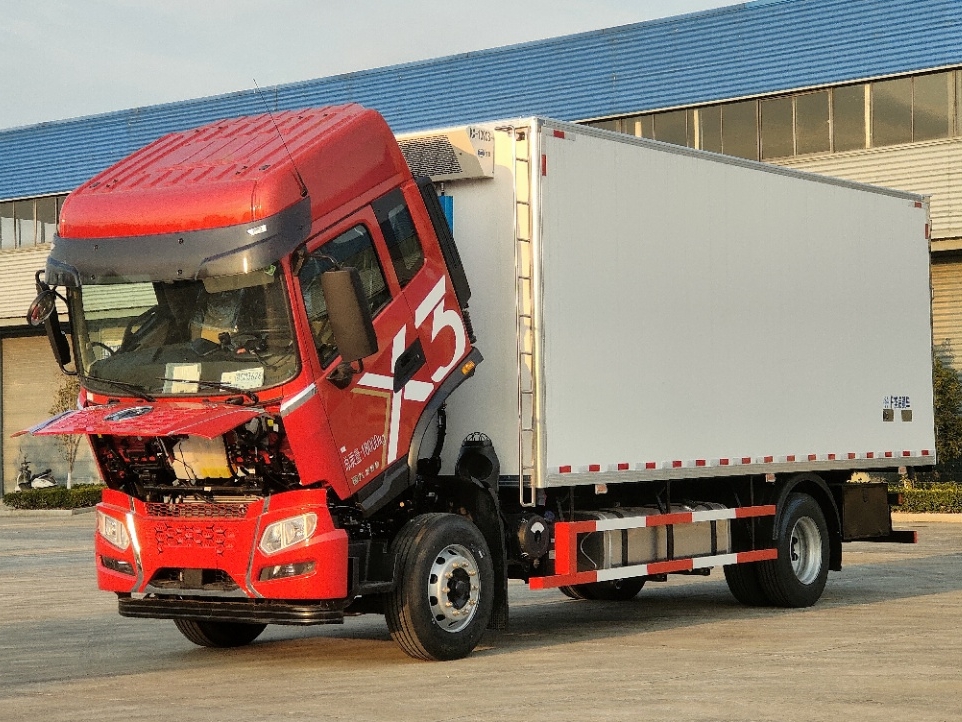

Cab	Dongfeng brand new X3 cab with high roof
Cargo box configuration	The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin.

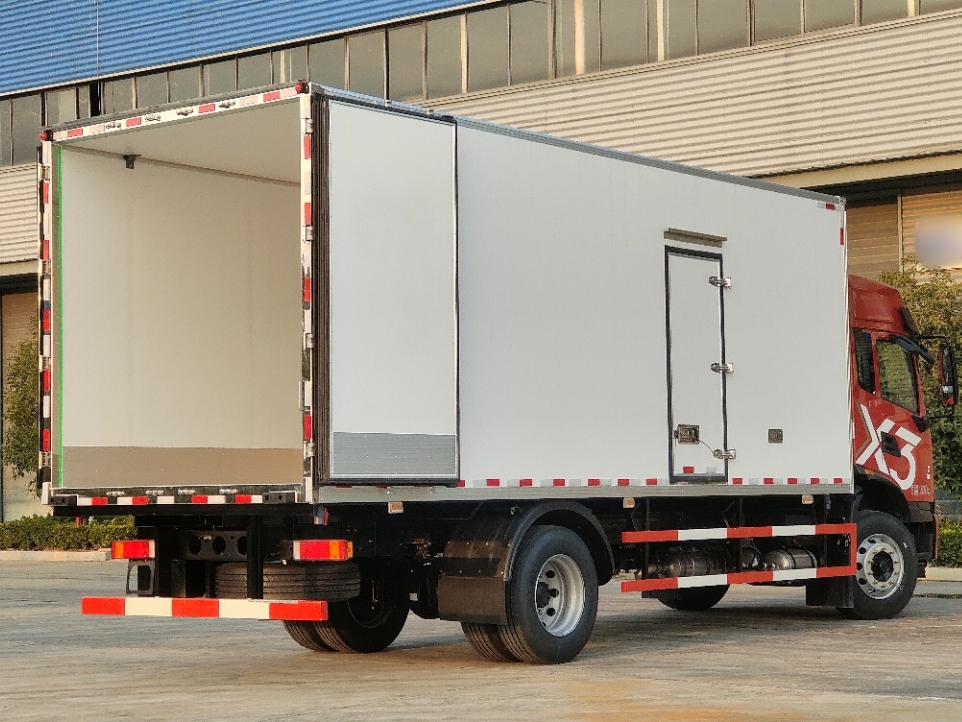

Compartment structure	Do not open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
Refrigerated Unit	Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units. Kelly, Kexue, Lengwang, Carrier, Bayer and other refrigeration units can be optionally installed.

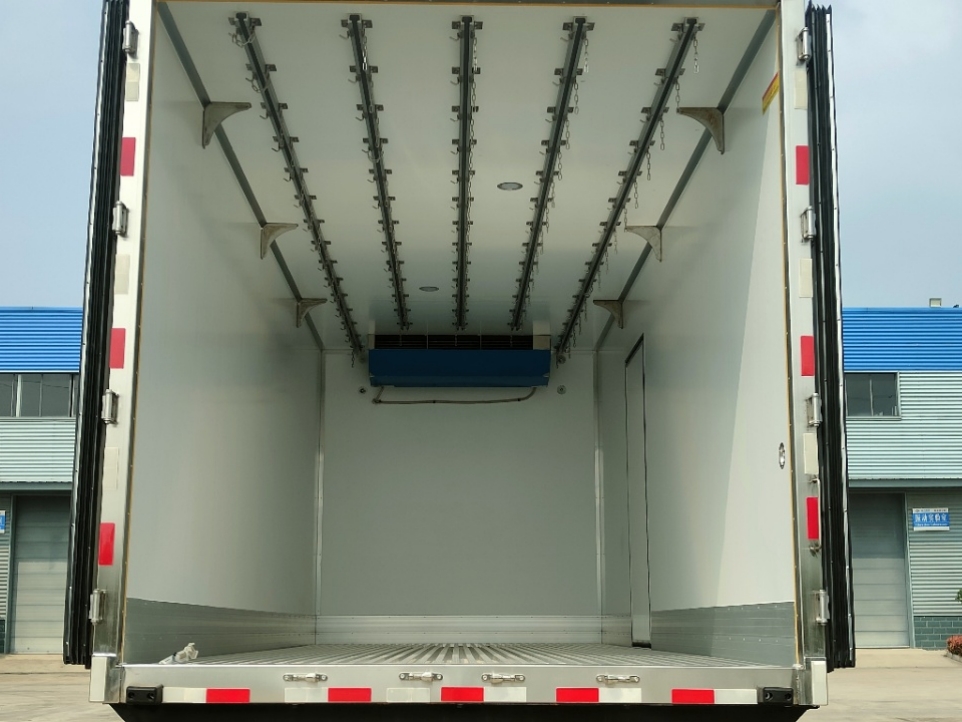

Optional	The truck can be equipped with an optional Mobile frame style meat hook, docking slide rail, ventilation groove, insulation plate, inner stainless steel, 380V backup power supply, tailboard
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
