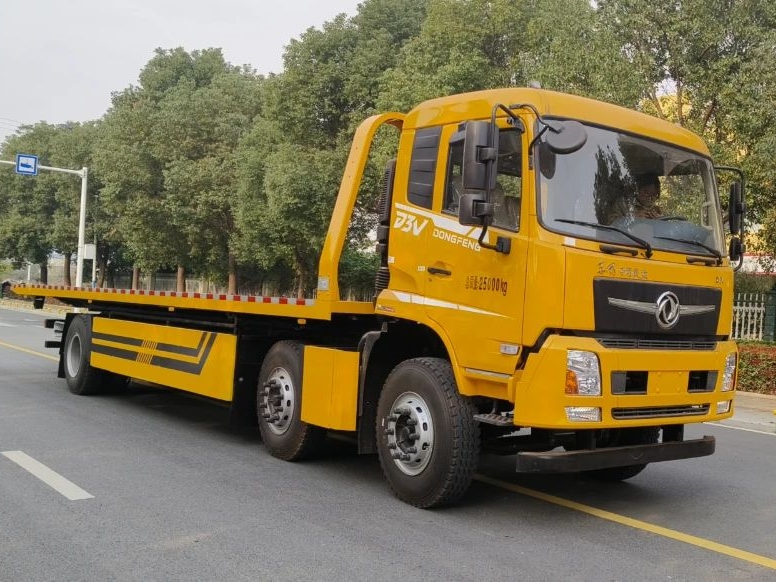

Dongfeng D3V 6x2 12T one tow two wrecker truck

Chassis configuration:

1. Engine: YCS06270-60, Yuchai 270ph

2.Transmission type: 9-speed gearbox

3.Tyre: 11.00R20 18PR, 8+1 spare

4.Wheelbase: 1995+5450

5 Other:D3V cab, air conditioning, airbag seats
Installation configuration:

① One to two type, double-sided linkage operation device, using flat sinking process, 12 ton upper loading, 10 ton hydraulic winch, 12 ton 3-section trailing arm,
② The flat panel is 10 meters long (including 1.2 meters of hydraulic flip), 2.55 meters wide, 8mm thick patterned plate, 16mm thick steel plate frame, innovative and unique double vertical and horizontal cross brace, double 10mm thick sliding groove, reinforced double auxiliary beam,
③ Two rear work lights, one toolbox, HZL oil cylinder, and Hyde multi way valve.

Product Name： Dongfeng D3V 6x2 12T one tow two wrecker truck
Driving Type： 6×2
Weight /Classification： As follows
Type： one tow two wrecker truck

Product Features

Dongfeng D3V 6x2 12T one tow two wrecker truck

A tow truck (also called a wrecker, a breakdown truck, recovery vehicle or a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.

This vehicle is mainly used for road block removal , and its main specialized devices are flat plates, supporting arms, winches, steel wire ropes, and oil cylinders.

Product parameters

Product Name	Dongfeng D3V 6x2 12T one tow two wrecker truck
Driving Type	6×2
Weight /Classification	As follows
Type	one tow two wrecker truck
Lift weight(kg)	9170
Dimensions	As follows
Wheelbase(mm)	1995+5450
Overall Dimension(mm)	12345,12385,12445×2550×3000,3060,3120(mm)
Engine	As follows
Engine brand & model	YCS06270-60A, Yuchai 270hp
Displacement(L)/Power(kw)	6.23L/199KW
Chassis	As follows
Axle Quantity	3
Transmission Type	9-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	11.00R20 18PR, 8+1 spare
Cab	D3V cab, air conditioning, airbag seats
Platform	The tablet is 10 meters long (including 1.2 meters of hydraulic flip), 2.55 meters wide, and has a 8mm thick patterned plate,
Crane specification	no crane
Standard configuration	/
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
