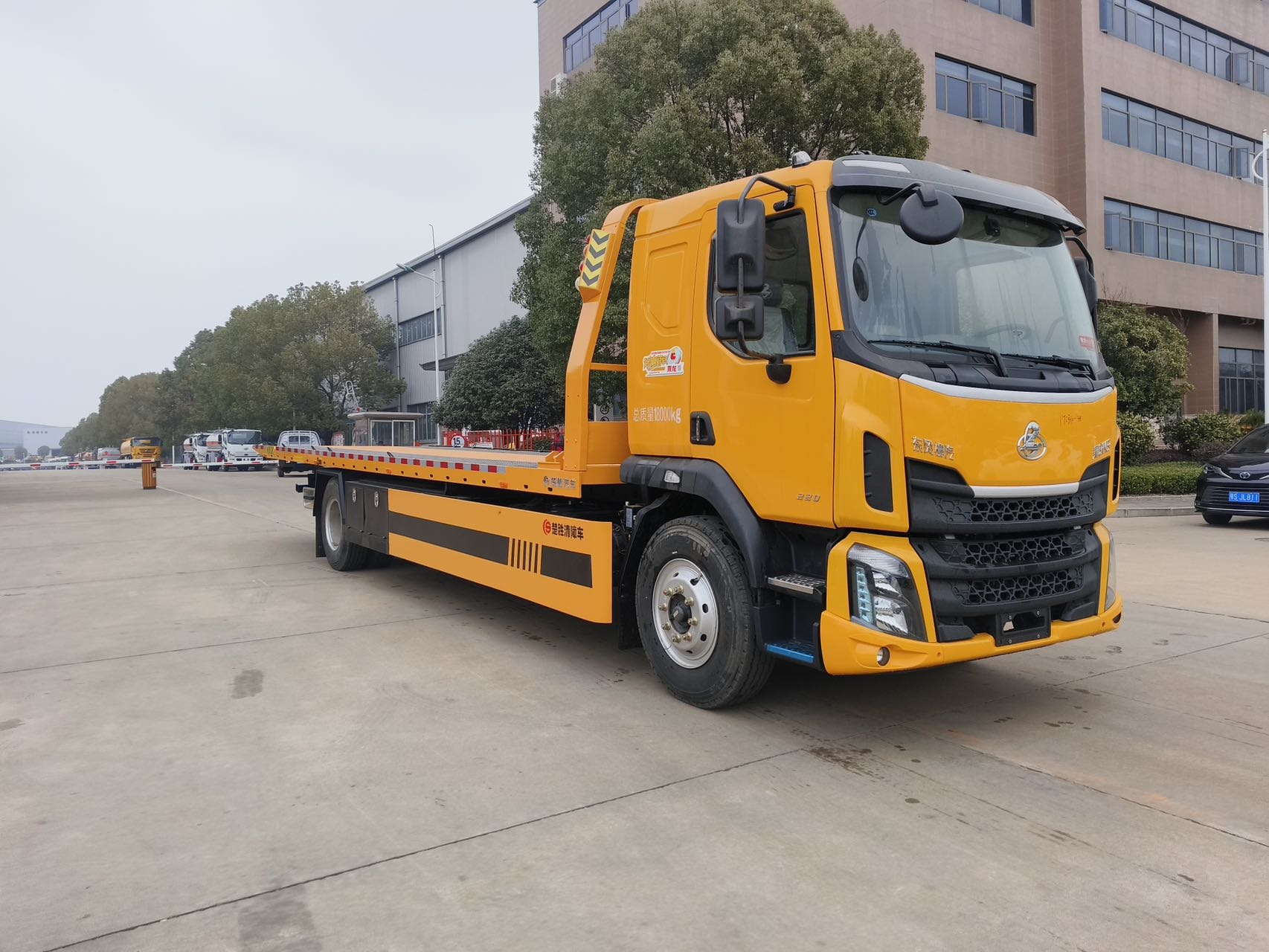

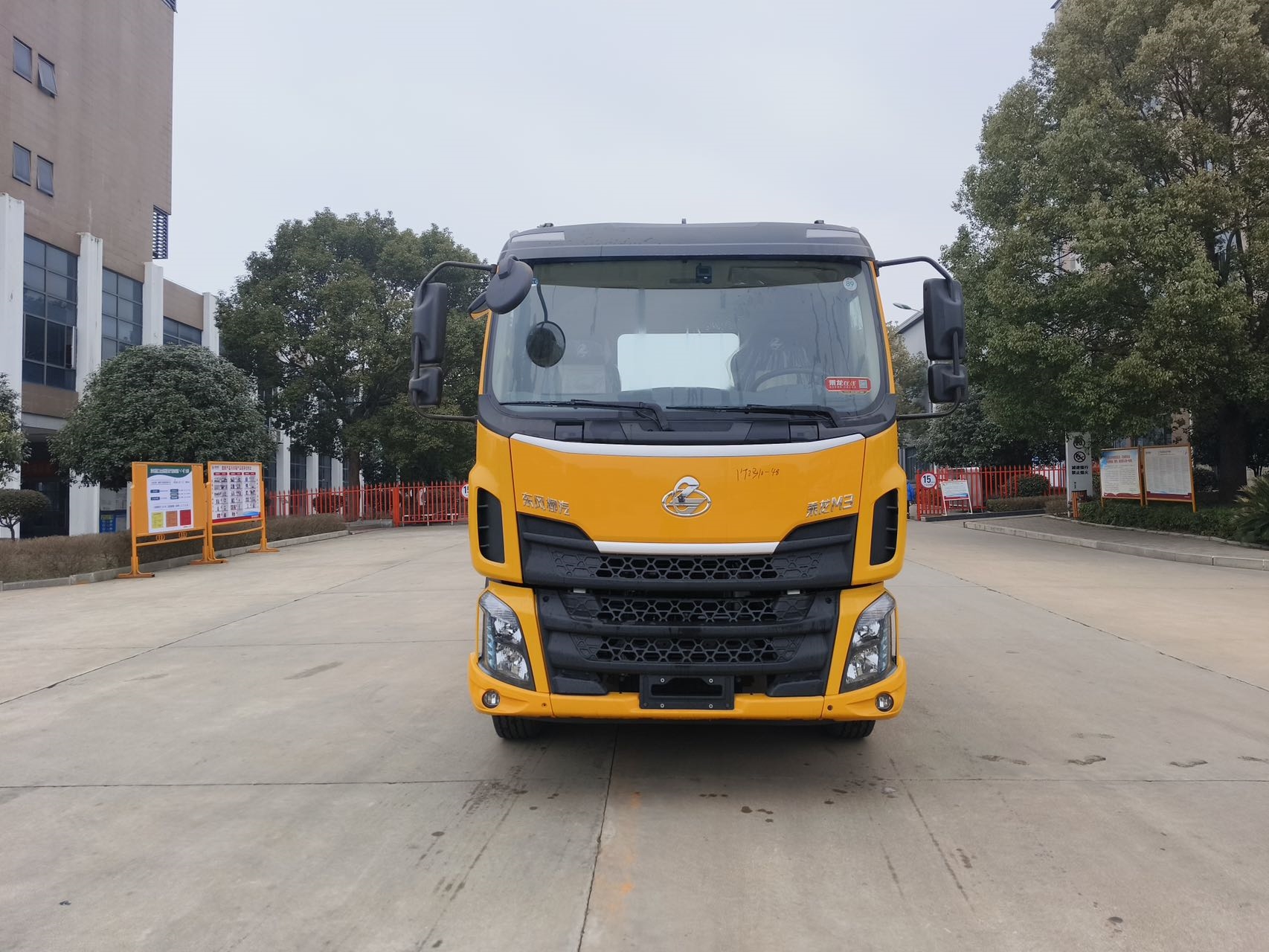

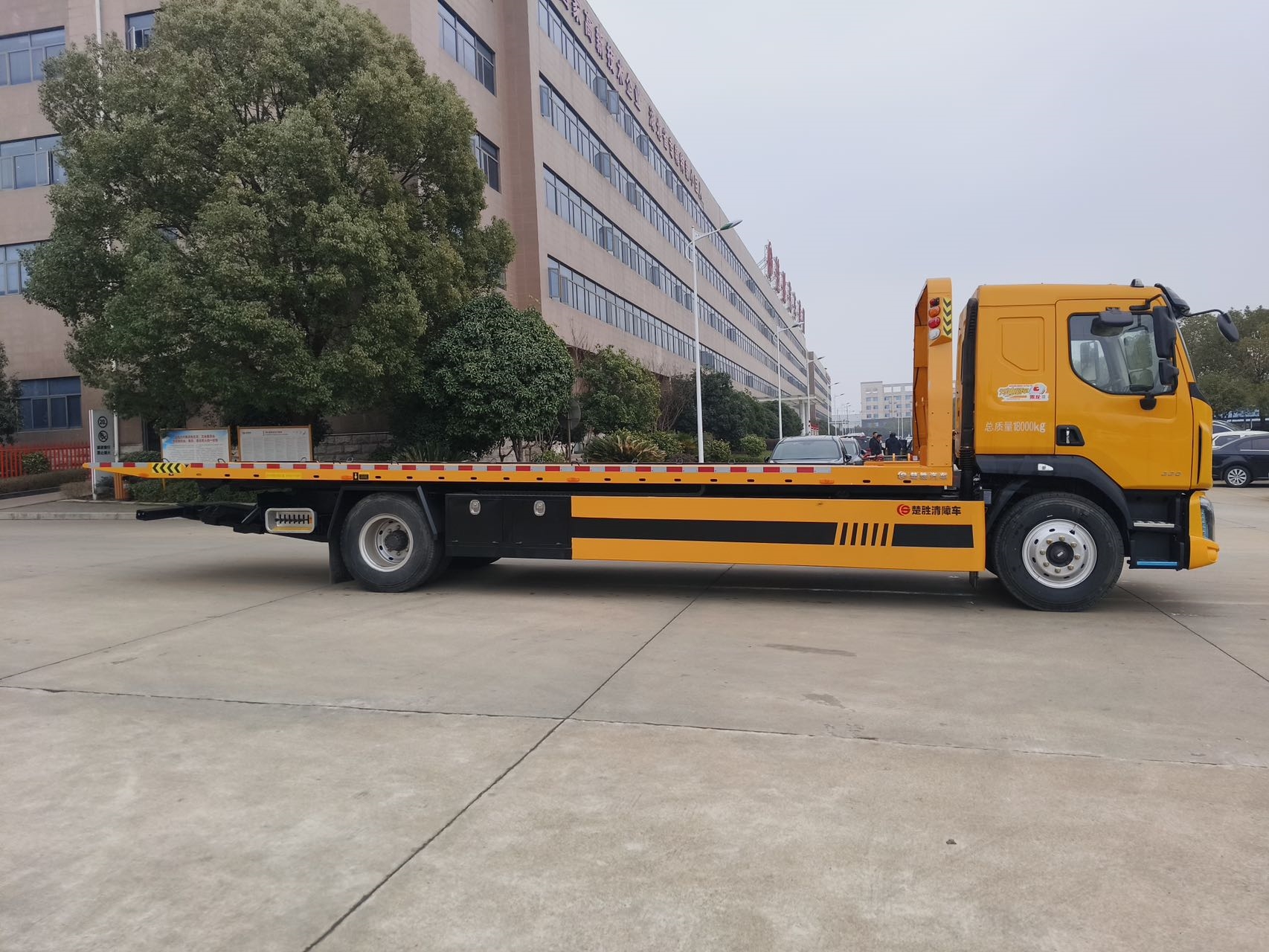

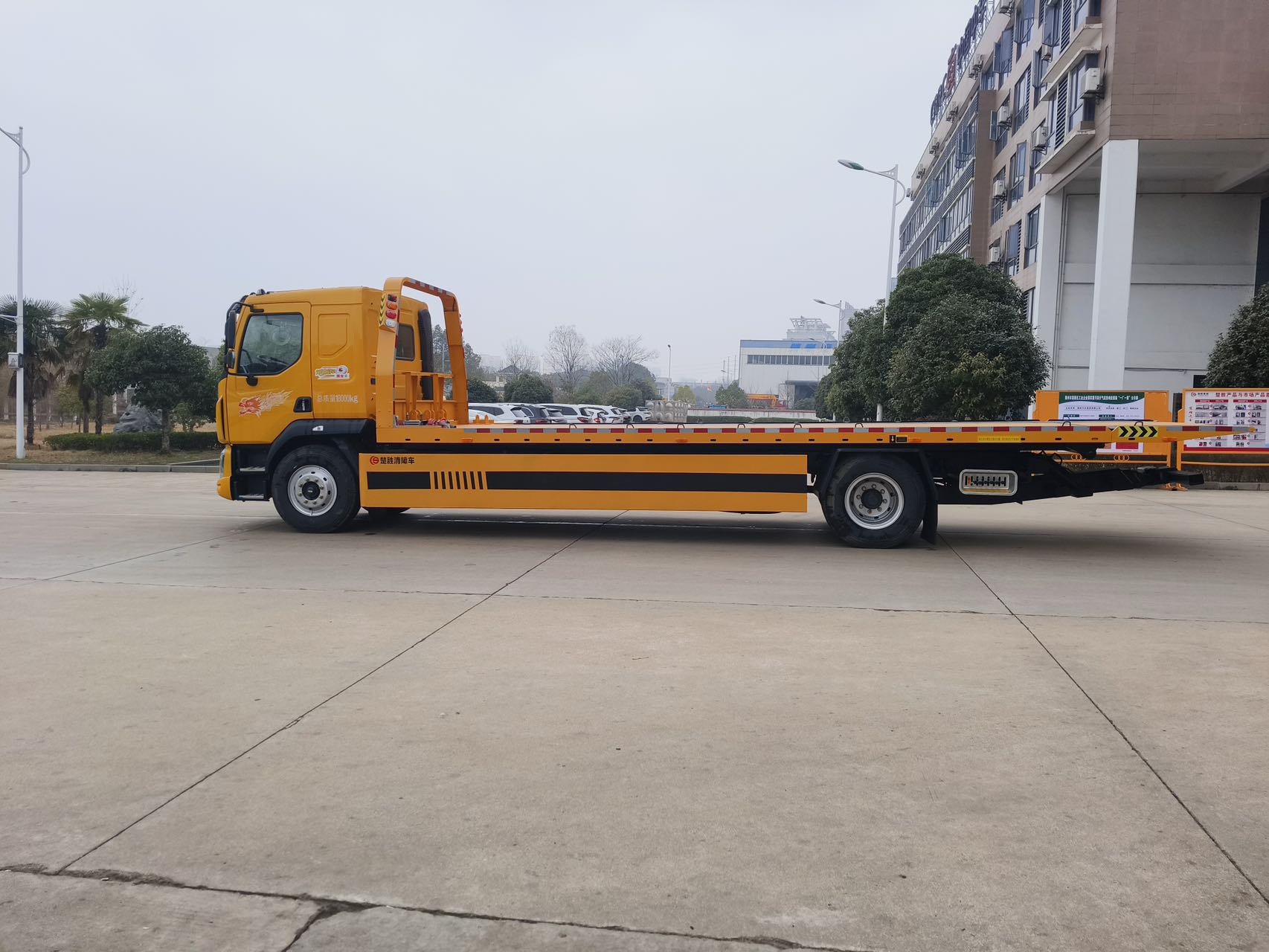

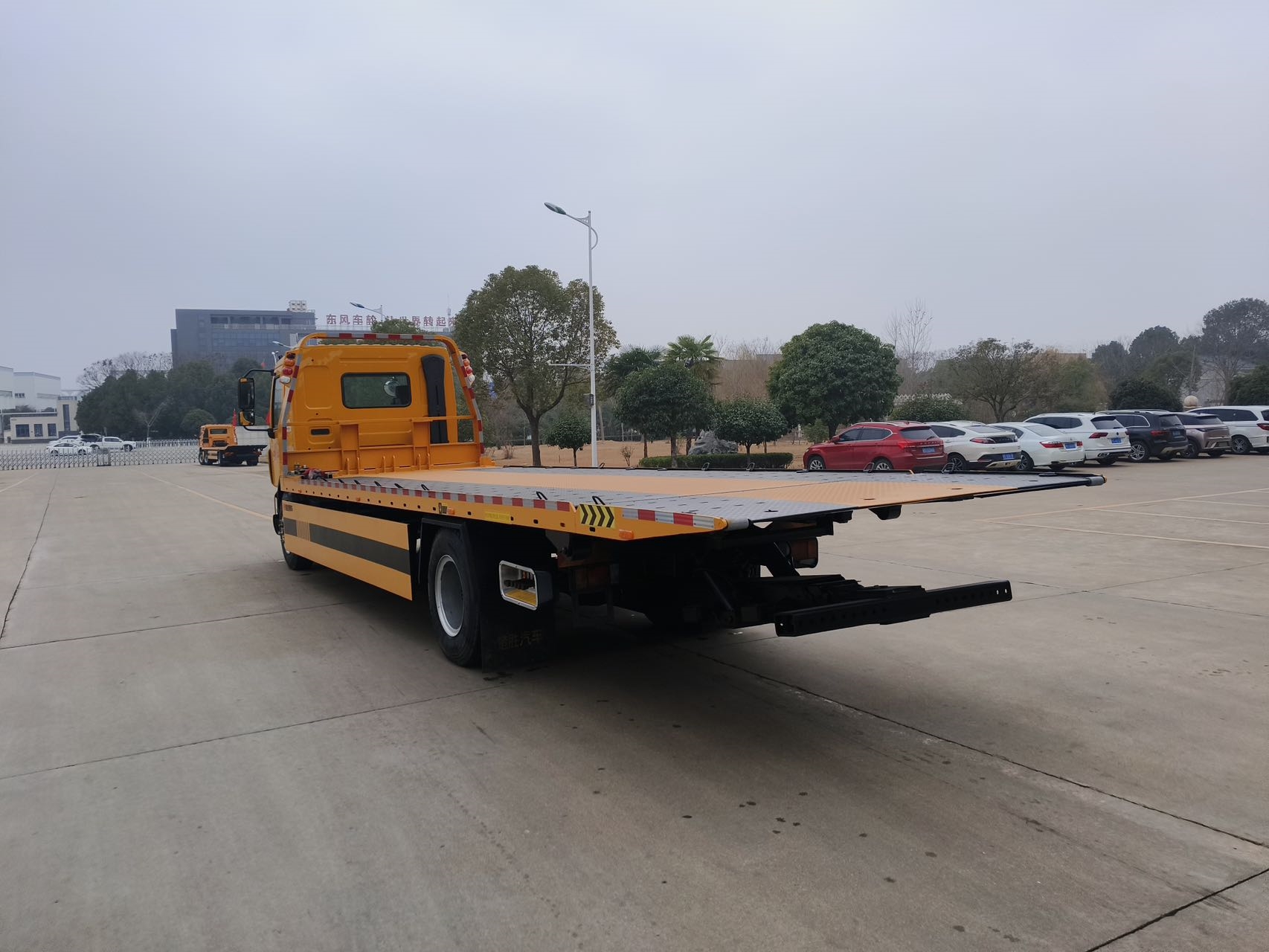

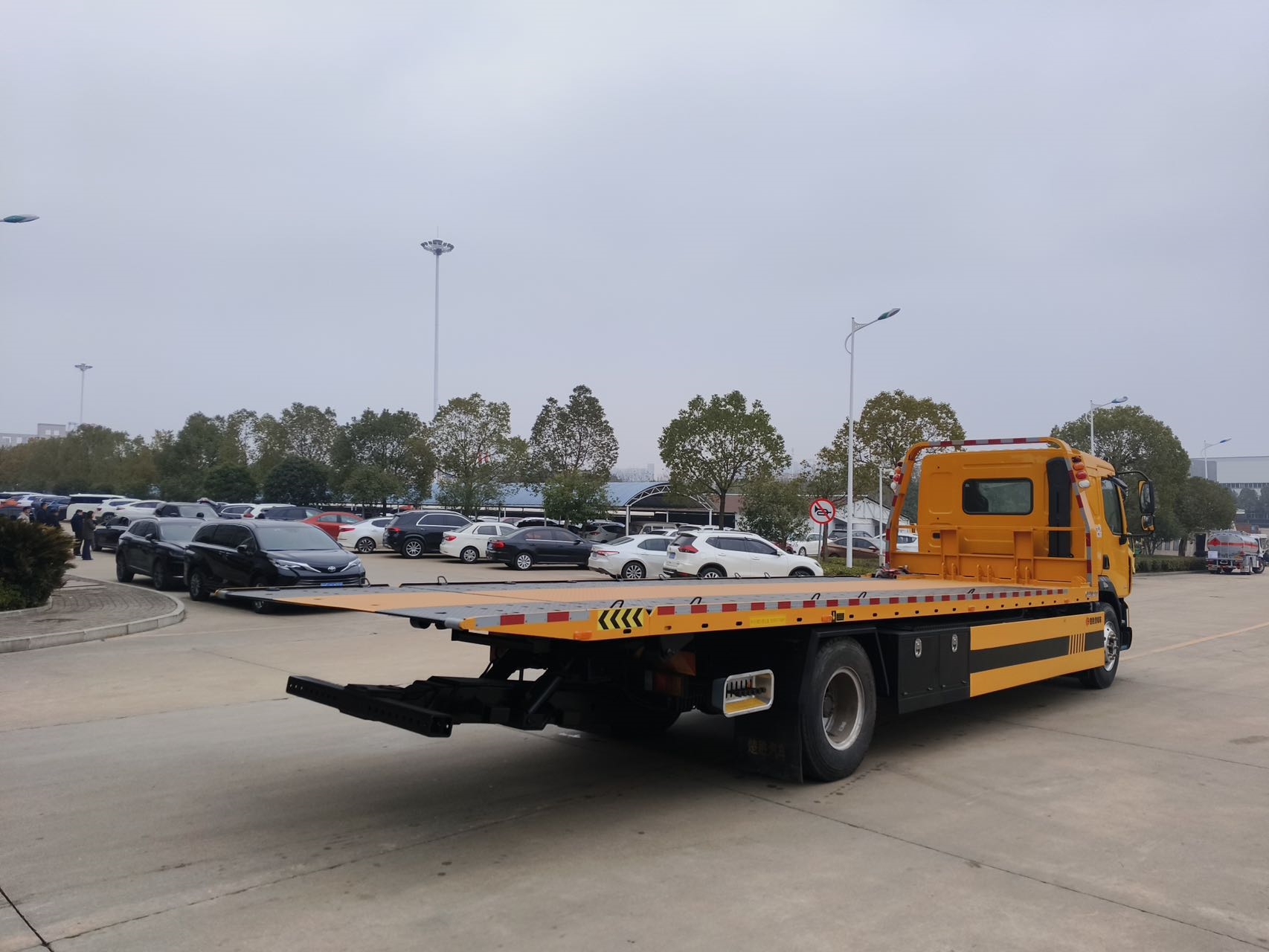

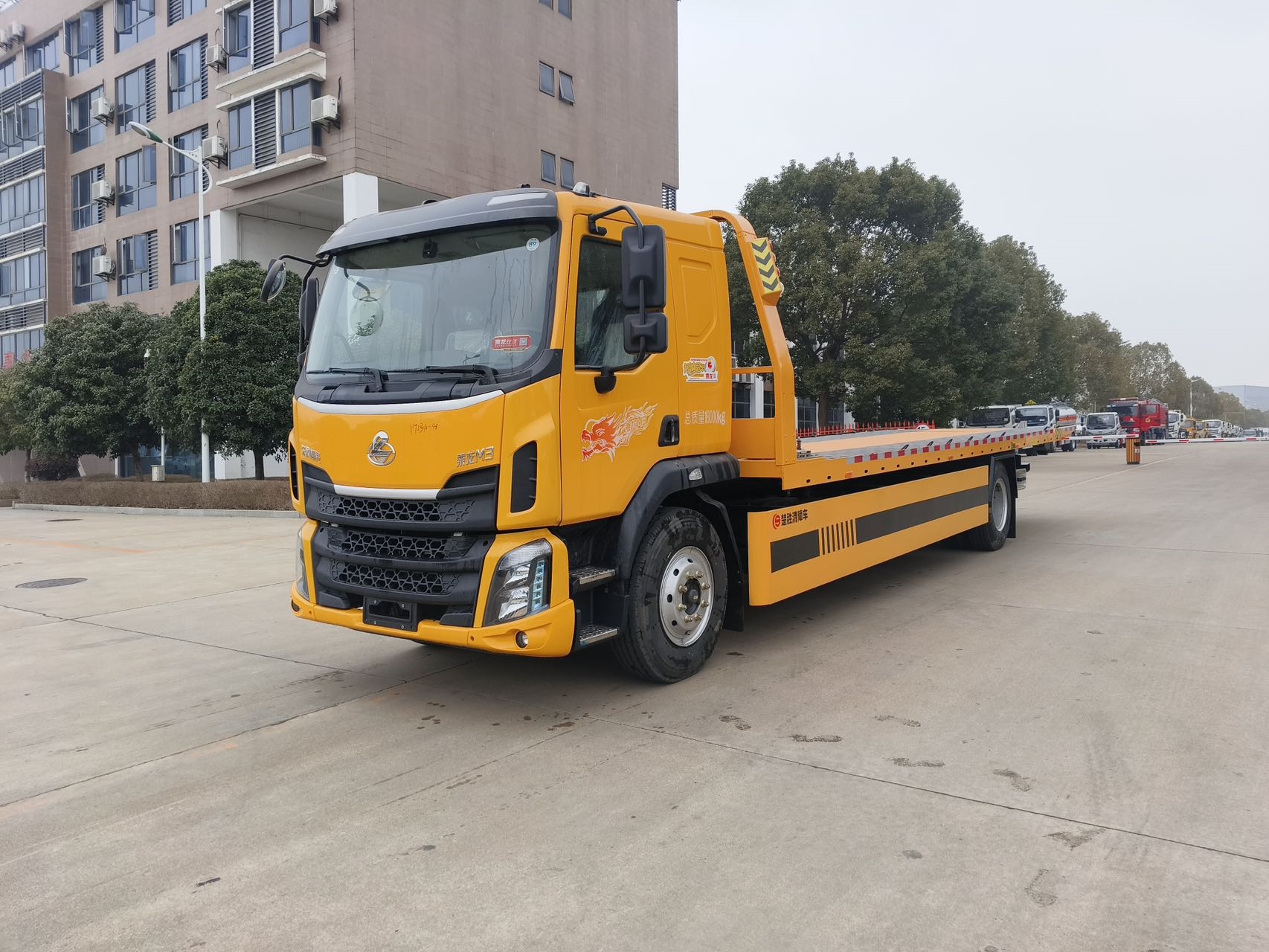

Liuqi 4x2 road-block removal truck

Chassis configuration:

1. Engine: Yuchai,YCS04220-61A

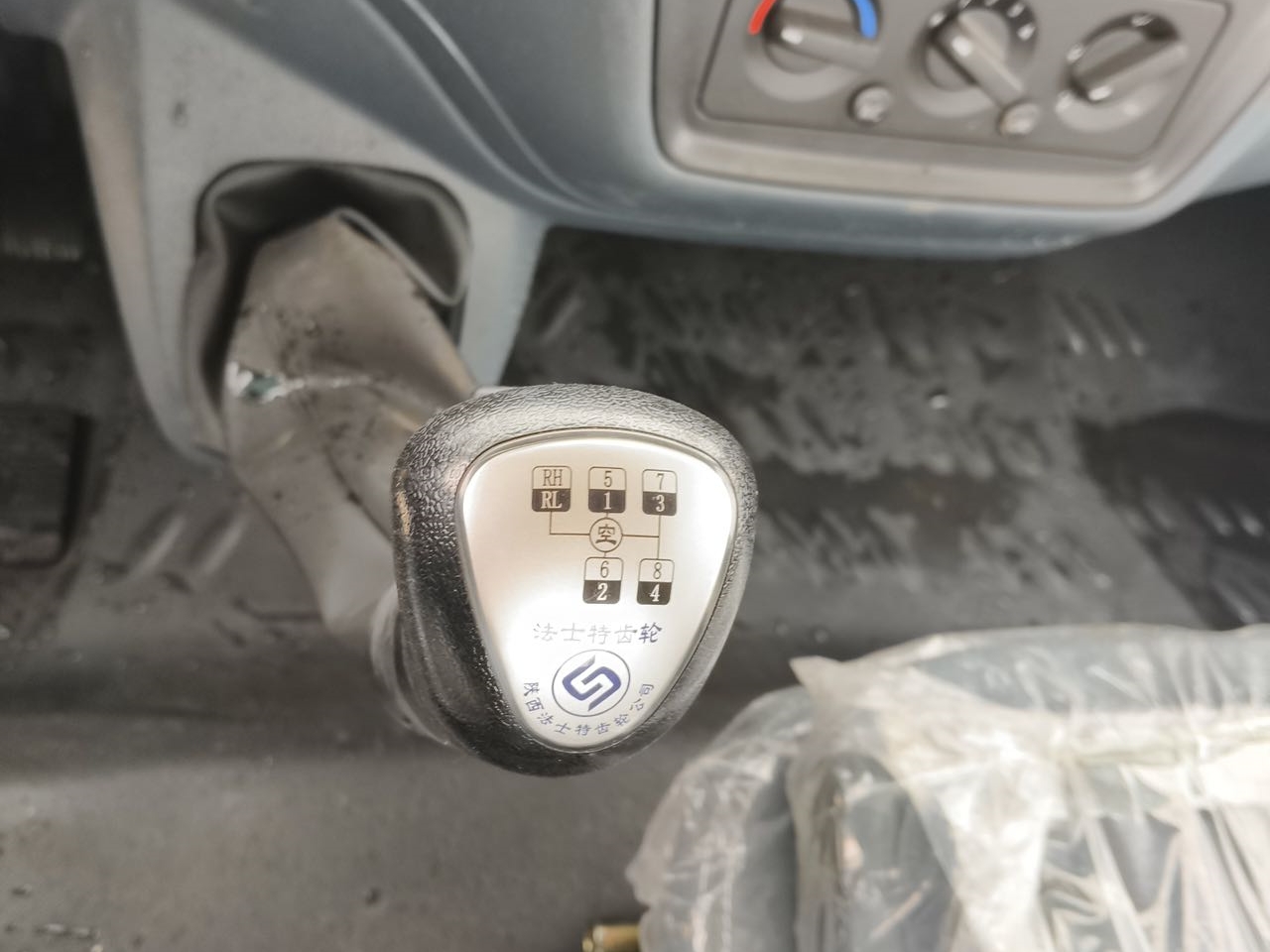

2.Transmission type: 8 forward gears and 1 reverse gear

3.Tyre: 10.00R20-/18PR, 6 with a spare

4.Wheelbase:6300mm

5 Other: Semi floating cab suspension, hydraulic mechanical flip, laminated glass, electric glass lifter, airbag shock absorber driver's seat, silicone oil fan, LCD instrument panel, MP3+radio, air conditioning, cruise control, ABS, in car terminal (driving recorder+compatible with Beidou GPS), remote control center lock, self-adjusting arm, right turn prompt sound, Chenglong V+car networking 3.0 system, speed limit of 89Km/h, car lock treasure
Installation configuration:

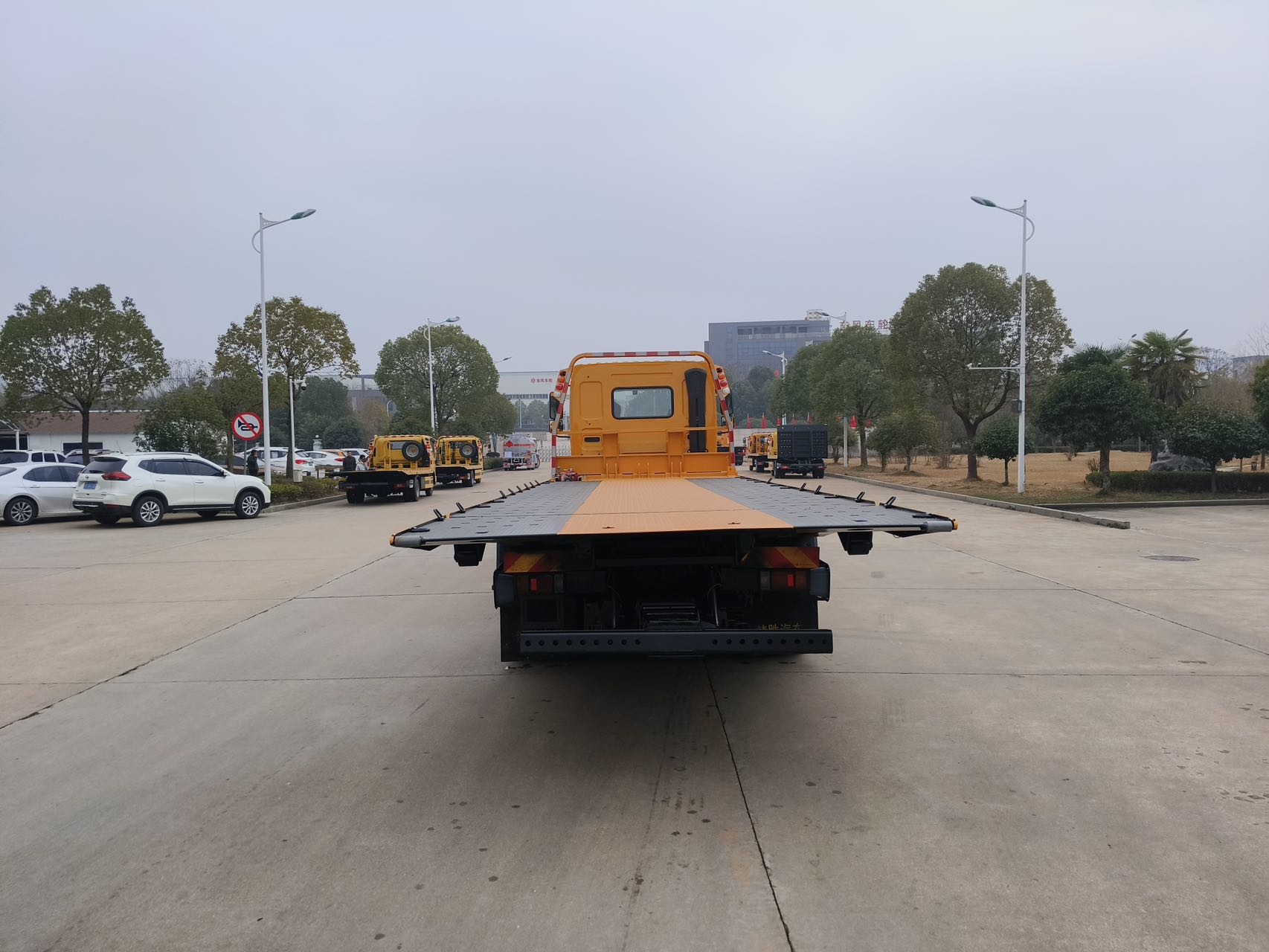

1. 10P12 patterned flat plate (6mm), the rear of the main board can be hydraulically flipped; The board length is 7.6 meters for the main board, 1.3 meters for the hydraulic flip board, with steel plates attached to the frame and a cross shaped chassis layout,
2. One 80KN winch (equipped with a 45 meter steel wire rope), a 12 ton 3-section rear support arm hanging beam, double-sided linkage operation device, one toolbox, equipped with two small cars, one pair of L-shaped tire racks, four binding straps, two pairs of fork supports, one pair of fork seats, and one chain hook.,
3. Naval battle power oil cylinder, Hefei Wanye hydraulic pump, Italian Ward hydraulic valve, original/Suizhou power take-off, center of gravity lowering, auxiliary air pipe assembly, rear support arm mounted on the main beam,
4. Optional cross shaped bottom plate layout. Add square pipes under the board for reinforcement.

Product Name： Liuqi 4x2 road-block removal truck
Driving Type： 4×2
Weight /Classification：
Type： wrecker recovery truck

Product Features

Liuqi 4x2 road-block removal truck

A tow truck (also called a wrecker, a breakdown truck, recovery vehicle or a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.

This vehicle is mainly used for road block removal , and its main specialized devices are flat plates, supporting arms, winches, steel wire ropes, and oil cylinders.

Product parameters

Product Name	Liuqi 4x2 road-block removal truck
Driving Type	4×2
Weight /Classification
Type	wrecker recovery truck
Rated payload weight(kg)	17000
Dimensions
Wheelbase(mm)	6300
Overall Dimension(mm)	12045,11945,11145,11245×2550,2500×2950,3250,3300
Engine
Engine brand & model	Yuchai,YCS04220-61A
Displacement(L)/Power(kw)	4.29L/162kw
Chassis
Axle Quantity	2
Transmission Type	8 forward gears and 1 rear gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	10.00R20-/18PR, 6 with a spare
Cab	M31B cab

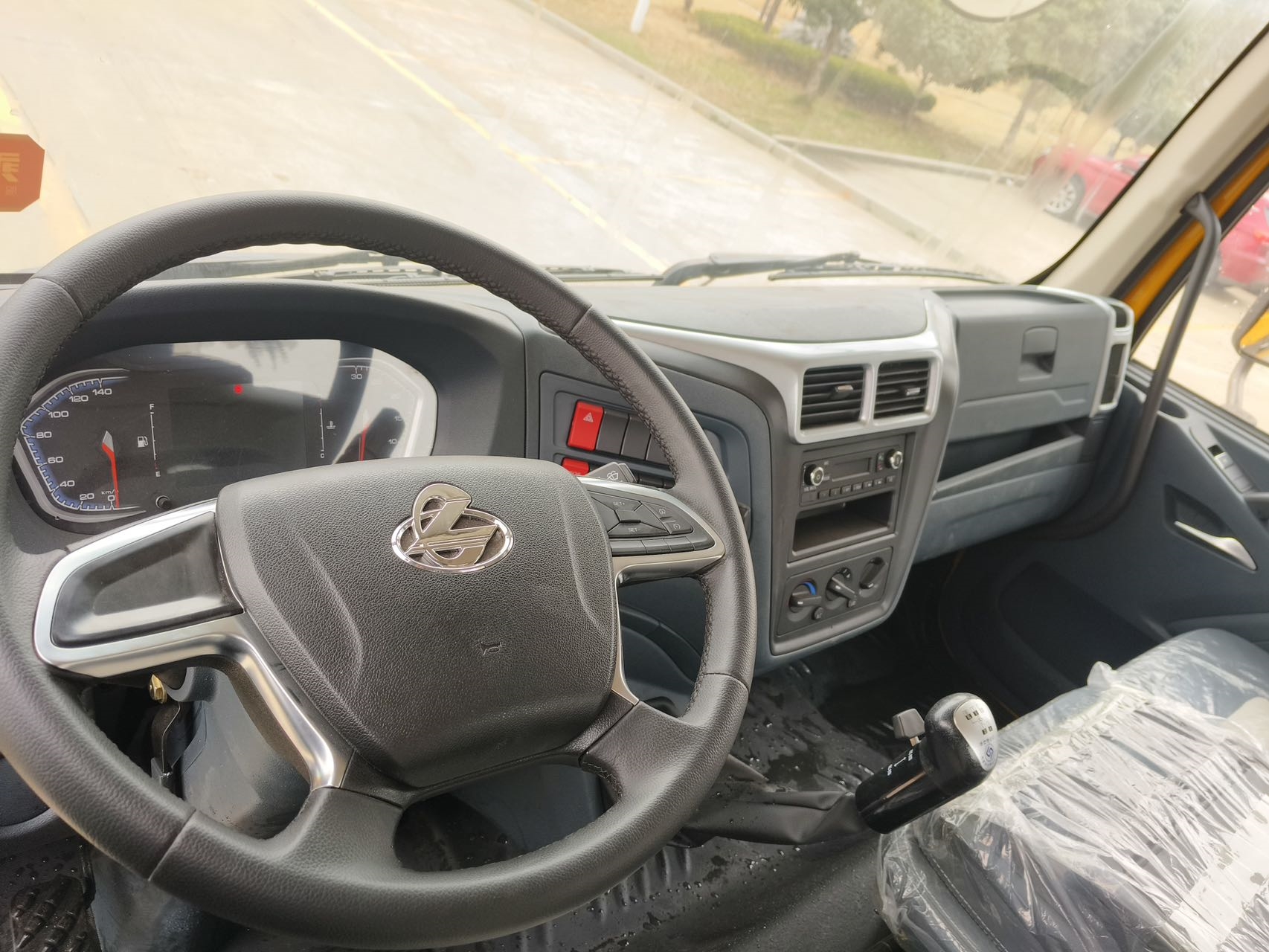

Standard configuration	Hydraulic mechanical flip, laminated glass, electric glass lifter, airbag shock absorber driver's seat, silicone oil fan, LCD instrument panel, MP3+radio, air conditioning, cruise control, ABS, in car terminal (driving recorder+compatible with Beidou GPS), remote control central locking, self-adjusting arm, right turn prompt sound
Air conditioning	Have
Performance parameter
Platform size	The board length is 7.6 meters for the main board, and it is a 6mm thick patterned flat plate
Crane specification	/
Standard configuration	/
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
