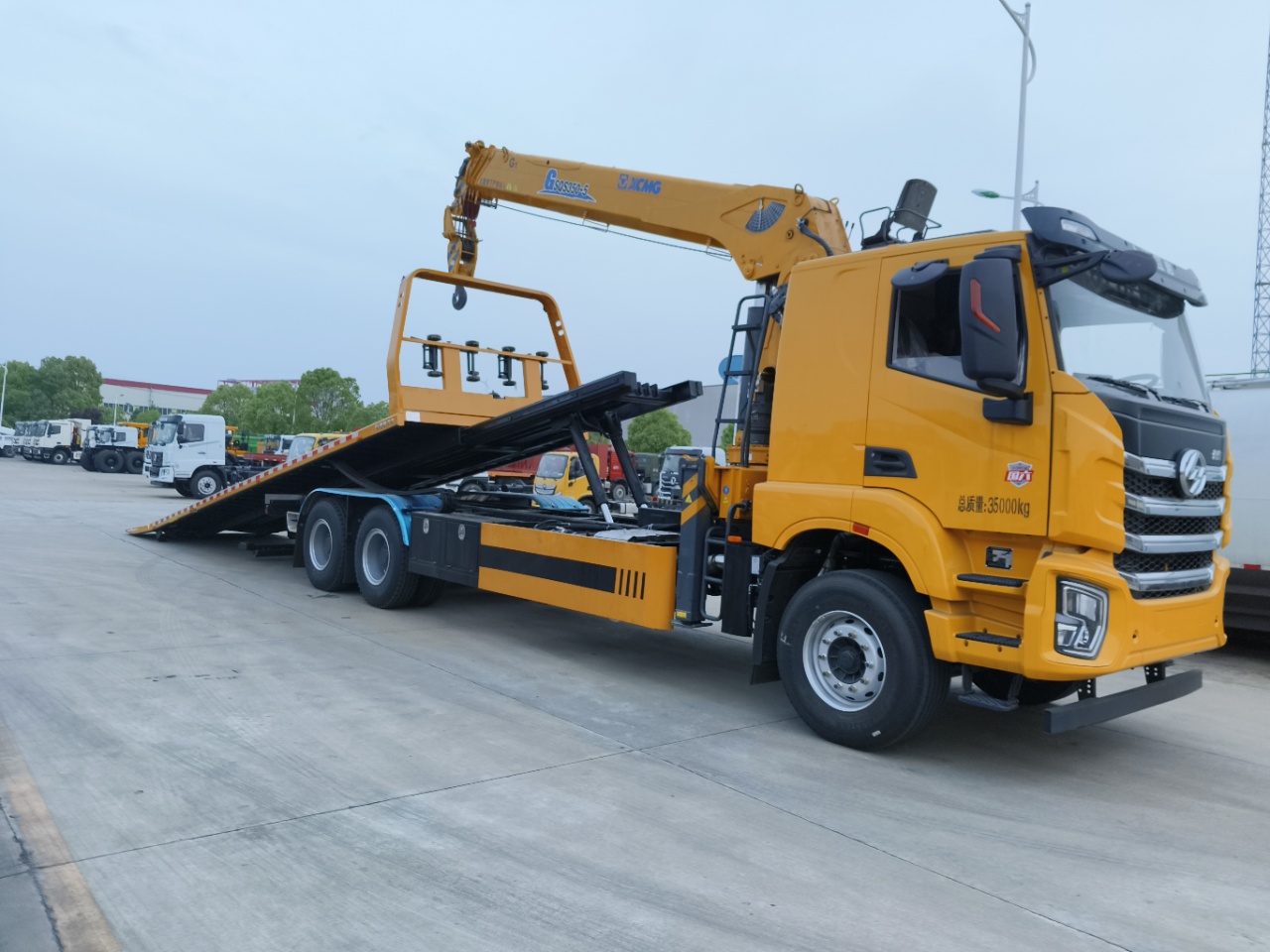

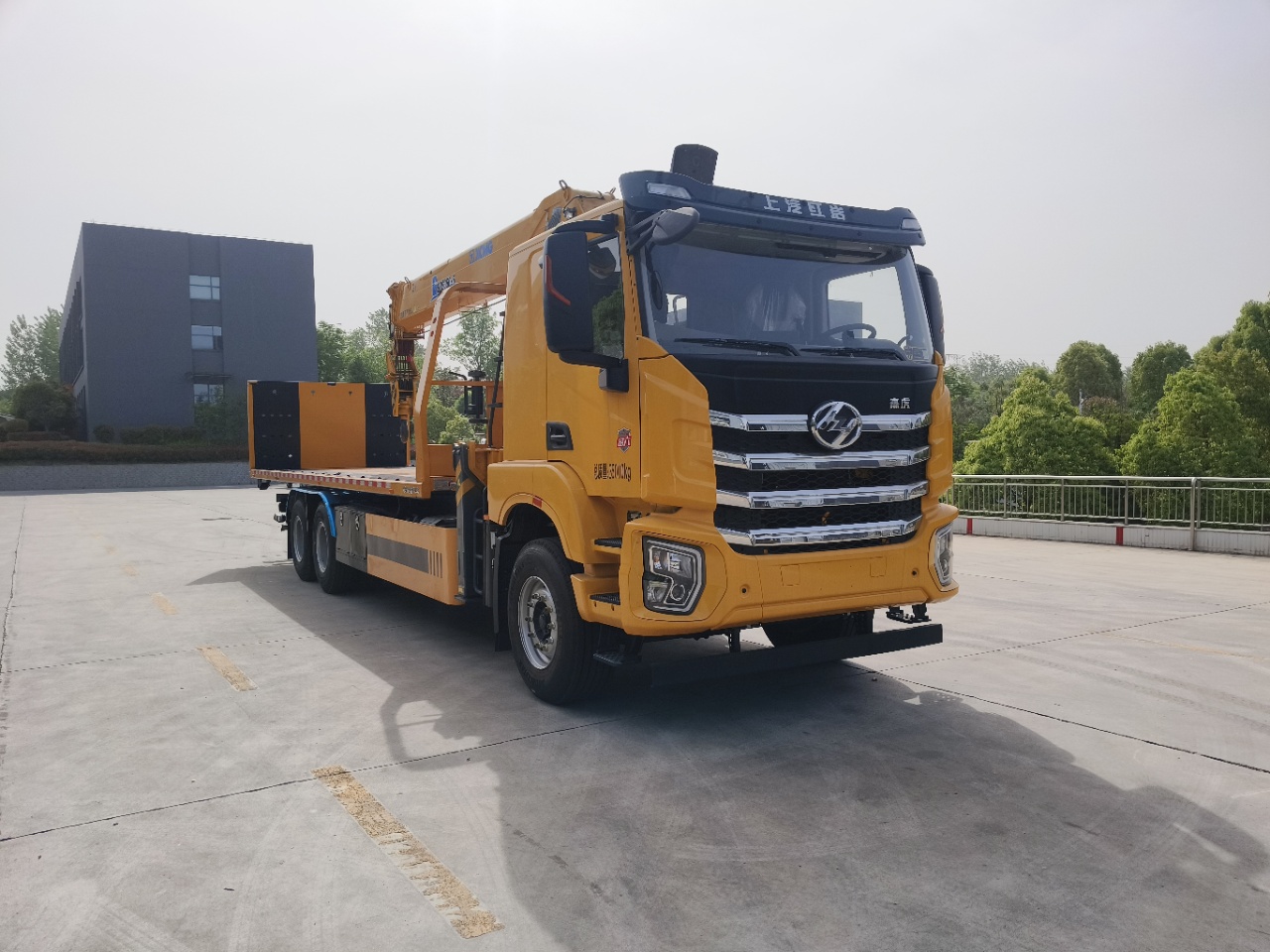

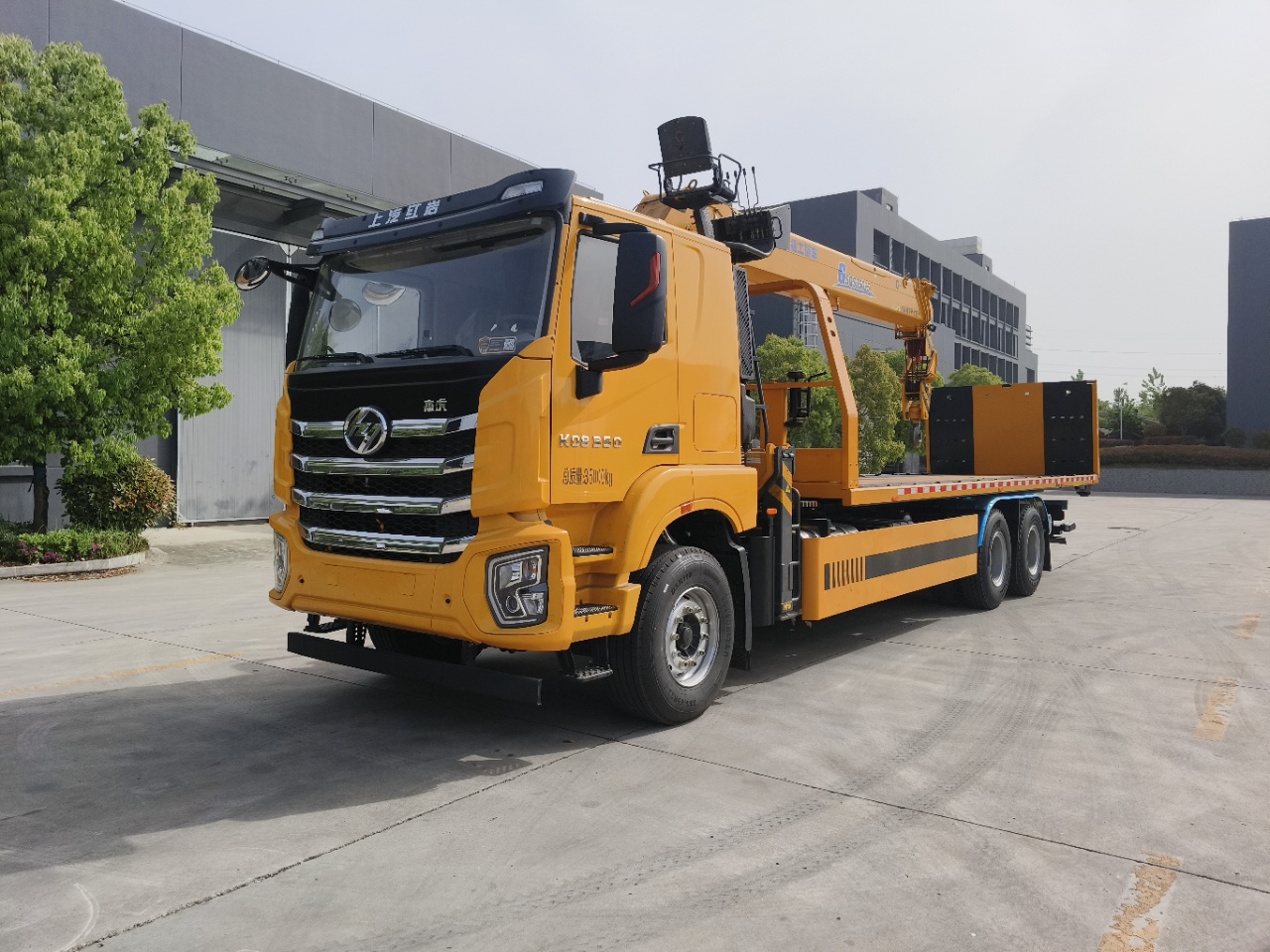

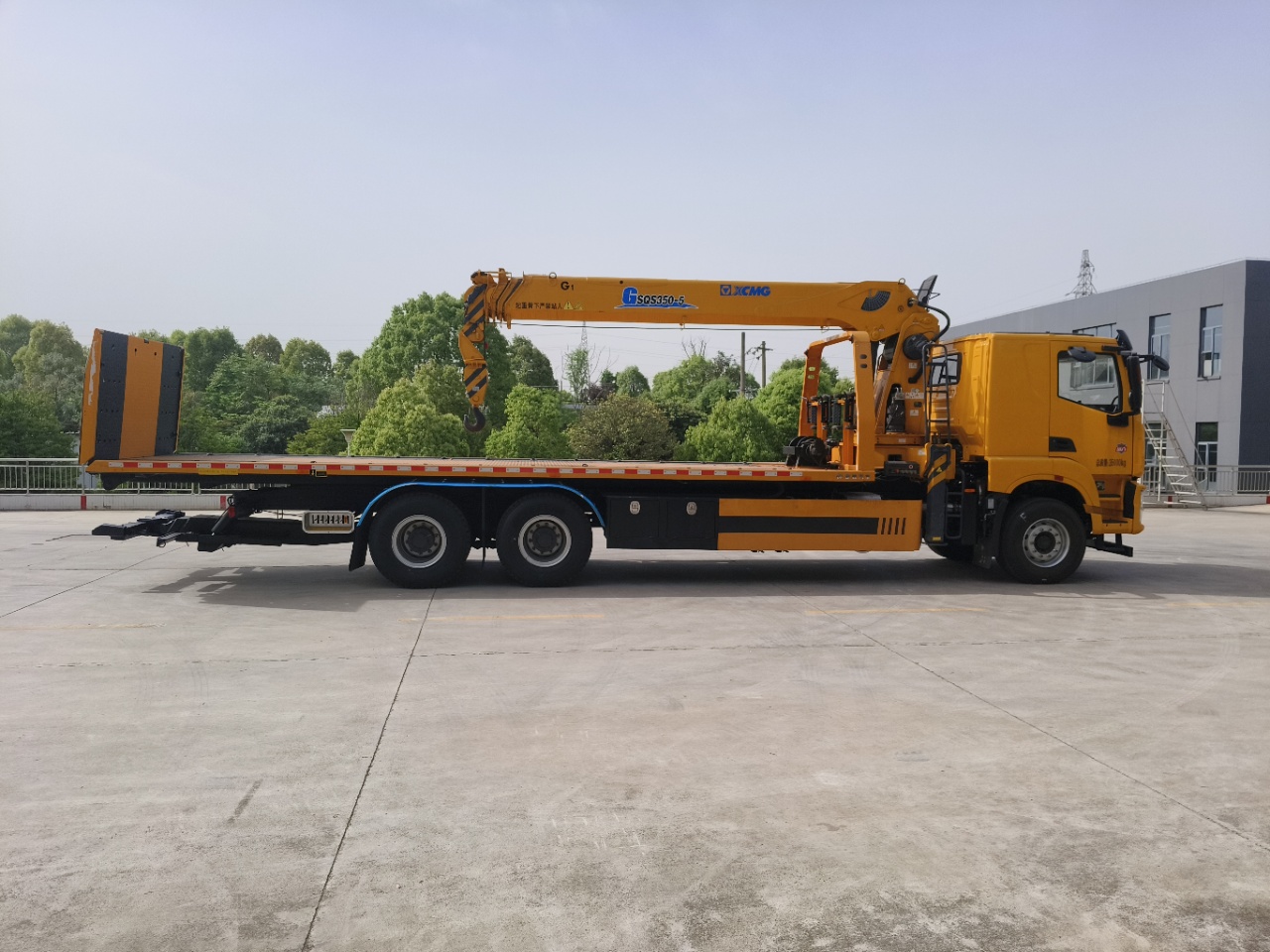

Saic Hongyan 6X4 one tow two wrecker truck with crane

Saic Hongyan Genpaw one tow two wrecker truck with crane

Chassis configuration:

1. Engine: YCK08-350-60,Yuchai 350ph

2.Transmission type: 12-speed with original power take-off

3.Tyre: Front tire 385/65R22.5, rear tire 12.00R20 18PR

4.Wheelbase: 4800+1400,4600+1400,4400+1400,6000+1400mm

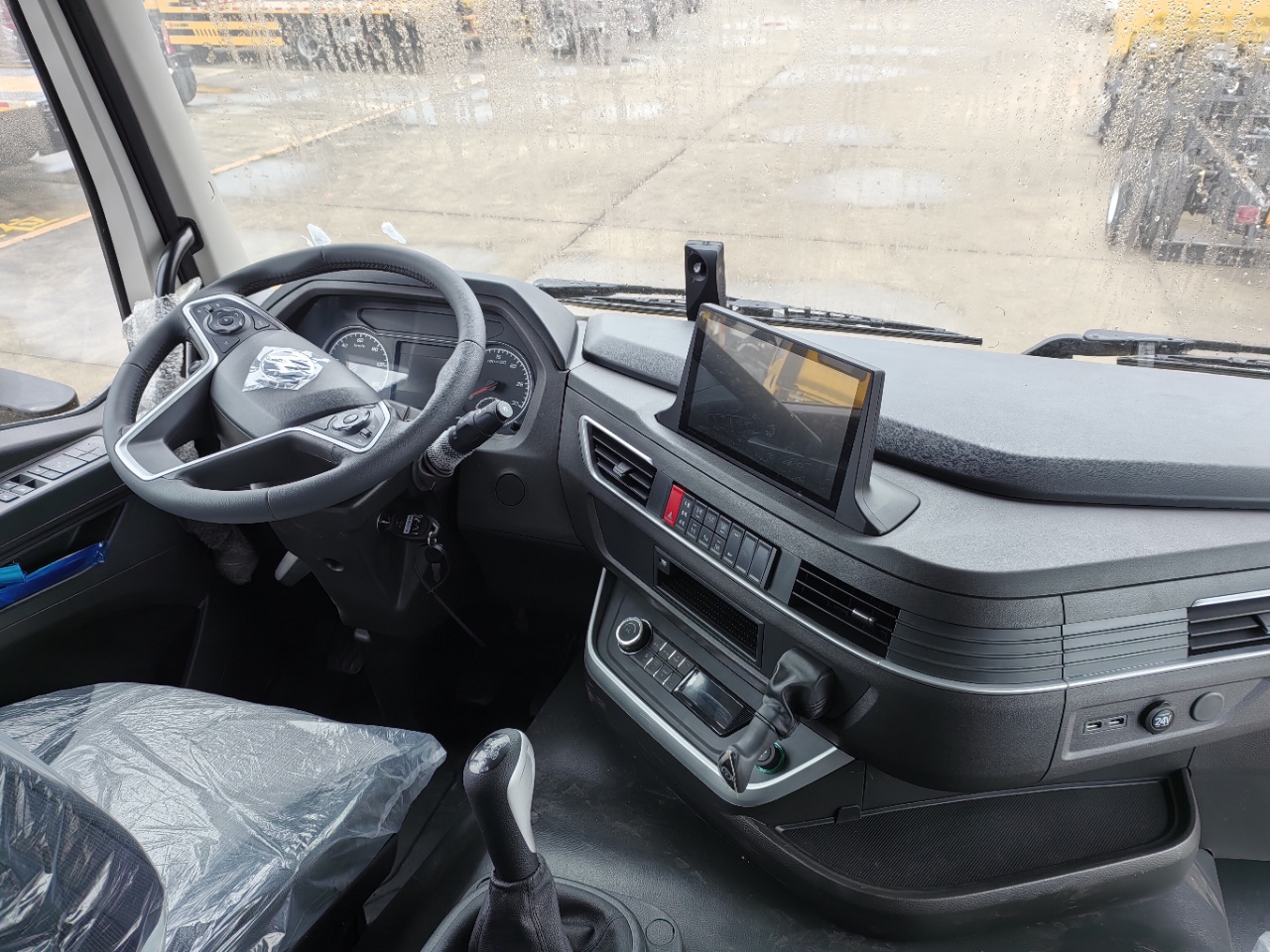

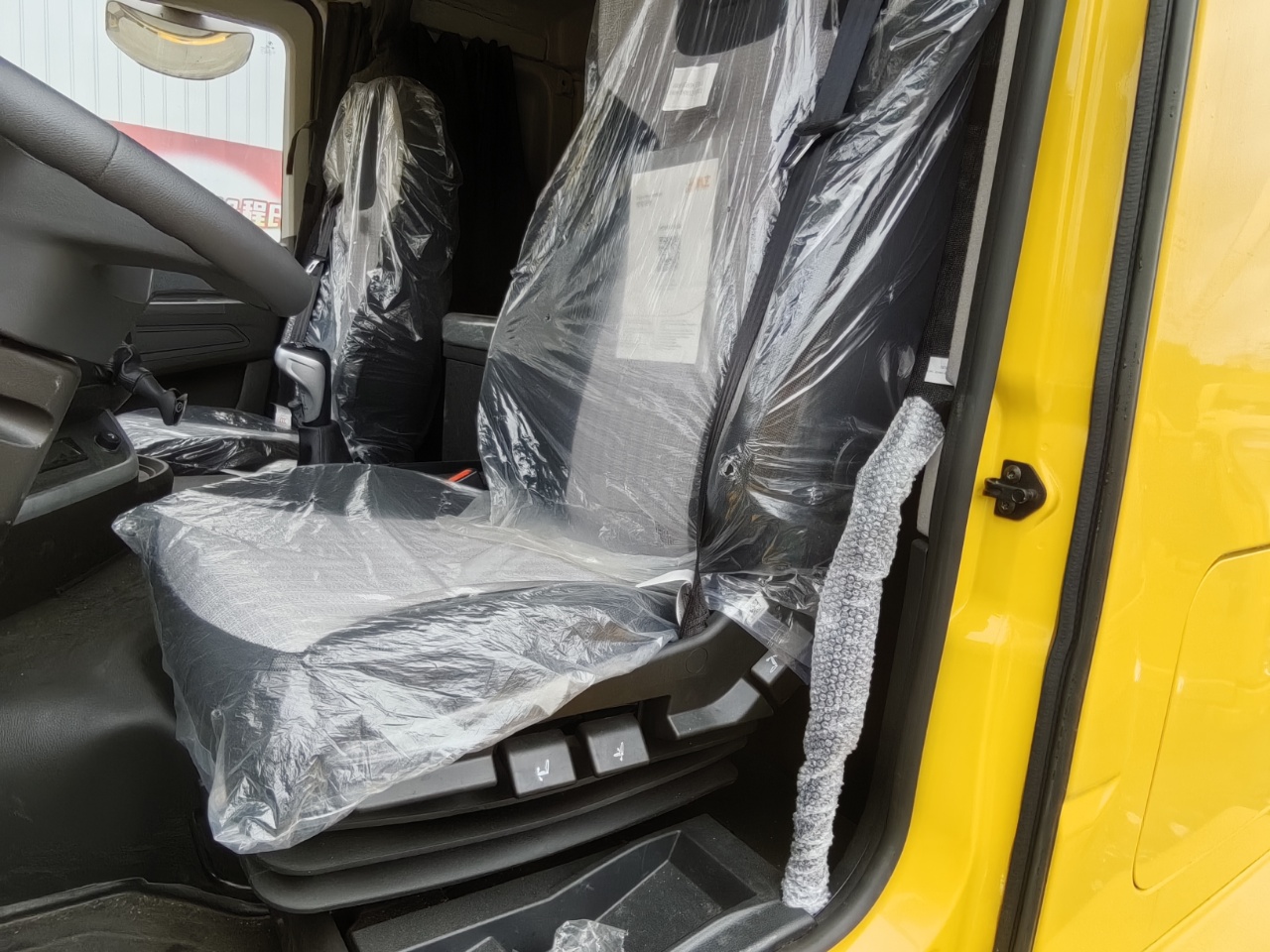

5 Other: 165Ah battery, remote control central locking, driver's cab electric flip, hydraulic shock absorber suspension, electric doors and windows, driver's air seat, 10 inch central control screen (with reverse image).
Installation configuration:

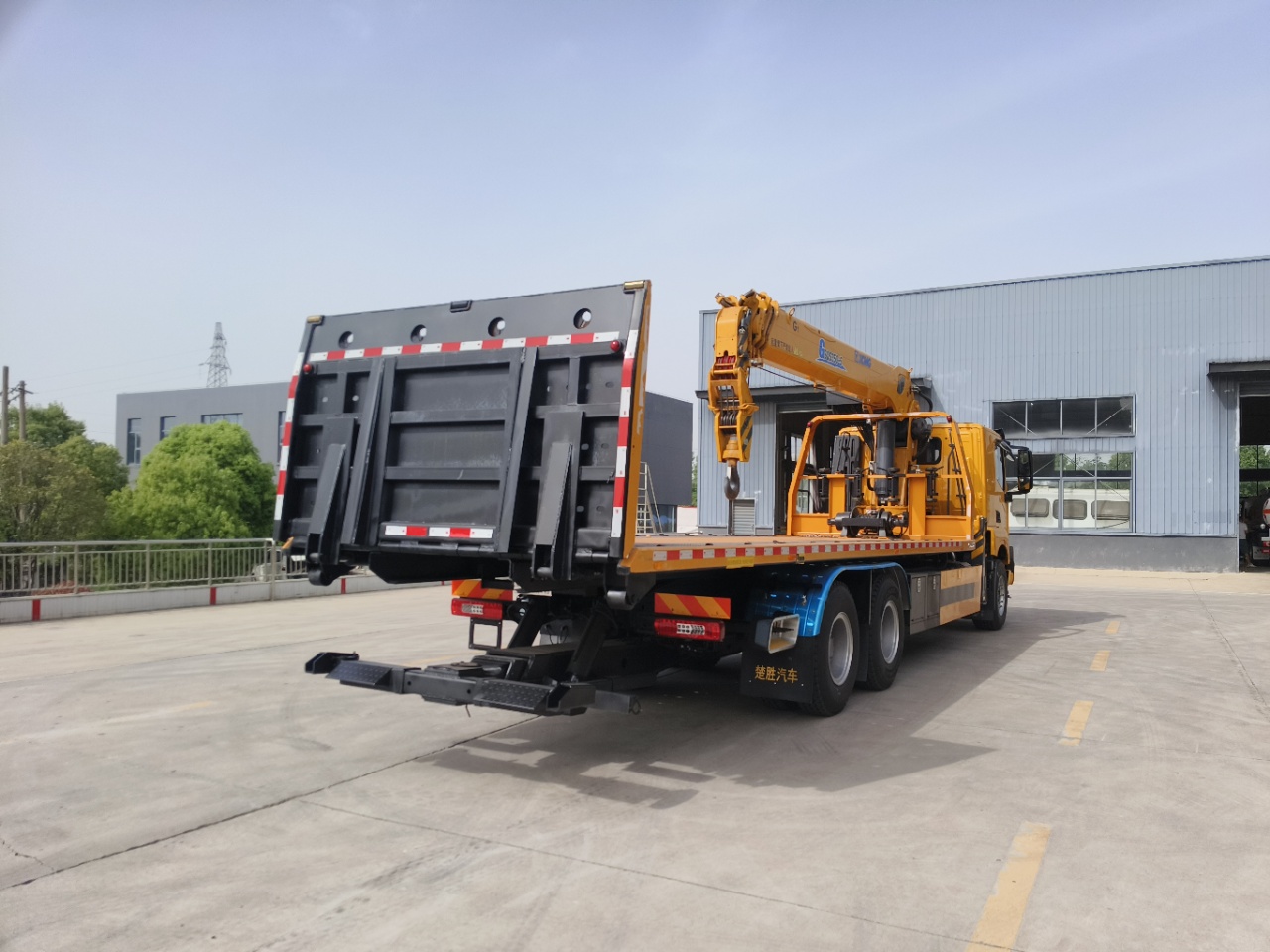

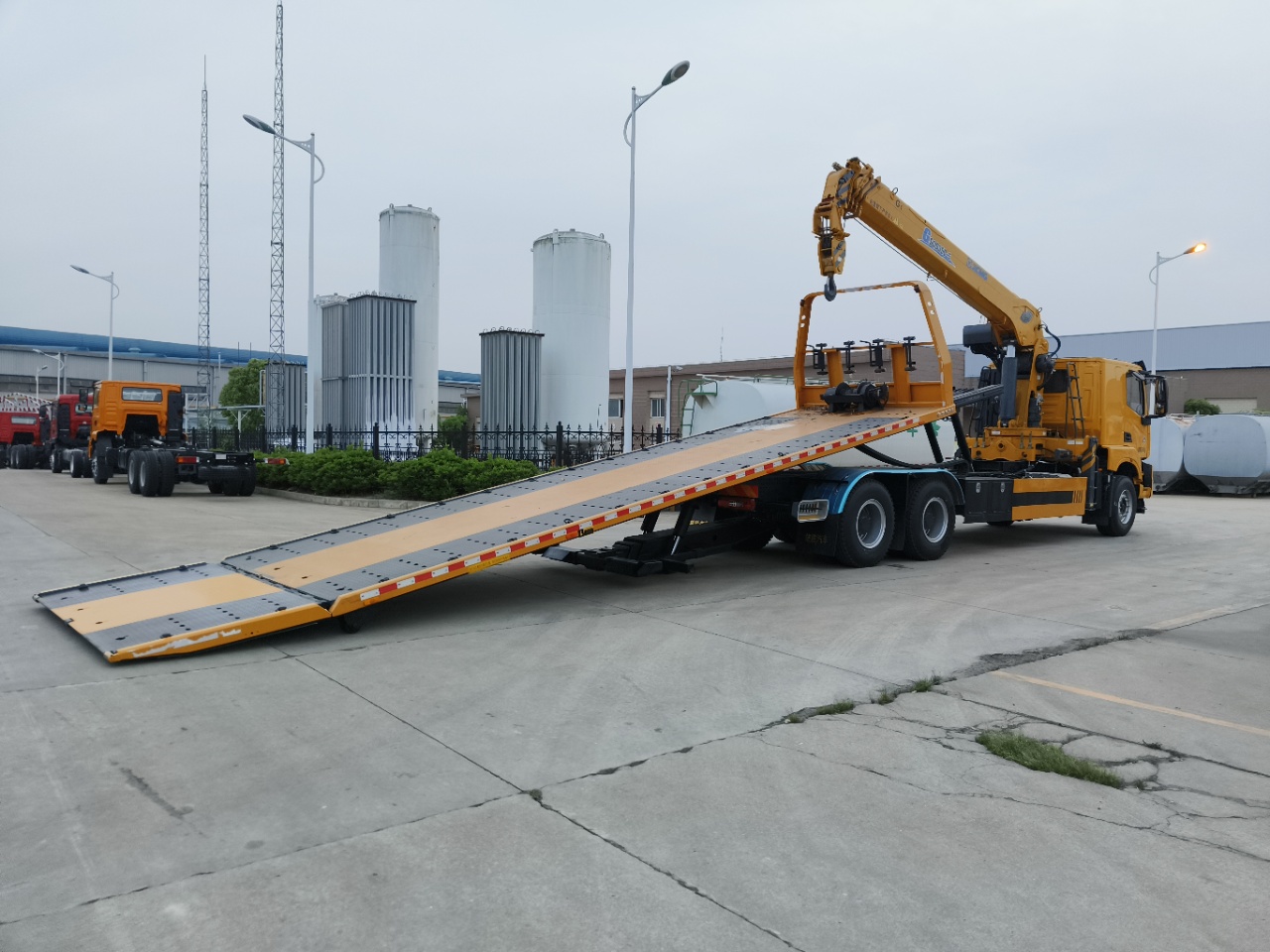

1. Pattern flat plate (8mm), the tail of the main board can be hydraulically flipped;
2. 1 150KN winch (equipped with 45 meter steel wire rope), 1 toolbox, 2 trolleys, 4 binding straps, 2 pairs of fork supports, 1 pair of fork seats, 1 chain hook, auxiliary air pipe assembly, support arm mounted on the main beam, and center of gravity lowering structure.
3. Naval power oil cylinder, Hefei Wanye hydraulic pump, Italian Ward hydraulic valve, double-layer flat slide groove, standard cross shaped bottom plate layout. Add square pipes under the board for reinforcement.

Product Name： Saic Hongyan 6X4 one tow two wrecker truck with crane
Driving Type： 6X4
Weight /Classification：
Type： one tow two wrecker truck

Product Features

Saic Hongyan Genpaw one tow two wrecker truck with crane

A tow truck (also called a wrecker, a breakdown truck, recovery vehicle or a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.

This vehicle is mainly used for road block removal , and its main specialized devices are flat plates, supporting arms, winches, steel wire ropes, and oil cylinders.

Product parameters

Product Name	Saic Hongyan 6X4 one tow two wrecker truck with crane
Driving Type	6X4
Weight /Classification
Type	one tow two wrecker truck
Lift weight(kg)	18000
Dimensions
Wheelbase(mm)	4800+1400,4600+1400,4400+1400,6000+1400
Overall Dimension(mm)	12360,11160×2550,2500×3150,3100,3050
Engine
Engine brand & model	YCK08-350-60,Yuchai 350ph
Displacement(L)/Power(kw)	7.7L/253KW
Chassis
Axle Quantity	3
Transmission Type	12-speed with original power take-off
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	Front tire 385/65R22.5, rear tire 12.00R20 18PR
Cab

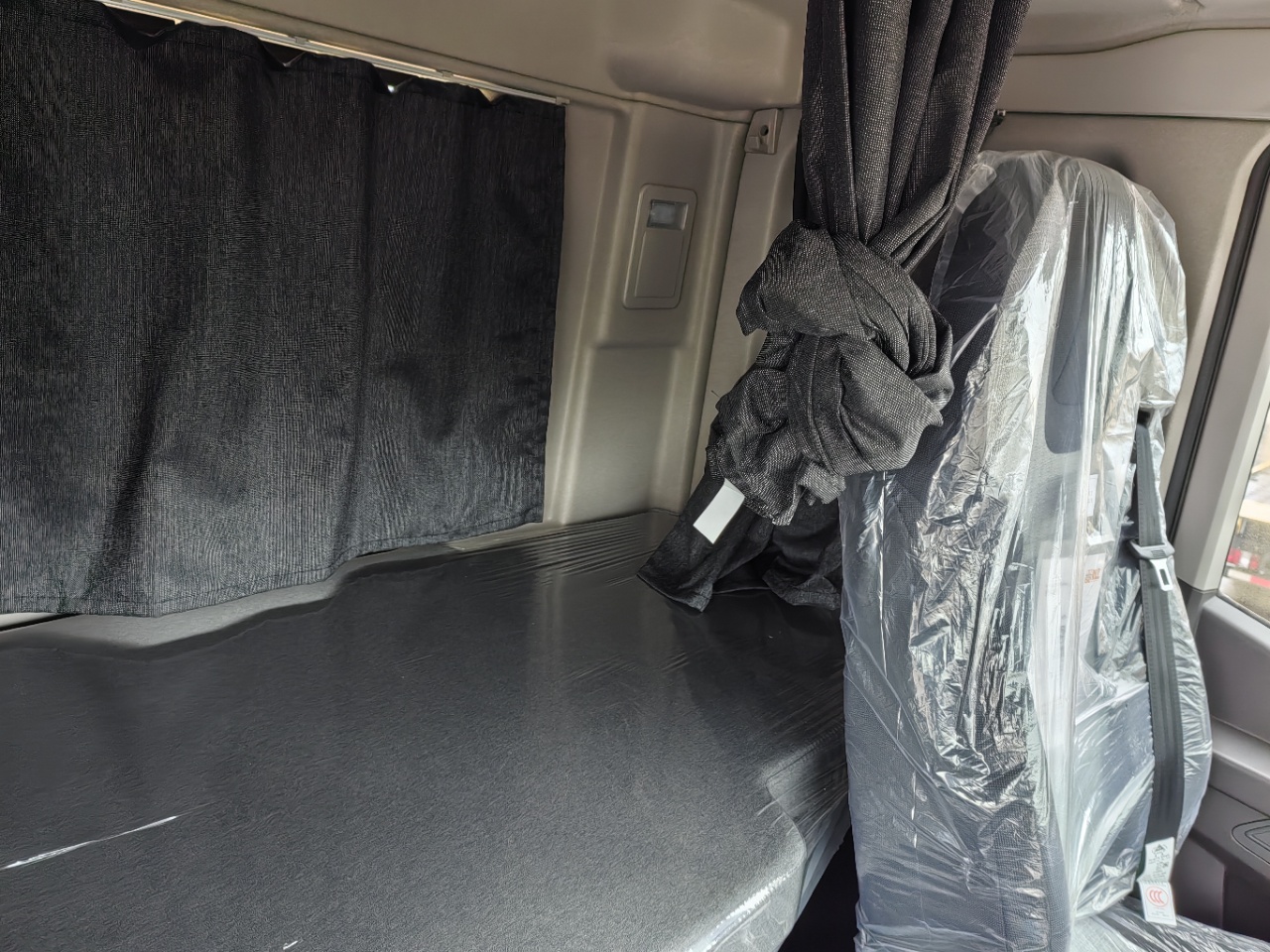

Standard configuration	Flat top standard length cab, 2300mm ultra wide body, with single sleeper
Air conditioning	Have
Performance parameter
Platform	8mm patterned flat plate
Crane specification	with crane
Standard configuration
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
