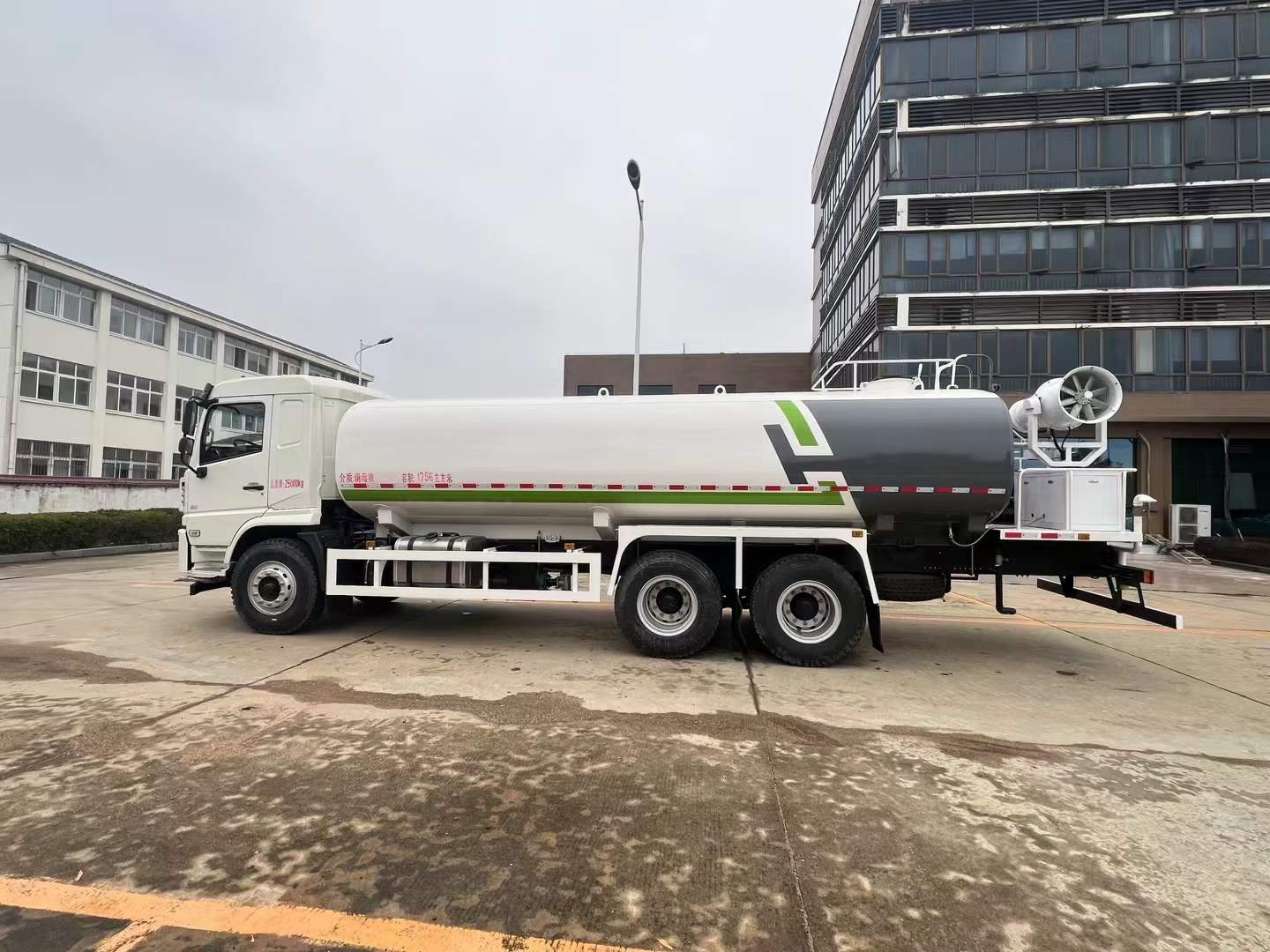

Shacman X6 6x4 watering truck
Watering truck, also known as sprinkler truck, multifunctional sprinkler truck, landscaping sprinkler truck, water tanker truck, or water transport truck.
Sprinkler trucks are suitable for various road surface cleaning, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building cleaning. It has functions such as watering, dust suppression, high and low level spraying, pesticide spraying, guardrail flushing, as well as water transportation, drainage, emergency firefighting, etc.
Installation configuration:
1. The tank body is about 20 square meters
2. The side lights are electrified, and two red clearance lights are standard above the tail of the tank
3. Equipped with front spray duckbill and rear punch as standard, users can adjust the hedge position according to their own needs. 4. Large patterned platform (with enhanced load-bearing capacity), customized bolt buckle for the rear cover of the gun barrel. 5. Front spray, rear punch, rear spray, and side spray. The green anti-aircraft gun switch ball valve adopts engineering specific 50 large tube
Diameter ball valve
6. New bearing water cannon, more durable
7. Equipped with 60-90 type high-power beverage pump
8. Anti corrosion flange gasket
9. Aluminum spill, not easy to explode
10. Automatic welding of tank bodies (Lincoln welding machine and power supply from the United States), automatic welding of assembled panels, welding of head and circumferential seams,
No pores, beautiful weld seam
11. The side guard and rear bumper are all bolted together for easy disassembly and maintenance.
12. Optional plastic or iron mudguards are also available for lighter weight and can be connected with bolts for easy disassembly
13. The connection between the front and rear main pipes is a 6-hole circular flange, which is not easy to flush with the gasket
14. Install all small pipes, flush the tank body, spray anti rust paint before assembly, with strong adhesion and resistance to rusting and fading
Parameters
| Product Name |
Shacman X6 6x4 watering truck |
Driving type |
6X4 |
Gross vehicle weight(Kg) |
25000(Kg) |
Curb weight(Kg) |
10580(Kg) |
Rated weight(Kg) |
14290,14225(Kg) |
Cab |
Shacman X6 cab |
Engine |
YCS06300-61, Yuchai 300hp |
Gearbox |
9-speed gearbox |
Tire specification |
10.00R20 steel wire tire, 10+1 spare |
Wheel base (mm) |
4375+1350(mm) |
Vehicle dimensions (mm) |
10950,10500,10450,10000×2550×3200(mm) |
Tank volume(cbm) |
20m³ |
Fuel type |
diesel |
Emission standard |
Euro 6 (option:Euro3/4/5) |
Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
