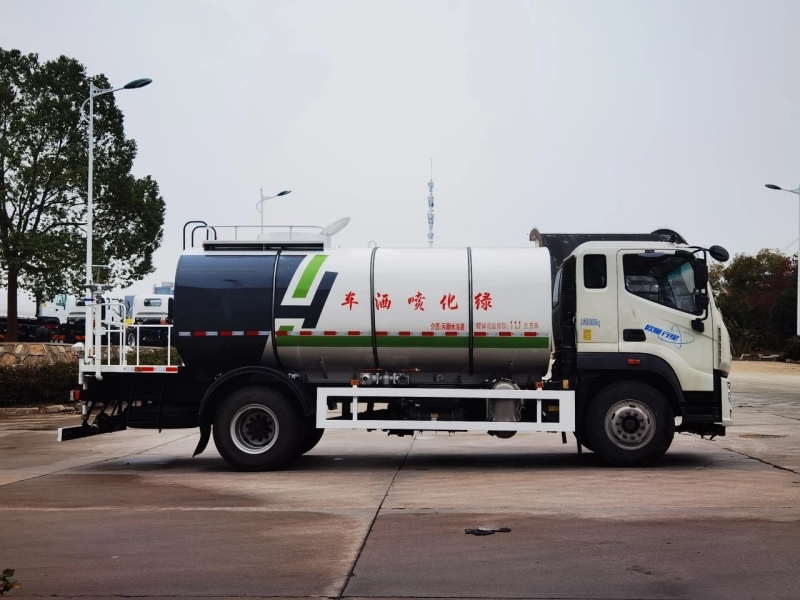

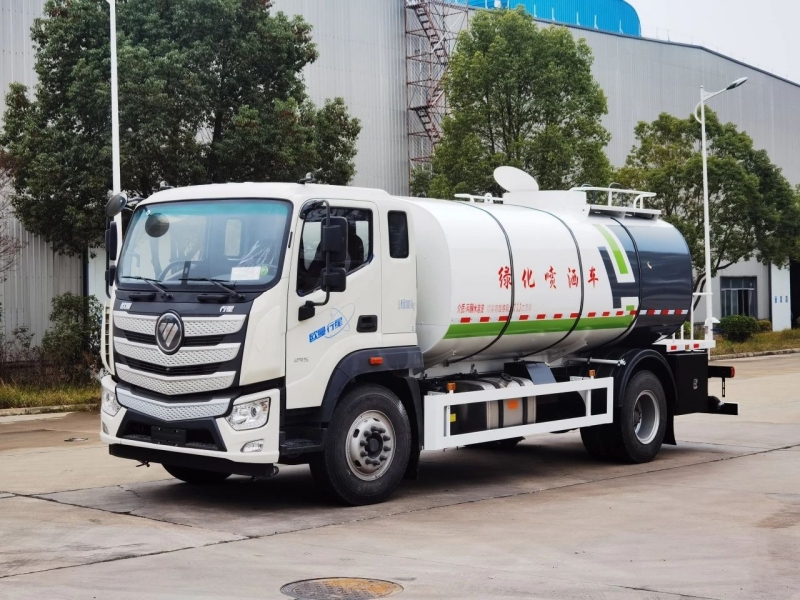

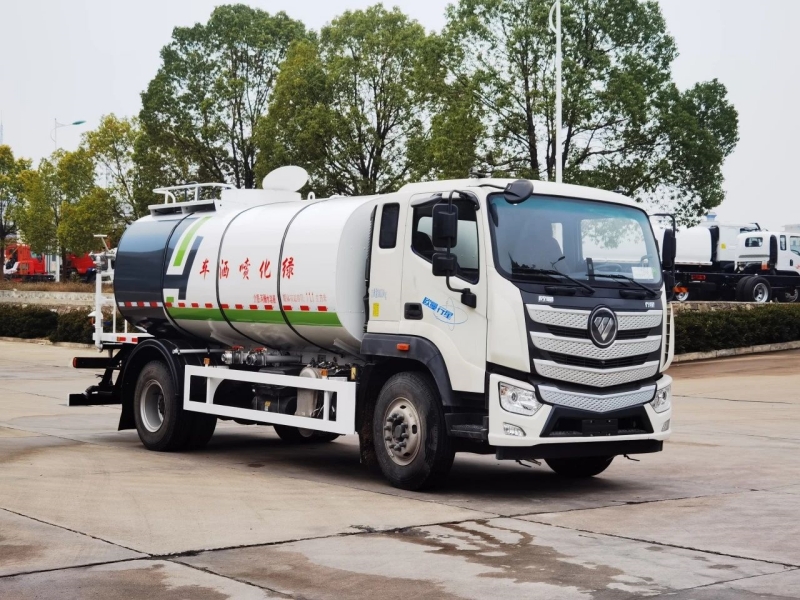

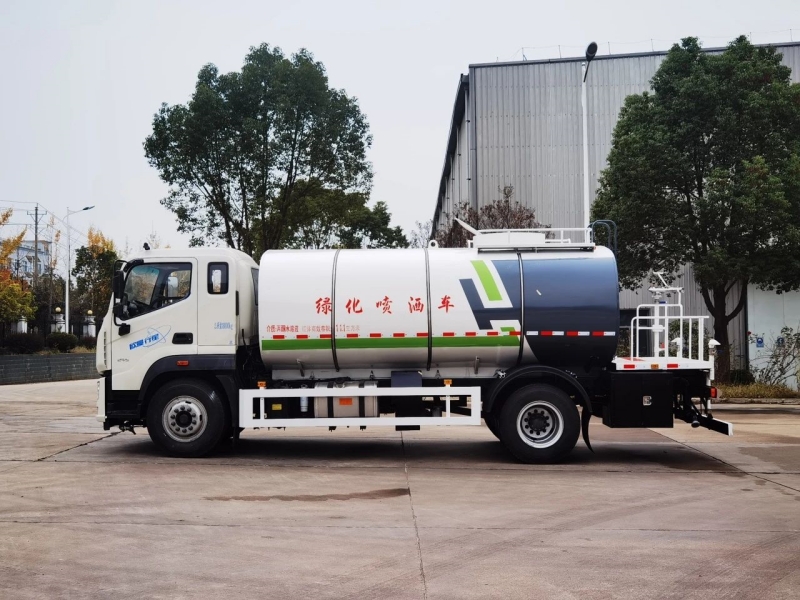

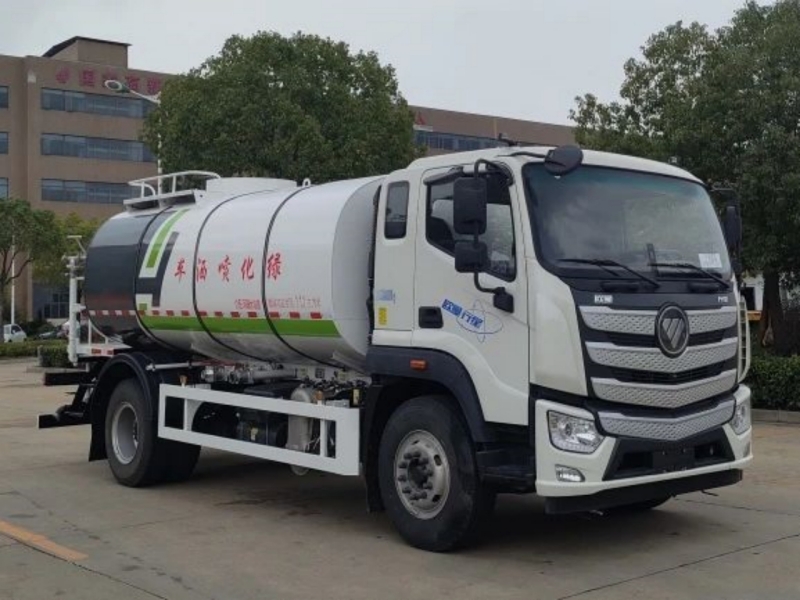

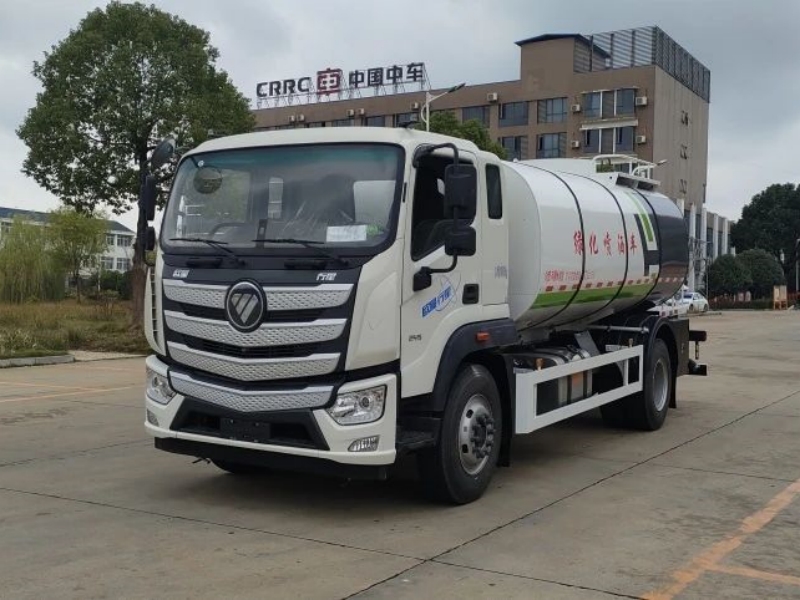

Mercedes Benz Auman 4X2 15m³ Green Sprinkler Truck
Green sprinkler truck generally refers to a sprinkler truck. Sprinkler truck, also known as sprinkler truck, multifunctional sprinkler truck, landscaping sprinkler truck, water tank truck, or water transport truck. Sprinkler trucks are suitable for various road surface cleaning, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building cleaning. It has functions such as watering, dust suppression, high and low level spraying, pesticide spraying, and guardrail flushing.
Standard configuration
1. Capacity: 15 cubic meters
2. Tank material: The tank is made of Q235, with a partition thickness of 3mm, a carbon steel thickness of 4mm, and a head thickness of 5mm.

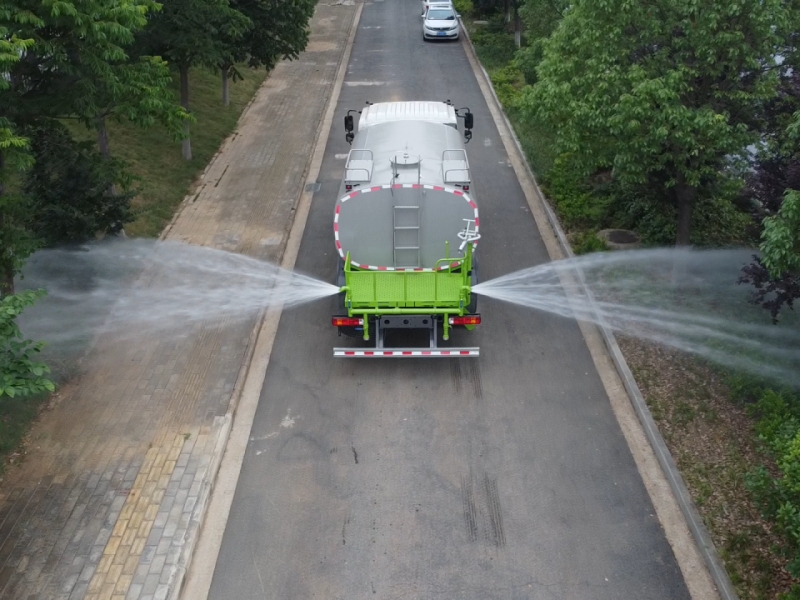

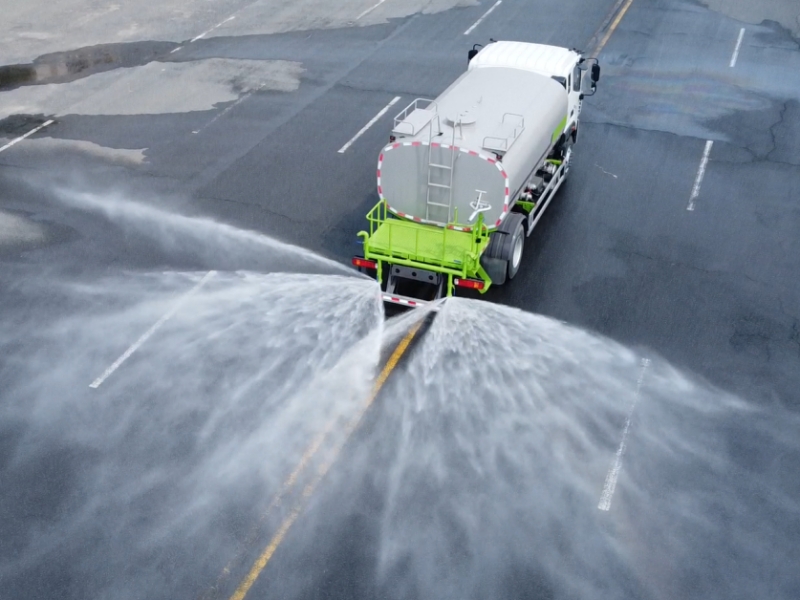

3. Sprinkler function: Comes standard with front flushing (spraying) and rear spraying, side spraying, and a rear work platform. The platform is equipped with a high-pressure sprinkler gun for greening, a high-power dedicated sprinkler pump, a national standard universal 65 type fire interface (can be filled with water through a fire hydrant), a set of self flowing ball valve system, self-priming function, debris filter screen, and 2 water intake steel wire rubber hoses.
4. Special components: large-diameter straight through ball valve, aluminum alloy tee, and thickened main pipeline. Aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy outlet tee, aluminum alloy straight through, aluminum alloy rear sprinkler, stainless steel ball valve, high-pressure water cannon.
Performance parameter

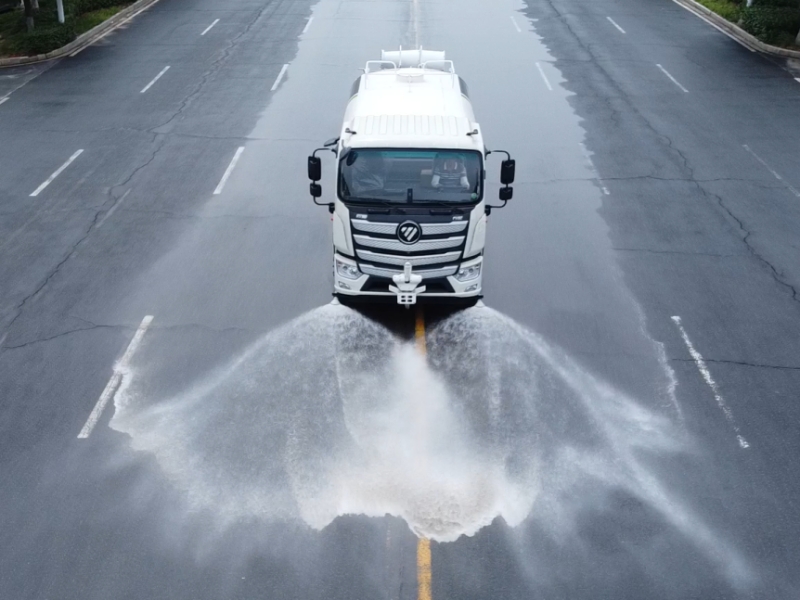

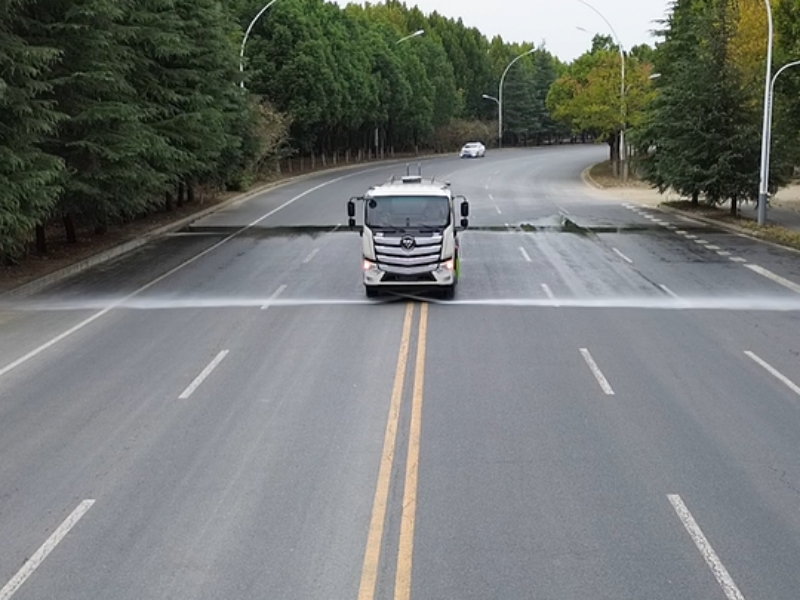

1. Front watering width: 15-30M
2. Rear platform sprinkler anti-aircraft gun: dust 30-35, the anti-aircraft gun can be adjusted 360 degrees (the shape of the anti-aircraft gun water mist can be adjusted to be straight, heavy rain, moderate rain, light rain, drizzle; the maximum range when adjusted to straight is ≥ 35 meters, or the maximum range when adjusted to fog is ≥ 15 meters)
3. Special sprinkler pump: high-power water pump, vertical suction of 6M
Optional configuration
1. Fog Cannon: The rear platform can be optionally equipped with a 30 meter fog cannon for dust reduction operations
2. Pneumatic valve: The opening and closing of the corresponding valve can be controlled from the cab
3. Arc shaped spray at the tail: used to reduce dust in the air
4. Internal anti-corrosion of the tank: The tank has stronger anti rust performance
5. High level showerhead: It is more convenient to irrigate the green belts on both sides of the road
6. Front electronic water cannon: cabin control, using more intelligent technology
7. Insulation layer: An insulation layer can be added to the periphery of the tank for transporting hot water
Parameters
| Product Name |
Mercedes Benz Auman 4X2 15m³ Green Sprinkler Truck |
Driving type |
4X2 |
Gross vehicle weight(Kg) |
18000(Kg) |
Curb weight(Kg) |
7700(Kg) |
Rated weight(Kg) |
10170,10105(Kg) |
Cab |
Mercedes Benz Auman cab |
Engine |
YCS06245-60A, Yuchai 245hp |
Gearbox |
8-speed gearbox |
Tire specification |
11R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR, 6+1 spare |
Wheel base (mm) |
4500,5150,3950,4700,4200(mm) |
Vehicle dimensions (mm) |
8600,9100×2550×3250(mm) |
Tank volume(cbm) |
15m³ |
Fuel type |
diesel |
Emission standard |
Euro 6 (option:Euro3/4/5) |
Tank material |
The tank body is made of standard Q235 carbon steel with a plate thickness of 4mm |
Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
