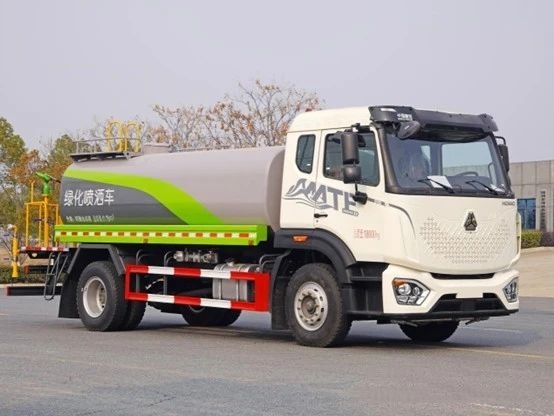

Sinotruk Howo 4X2 15m³ Green Sprinkler Truck

Chassis configuration:
Weichai 240 horsepower and a wide body and wide sleeper (front width 2350mm/side width 2200mm/sleeper 700mm). HOWO 8-speed original power take-off with synchronizer, German MAN 11 ton rear axle, 250MM straight through double-layer beam, equipped with automatic headlights and automatic constant temperature air conditioning. 10.00R20 steel wire tire, central locking system, electric doors and windows, remote key, driving recorder.

Product Name： Sinotruk Howo 4X2 15m³ Green Sprinkler Truck
Driving type： 4X2
Gross vehicle weight(Kg)： 18000(Kg)
Curb weight(Kg)： 7670(Kg)

Product Features

Green sprinkler truck generally refers to a sprinkler truck. Sprinkler truck, also known as sprinkler truck, multifunctional sprinkler truck, landscaping sprinkler truck, water tank truck, or water transport truck. Sprinkler trucks are suitable for various road surface cleaning, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building cleaning. It has functions such as watering, dust suppression, high and low level spraying, pesticide spraying, and guardrail flushing.

Install the tank body and accessories
1. Material: The tank body is made of Q235, with a partition thickness of 4mm, a carbon steel thickness of 5mm, and a head thickness of 6mm Large caliber straight through ball valve, aluminum alloy tee, thickened main pipeline (76)
2. Aluminum casting tube fittings: aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet tee, aluminum alloy pump inlet straight through, one-time die casting molding with no welds to avoid water leakage, standardized design, good interchangeability, easy maintenance and replacement, aluminum alloy material lighter, beautiful and practical, improving product grade. Other accessories: aluminum alloy rear sprinkler, stainless steel ball valve, S-shaped new high-pressure water cannon
3. Punching plate platform: Thickened punching plate for better anti slip performance, no water accumulation on the platform, optimized structure, stamped.
Parameters of pneumatic spray
Air spray: QF-30, 8KW air-cooled diesel generator set, fan power: 2.2KW, pump power: 1.5KW, working pressure: 1.0-3.5MPA, spray flow: 20L/min, pitching angle: -5-60 degrees (remote control), fog spectrum range: 50-150um, horizontal range (calm wind state): 30M, 16 stainless steel nozzles, 360 degrees rotation (manual or remote control). The size of the fan base (reference) is 1050x550x1700mm, and the size of the generator (reference) is 800x600x650mm. The actual size is subject to the actual product. (Fog cannon is an optional configuration)

Parameters

Product Name	Sinotruk Howo 4X2 15m³ Green Sprinkler Truck
Driving type	4X2
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	7670(Kg)
Rated weight(Kg)	10200,10135(Kg)
Cab	Wide body wide sleeper (front width 2350mm/side width 2200mm/sleeper 700mm)
Engine	WP4.6NQ240E62, Weichai 240hp
Gearbox	Howo 8-speed gearbox
Tire specification	10.00R20 steel wire tire, 6+1 spare
Wheel base (mm)	4500/4700mm
Vehicle dimensions (mm)	8600,8900,9100,9400×2530×3250(mm)
Tank volume(cbm)	14m³
Fuel type	diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Tank material	The tank body is made of standard Q235 carbon steel with a plate thickness of 4mm
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
