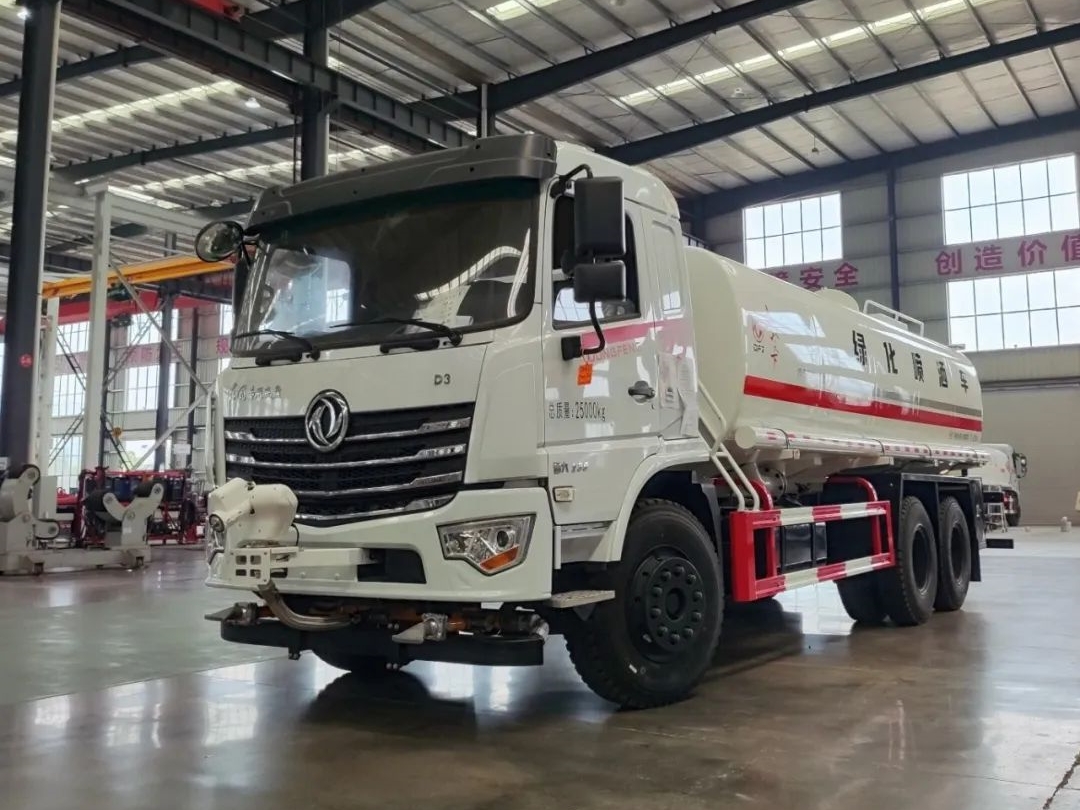

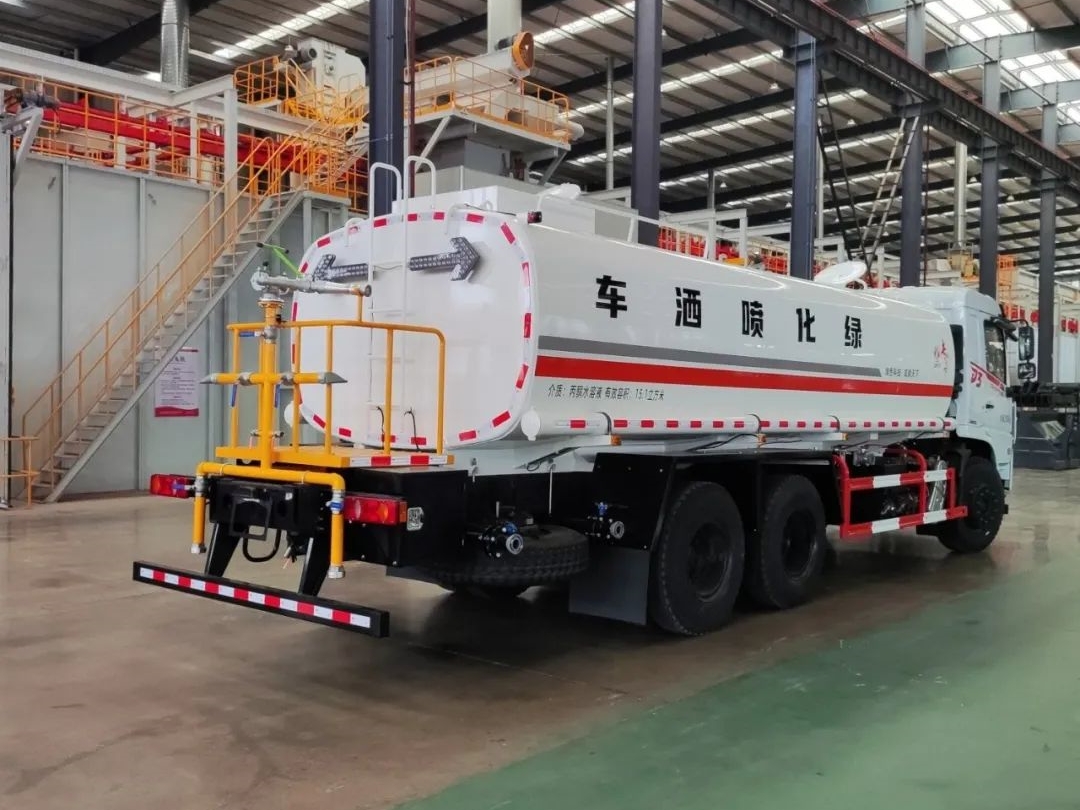

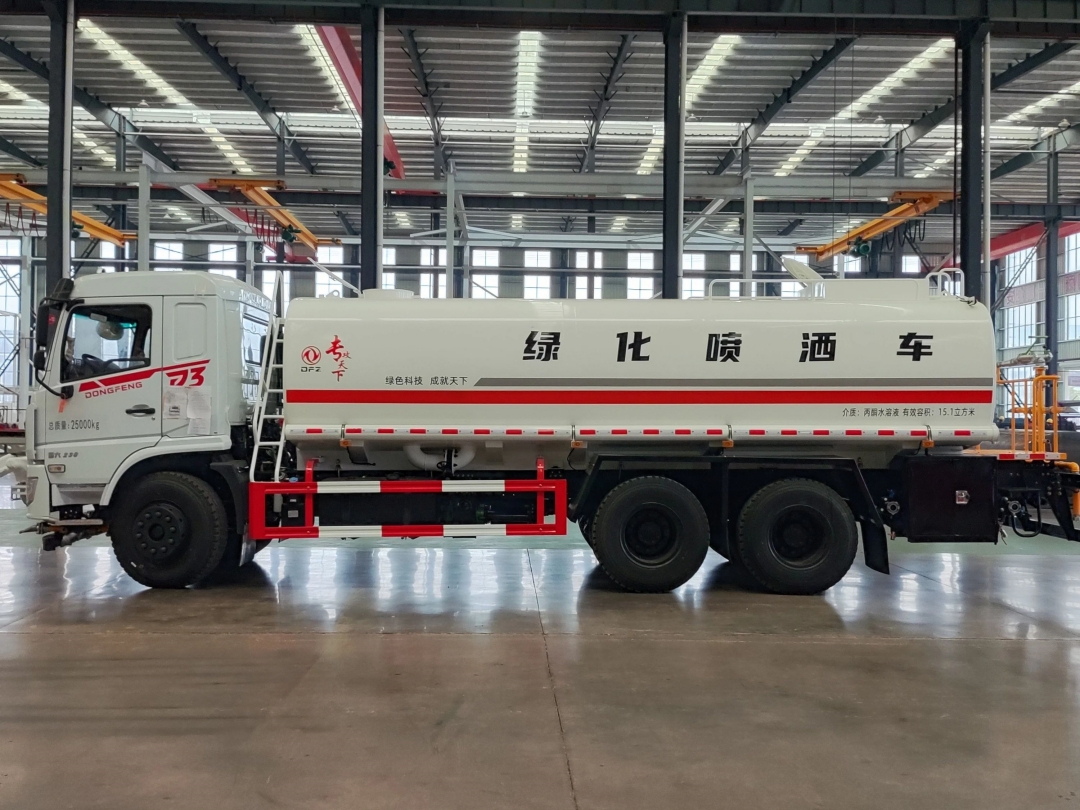

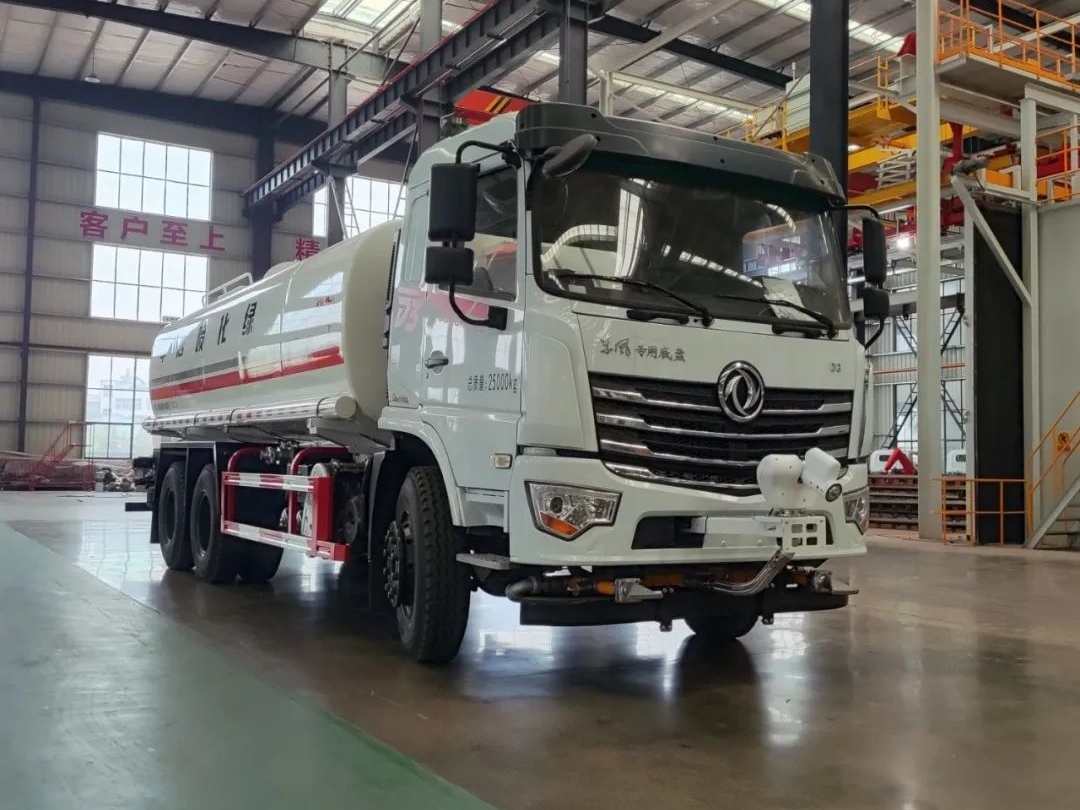

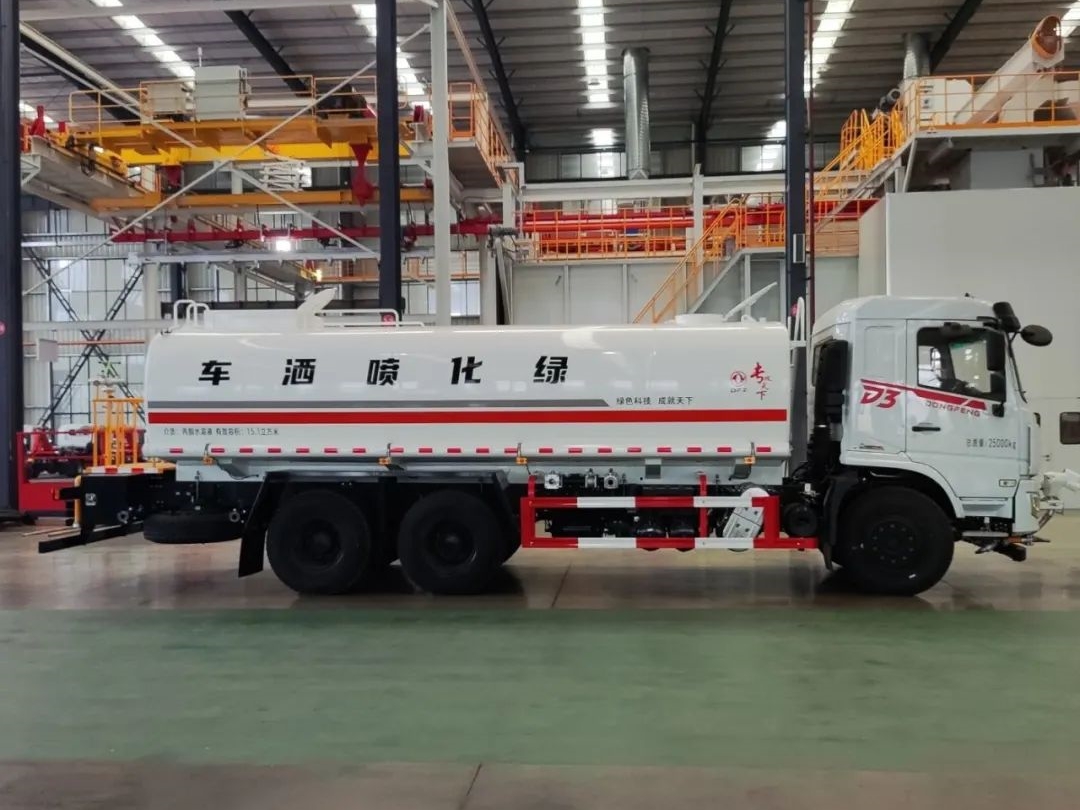

6X4 Dongfeng 20m³ water truck

Chassis configuration:

1. Engine: D6.7NS6B320,Cummins 320hp

2.Transmission type: Fast 9-speed gearbox

3.Tyre:11.00R20, 10+1 spare

4.Wheelbase:4350+1350(mm)

5 Other: Electric glass, with original ABS, airbag seats, original air conditioning, central locking with remote key, driving recorder

Installation configuration:
1.The tank body is about 12 cbm.
2.The side lights are electrified, and two red width indicator lights are standard above the tail of the tank.
3.The standard front spray is duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.

Product Name： 6X4 Dongfeng 20m³ water truck
Driving type： 6X4
Engine Model： Cummins
Engine horsepower： D6.7NS6B320

Product Features

6X4 Dongfeng 20m³ water truck

Water truck, also known as water sprinking truck, multifunctional sprinkler truck, or garden greening sprinkler truck. Sprinkler trucks are suitable for various road surface cleaning, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building cleaning. Sprinklers can also be used as water transport vehicles, and the most common types of vehicles include sanitation sprinklers, multifunctional sprinklers, and green sprinklers.

Parameters

Product Name	6X4 Dongfeng 20m³ water truck
Driving type	6X4
Engine Model	Cummins
Engine horsepower	D6.7NS6B320
Engine displacement	6.7L
Gearbox	Fast 9-speed gearbox
Tire specification	11.00R20, 10+1 spare
Wheel base (mm)	4350+1350(mm)
Gross vehicle weight(Kg)	25000(kg)
Curb weight(Kg)	13605,13670 (kg)
Rated weight(Kg)	11200 (kg)
Vehicle dimensions (mm)	10000X2550X3300(mm)
Tank volume(cbm)	20
Fuel type	diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Water pump model	40/50
Tank material	Q235 carbon steel,5mm
Additional configuration	Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
