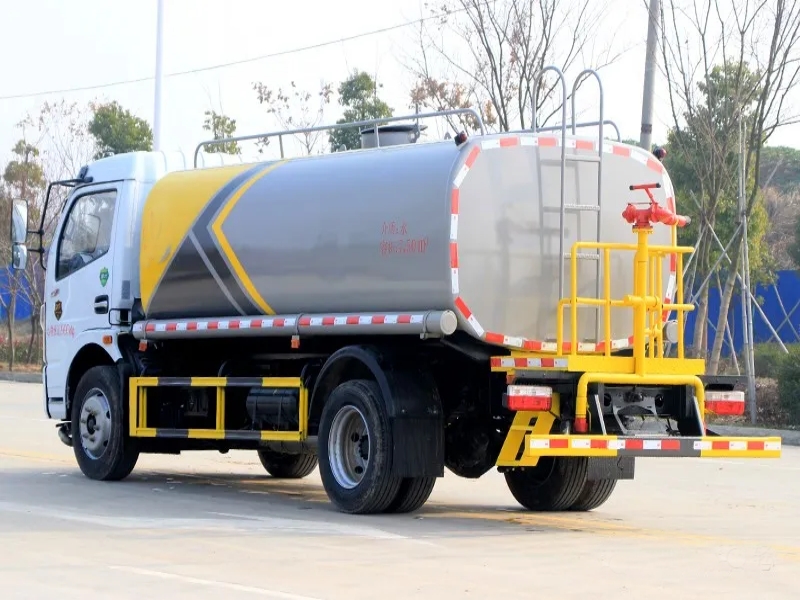

Dongfeng K7 9m³ water sprinkling truck

Chassis configuration:
1. Engine: National VI Yuchai 165 horsepower

2.Transmission type: Wanliyang 6-speed gearbox

3.Tyre:9.00R20 steel wire tire

4.Wheelbase:3800mm

5 Other:air brake, electric glass, central locking multifunction steering wheel, driving recorder,

Entertainment display screen, sunshade.

Installation configuration:
1.The tank body is about 9 cbm.
2.The side lights are electrified, and two red width indicator lights are standard above the tail of the tank.
3.The standard front spray is duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.

4. Punching platform (with enhanced load-bearing capacity), customized bolt buckle 5 for the rear cover of the gun barrel, front spray, rear punch, rear wine, side spray, and engineering specific ball valves for the green anti-aircraft gun switch

5. 50 large diameter copper ball valve

6. New bearing water cannon, more durable

7. 40-50 type water pump

8. Anti corrosion flange gasket

9. Aluminum spill, not easy to explode

Product Name： Dongfeng K7 9m³ water sprinkling truck
Driving type： 4X2
Engine Model： YCY30165-60
Engine horsepower： Yuchai 165hp

Product Features

Dongfeng K7 9m³ water sprinkling truck

water sprinkling truck, also known as water truck, multifunctional sprinkler truck, or garden greening sprinkler truck. Sprinkler trucks are suitable for various road surface cleaning, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building cleaning. Sprinklers can also be used as water transport vehicles, and the most common types of vehicles include sanitation sprinklers, multifunctional sprinklers, and green sprinklers.

Parameters

Product Name	Dongfeng K7 9m³ water sprinkling truck
Driving type	4X2
Engine Model	YCY30165-60
Engine horsepower	Yuchai 165hp
Engine displacement	2.97L
Gearbox	Wanliyang 6-speed gearbox
Tire specification	9.00R20 steel wire tire, 6+1 spare
Wheel base (mm)	3800
Gross vehicle weight(Kg)	11995
Curb weight(Kg)	4720
Rated weight(Kg)	7080
Vehicle dimensions (mm)	7230x2250,2350x2700
Tank volume(cbm)	9
Fuel type	diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Water pump model	40/50
Tank material	Q235 carbon steel
Additional configuration	Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
