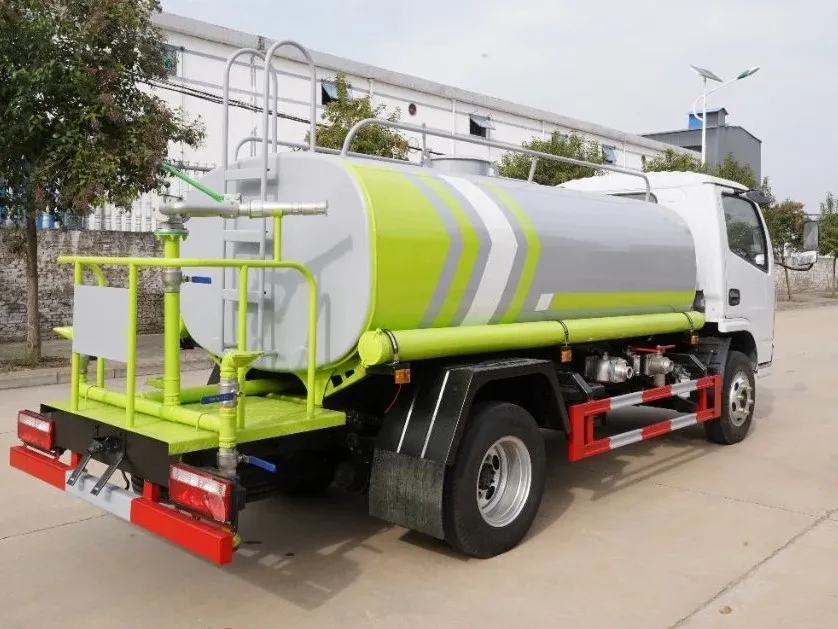

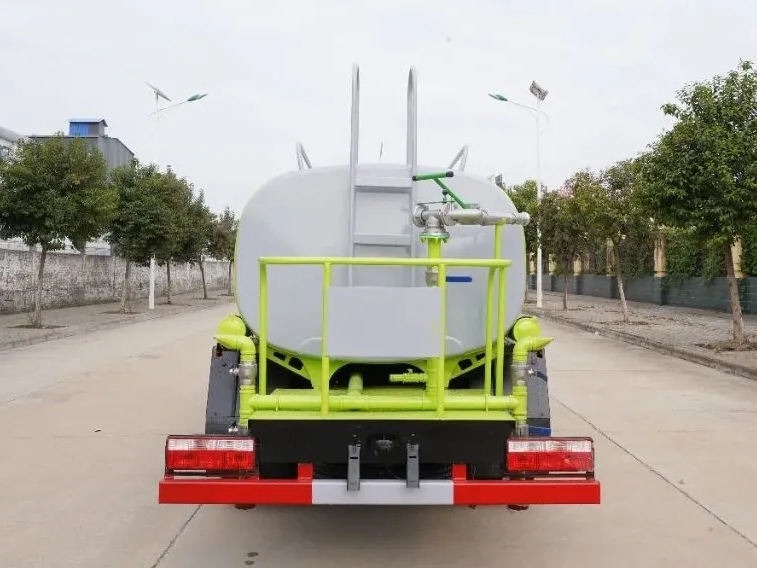

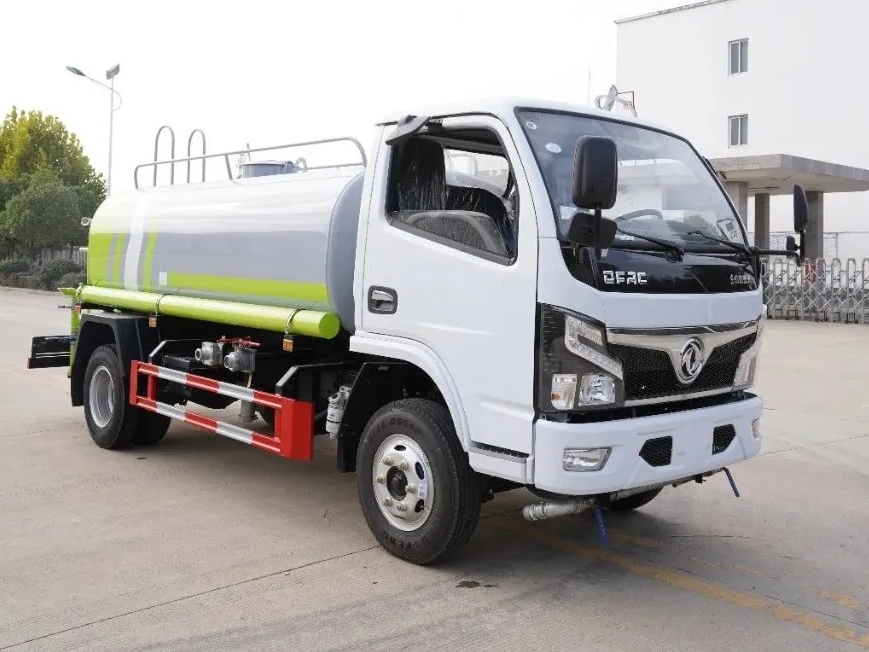

Dongfeng F6 4x2 5m³ water truck

Chassis configuration:
1. Engine: D20TCIF11,Yunnei 126HP

2.Transmission type: 5-speed transmission

3.Tyre:7.00 steel tires

4.Wheelbase:3308mm

5 other: a gas brake, electric glass, a central locking multifunction steering wheel, a driving recorder, an entertainment display screen, and a sunshade.
Installation configuration:
1.The tank body is about 5cbm.
2.The side lights are electrified, and two red width indicator lights are standard above the tail of the tank.
3.The standard front spray is duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.

Product Name： Dongfeng F6 4x2 5m³ water truck
Engine Model： D20TCIF11
Engine horsepower： 126hp/93KW
Engine displacement： 2.2L

Product Features

Dongfeng F6 4x2 5m³ water truck

Water truck, also known as sprinkler truck, multifunctional sprinkler truck, or garden greening sprinkler truck. Sprinkler trucks are suitable for various road surface cleaning, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building cleaning. Sprinklers can also be used as water transport vehicles, and the most common types of vehicles include sanitation sprinklers, multifunctional sprinklers, and green sprinklers.

Parameters

Product Name	Dongfeng F6 4x2 5m³ water truck
Engine Model	D20TCIF11
Engine horsepower	126hp/93KW
Engine displacement	2.2L
Gearbox	5 forward gears and 1 reverse gear
Tire specification	7.00 steel wire tire
Wheel base (mm)	3308
Gross vehicle weight(Kg)	4495
Curb weight(Kg)	3620
Rated weight(Kg)	745
Vehicle dimensions (mm)	5995x2060x2600
Tank volume(cbm)	5
Fuel type	diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Water pump model	40/50
Tank material	Q235 carbon steel
Additional configuration	Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
