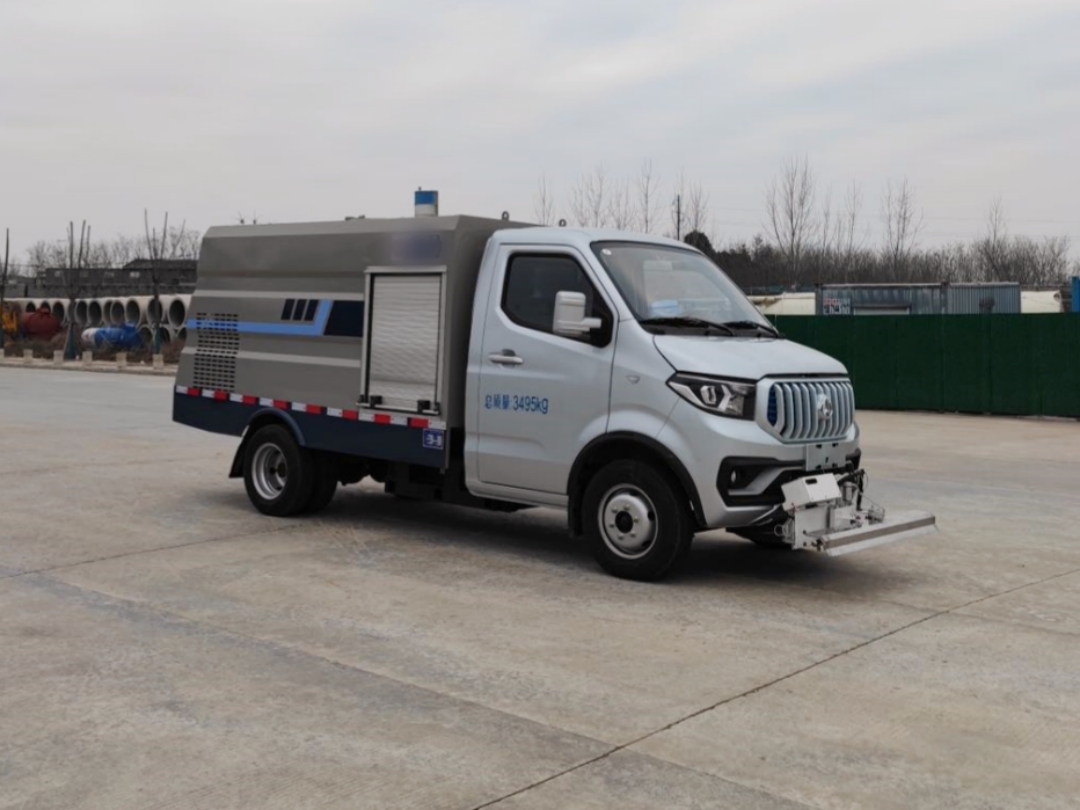

Changan T30 electric road maintenance vehicle

Chassis configuration:
Changan Shenqi T30 single row cab, Ningde Times lithium iron phosphate battery (53.58 kWh), electronic automatic transmission, Huichuan permanent magnet synchronous motor, motor power (40/85) kw, 3000mm wheelbase, straight through beam, 185R14 tires, supports fast and slow charging (6.6kw slow charging), original air conditioning, electronic direction assistance, electric glass, remote key, central locking, chassis range of 270km
Top standard:
The tank has a capacity of 2 cubic meters, powered by chassis batteries and driven by permanent magnet synchronous motors. The carbon steel box is equipped with anti-corrosion and anti rust measures, a well-known brand high-pressure water pump, a new front spray rack, Siemens electronic control switch, a 20m high-pressure reel, a single point multi-directional spray rod, a low water level alarm system, and a reversing monitoring system. Pressure 15MPA

Product Name： Changan T30 electric road maintenance vehicle
Drive type： 4X2
Battery： CATL Lithium Iron Phosphate Battery
Gearbox： Electronic automatic transmission

Product Features

Electric road maintenance vehicle is a pure electric driven cleaning equipment, mainly used for cleaning and maintenance of urban roads, sidewalks, pedestrian streets and other areas. It has the characteristics of environmental protection, energy saving, and low noise, and is suitable for various working conditions and complex environments.

Main features and functions:
1. Environmental protection and energy conservation: Pure electric road maintenance vehicles are driven by electric energy, with zero emissions, no pollution, and meet environmental protection requirements.
2. Low noise: Due to the use of electricity, there is no noise during operation and it will not cause interference to the surrounding environment.
3. Multi functional: equipped with high-pressure water gun, brush scanning system, vacuum cleaner, etc., capable of cleaning road surfaces, green belts, billboards, etc.
4. Intelligence: Equipped with a central control screen, work camera, voice alarm device, etc., it can achieve real-time monitoring and intelligent operation.
5. High battery life: With a large battery capacity, it can work continuously for several hours after being fully charged, meeting the needs of long-term operations

Main Parameter

Product Name	Changan T30 electric road maintenance vehicle
Drive type	4X2
Battery	CATL Lithium Iron Phosphate Battery
Gearbox	Electronic automatic transmission
Wheel base (mm)	3000(mm)
Vehicle dimensions (mm)	5250,5300×1760,1800×2150,2200(mm)
Tire specification	185R14LT 6PR, 6+1 spare
Gross vehicle weight(Kg)	3495(Kg)
Curb weight(Kg)	2520,2600(Kg)
Rated weight(Kg)	845,765(Kg)
Tank volume(m³)	2m³
Upper configuration	The chassis battery provides power, driven by a permanent magnet synchronous motor, and can adjust speed in real time according to needs. The power take-off operation is not related to the chassis driving system, and the driving experience is excellent. Carbon steel box with electrophoresis, Pinfu high-pressure water pump, new front water spray rack, Siemens electronic control switch, 15m high-pressure reel, low water level alarm system, indoor monitoring system for reverse status. Centrifugal low-pressure water pump, with automatic control for both flushing and rear spraying. Tail LED arrow light.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
