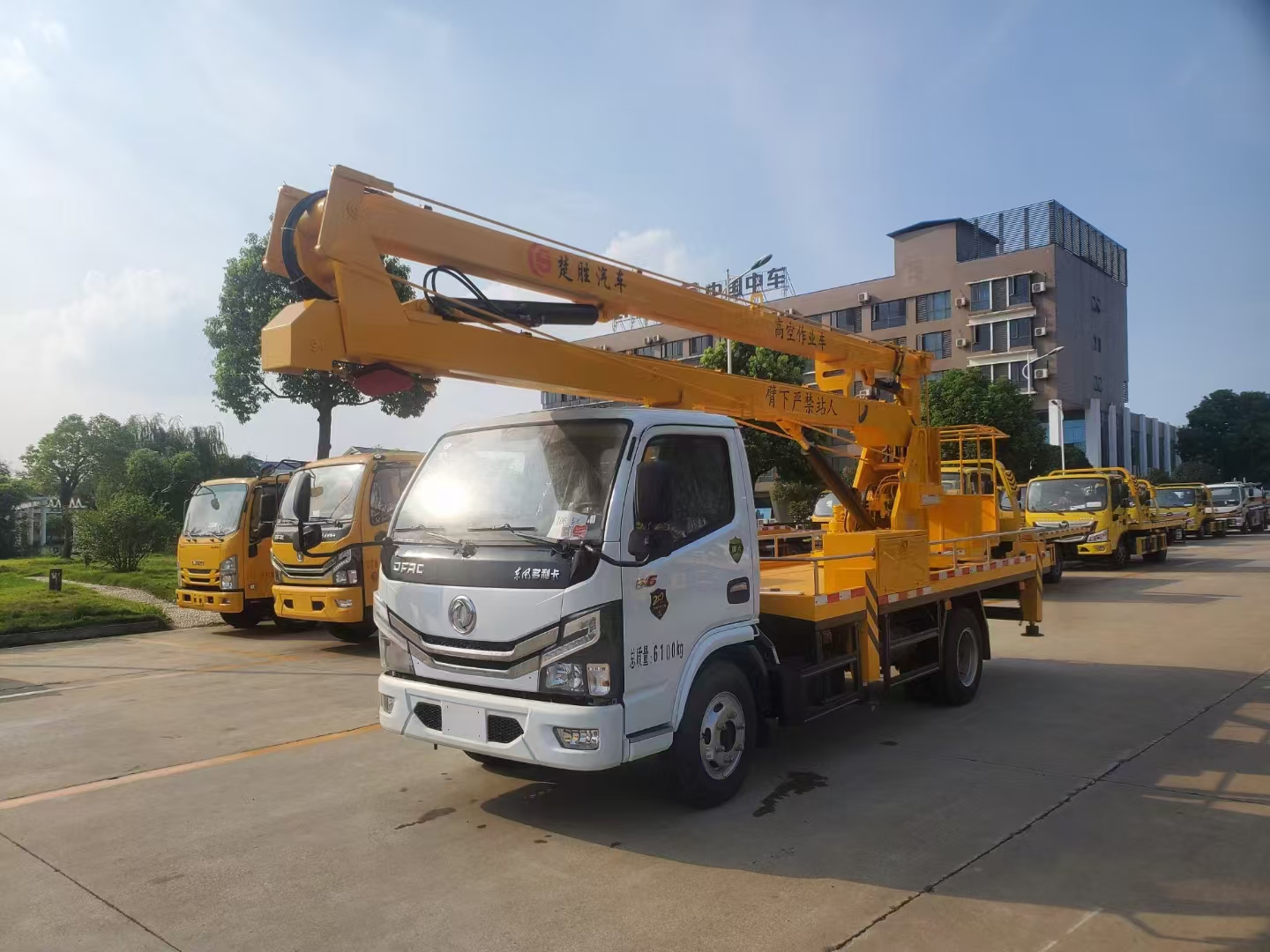

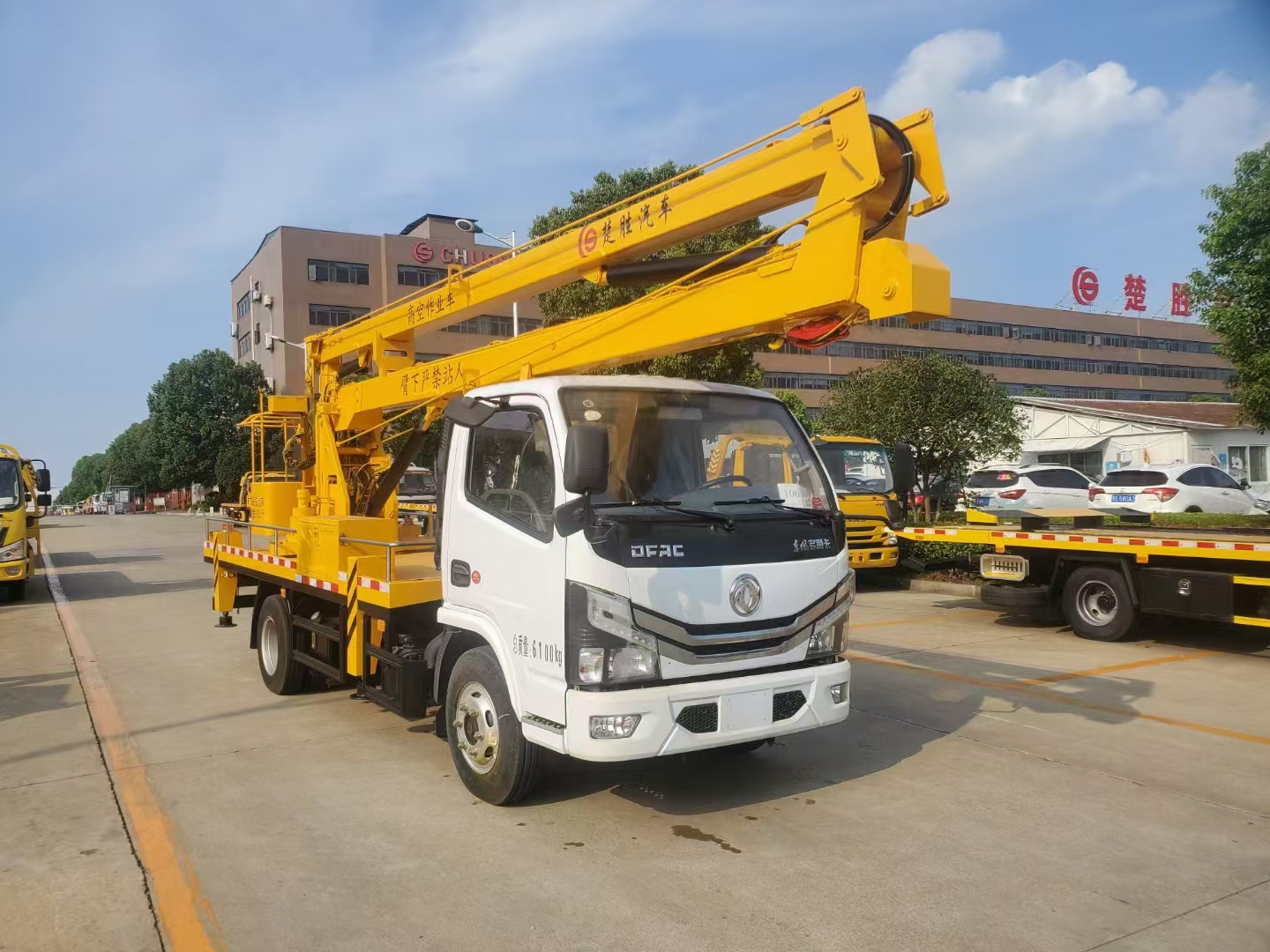

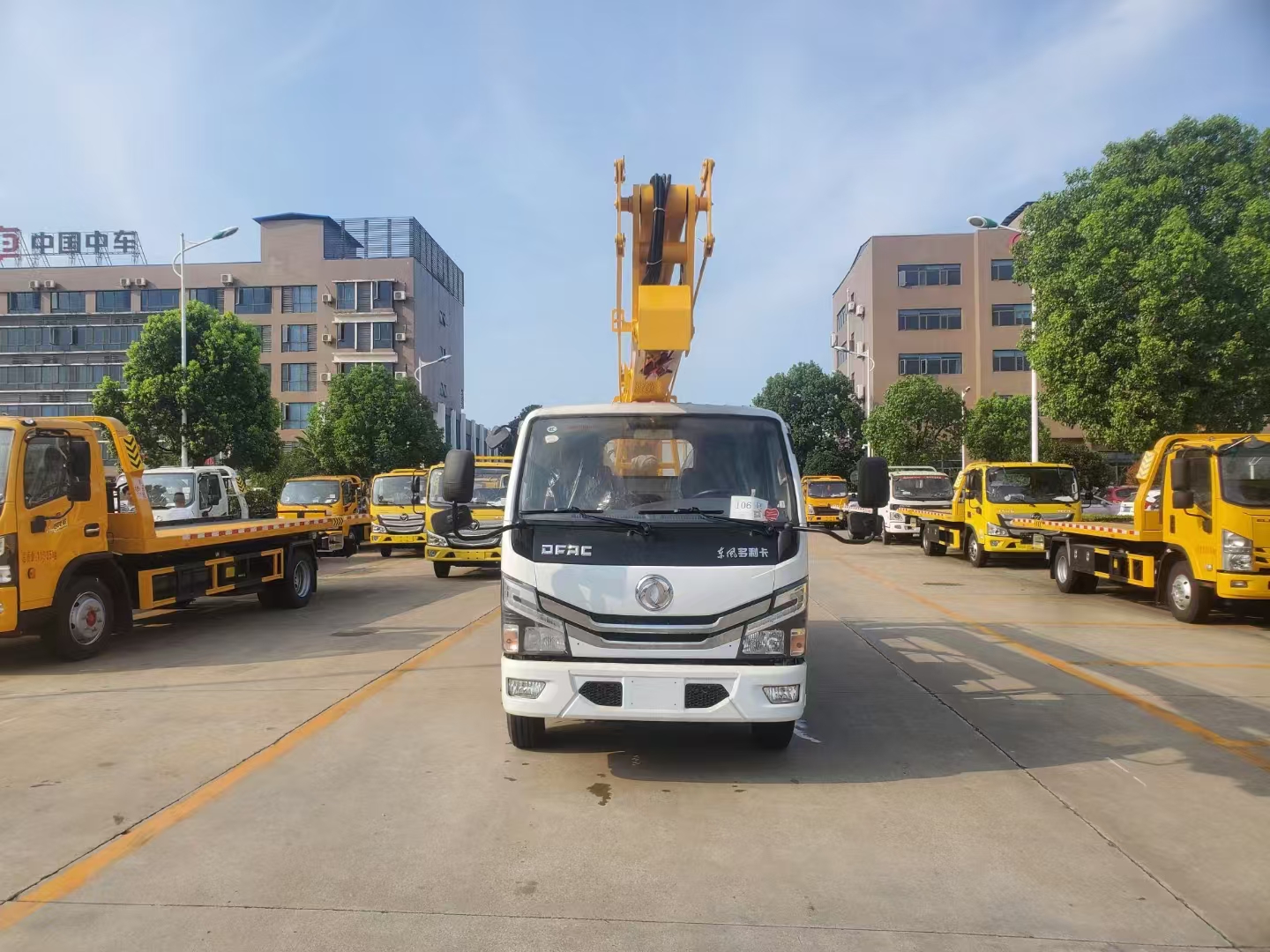

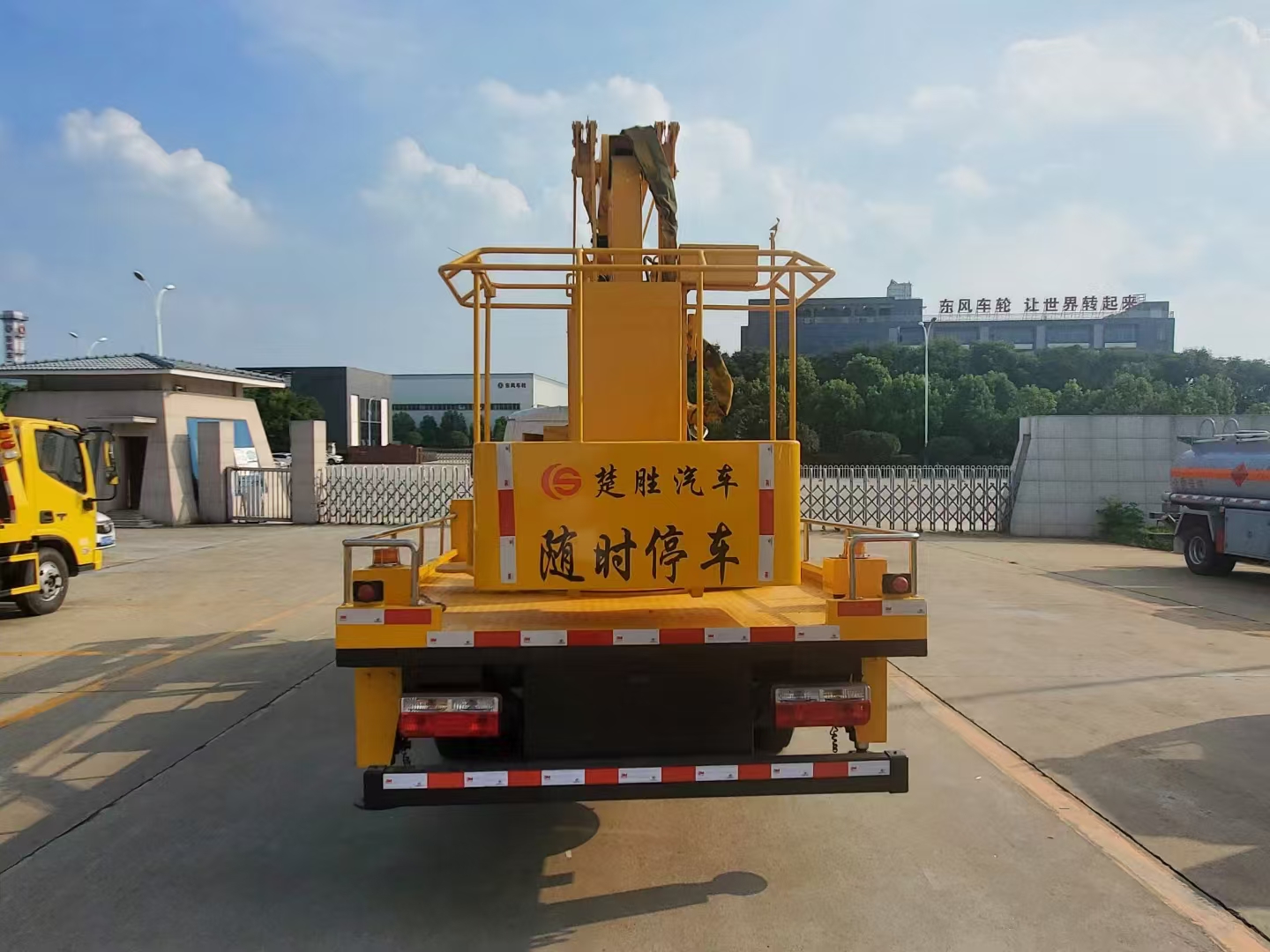

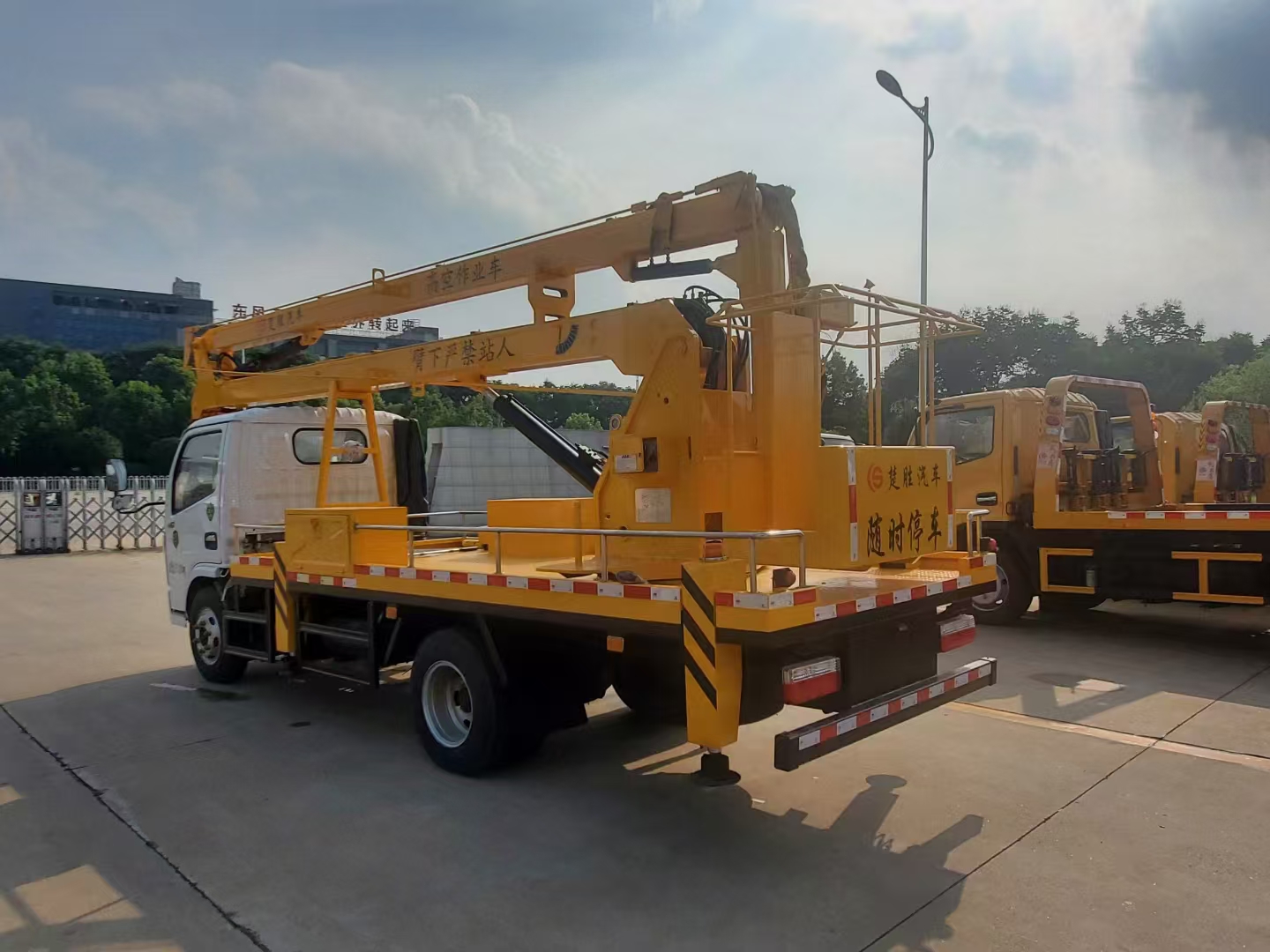

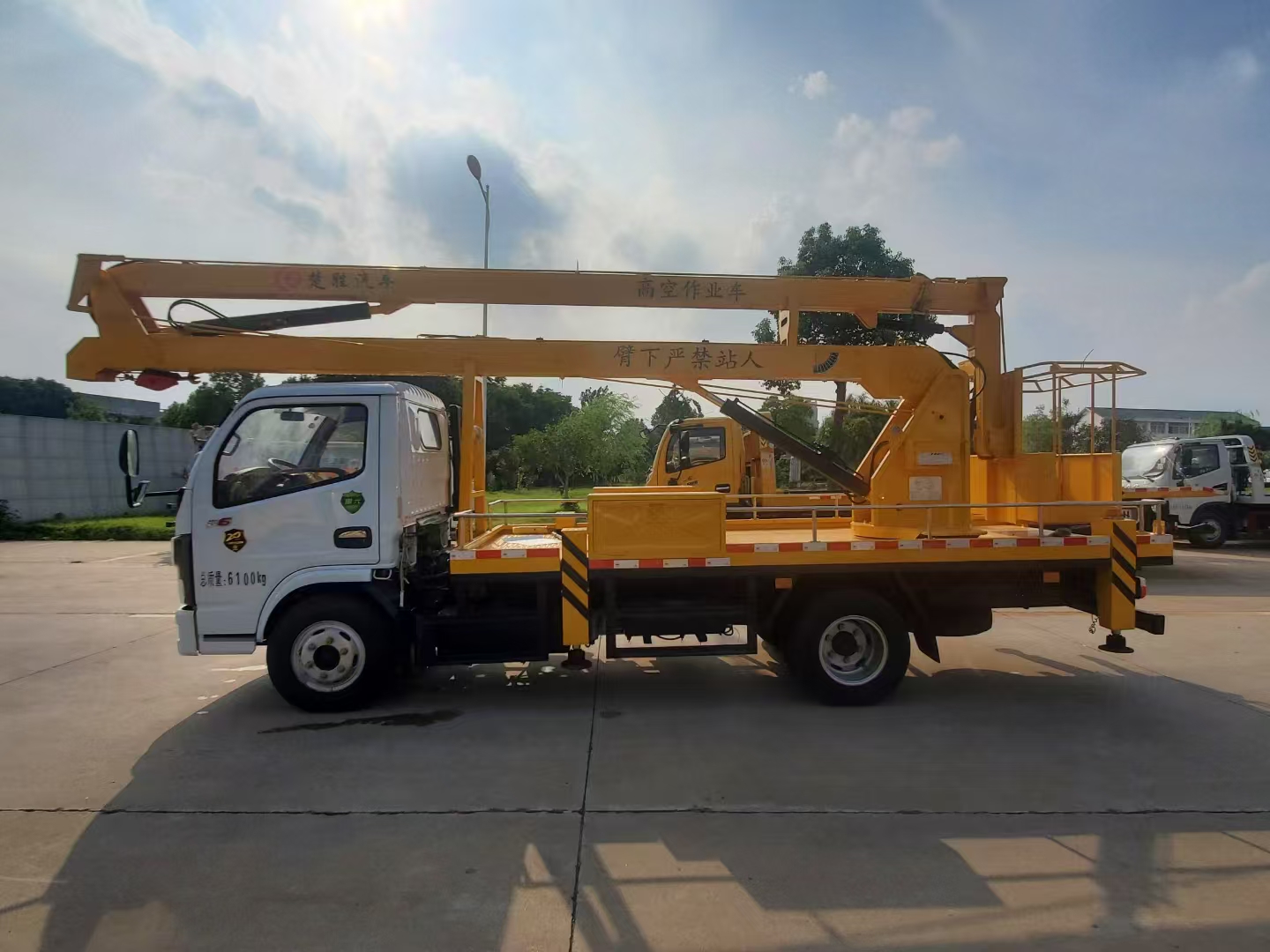

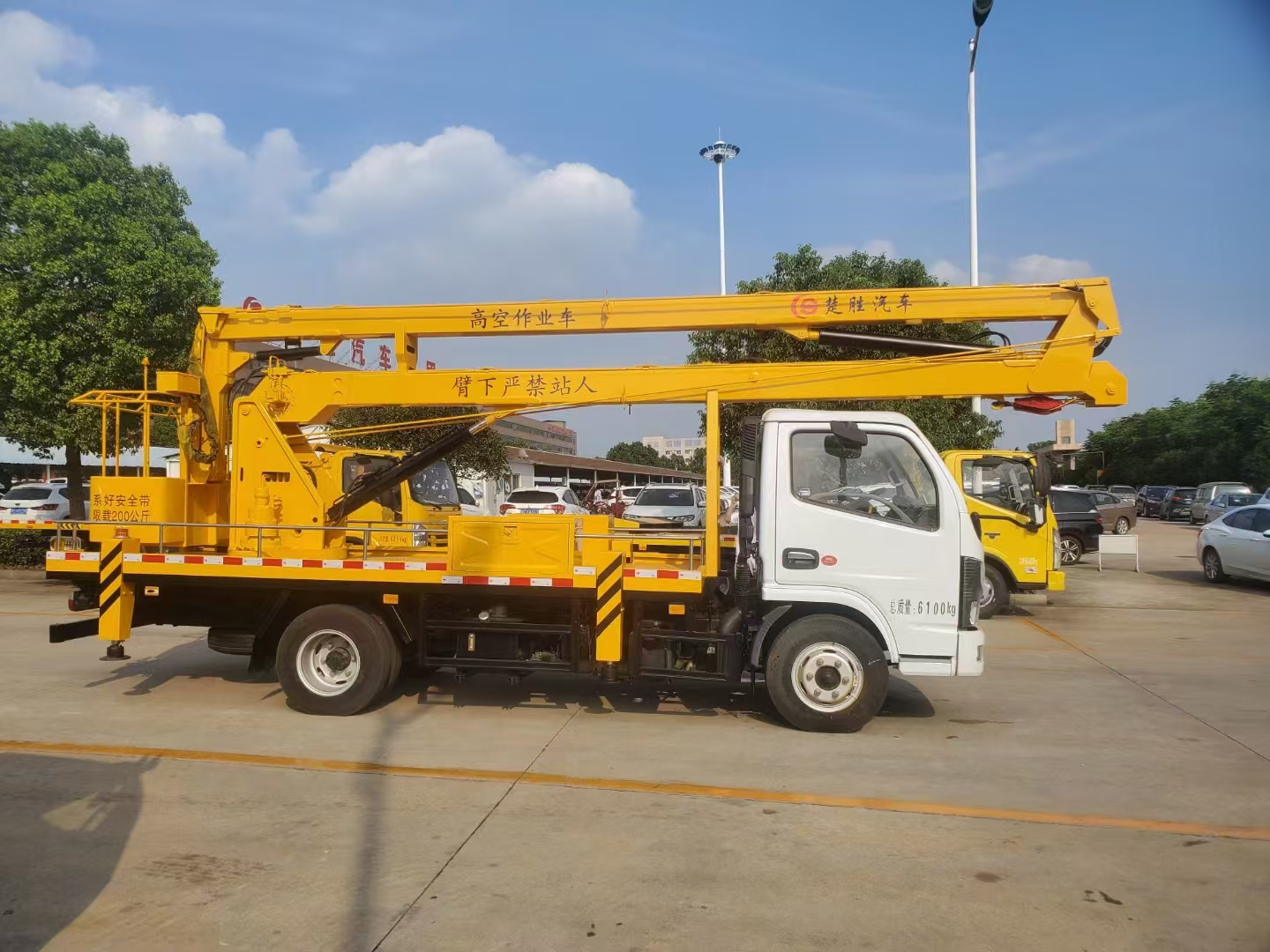

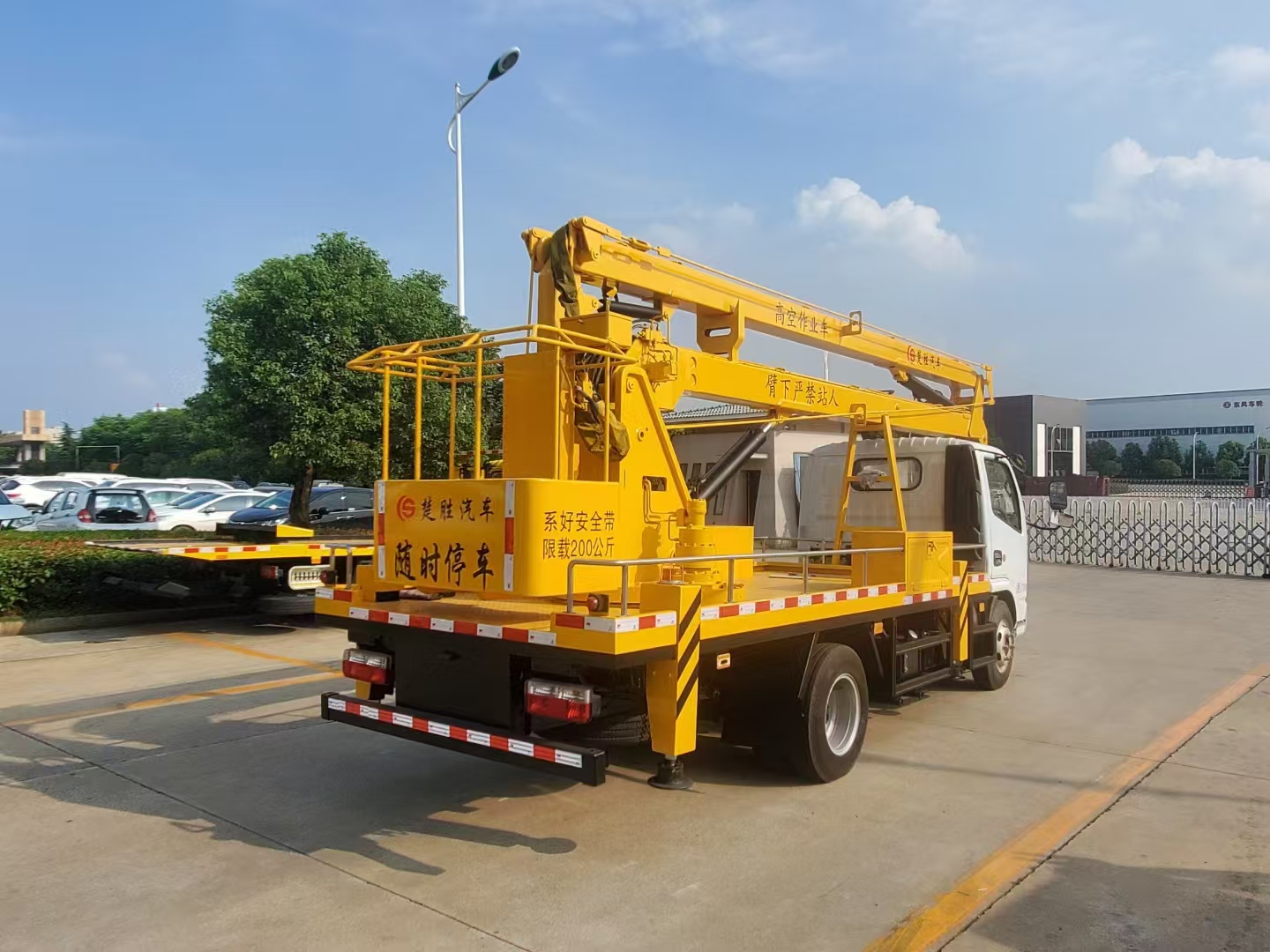

Dongfeng 16m Altitude Operation Truck

Chassis configuration: 3308mm wheelbase, single row, Quanchai 115 horsepower, Wanliyang 5-speed transmission, 7.00R16 tires, front axle 1.8 tons, rear axle 3.5 tons, 192mm double frame, air conditioning, electric doors and windows, ABS, air brake.

Upper configuration: Operating height of 16 meters, working bucket load limit of 200KG, hydraulic 360 ° rotation, three section folding arm, hydraulic lifting cylinder, with two-way balance valve, electrically controlled lifting arm, one ton telescopic hook, adjustable hydraulic cylinder for all four limbs, legs with two-way hydraulic lock (leg operation is manual and can be operated separately)

Product name： Dongfeng 16m Altitude Operation Truck
Rated load of working platform： 200(Kg)
Maximum working height： 16m
Cab： Air conditioning, steering assistance, air brake, central locking system, power windows, multifunctional steering wheel

Product Features

Dongfeng 16m Altitude Operation Truck

1.Altitude Operation Truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.

2. high-platform operation truck is high efficience and great performance with good safety.

3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.

Product parameters

Product name	Dongfeng 16m Altitude Operation Truck
Rated load of working platform	200(Kg)
Maximum working height	16m
Cab	Air conditioning, steering assistance, air brake, central locking system, power windows, multifunctional steering wheel
Engine model and horsepower	Quanchai 115 horsepower
Emission standard	Euro 6 (Euro 3/4/5 can be customized.)
Gearbox	5-speed gearbox
Drive wheel	4X2
Steering wheel	Left/right hand driving
Seat capacity	2-3 person
Wheel base	3308mm
Axle quantity	2
Tire Specification and Quantity	7.00R16, 6+1 spare
Upper configuration	Operating height of 16 meters, working bucket load limit of 200KG, hydraulic 360 ° rotation, three section folding arm, hydraulic lifting cylinder, with two-way balance valve, electrically controlled lifting arm, one ton telescopic hook, adjustable hydraulic cylinder for all four limbs, legs with two-way hydraulic lock (leg operation is manual and can be operated separately)
Notice	The above information is for reference only. Trucks can be customized according to customer needs.
