Altitude Operation Truck

Export exclusive Isuzu 30 meter telescopic boom aerial work vehicle

Export exclusive Isuzu 30 meter telescopic boom aerial work vehicle

Chassis configuration: 3815mm wheelbase, 120 horsepower, five speed gearbox, 7.50 steel tires, air conditioning, steering assist, air brake, central locking, power windows, multifunctional steering wheel
Upper configuration: Fourteen sided six section telescopic arm, operating height of 30 meters, working bucket limit of 200kg, platform hydraulic 360 degree full rotation, working bucket 360 ° rotation, with automatic hydraulic leveling, hydraulic system with proportional control, turntable and working bucket dual position operation, all hydraulic systems are equipped with bidirectional hydraulic balance valves with locking function, electro-hydraulic proportional control, realizing infinite speed regulation of the upper movement, equipped with emergency power source, effectively responding to emergencies, support legs are fully hydraulic, and have separate valve group control operation. Each leg is equipped with a strobe light, which automatically flashes in operation and is wireless remote controlled. The remote control is equipped with a horn button, which can provide remote warning reminders. The legs and boarding operations can be interlocked, making it safer and more reliable. Set up vehicle tilt alarm or soft leg alarm for safer use, limit function, dangerous condition alarm, configure tilt angle and length sensors to achieve amplitude control of high-altitude work vehicles. Vehicle turning limit. High altitude operations are equipped with speakers to provide safety warnings.

  • Product name: Export exclusive Isuzu 30 meter telescopic boom aerial work vehicle
  • Rated load of working platform: 200(Kg)
  • Maximum working height: 30m
  • Cab: Air conditioning, steering assistance, air brake, central locking system, power windows, multifunctional steering wheel

Product Features

Export exclusive Isuzu 30 meter telescopic boom aerial work vehicle

1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.

 2. high-platform operation truck is high efficience and great performance with good safety.

 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.

Product parameters

Product name Export exclusive Isuzu 30 meter telescopic boom aerial work vehicle
Rated load of working platform 200(Kg)
Maximum working height 30m
Cab Air conditioning, steering assistance, air brake, central locking system, power windows, multifunctional steering wheel
Engine model and horsepower 120hp
Emission standard Euro 6 (Euro 3/4/5 can be customized.)
Gearbox 5-speed gearbox
Drive wheel 4X2
Steering wheel Left/right hand driving
Seat capacity 2-3 person
Wheel base 3815(mm)
Axle quantity 2
Tire Specification and Quantity 7.50 steel wire tire, 6+1 spare
Upper configuration Fourteen sided six section telescopic arm, operating height of 30 meters, working bucket limit of 200kg, platform hydraulic 360 degree full rotation
Notice The above information is for reference only. Trucks can be customized according to customer needs.

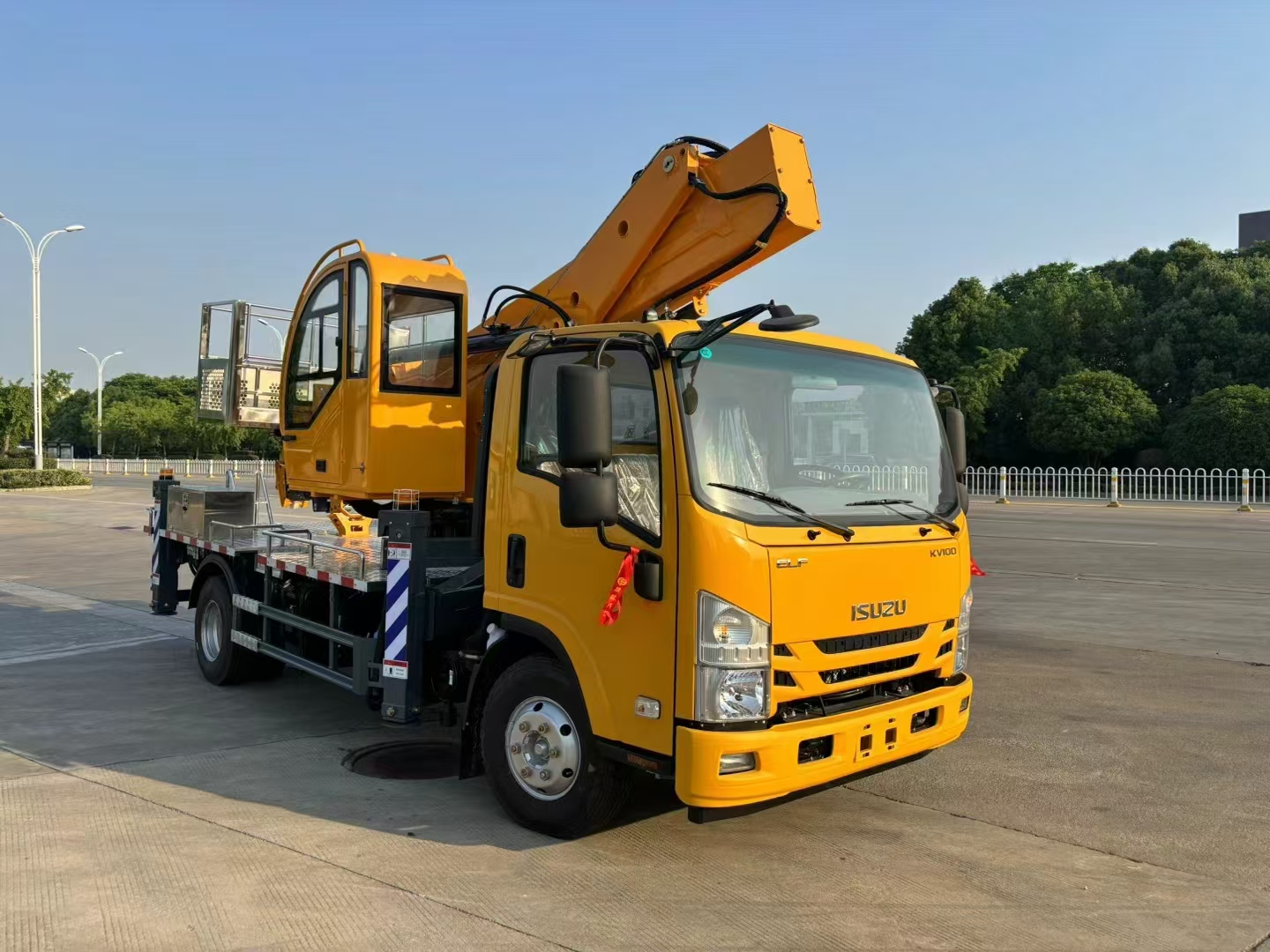

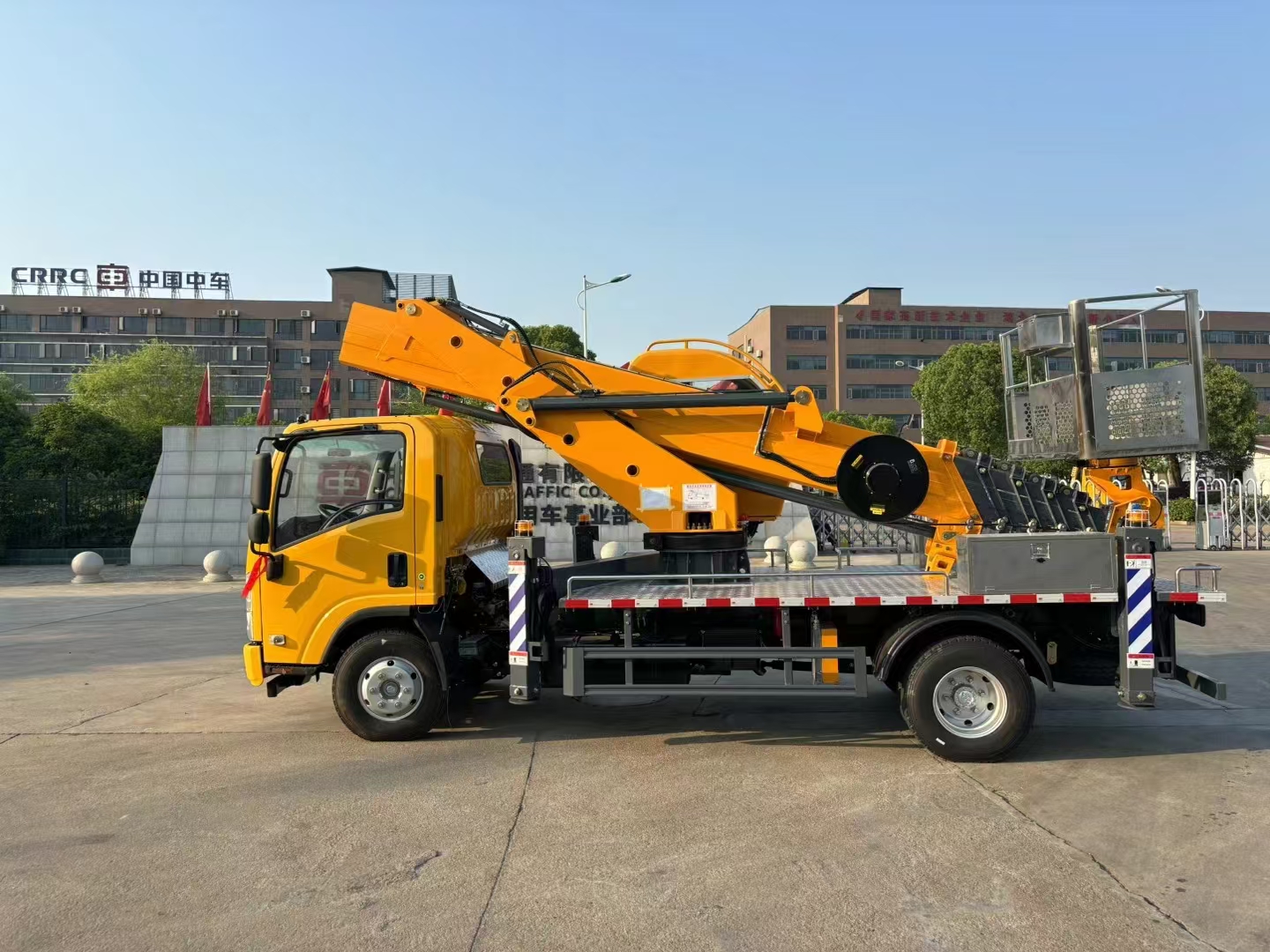

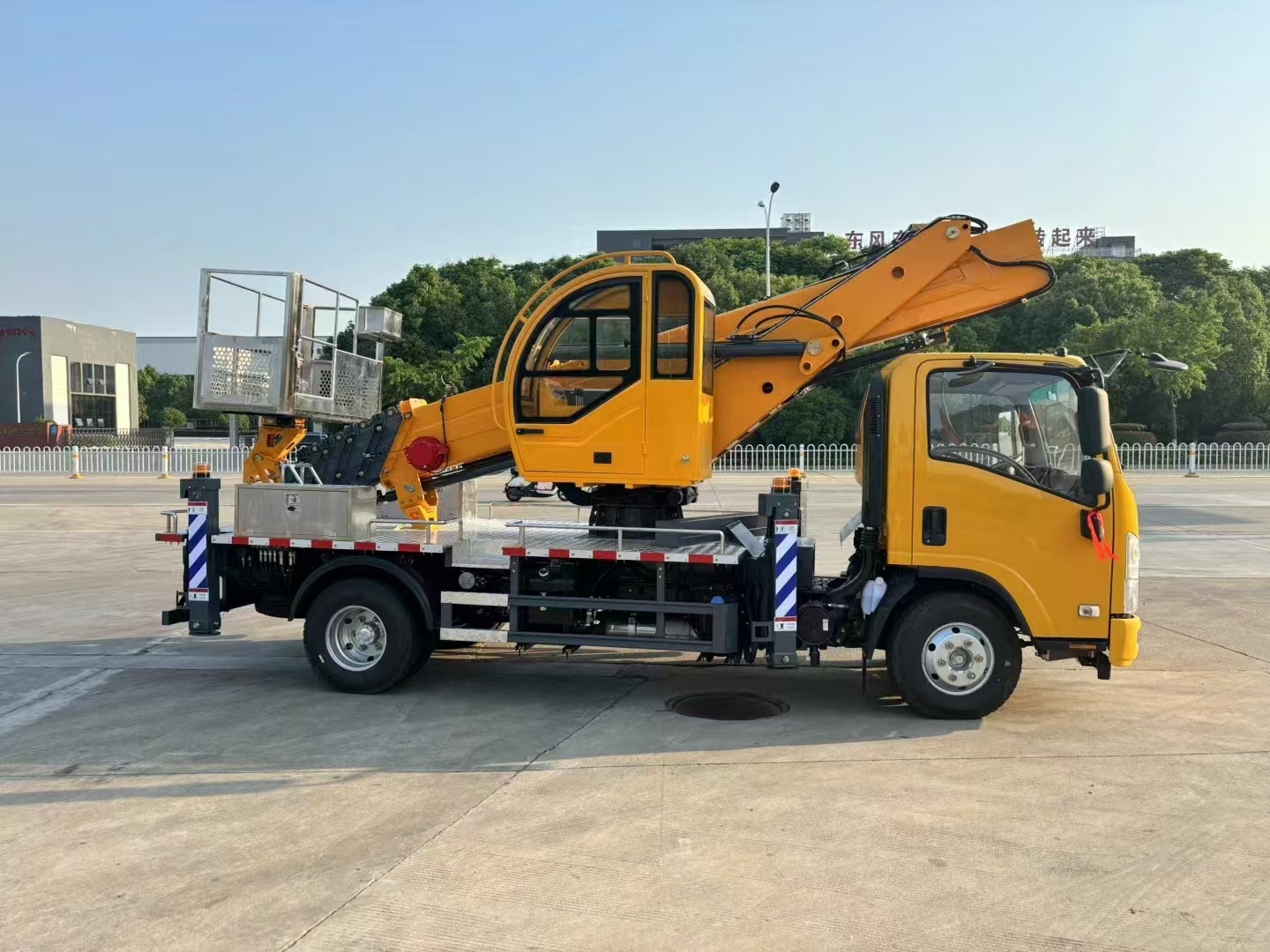

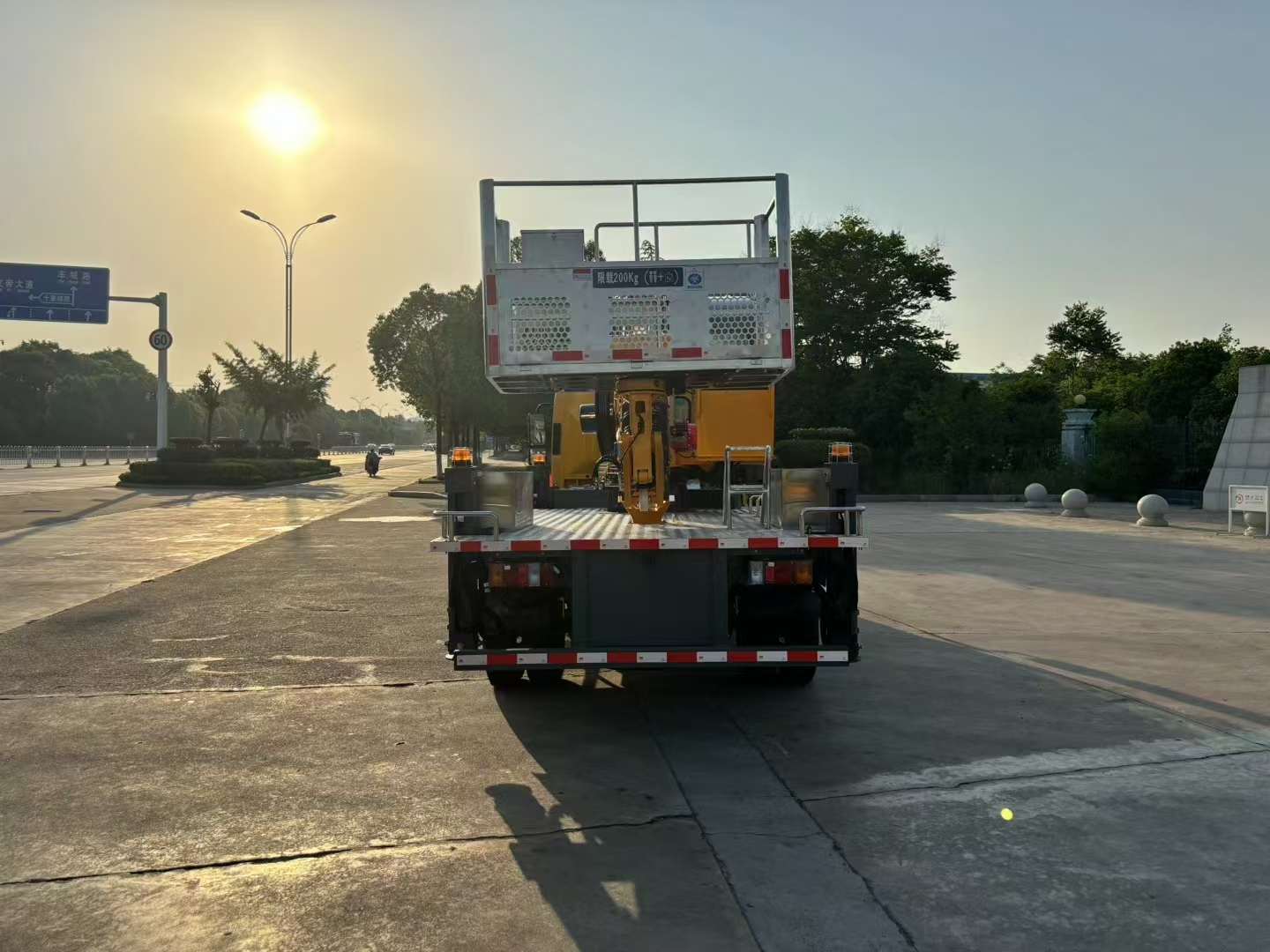

Vehicle pictures

  • View
  • View
  • View
  • View
  • View
  • View
  • View
  • View
