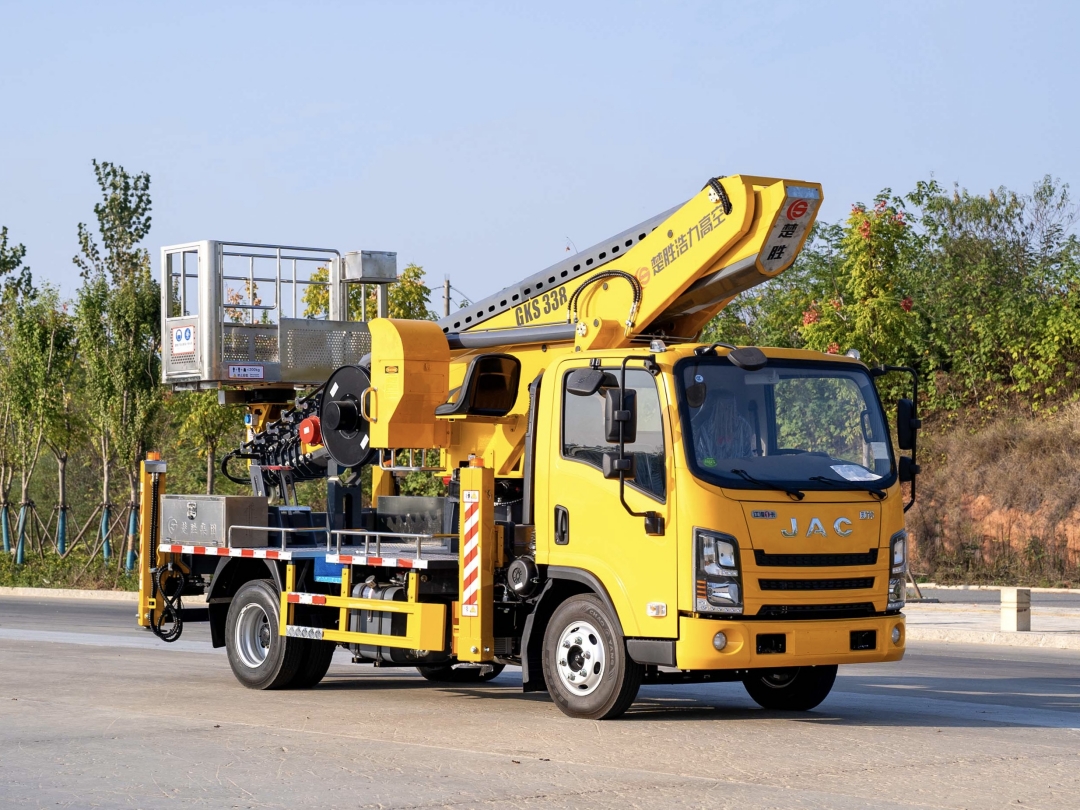

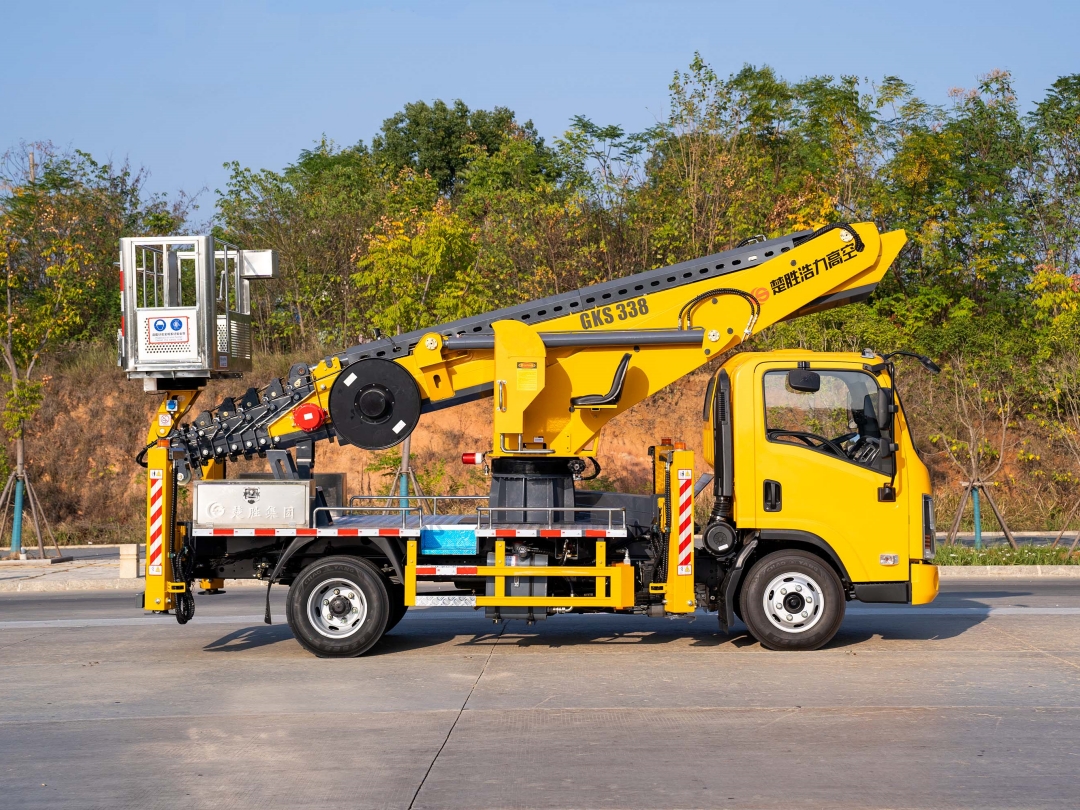

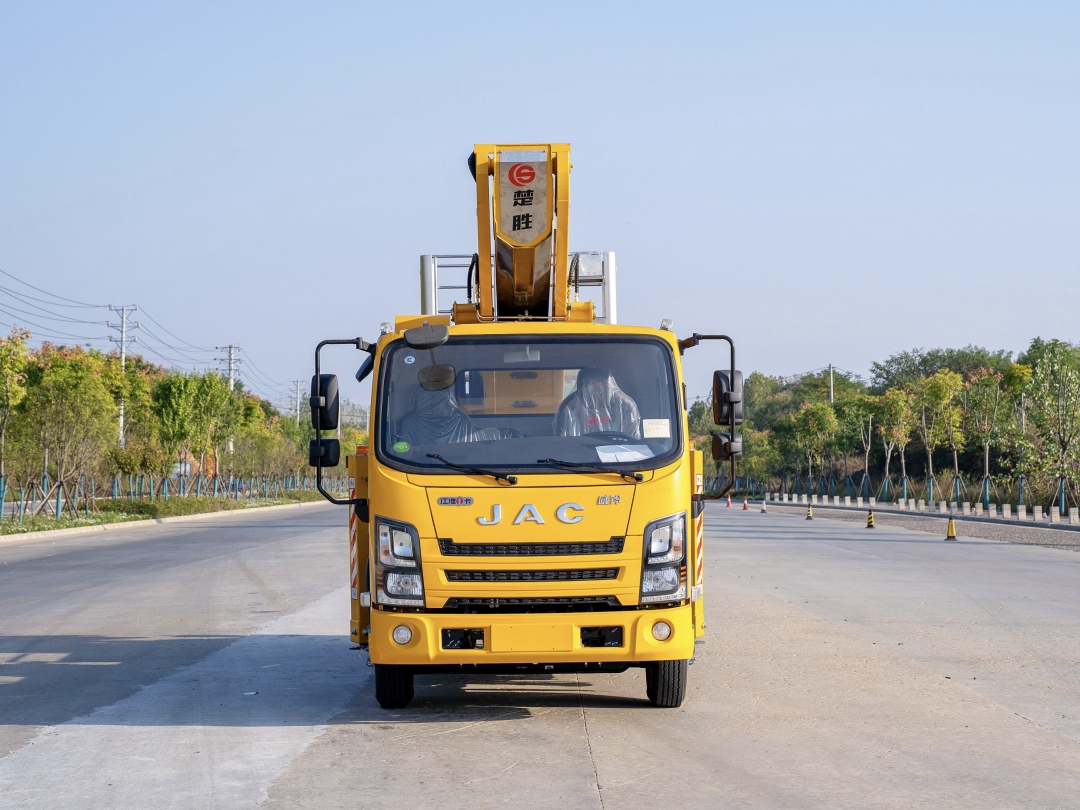

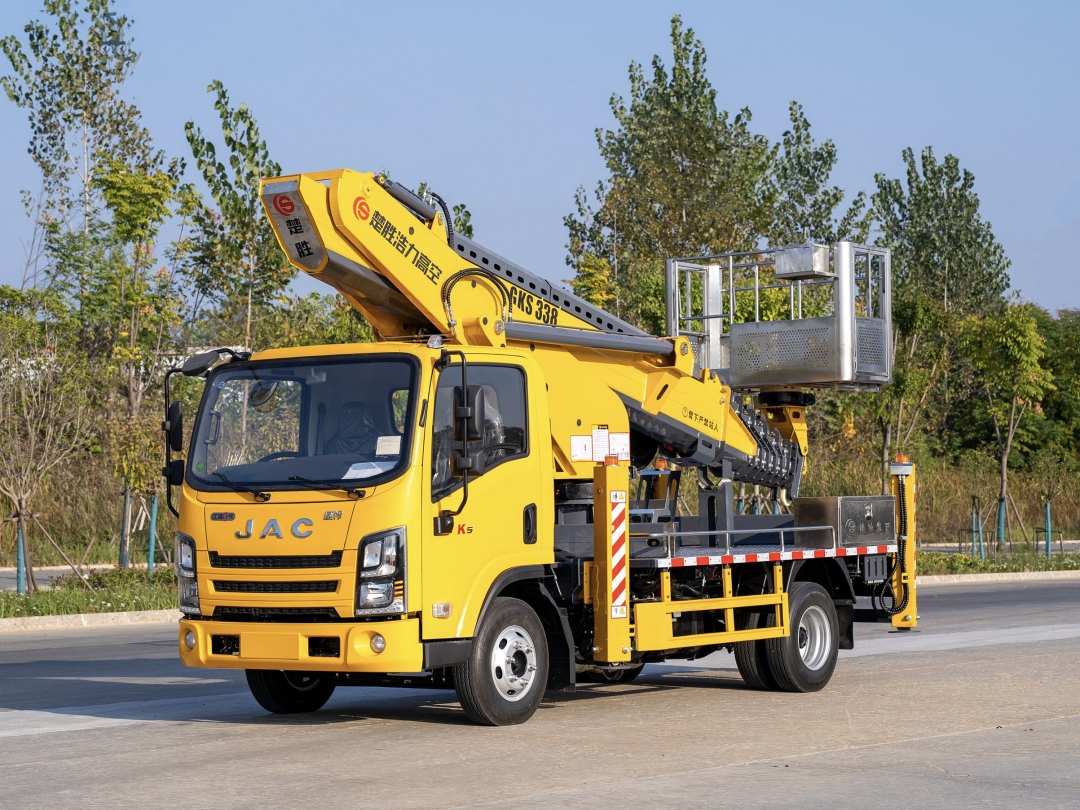

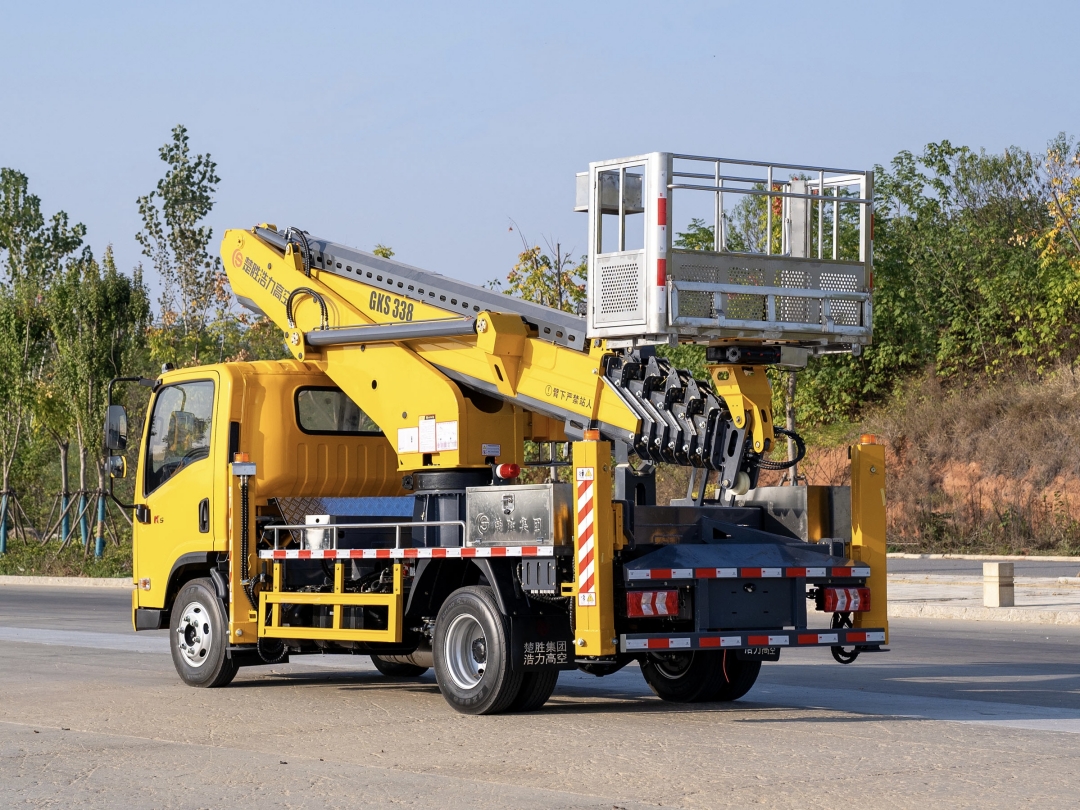

JAC 33 meter high-altitude operation truck

Basic functional safety configuration of JAC 33 meter aerial work vehicle: The work vehicle can achieve a platform load of 200kg, a maximum working height of 33m, and a maximum working range of 26m for rear climbing. The boom angle range is 18 °~78 °, and the hydraulic automatic leveling of the work platform.
Advantages of Chusheng Aerial Work Vehicle

1.High end design, small turning radius
2.Dual lifting cylinder design
3.Double leg support, large span
4.Good operational performance and wide operating range
5.Both the turntable and platform can rotate continuously 360 °
6.Work platform, small platform with load
7.Dual electronic control operating system
8.Turntable seats and controls
9.High reliability

Overall Dimension： 5998×2280×3150mm
Hanging basket dimension： 1600×700×1100mm
Gross vehicle weight： 4495(Kg)
Curb weight： 4365(Kg)

Product Features

JAC 33 meter high-altitude operation truck

1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.

2. high-platform operation truck is high efficience and great performance with good safety.

3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.

Technical parameters of high-altitude operation truck

Overall Dimension	5998×2280×3150mm
Hanging basket dimension	1600×700×1100mm
Gross vehicle weight	4495(Kg)
Curb weight	4365(Kg)
Rated weight	/
Rated load of working platform	200(Kg)
Maximum working height	33m
Working range at maximum working height	4.5m
Maximum working height	16m
Control voltage	12V
Work platform rotation	Continuously 360°
Horizontal leg span	6000mm
Longitudinal leg span	5800mm
Arm amplitude variation time	50s
Arm rotation speed	60s/r
Outrigger extension and retraction time	35s
Chassis	JAC
Cab configuration	JAC K5 cab, equipped with air conditioning, central locking, electric glass, and air brake
Engine model and horsepower	Yunnei 140hp, Yunnei 180hp
Emission standard	Euro 6 (Euro 3/4/5 can be customized.)
Gearbox	Fast 8-speed gearbox
Drive wheel	4X2
Steering wheel	Left/right hand driving
Seat capacity	2-3 person
Wheel base	3365,2850,3600(mm)
Axle quantity	2
Tire Specification and Quantity	6.50R16LT 8PR,7.00R16LT 8PR,6.50R16LT 10PR,185R15LT 8PR, 6+1spare
Fences and walkways material	Stainless steel fence, aluminum alloy anti slip walking board.
Power take-off system	Pneumatic power take-off
Working platform size	Pneumatic power take-off
Skeleton form	Seven section octagonal synchronous telescopic arm
Slewing gear	360° continuous rotation
Outrigger	Front V-shaped and rear V-shaped double leg support, individually adjustable and synchronously extendable
Operation	Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation for getting off the vehicle, equipped with an electric emergency pump, the whole vehicle can achieve full hydraulic electric emergency operation.
Control system	Duman aerial vehicle control system, strong stability
Leveling system	Hydraulic automatic leveling
Stretching force balance	Set up a balance mechanism for the stretching rope to ensure balanced force distribution on the left and right steel wire ropes
