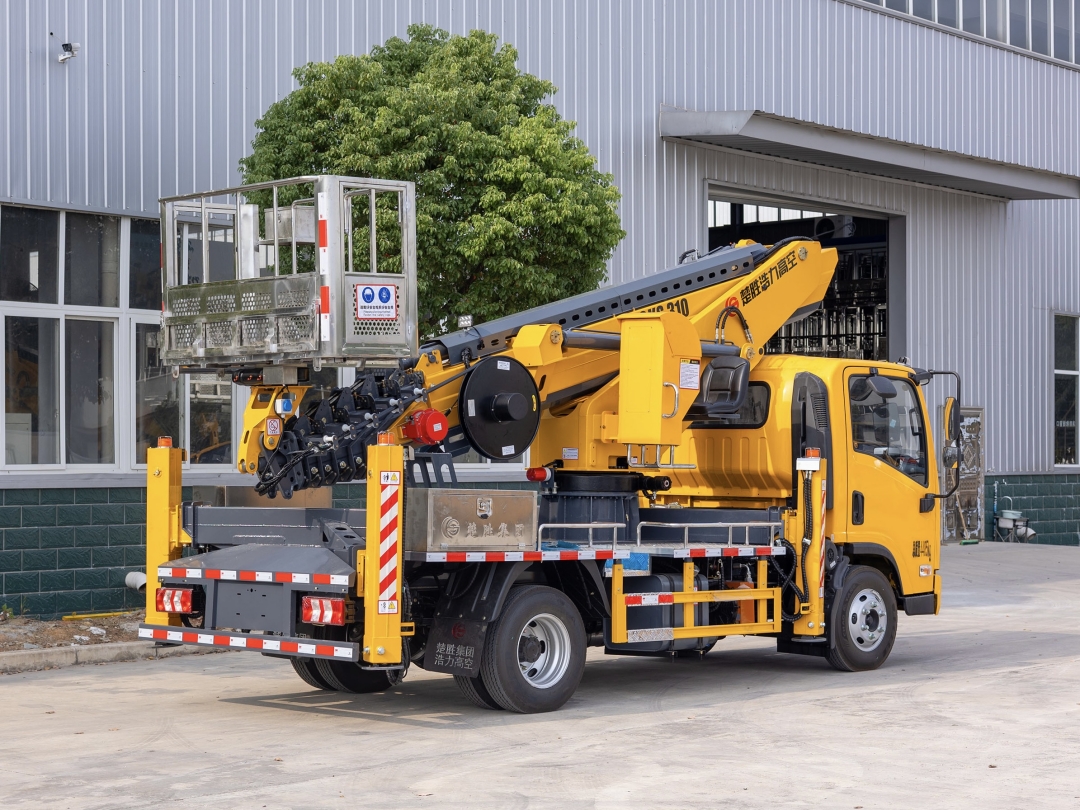

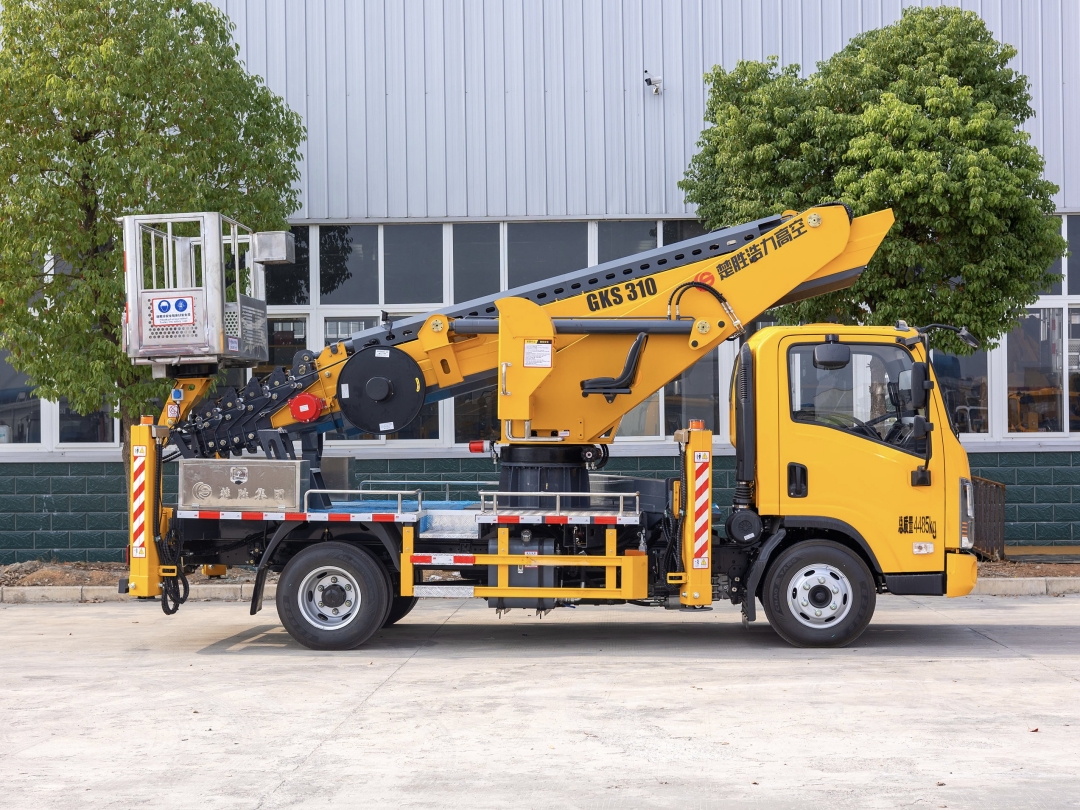

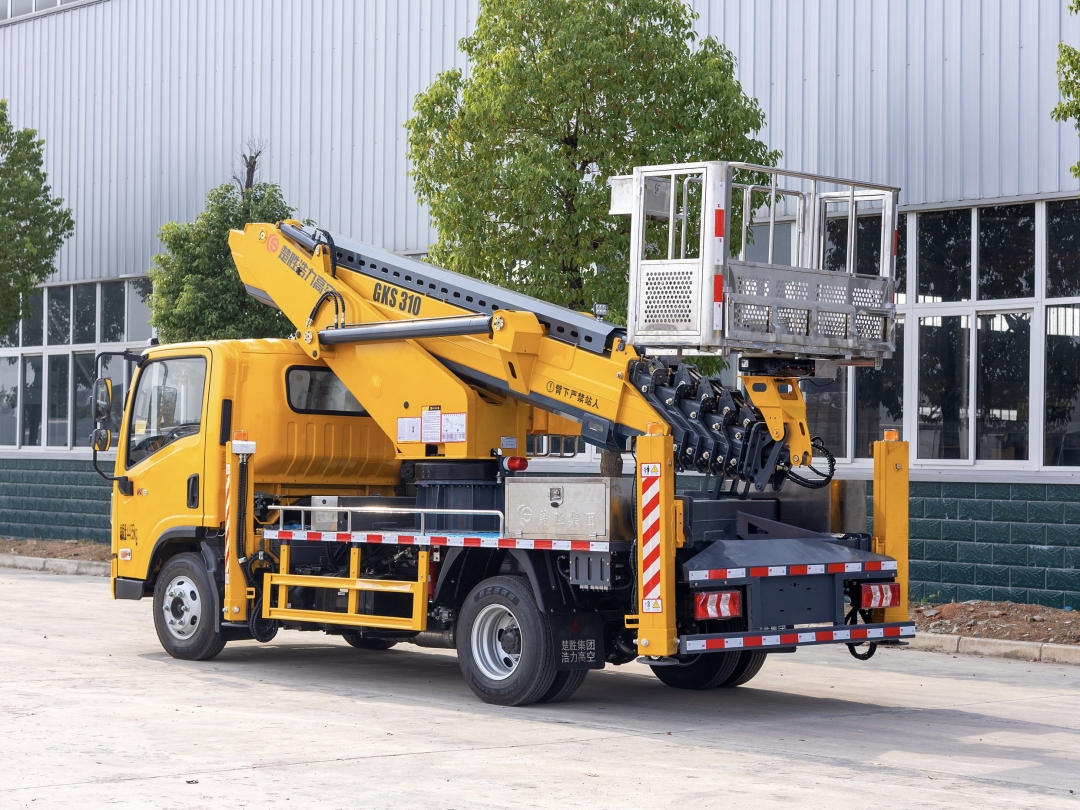

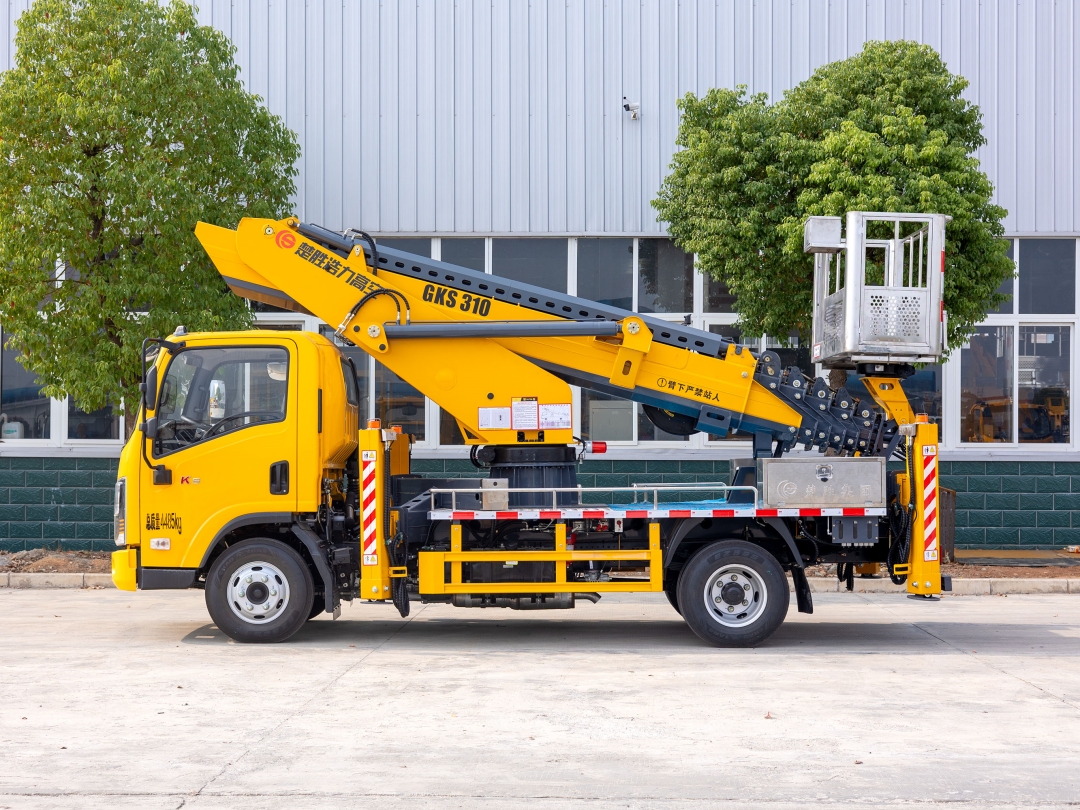

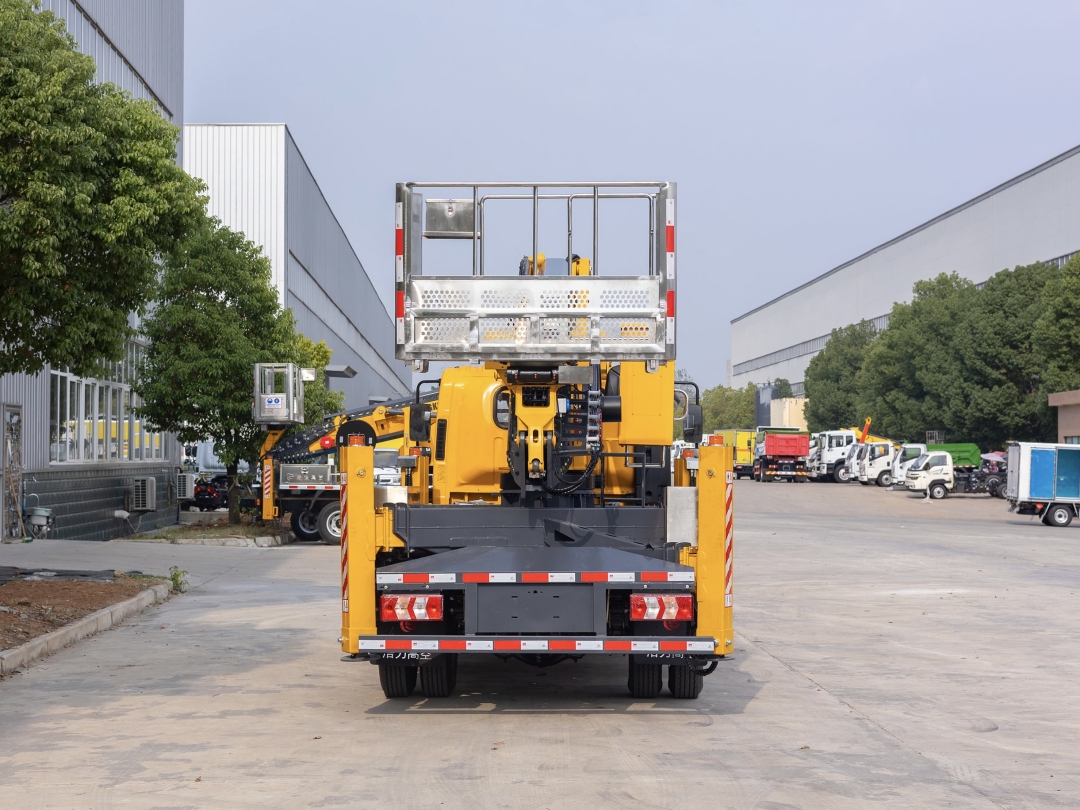

JAC K5 31 meter aerial platform vehicle

Chassis configuration

K5 cab, three seater, Yunnei D20140 horsepower engine, Fast 8-speed transmission, 7.00R16 tires (8PR), 3365 wheelbase, 5-ton reinforced rear axle, air brake, dynamic rotation, air conditioning, electric doors and windows, MP3 player, central locking, multifunction steering wheel, daytime running lights, multi leaf springs.

Upper configuration

Adopting a seven section octagonal boom with synchronous extension and retraction, the boom rotates 360 degrees, with front V-shaped and rear V-shaped double section hydraulic support legs that can be adjusted separately. The front and rear support legs have a span of 6 meters and can be extended and retracted synchronously. 1.6-meter stainless steel suspended basket with a load capacity of 200 kilograms. The entire vehicle is coated with electrostatic powder coating technology. Standard electronic control operation screen, remote control, hydraulic oil radiator, and soft leg protection. (Optional installation of oil and electricity dual-use device, reversing camera, hydraulic winch, and upper control cab.)

Product name： JAC K5 31 meter aerial platform vehicle
Overall Dimension： 5998×2000,2100×2800,3000,3100,3150,3200(mm)
Gross vehicle weight： 4495(Kg)
Curb weight： 4300,4365(Kg)

Product Features

JAC K5 31 meter aerial platform vehicle

1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.

2. high-platform operation truck is high efficience and great performance with good safety.

3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.

Technical parameters of high-altitude operation truck

Product name	JAC K5 31 meter aerial platform vehicle
Overall Dimension	5998×2000,2100×2800,3000,3100,3150,3200(mm)
Gross vehicle weight	4495(Kg)
Curb weight	4300,4365(Kg)
Rated weight	/
Rated load of working platform	200(Kg)
Maximum working height	31m
Cab	K5 cab, three seater, air conditioning, electric doors and windows, MP3 player, central locking system, multifunctional steering wheel,
Engine model and horsepower	D20TCIF16, Yunnei 140hp
Emission standard	Euro 6 (Euro 3/4/5 can be customized.)
Gearbox	Fast 8-speed gearbox
Drive wheel	4X2
Steering wheel	Left/right hand driving
Seat capacity	2-3 person
Wheel base	3365(mm)
Axle quantity	2
Tire Specification and Quantity	7.50R16LT 6PR, 6+1 spare
Upper configuration	Adopting a seven section octagonal boom with synchronous extension and retraction, the boom rotates 360 degrees, with front V-shaped and rear V-shaped double section hydraulic support legs that can be adjusted separately. The front and rear support legs have a span of 6 meters and can be extended and retracted synchronously. 1.6-meter stainless steel suspended basket with a load capacity of 200 kilograms. The entire vehicle is coated with electrostatic powder coating technology. Standard electronic control operation screen, remote control, hydraulic oil radiator, and soft leg protection. (Optional installation of oil and electricity dual-use device, reversing camera, hydraulic winch, and upper control cab.)
Notice	The above information is for reference only. Trucks can be customized according to customer needs.
