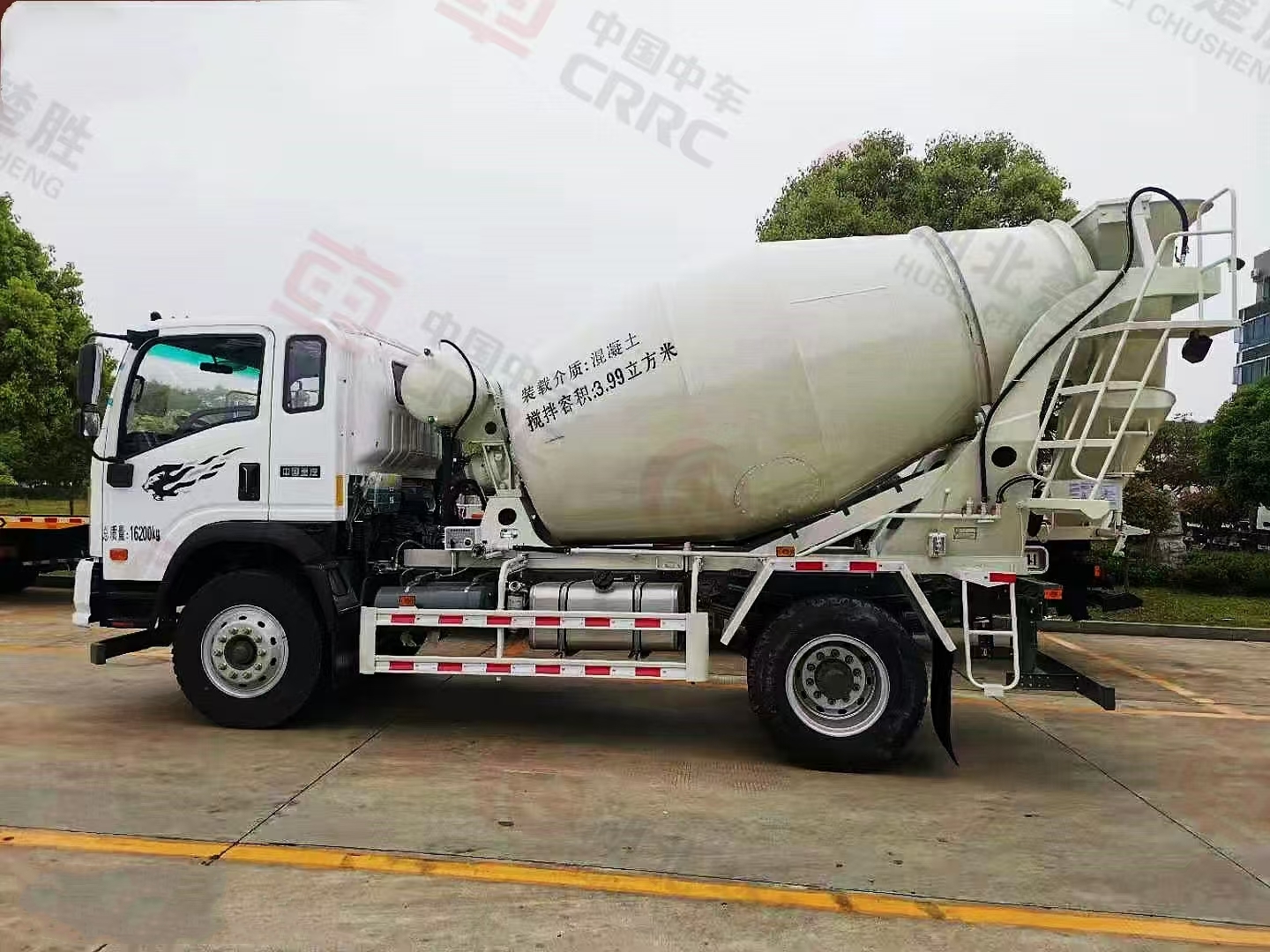

Sinotruk Wangpai 4X2 Concrete Mixer Truck

Chassis configuration:

1. Engine: YCD4P4S-170，Yuchai 170hp
2. Tires: 9.00R20 steel wire tire, 6+1 spare
3. Wheelbase: 3650(mm)
4. Cab: Sinotruk Wangpai 2080 luxury semi suspended cab
5. Transmission: 8-speed gearbox
6. Axle: 10 ton shortened rear axle
7. Other: air brake, dynamic rotation, ABS， Driving recorder, remote throttle, maintenance free battery, exhaust brake, clutch assist, widened seats, automatic brake clearance adjustment device, adjustable front headlights, reflective vest.

Product Name： Sinotruk Wangpai 4X2 Concrete Mixer Truck
Driving Type： 4X2
Total weight(kg)： 16200(Kg)
Curb weight(kg)： 7250(Kg)

Product Features

Sinotruk Wangpai 4X2 Concrete Mixer Truck

A concrete mixer truck is a specialized truck used to transport concrete for construction purposes; Due to its appearance, it is often referred to as a snail car. These types of trucks are equipped with cylindrical mixing drums to transport the mixed concrete. During transportation, the mixing drum will always rotate to ensure that the concrete being transported does not solidify. After transporting the concrete, it is usually washed with water inside the mixing drum to prevent hardened concrete from occupying space and reducing the volume of the mixing drum.

Concrete mixer truckis also called cement mixer truck, cacapity range from 3 cbm to 16 cbm, chassis brand option: dongfeng, howo,shacman, foton, faw, isuzu, lveco, etc.

Upper configuration:

1.Tank material:The cylinder is made of alloy steel QSTE500TM δ 4, the blades are made of alloy steel T510 δ 4, and the domestically lightweight head is made of Q345 6mm.
2.Hydraulic system:Sali's hydraulic pump and motor, domestic Koyi reducer, domestic radiator.
3.Tank color: Regular color: white/red/green (can be customized according to user requirements)

Product parameters

Product Name	Sinotruk Wangpai 4X2 Concrete Mixer Truck
Driving Type	4X2
Total weight(kg)	16200(Kg)
Curb weight(kg)	7250(Kg)
Rated weight(kg)	8755(Kg)
Wheel base(mm)	3650(mm)
Overall Dimension(mm)	6940,7300×2350,2490×3500,3650(mm)
Tank maximum diameter(mm)	1950(mm)
Tank length(mm)	3944(mm)
Engine brand & model	YCD4P4S-170，Yuchai 170hp
Axle Quantity	2
Transmission Type	8-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	9.00R20 steel wire tire, 6+1 spare
Cab	Sinotruk Wangpai 2080 luxury semi suspended cab
Tank material	Tank shell: 4mm Q345, tank head: 6mm Q345
Tank agitation capacity	3.99m³
Stadard configuration	The tank body is made of manganese steel Q345, 4mm material, and the head is made of 6mm high-strength steel Hydraulic system: Koyi reducer, Impop pump, motor.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
