Fuel Tanker
Your Location:Home > Trucks > Fuel Tanker

SHACMAN 6X4 23.7 cbm Fuel Tank Truck ,SHACMAN 16 Tons Oil Truck

Upper configuration

1-Tank volume:23.7m³(can be made into 1-3 compartments)

2-Tank material:aluminum alloy; stainless steel;carbon steel

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.
5-You can choose to install different brands of flow meter.
6-Tank color: customized.

  • Product Name: SHACMAN 6X4 23.7 cbm Fuel Tank Truck ,SHACMAN 16 Tons Oil Truck
  • Chassis brand: SHACMAN
  • Cab: Flat top, with sleeping berth
  • Drive wheel: 6X4

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Main Parameter


Product Name SHACMAN 6X4 23.7 cbm Fuel Tank Truck ,SHACMAN 16 Tons Oil Truck
Chassis brand SHACMAN
Cab Flat top, with sleeping berth
Drive wheel 6X4
Steering wheel Left/Right hand drive
Seat capacity 2-3 person
Engine Brand Yuchai
Engine Model WP7.270E61/WP7.300E61/WP8.350E61
Horse Power (HP) 270/300/350
Engine displacement 7.47L/7.47L/7.8L
Emission standard Euro 6 (option:Euro3/4/5)
Gearbox 9 forward gears and 1 reverse gear
Wheel base (mm) 4375+1400,4575+1400(mm)
Front wheel track (mm) 2036,2070(mm)
Rear wheel track (mm) 1860/1860(mm)
Approach angle/departure angle 16/10(°)
F/R axle load 7000/19000
Axle numbers 3
Tire Specification and Quantity 12R22.5 18PR, 10 with a spare
Vehicle dimensions (mm) 9950×2550×3500(mm)
Tank dimension(mm) 7200×2400×1700(mm)
Gross vehicle weight(Kg) 26000(Kg)
Curb weight(Kg) 10065(Kg)
Rated weight(Kg) 15805(Kg)
Tank volume 23.7 cubic meter
Tank material Aluminum alloy/stainless steel/carbon steel
Standard configuration Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve.
Notice The above information is for reference only, and vehicles can be customized depending on your requirements.

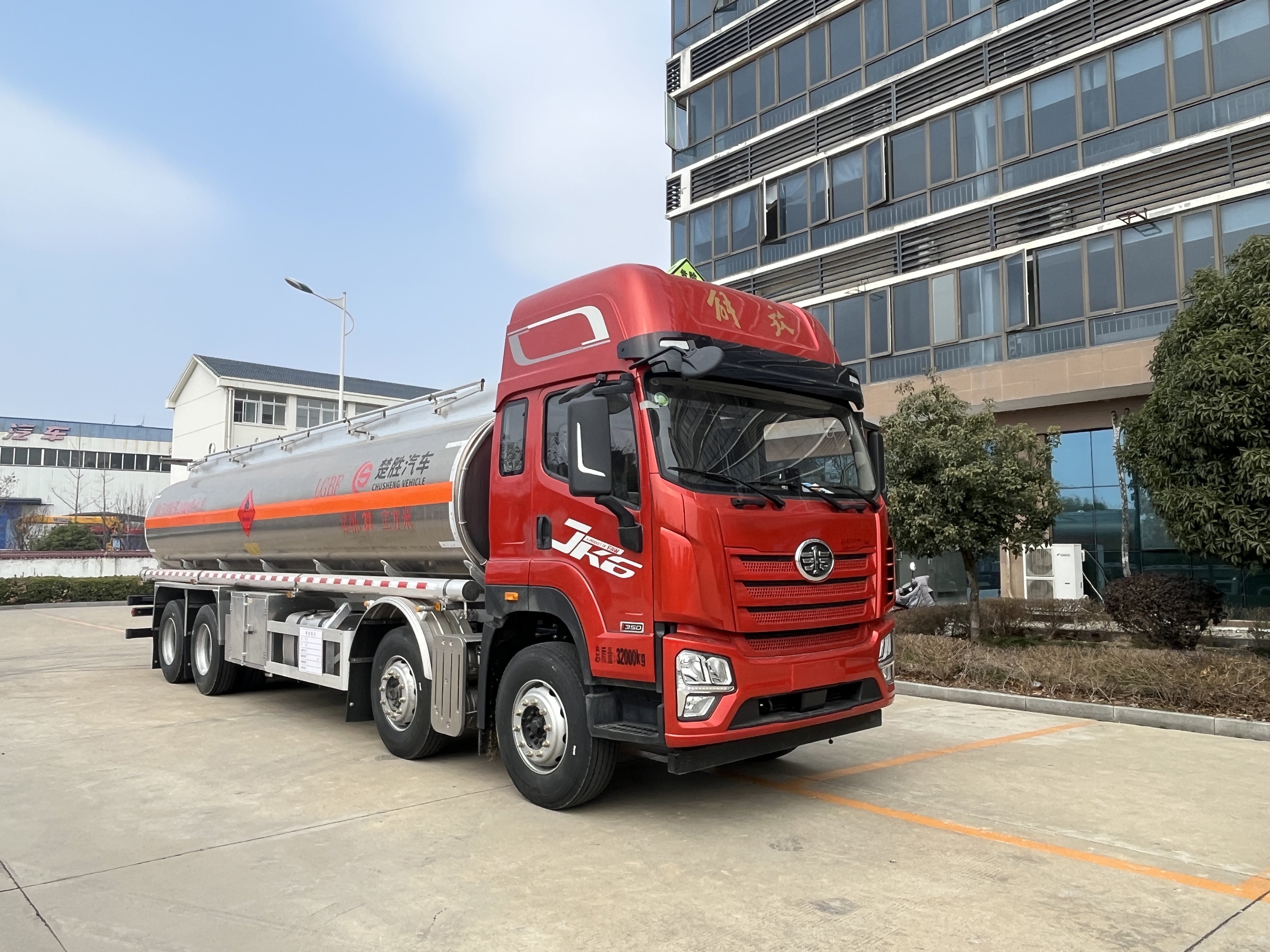

Vehicle pictures
