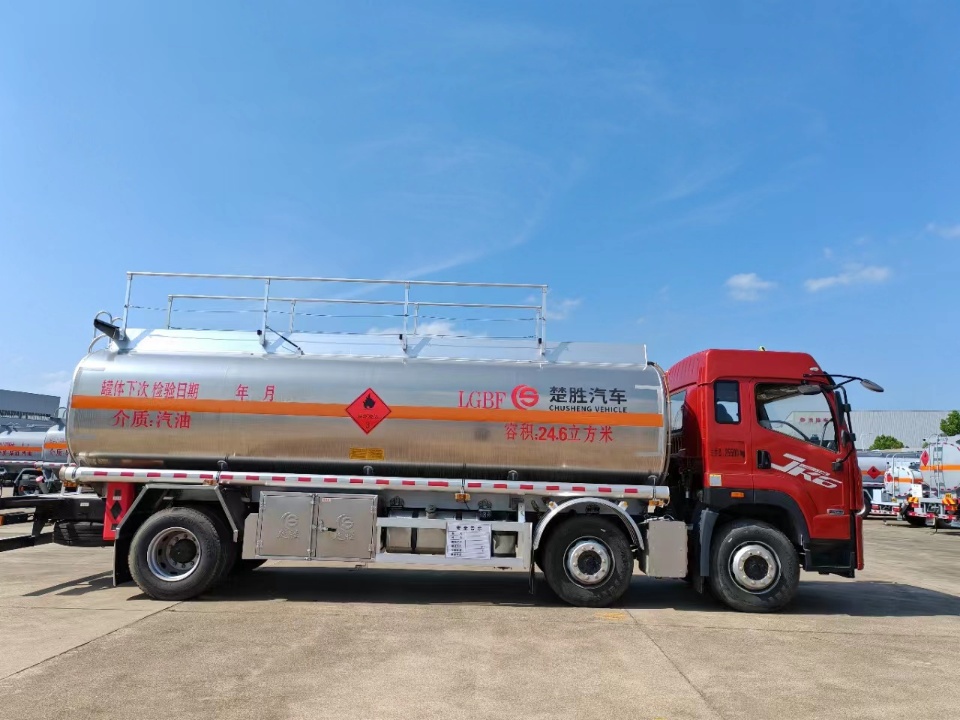

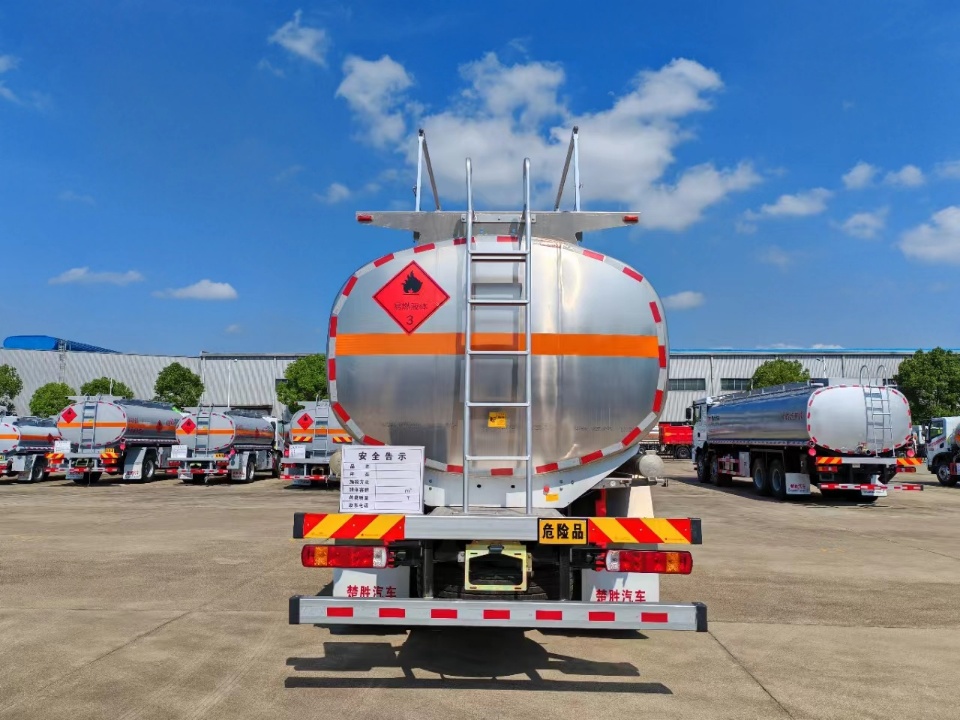

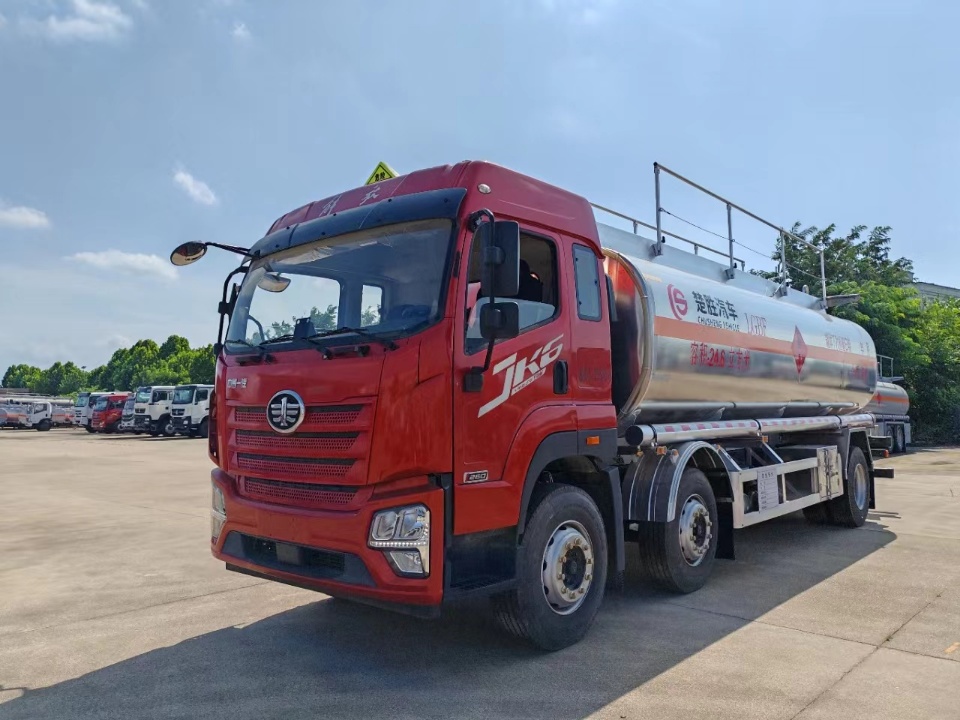

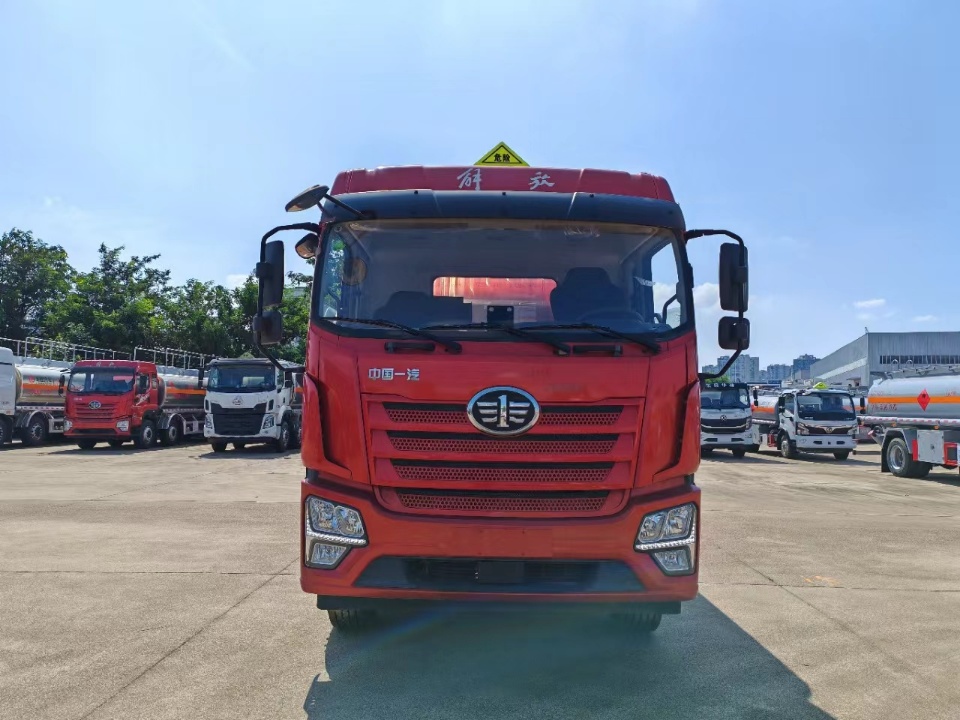

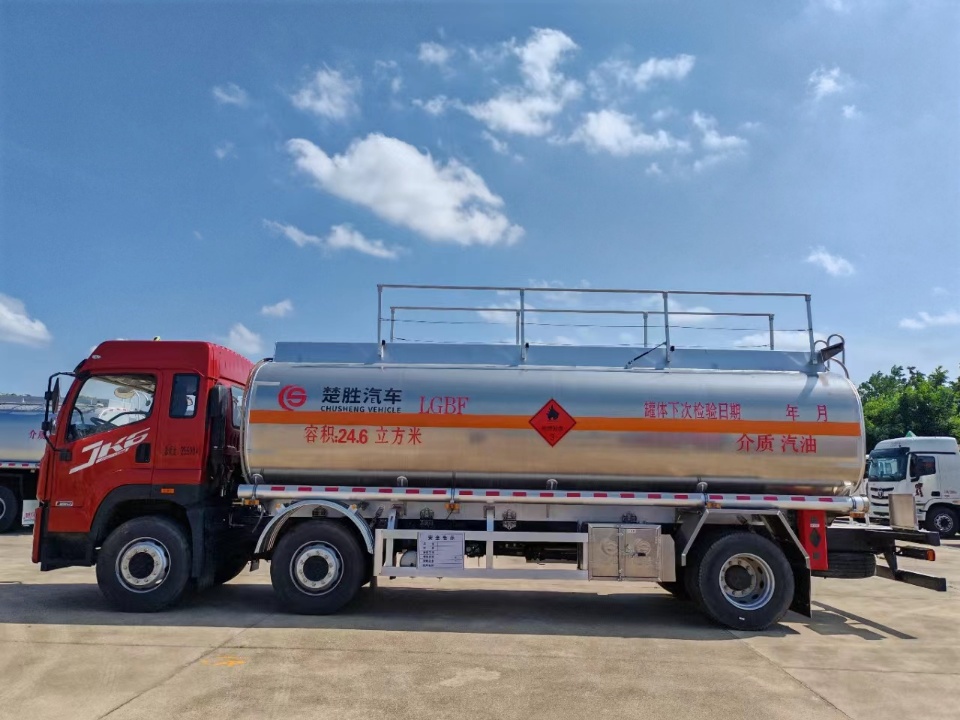

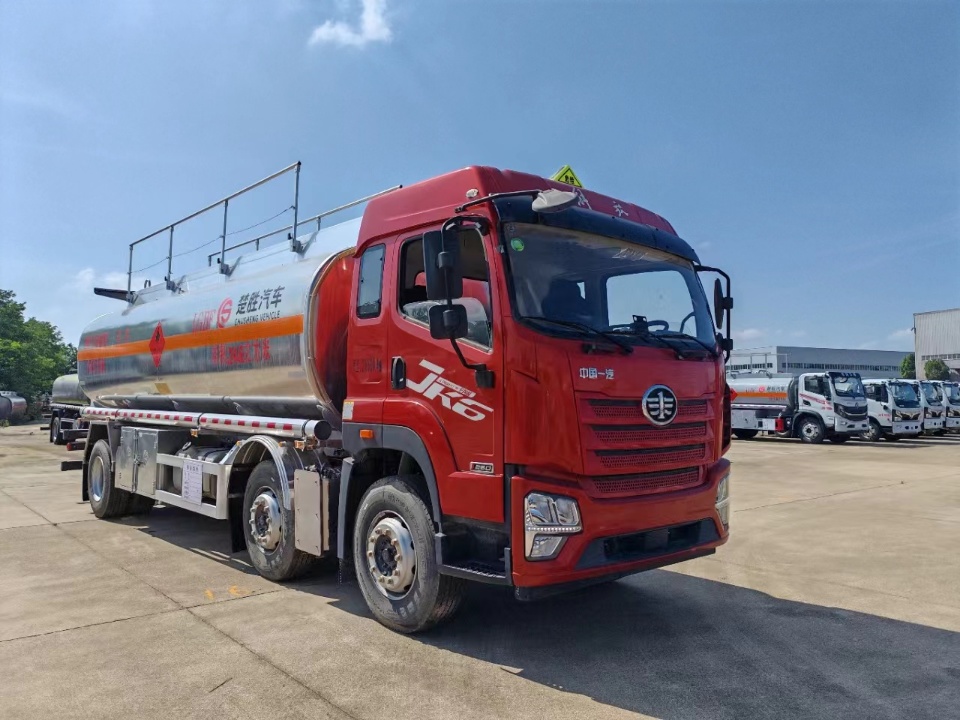

Jiefang 6X2 24.6 cbm Fuel Tank Truck

Upper configuration

1-Tank volume:24.6m³(can be made into 1-3 compartments)

2-Tank material：aluminum alloy; stainless steel；carbon steel

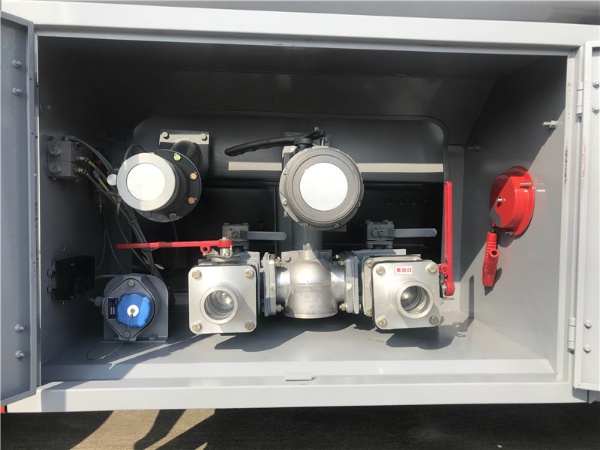

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.
5-You can choose to install different brands of flow meter.
6-Tank color: customized.

Product Name： Jiefang 6X2 24.6 cbm Fuel Tank Truck
Chassis brand： Jiefang

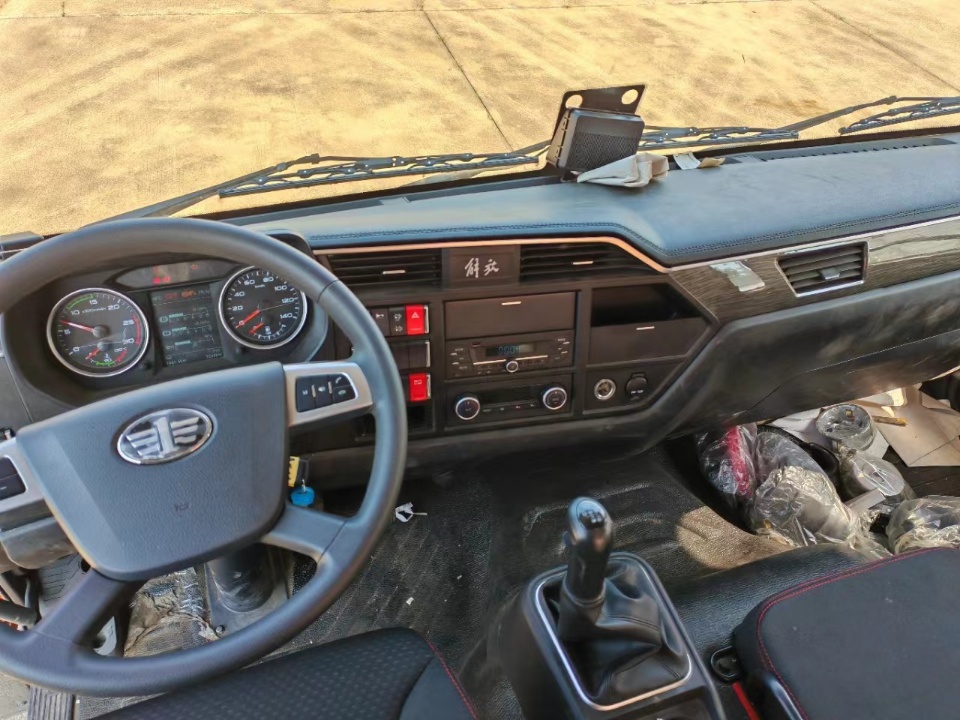

Cab： JK6 half-high roof with sleeping berth
Drive wheel： 6X2

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Main Parameter

Product Name	Jiefang 6X2 24.6 cbm Fuel Tank Truck
Chassis brand	Jiefang
Cab	JK6 half-high roof with sleeping berth
Drive wheel	6X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Xichai
Engine Model	CA6DLD-26E6
Horse Power (HP)	260
Engine displacement	6.6
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	8 forward gears and 1 reverse gear
Wheel base (mm)	1900+4700
Front wheel track (mm)	1946/1946,1965/1965
Rear wheel track (mm)	1878
Approach angle/departure angle	19/15(°)
F/R axle load	7000/7000/11500
Axle numbers	3
Tire Specification and Quantity	295/80R22.5-18PR, 8 with a spare
Vehicle dimensions (mm)	10150×2525×3730
Tank dimension(mm)	7200×2450×1750
Gross vehicle weight(Kg)	25500
Curb weight(Kg)	8900
Rated weight(Kg)	16470
Tank volume	24.6 cubic meter
Tank material	Aluminum alloy/stainless steel/carbon steel
Standard configuration	Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
