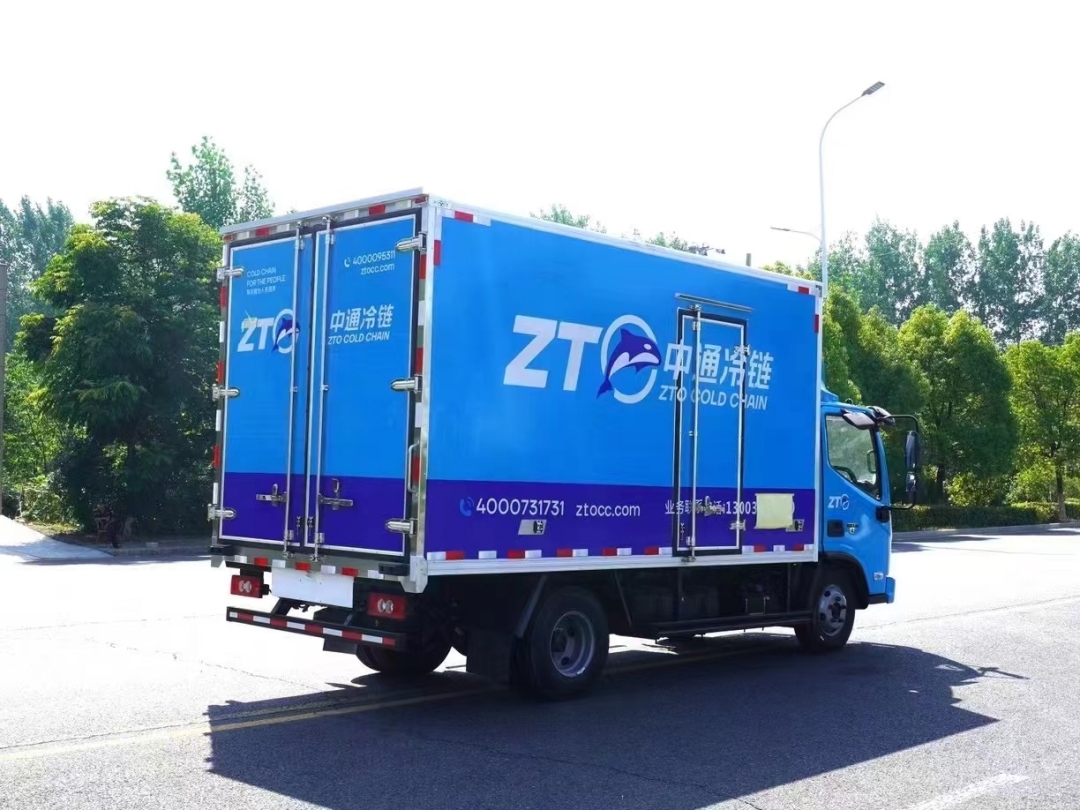

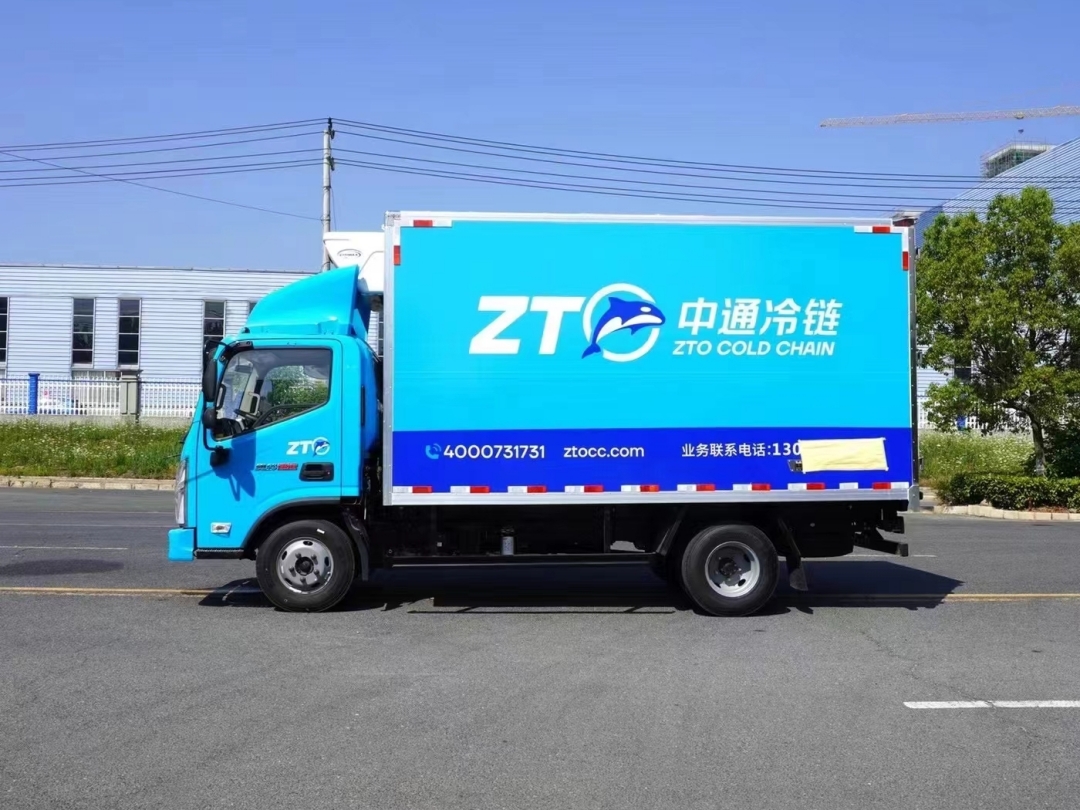

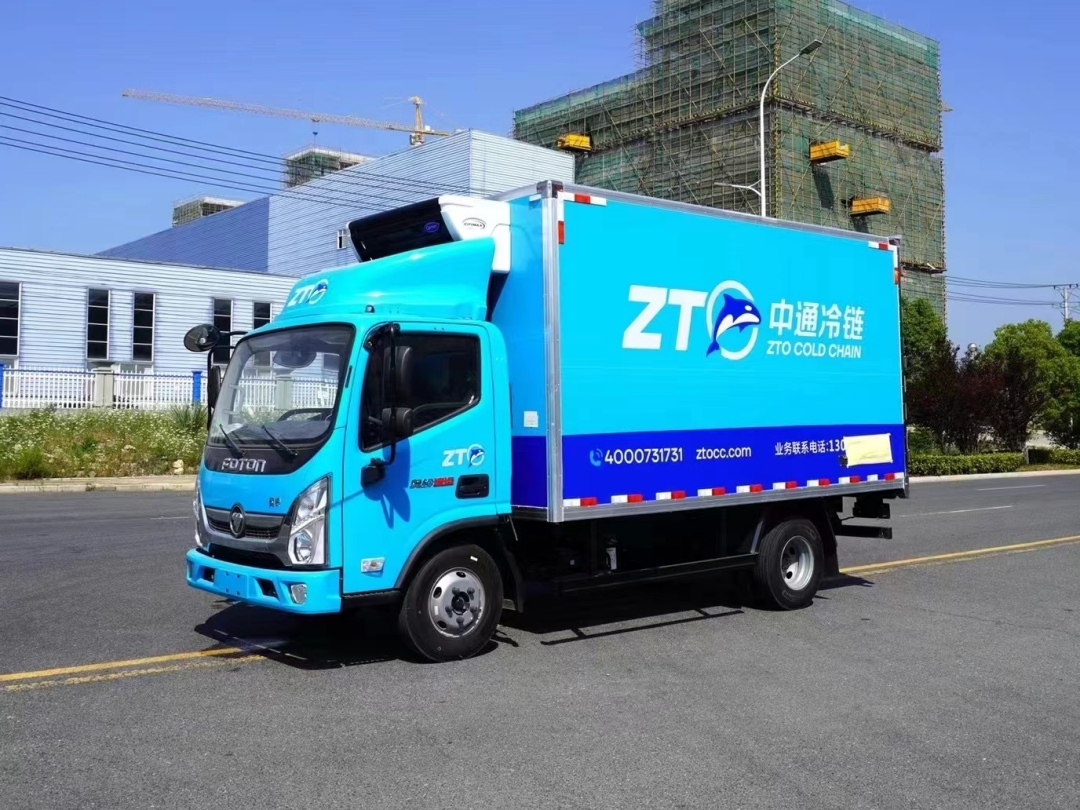

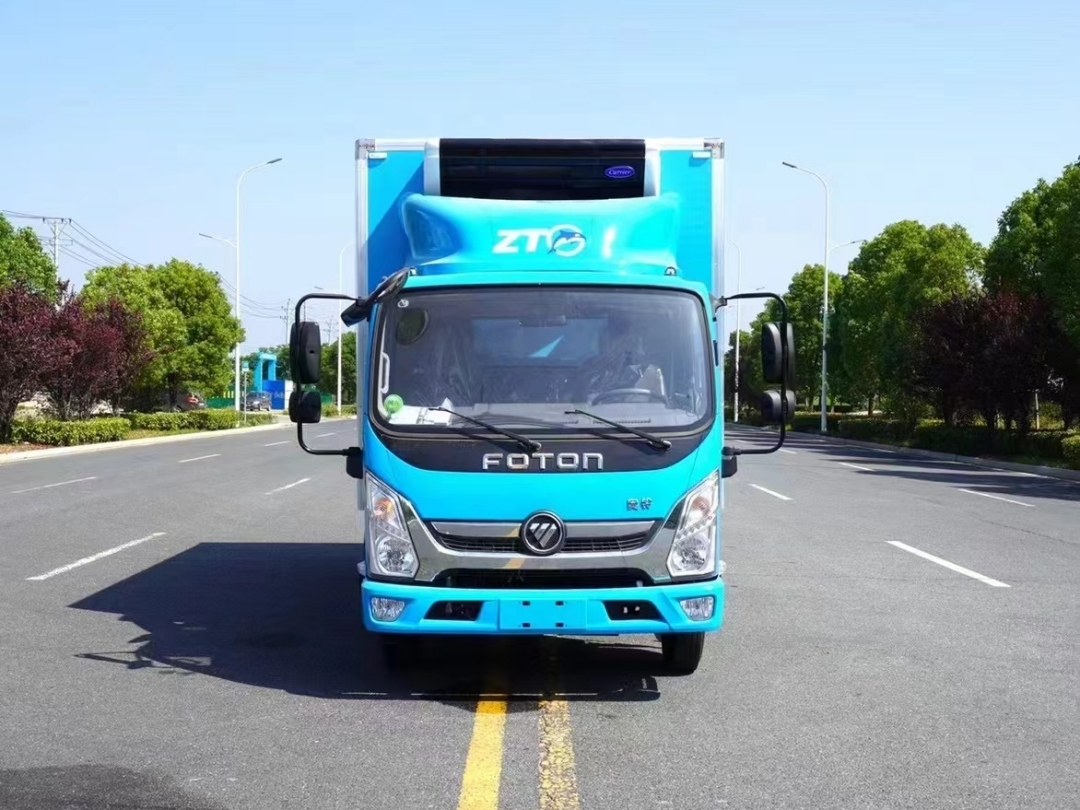

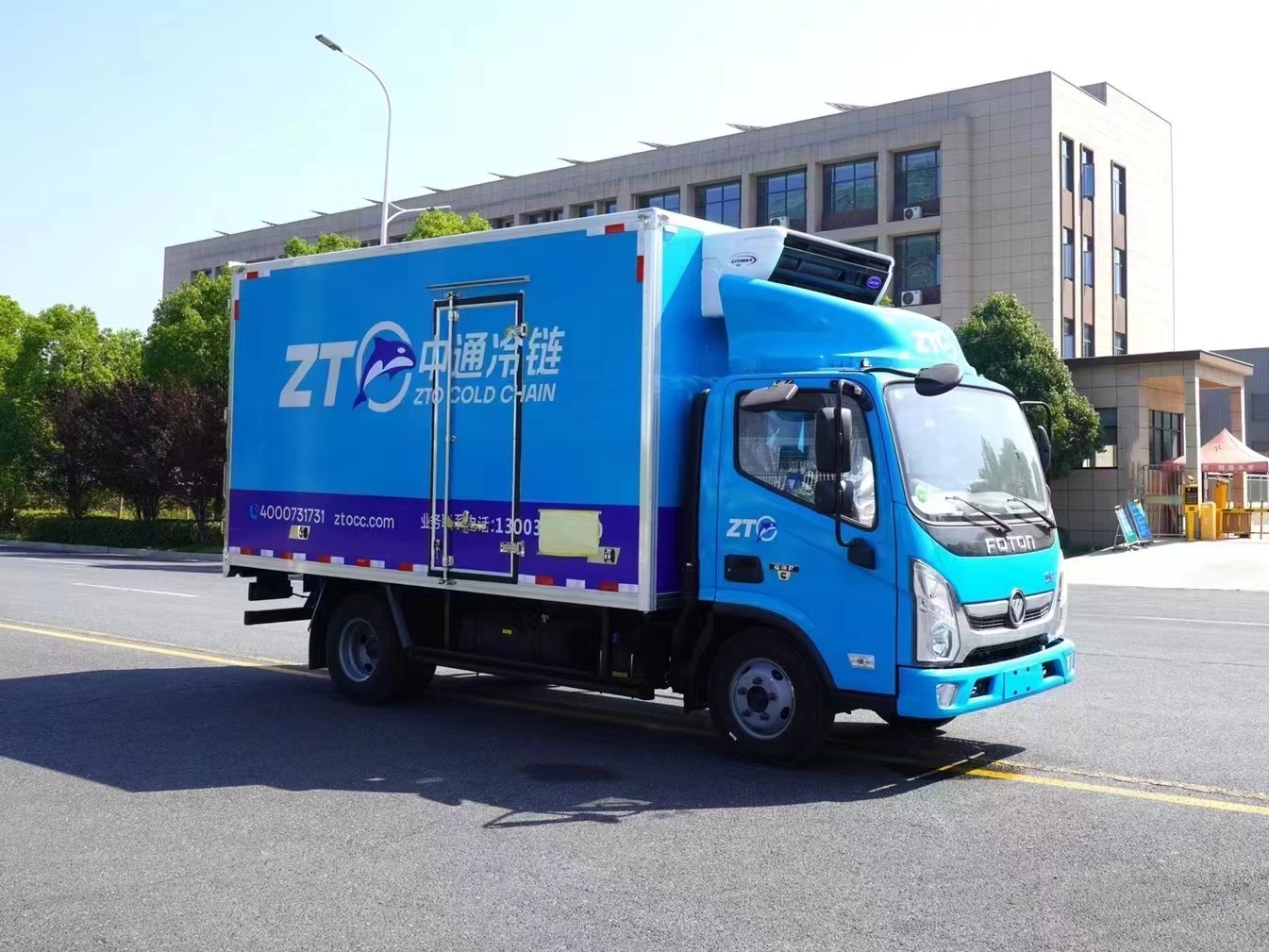

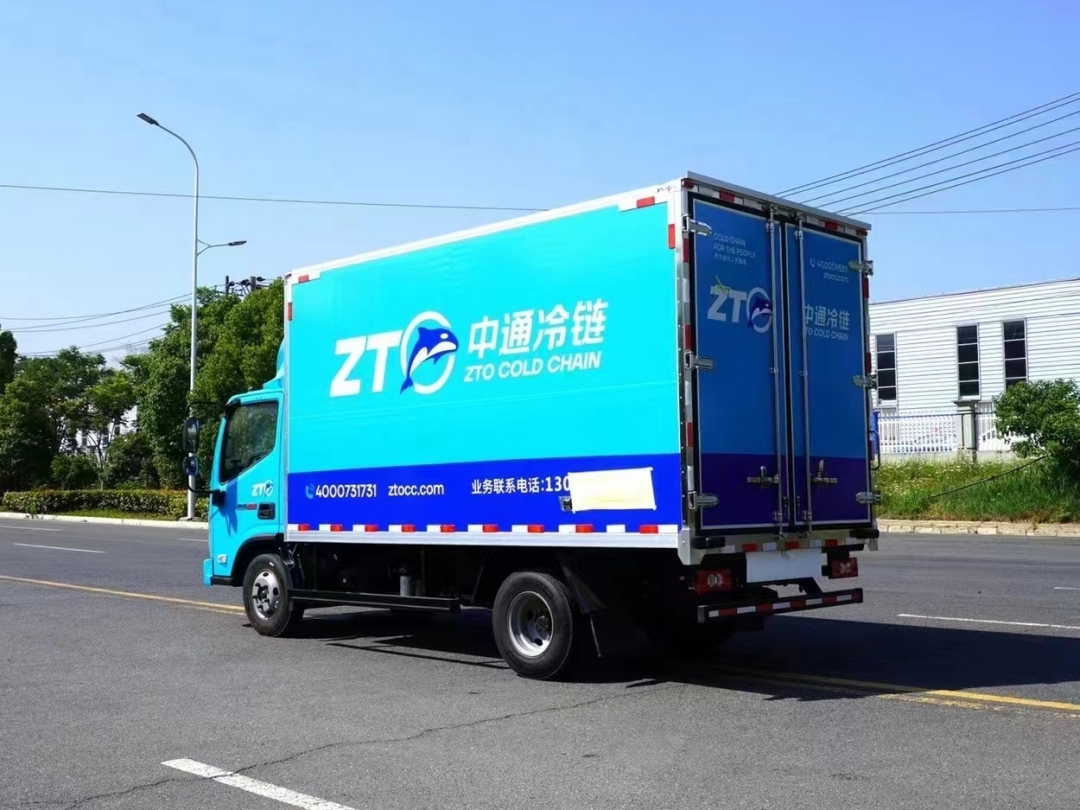

4X2 Foton Ollin refrigeration vehicle

Chassis configuration:

Mid to high end light truck transport, metal paint cab 7.00R16LT tire Kangji unique EBP fuel saving switch 5-speed ZF/Wanliyang gearbox 5-ton rear axle front headlight floor mirror power steering multifunction four-way adjustment steering wheel boneless wiper air conditioning cruise control direction assist air brake (with cut-off air brake) front wheel rear drum with WABCO ABS central control lock+electric glass+remote key brake self-adjusting arm automatic headlight with adjustable height National VI environmental protection standard car, wheelbase: 3360mm

Installation configuration:

1.The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin.

2.Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units

Product Name： 4X2 Foton Ollin refrigeration vehicle
Driving Type： 4X2
Total weight(kg)： 4495(Kg)
Curb weight(kg)： 3210(Kg)

Product Features

4X2 Foton Ollin refrigeration vehicle

Refrigeration vehicle is a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.

Refrigeration vehicle consists of the walking part of a specialized vehicle chassis, as well as insulation and thermal insulation compartment (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), refrigeration unit, temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, optional accessories such as meat hooks, cargo blocking troughs, aluminum alloy guide rails, ventilation troughs, etc. can be added.

Product parameters

Product Name	4X2 Foton Ollin refrigeration vehicle
Driving Type	4X2
Total weight(kg)	4495(Kg)
Curb weight(kg)	3210(Kg)
Rated weight(kg)	1090,1155(Kg)
Wheel base(mm)	3360(mm)
Overall Dimension(mm)	5995X2310X3250(mm)
Cargo box size(mm)	4080X2100X2100(mm)
Engine brand & model	F2.8NS6B131
Displacement(L)/Power(kw)	2.78L/96KW
Axle Quantity	2
Transmission Type	5-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16LT, 6+1 spare
Cab	Mid to high end light truck express, metal paint cab, front headlights, floor mirrors, power steering, multifunctional four-way adjustable steering wheel, boneless wipers, air conditioning, cruise control, directional assistance, air brake (with cut-off brake)
Cargo box configuration	The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin.

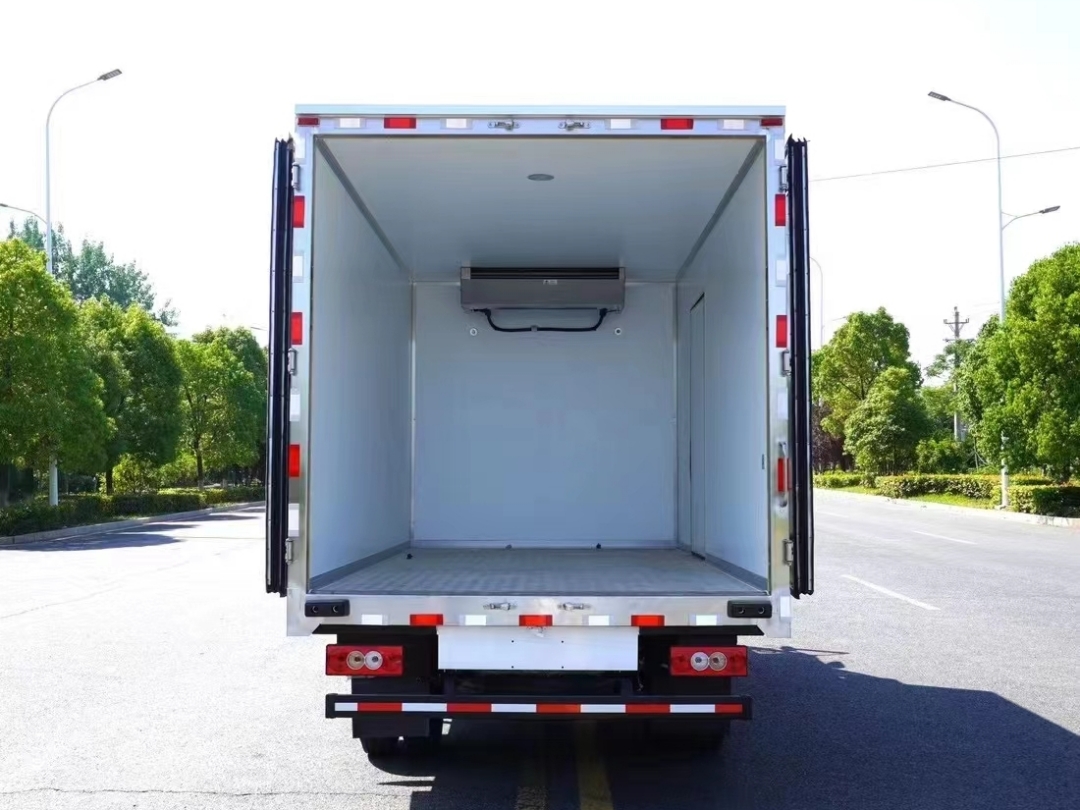

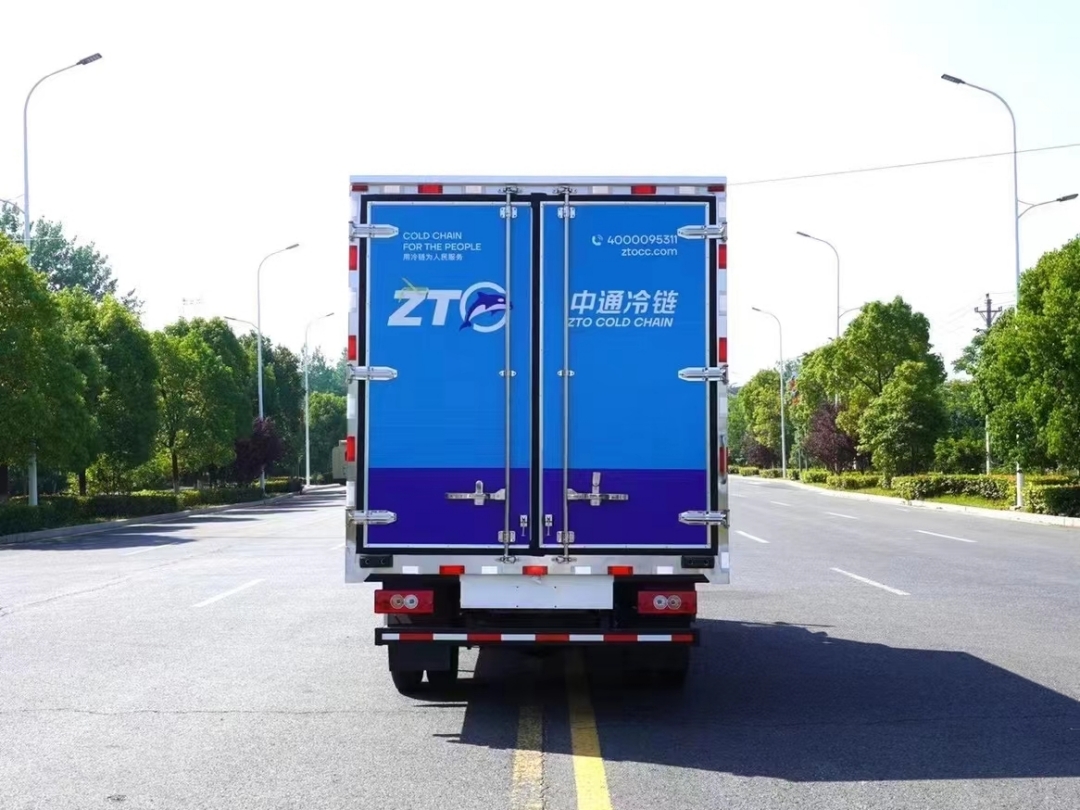

Compartment structure	Do not open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
Refrigerated Unit	Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units
Optional	The car can be equipped with an optional tailboard.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
