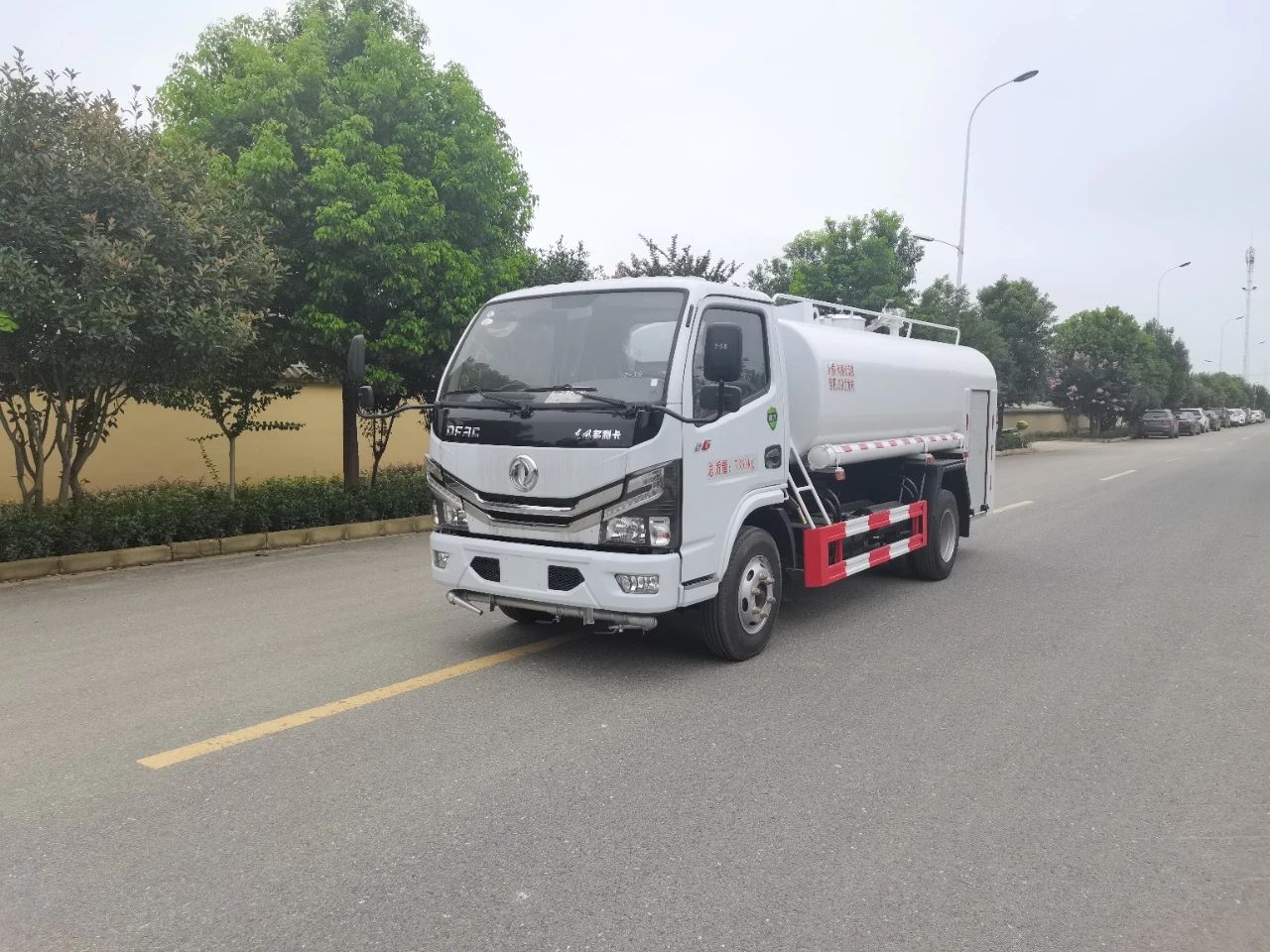

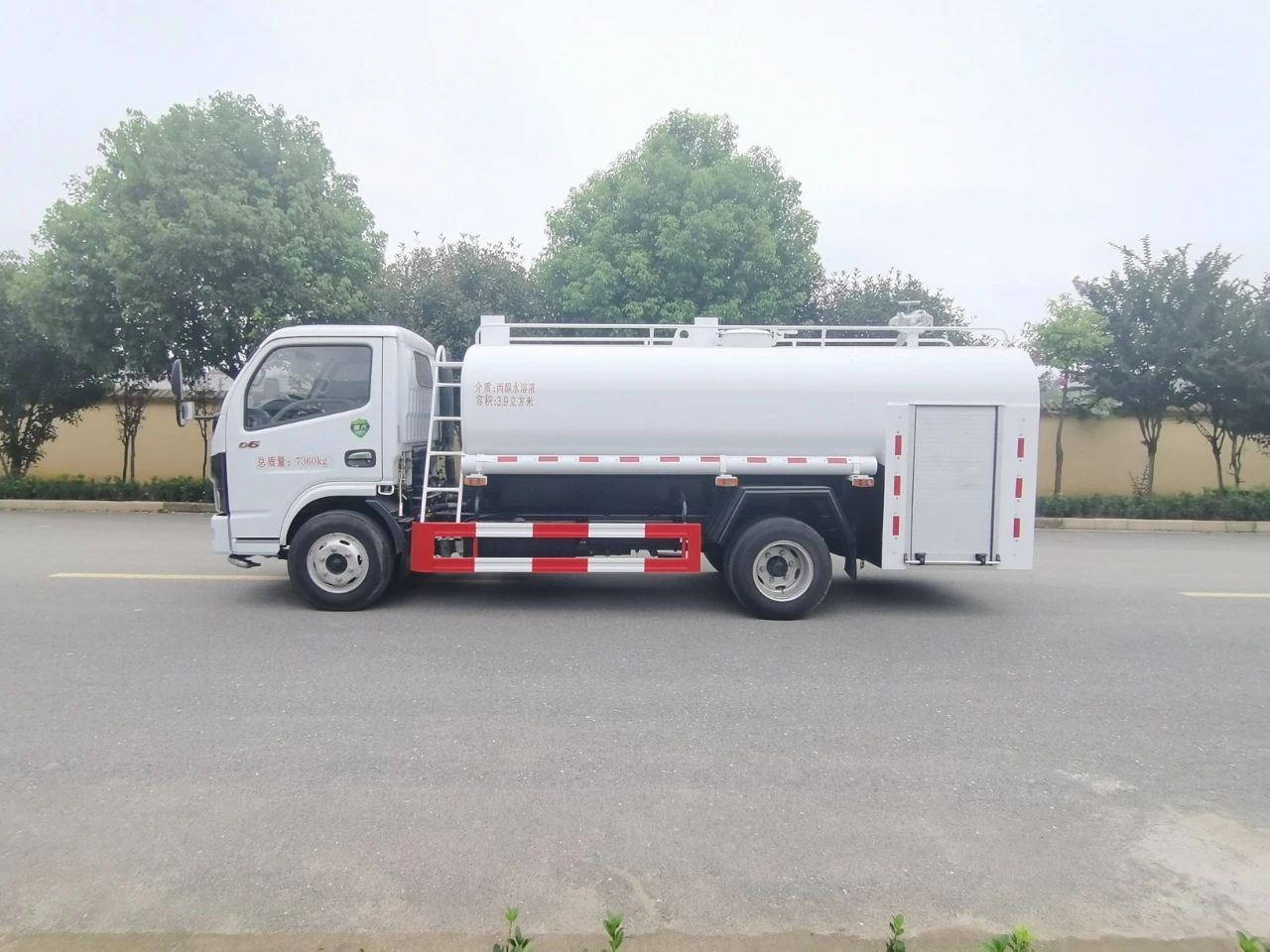

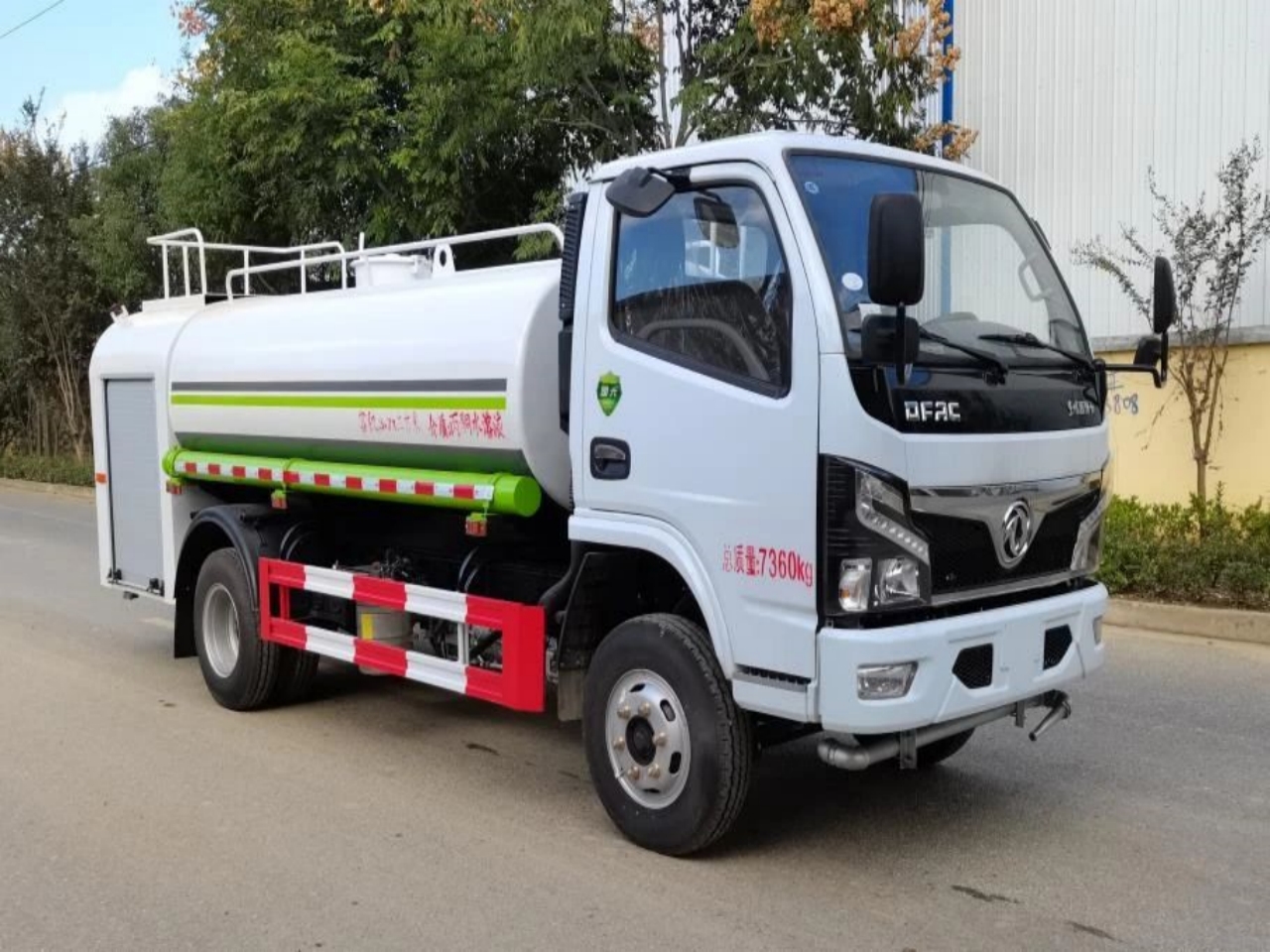

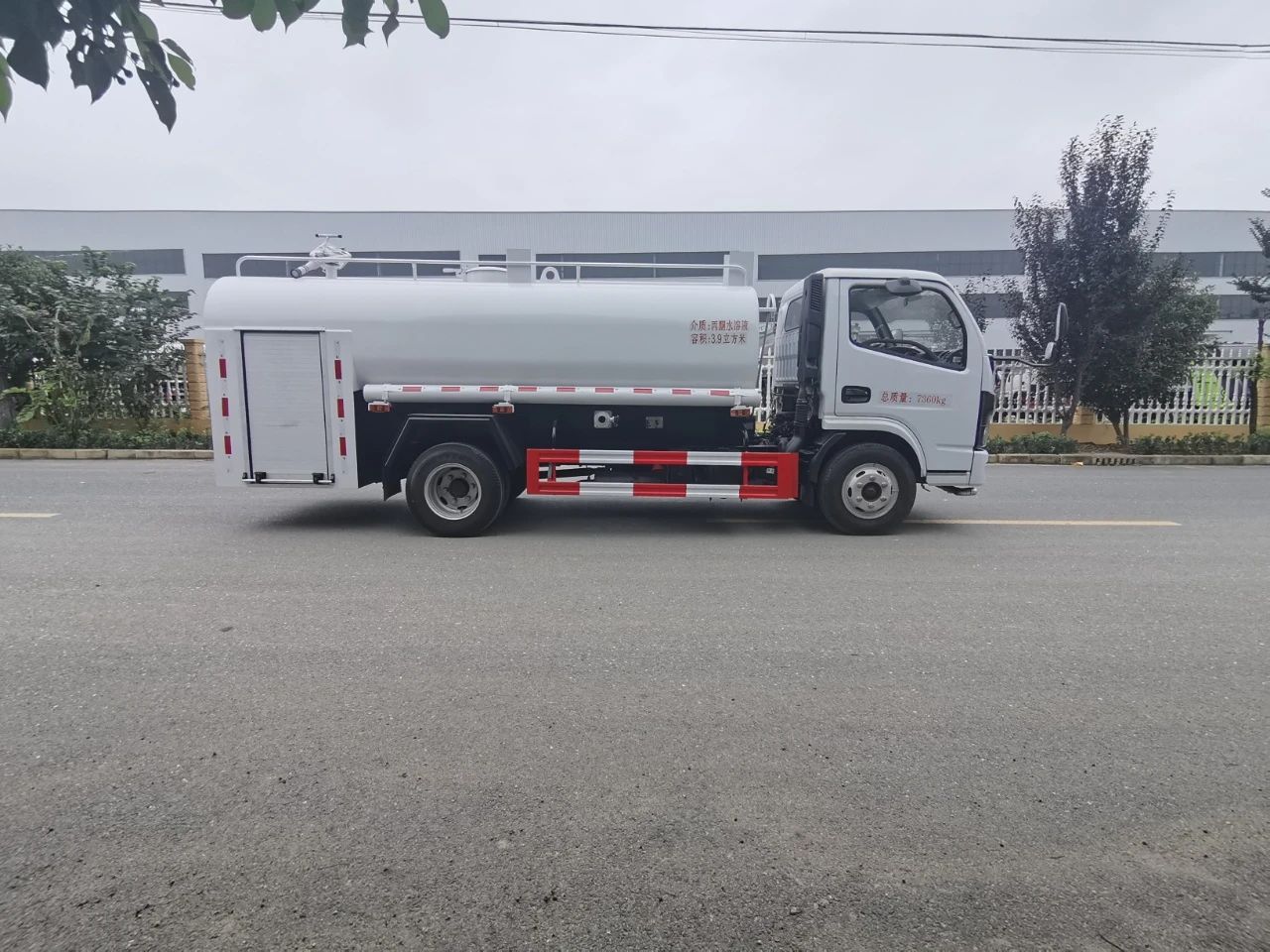

Dongfeng 4X2 4.5m³ fire sprinkler truck

Dongfeng Furuika single row 4.5-meter fire sprinkler truck chassis configuration:
Adopting Dongfeng Dorica D6S, chassis model: EQ1075SJ3CDF, cab 1730/single row, 3308mm wheelbase, front axle 2T, rear axle 3.5T. 7.00R16 steel wire tire, all diesel 115 horsepower (Q23-115E60), 85 power, National VI emission standard, standard with steering assistance, air brake, electronic shut-off, clutch assist/ABS, electric doors and windows, central locking, multifunctional steering wheel. National VI emission standard, Wanliyang 5-speed transmission (Wanliyang 5GT32), air conditioning electric windows, ABS, and air brake.
Dongfeng Furuika single row 4.5-meter fire sprinkler installation configuration:

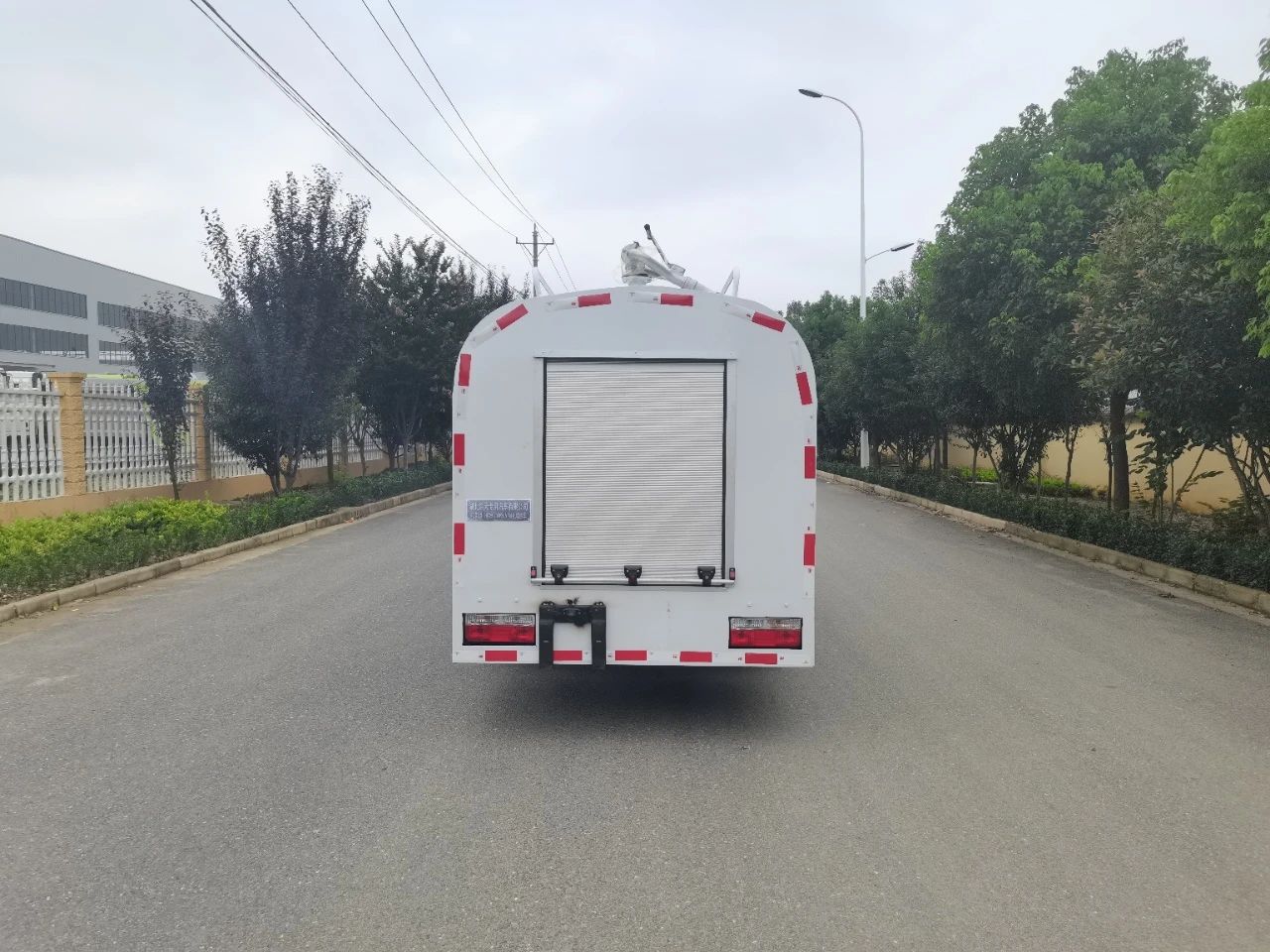

1. 3308 wheelbase, small Dorica fire sprinkler (rear Boli 20 pump) fire appearance, rear fire compartment curtain door.

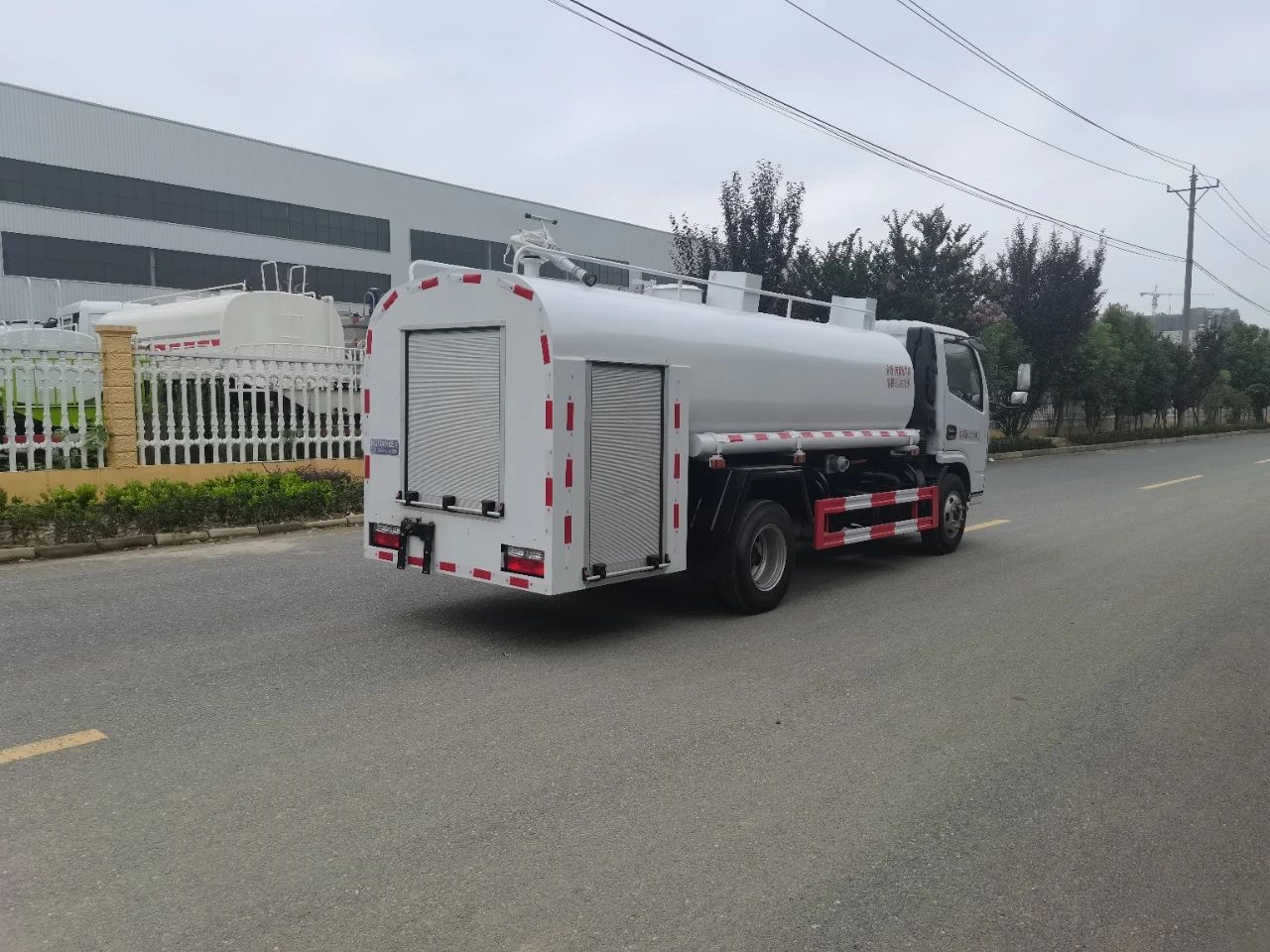

2. The material is made of high-quality carbon steel Q235, and the equipment compartment door is made of aluminum alloy curtain door. It is guided by rollers and sliding grooves, with easy opening and closing and low noise. Equipped with a control box, pressure gauge, and standard fire sprinkler truck without a low-pressure water pump, the front flushing and rear spraying are driven by a high-pressure pump.

Product Name： Dongfeng 4X2 4.5m³ fire sprinkler truck
Driving type： 4X2
Engine Model： Q23-115E60
Engine horsepower： Quanchai 115hp

Product Features

Fire sprinkler truck, also known as dual-purpose fire sprinkler truck, dual-purpose fire sprinkler truck, forest fire sprinkler truck, school fire sprinkler truck, airport fire sprinkler truck, community fire sprinkler truck, street and township and rural fire sprinkler truck. It is a dual-purpose vehicle that combines a fire truck and a sprinkler truck. It is located between a fire truck and a sprinkler truck and has the purpose of integrating fire and sprinkler functions. Although it lacks an equipment box compared to a fire truck, it has the same range as a fire truck and the same firefighting function.

Parameters

Product Name	Dongfeng 4X2 4.5m³ fire sprinkler truck
Driving type	4X2
Engine Model	Q23-115E60
Engine horsepower	Quanchai 115hp
Engine displacement	2.3L
Gearbox	Wanliyang 5-speed gearbox
Tire specification	7.00R16, 6+1 spare
Wheel base (mm)	3308(mm)
Gross vehicle weight(Kg)	7360(Kg)
Curb weight(Kg)	3700(Kg)
Rated weight(Kg)	3530,3465(Kg)
Vehicle dimensions (mm)	6120,5755,5505×2000,2100×2420(mm)
Tank volume(cbm)	4.5
Fuel type	diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Water pump model	Rear mounted Boli 20 pump
Tank material	Q235 carbon steel,5mm
Additional configuration	Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
