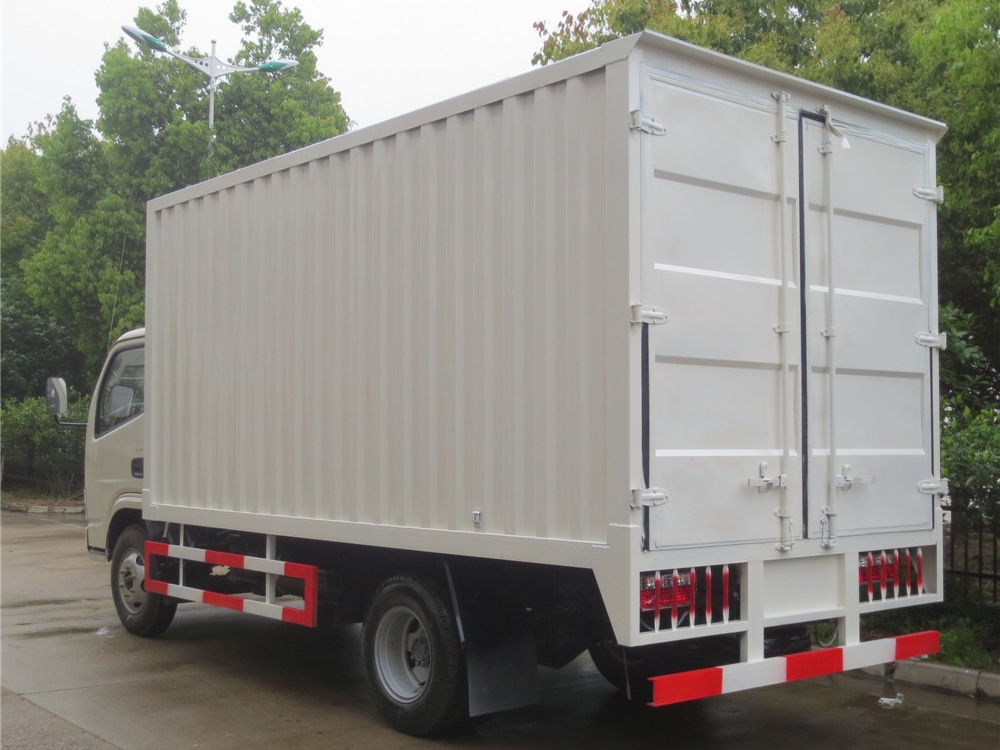

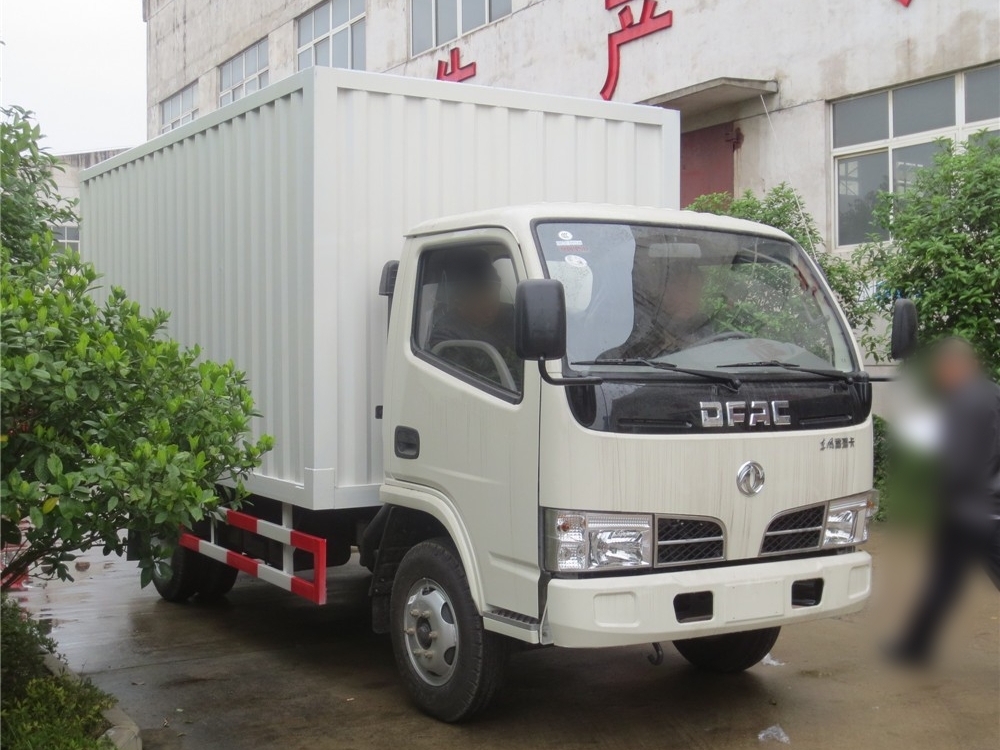

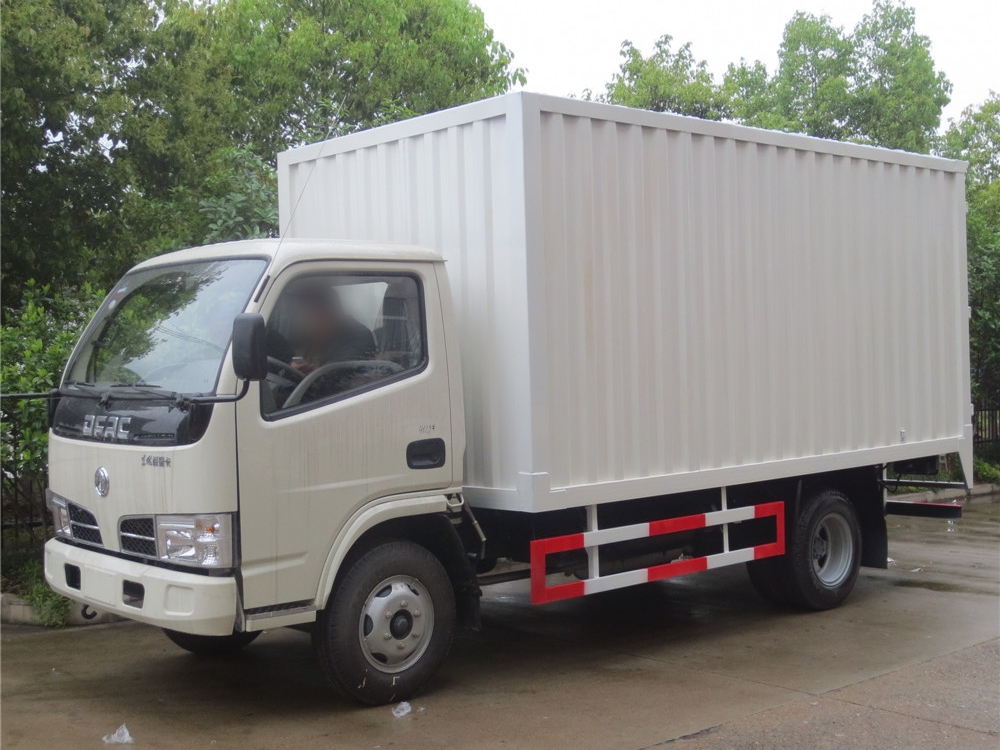

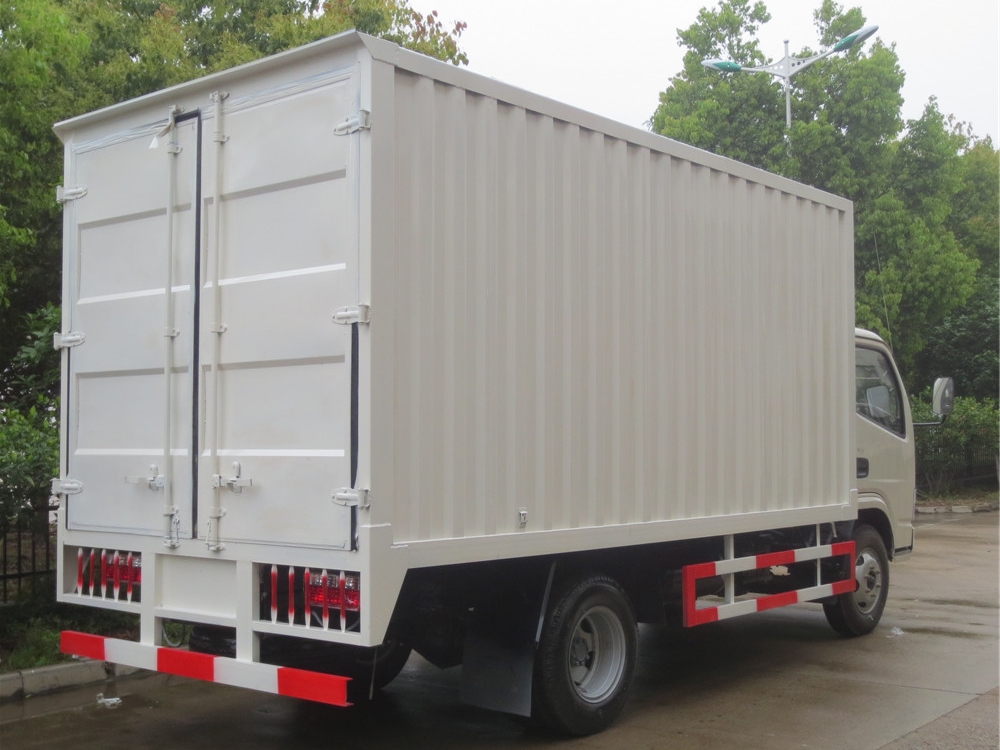

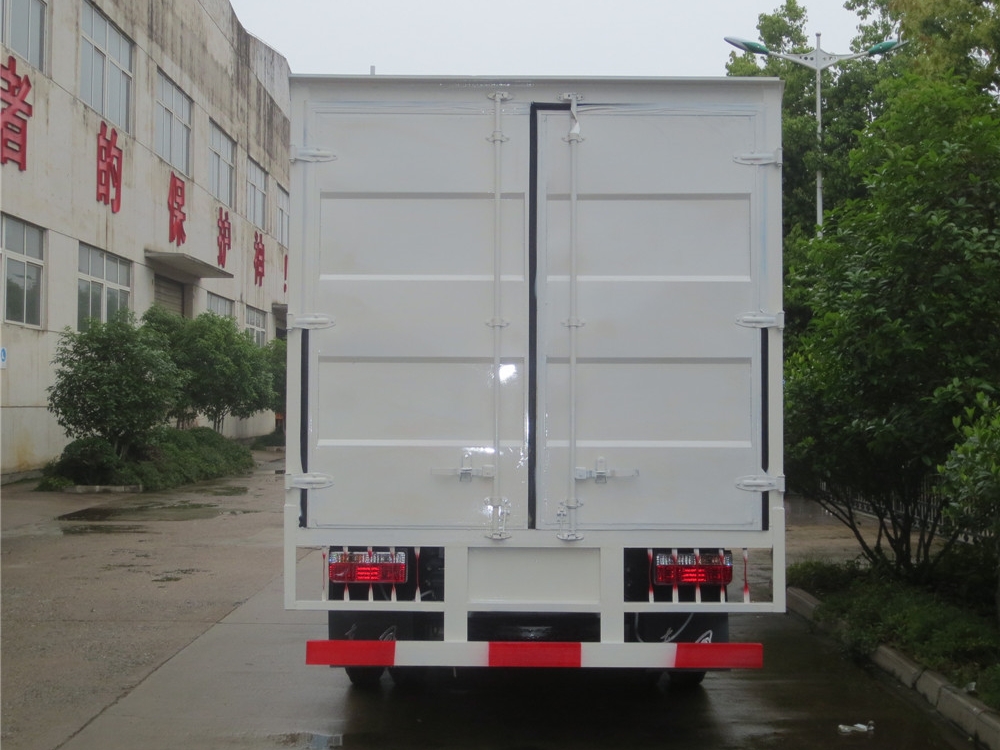

4x2 Dongfeng 5 Ton Cargo Van Truck

Chassis brand Dongfeng

Product origin China, Hubei

Delivery time around 10 working days

Supply capacity 2,000 units one year

Van truck applies to transport all kinds goods or merchandise, usually the van type is closed van. Closed van truck can keep the good safety and avoid the goods from rain or snow.

Van truck can be matched with all truck chassis brand from China and world. The chassis brand can be Changan, Jingbei, Dongfeng, foton, forland,s hacman, Howo, lVECO Yuejing, (Qingling) lsuzu, etc.

We can customize the stake height and structure layout according to the end user use condition.

Product Name： 4x2 Dongfeng 5 Ton Cargo Van Truck
Driving type： 4X2/4x4
Weight /Volume： As follows
Stake box volume(cbm)： 20

Product Features

4x2 Dongfeng 5 Ton Cargo Van Truck

A box truck, also known as a box truck, is mainly used for fully sealed transportation of various goods. Special types of box trucks can also transport hazardous chemicals. It has the advantages of maneuverability, easy operation, high work efficiency, large transportation volume, full utilization of space, safety, and reliability.
Body material
Box trucks can use:
① Iron tile ridge
② Color steel plate
③ Aluminum flat plate
④ Aluminum alloy corrugated
⑤ Foam insulation box type
Van type trucks can be selected from: rear door, left and right door, fully enclosed, semi enclosed, and storage rack

Main Parameter

Product Name	4x2 Dongfeng 5 Ton Cargo Van Truck
Driving type	4X2/4x4
Weight /Volume	As follows
Stake box volume(cbm)	20
Rated weight(kg)	5000
Dimmensions	As follows
Wheel base(mm)	3300
Overall Dimension(mm)	5995x2420x3180
Van body dimension(mm)	4170x2300x2100
Engine	As follows
Engine brand & model	DONGFENG CHAOYANG & CY4100Q
Engine type	4 stroke, water-cooled, straight line 4 cylinders, diesel
Displacement(L)/Power(kw)	3.707/60
Chassis	As follows
Axle Quantity	2
Transmission Type	5 forwards,1 reverse gear, manual
Brake system	Air brake
Tire Spec. & size	7.00R16, 6 with a spare
Cab	Flat proof, single row ,radio,electric glass, central lock, air conditioner
Performance parameter	As follows
Box stake material	Q235 carbon steel +lron corrugated
Van type	Closed top type
Warm prompt	The above information is for reference only, and vehicles can be customized depending on your requirements.
