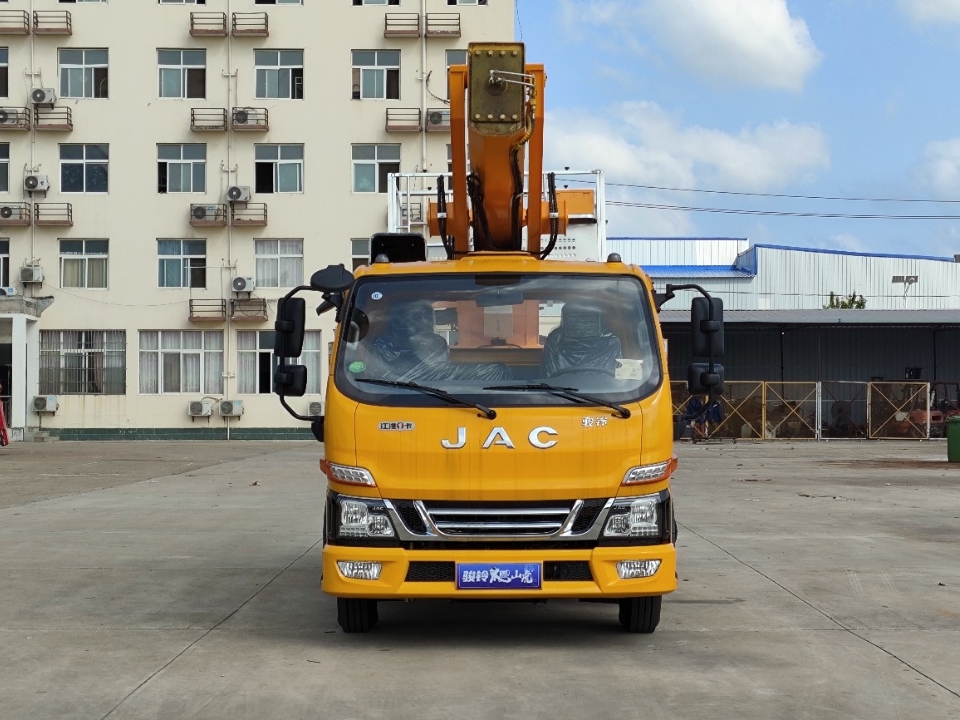

JAC Junling 4X2 30m aerial work vehicle

Chassis configuration:

1.Cab: Junling V5 (wide body 1920mm, 3-seater)
2.Engine: Quanchai Q25N high-end series, 152 horsepower, 2.5-liter large displacement, maximum torque 450nm
3.Transmission: 6-speed (three cone synchronizer)

4.Wheelbase: 3600mm
5.Frame: 180 original double-layer beam
6.Axle: front axle 3.3T, rear axle tonnage 6.5T, rear axle 60000 km maintenance free ultra wide
7.Track width : Fronttrack width1590mm/reartrack width1620mm,
8.Tire: 700R16 large tire, optional 7.50R16 large tire

Product name： JAC Junling 4X2 30m aerial work vehicle
Overall Dimension： 5995×2030×3135,3300(mm)
Gross vehicle weight： 4485(Kg)
Curb weight： 4290,4355(Kg)

Product Features

JAC Junling 4X2 30m aerial work vehicle

Aerial work vehicle refers to a specialized vehicle used to transport workers and equipment to the site for aerial operations.

Installation configuration:
1.8-meter telescopic 2.2-meter suspended basket, 21 inch rotation, 9-inch rotation on bucket, 220V inverter, soft leg alarm, dual battery with anti-theft, hydraulic oil tank radiator, imported balance valve, imported oil pipe turntable!

Technical parameters

Product name	JAC Junling 4X2 30m aerial work vehicle
Overall Dimension	5995×2030×3135,3300(mm)
Gross vehicle weight	4485(Kg)
Curb weight	4290,4355(Kg)
Rated weight	/
Rated load of working platform	200(Kg)
Maximum working height	30m
Cab	Junling V5 (wide body 1920mm, 3-seater)
Engine	Q25-152E60, 152hp
Emission standard	Euro 6 (Euro 3/4/5 can be customized.)
Gearbox	6-speed gearbox
Drive wheel	4X2
Steering wheel	Left/right hand driving
Seat capacity	2-3 person
Wheel base	3600(mm)
Axle quantity	2
Tire Specification and Quantity	7.00R16LT 8PR, 6+1 spare
Notice	The above information is for reference only. Trucks can be customized according to customer needs.
