Altitude Operation Truck

JMC 16-meter double row aerial work platform

Chassis configuration:

National VI Jiangxi Isuzu 115 horsepower; 3360mm wheelbase, double row cab with air conditioning, steering assistance, electric door and window central locking, ABS, multifunctional steering wheel.




  • Product name: JMC 16-meter double row aerial work platform
  • Overall Dimension: 6905,7595×1980×3080(mm)
  • Gross vehicle weight: 6050(Kg)
  • Curb weight: 5725(Kg)

Product Features

JMC 16-meter double row aerial work platform

1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.

2.high-platform operation truck is high efficience and great performance with good safety.

3.The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.

Installation configuration:
1)The maximum working height is 16 meters, with three folding arms and front and rear H-shaped legs that can be linked or adjusted separately.

2)The legs are equipped with flashing lights, steel toolbox, stainless steel fence, patterned anti-skid walking platform, work bucket and turntable have dual working positions, up and down operation, electro-hydraulic control, and the work arm can rotate 360 degrees.

3)The vehicle is equipped with two-way hydraulic locks, two-way balance valves, hydraulic cylinders and other main components, all of which are well-known domestic brands, ensuring smooth reversing.

Technical parameters

Product name JMC 16-meter double row aerial work platform
Overall Dimension 6905,7595×1980×3080(mm)
Gross vehicle weight 6050(Kg)
Curb weight 5725(Kg)
Rated weight /
Rated load of working platform 200(Kg)
Maximum working height 16m
Cab Double row cab with air conditioning steering assistance, electric door and window central locking, ABS, multifunctional steering wheel.
Engine model and horsepower National VI Jiangxi Isuzu 115 horsepower
Emission standard Euro 6 (Euro 3/4/5 can be customized.)
Gearbox 5-speed gearbox
Drive wheel 4X2
Steering wheel Left/right hand driving
Seat capacity 2-3 person
Wheel base 3360(mm)
Axle quantity 2
Tire Specification and Quantity 7.00R16LT 12PR,7.00R16LT 14PR, 6+1 spare
Upper configuration Three folding arms, front and rear H-shaped legs, can be linked or adjusted separately
Notice The above information is for reference only. Trucks can be customized according to customer needs.

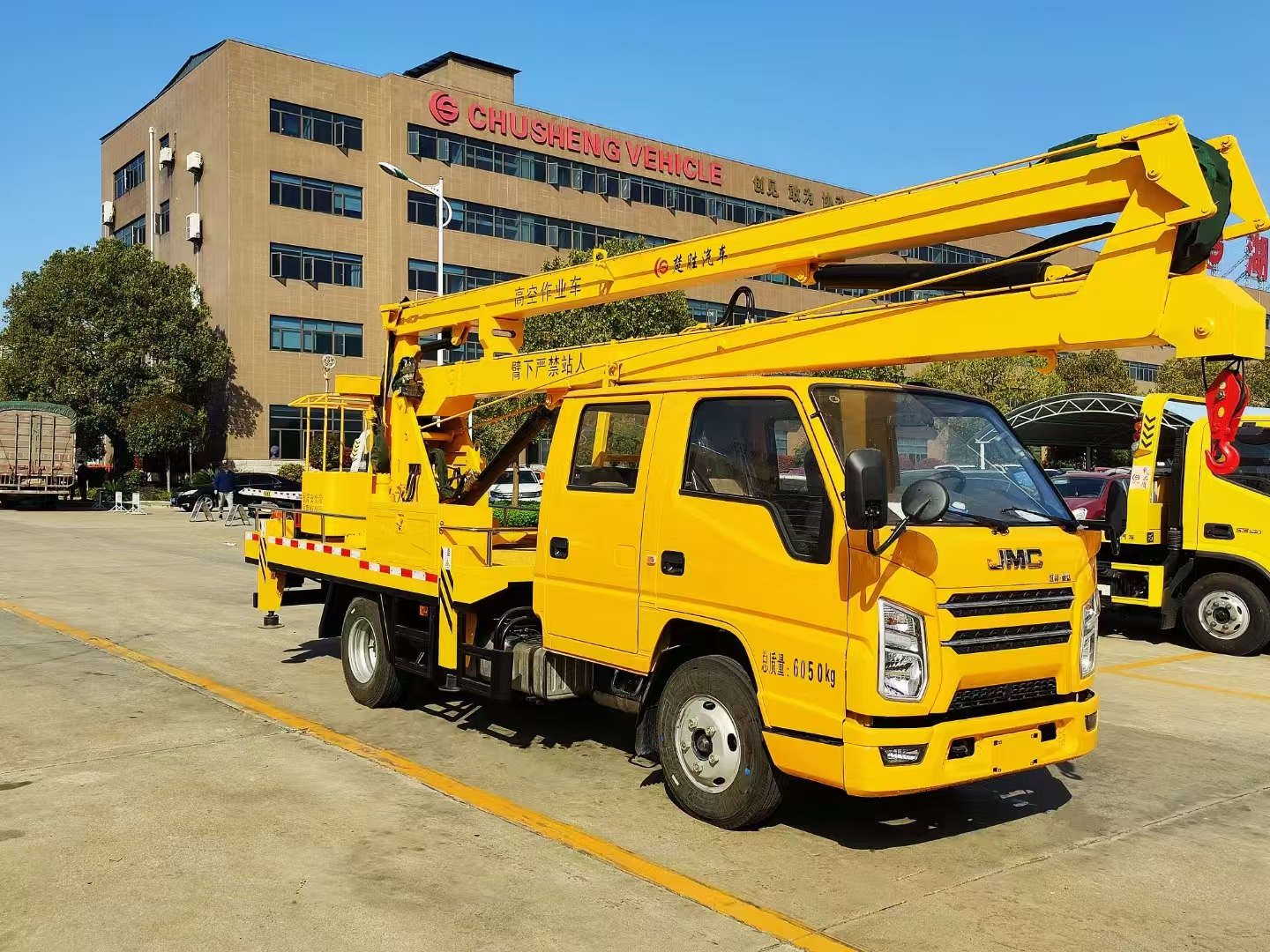

Vehicle pictures
